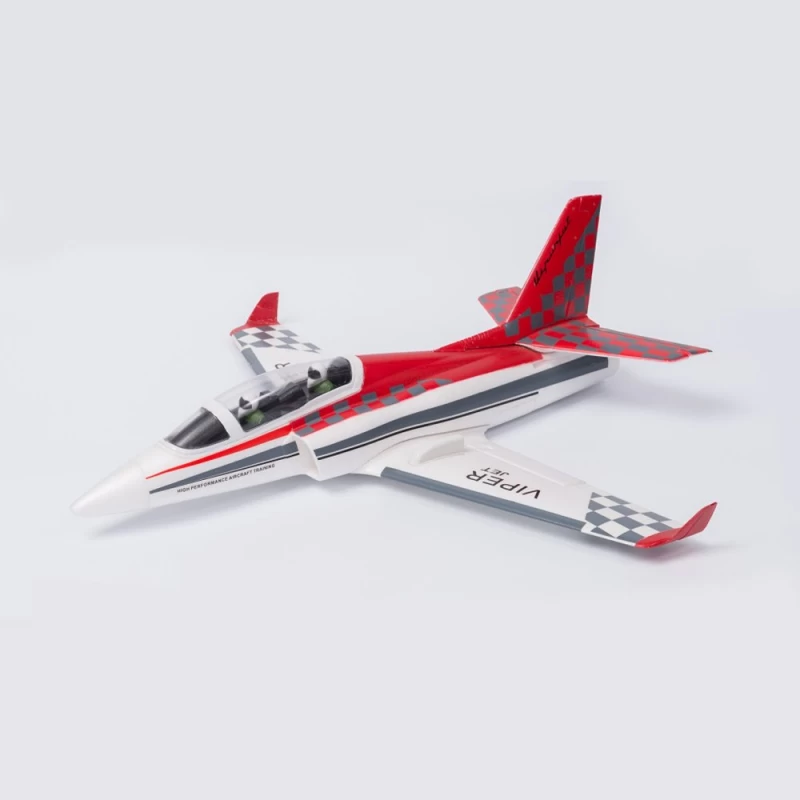

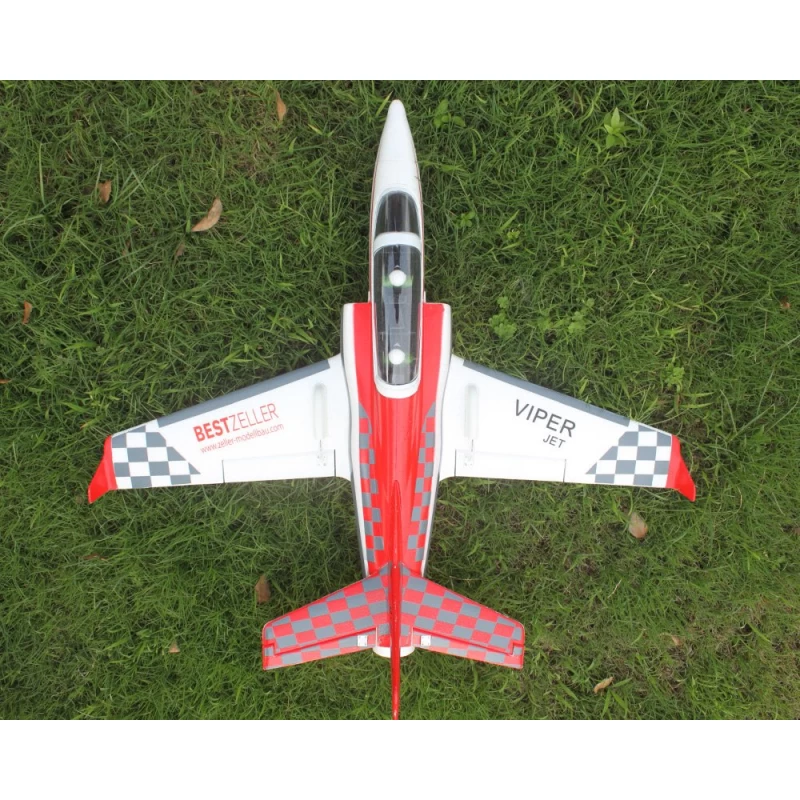

Xane Viper 50mm EDF JET PNP
Description
Equipped with a 50mm turbine, an Outrunner 4300Kv brushless motor and a 20A Brushless controller, the Xane Viper Jet PNP model is a miniature jet offering acrobatic performance and moments of pleasure in flight for all types of pilots.
The Xane Viper 50mm is a Park Flyer RC airplane type that is relatively small, lightweight and easily maneuverable. Small size but lots of fun!
Features
- Powerful 4300Kv brushless motor
- Highly efficient 50mm EDF unit
- Reliable 20A ESC
- EPO Simple lightweight design for extended flight times
- Highly-attractive trim scheme for maximum visibility in the air
- Easy hand launching
- Uncompromised performance despite being budget friendly
Technical Specifications
- Wingspan: 717mm / 28.23in
- Length: 652mm / 25.67in
- Flying weight: around 330g
- Ailerons: Yes
- Elevator: Yes
- Rudder: No
- Flaps: No
- Recommended Radio: 4 channel
- Recommended environment: Outdoor
- Takeoff: Hand launching
- Flying time: nc
- Mounting duration: 15 minutes
Content
- Xane Viper 50mm EDF JET PNP
- EDF: 50mm
- Motor: Brushless Outrunner KV4300
- ECS: Brushless 20A
- Servos: 2x8g
Required
- 4-Channel radio transmitter
- 4-Channel receiver
- 3-Cell 11.1V 850mAh LiPo battery 20C
- 3-Cell compatible battery charger
Data sheet
| Type of kit: | PNP |
| Wingspan (mm): | 717mm / 28.23in |
| Length (mm): | 652mm / 25.67in |
| Flying weight (gr) | around 330g |
| CG (Center of Gravity) | Check manual |
| Servos | 2x8g |
| EDF Diameter Class (mm): | 50 |
| Power System | Brushless KV4300 |
| Motor Type: | Out-Runner |
| Electronic Speed Control | 20A |
| Battery Type | LiPo-Accu |
| Battery Cells: | 3s – 11.1v |
| Battery Capacity (mAh) | 850 mAh |
| Surfaces | Ailerons, Elevator |
| Landing Gear | None – belly lander |
| Material | EPO Foam |
| Build time | 15 minutes |
| Required Radio | 4 channels minimum |
| Recommended pilot skill level | Beginner, Intermediate |
