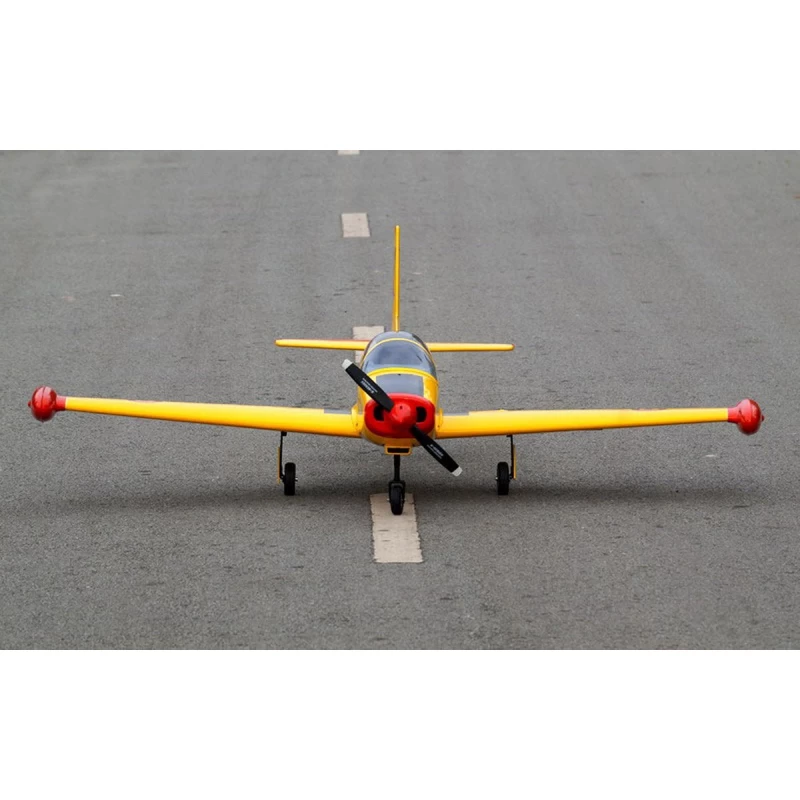

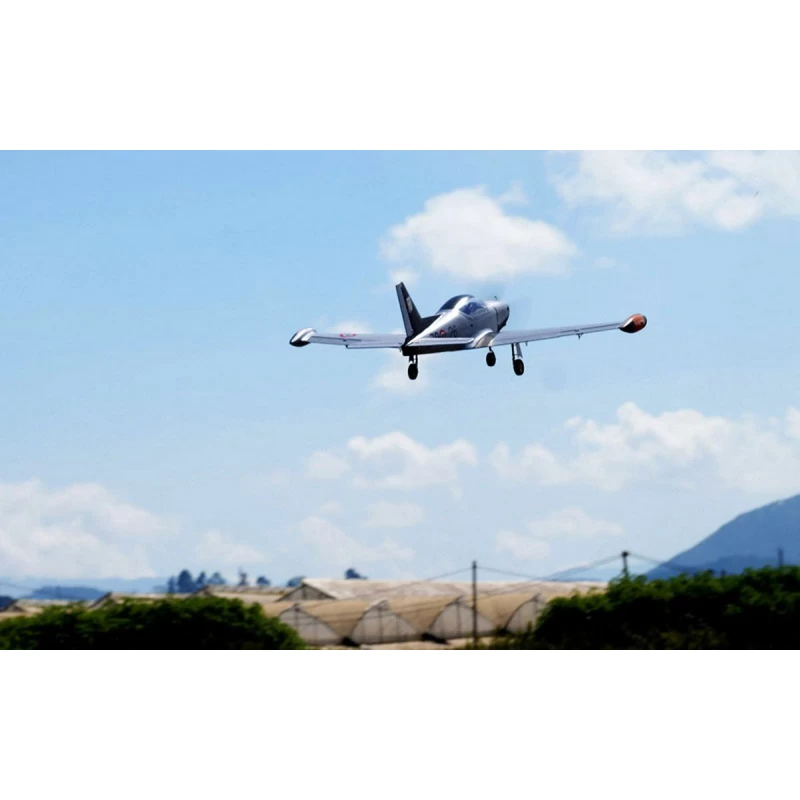

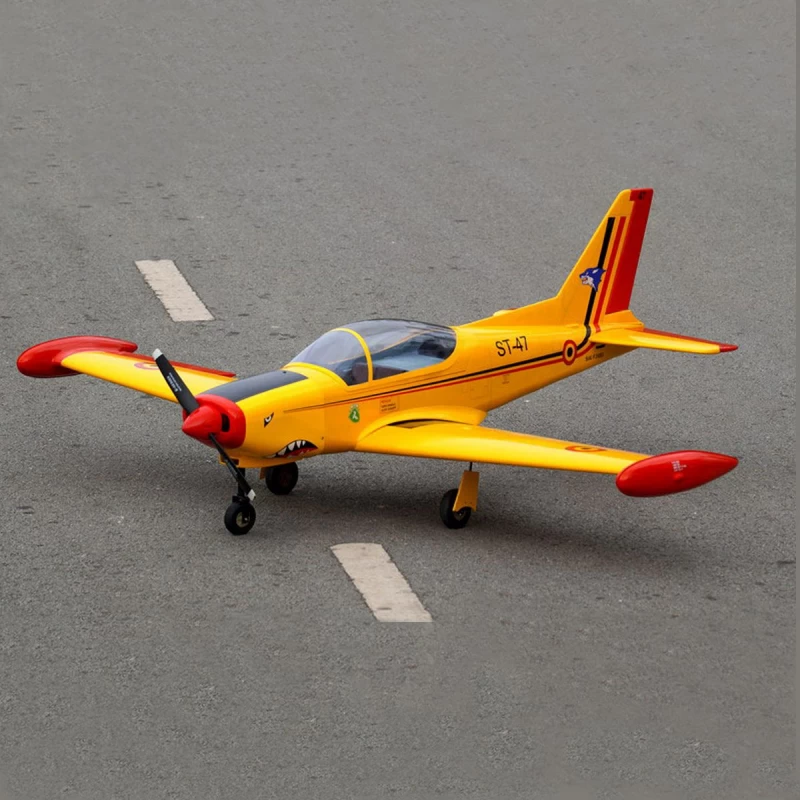

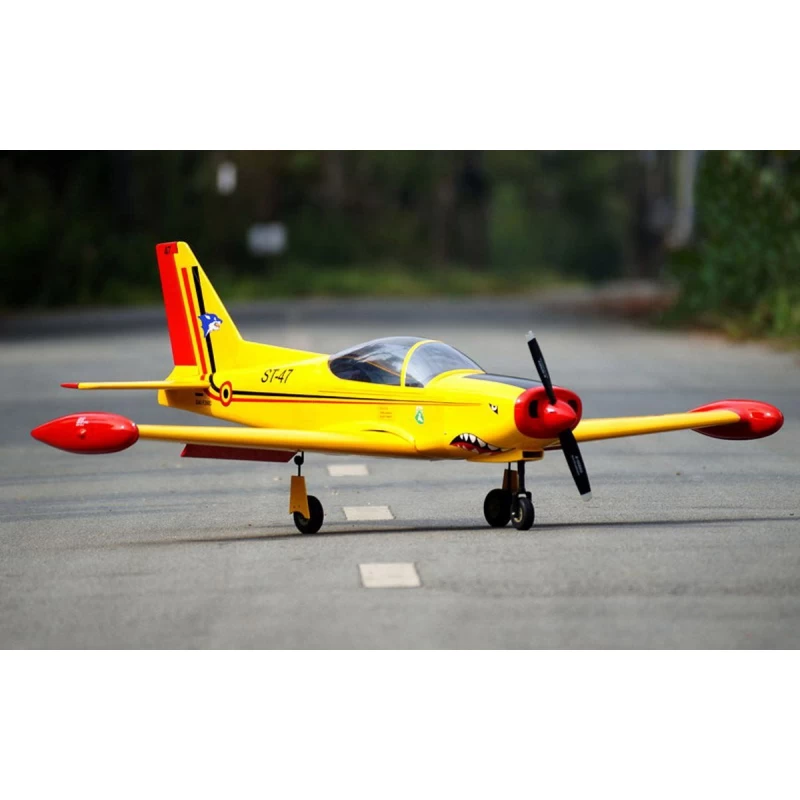

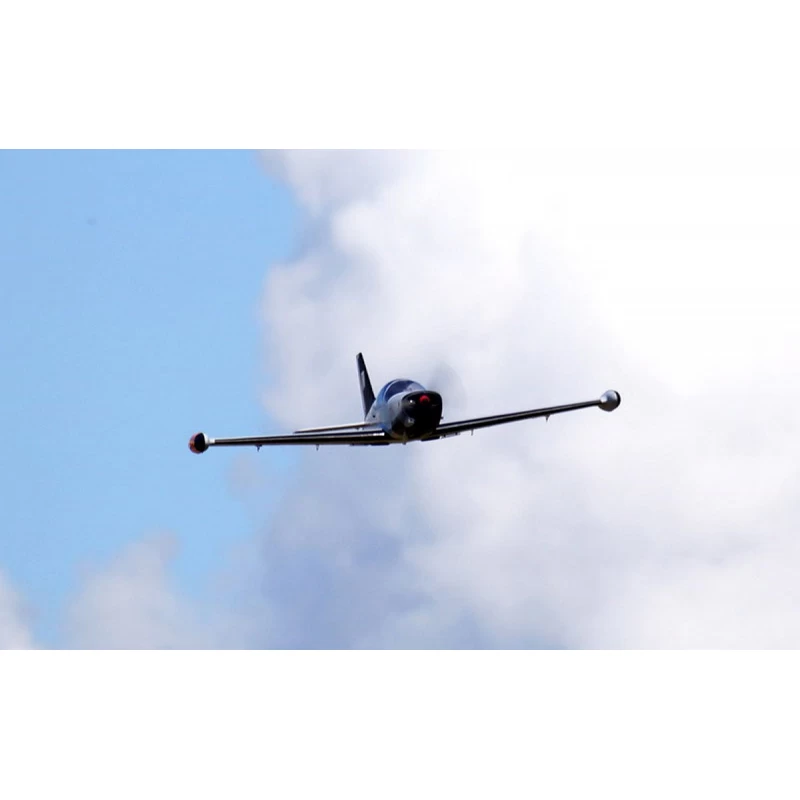

VQ SIAI Marchetti SF-260 1630mm ARF (Yellow)
VQ Introduces the SIAI Marchetti SF-260 1630mm EP-GP as a super scale series (3S) . This model comes with 2 scale flap, 1 x Plastic pilot seat, antena. With the big battery hatch The model can be equipped with electric or combustion motors.
The SIAI-Marchetti SF.260 (now Leonardo SF-260) is an Italian light aircraft which has been commonly marketed as a military trainer and aerobatics aircraft.
The SF.260 was designed by Italian aircraft designer Stelio Frati, while production work originally performed by Milan-based aviation manufacturer Aviamilano. On 15 July 1964, the first prototype performed its maiden flight (then designated F.260). Shortly thereafter, responsibility for production was transferred to SIAI Marchetti, who had purchased the rights to the design; manufacturing continued to be performed by this firm until the company was bought by Aermacchi in 1997.
Features
- All Balsa and lite-ply construction
- Fully covered in weathered detail
- Fiberglass cowling
- Painted Canopy
- Plastic pilot seat
- Control surfaces pre-hinged and installed
- Large battery access hatch
Technical specifications
- Wingspan: 1630mm (64.1in)
- Length: 1300mm (51.1in)
- Electric Motor: Boost 60 motor or any Electric Motor
- Glow Engine: .60 –Â .65 (2 stroke) / .70 –Â .90 (4 stroke)
- ARF Weight:Â 3.9Kg / 8.6lbs (will vary with Equipment used)
- Radio: 7 Channels
- R/CÂ FunctionsÂ
- Rudder
- Elevator
- Ailerons
- Flaps
- Motor
ContentsÂ
- VQ SIAI Marchetti SF-260 1630mm ARF (Yellow)
- Assembly instructions with stage photos
- Nose Gear assembly
- Fiberglass cowling
- Spinner
- Wheels
- Plastic pilot seat
- Engine mounts
- Plastic antenna
- Fuel tank
- Decals and all hardware
Options (contact us)
- E-Retracts with struts
Required
- Brushless Combo BOOST 60Â or gas engines and fuel tank
- Recommended Radio and Receiver: 7 channels
- Propeller:Â 12×6 for .58 – 2 cycle engine / 12×7 for .61 – 2 cycle engine or 14×8 for Electric motor
- Battery 4s 14.8V 5000mAh Li-Po
- 1x servo for Motor control
- 2x servos for Ailerons
- 2x servos for Flaps
- 1x servo for Elevator
- 1x servo for Rudder
Data sheet
| Type of kit: | ARF |
| Wingspan (mm): | 1630mm (64.1in) |
| Length (mm): | 1300mm (51.1in) |
| Flying weight (gr) | 3.9Kg (8.6lbs) |
| CG (Center of Gravity) | Check manual |
| Servos | 7x digital |
| Propeller | 12×6 for .58 – 2 cycle engine 12×7 for .61 – 2 cycle engine 14×8 for Electric motor |
| Power System | Brushless Boost 60 / .60 – .65 (2 stroke) / .70 – .90 (4 stroke) |
| Battery Cells: | 4s – 14.8v |
| Battery Capacity (mAh) | 5.000 mAh |
| Surfaces | Ailerons, Elevator, Rudder, Flaps |
| Landing Gear | Fixed landing gear , (optional landing gear) |
| Material | Balsa, Plywood |
| Build time | 3 hours |
| Required Radio | Minimum 7 channels |
| Recommended pilot skill level | Beginner, Intermediate, Advanced |
