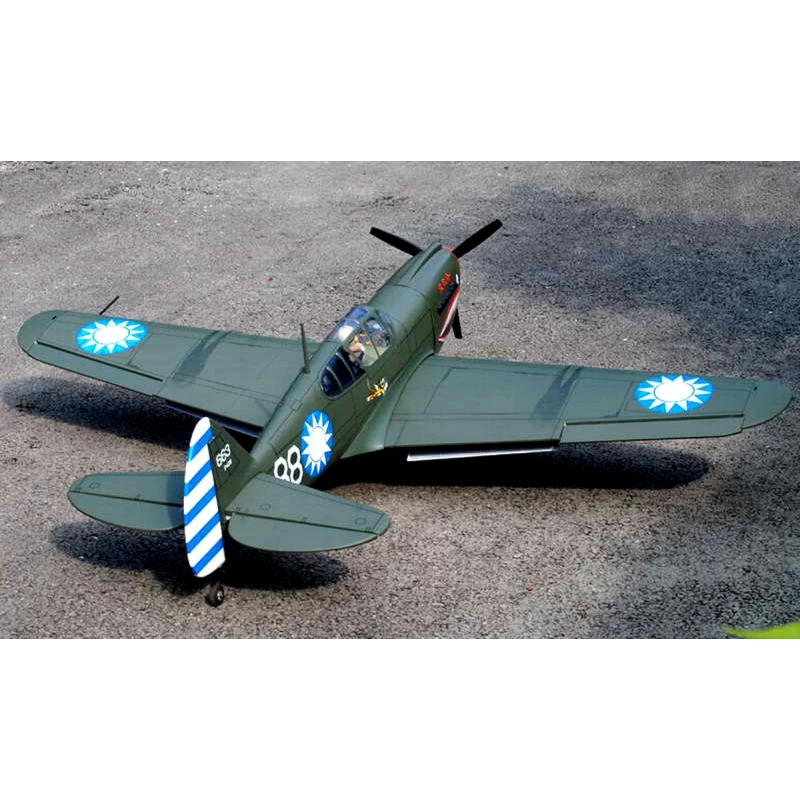

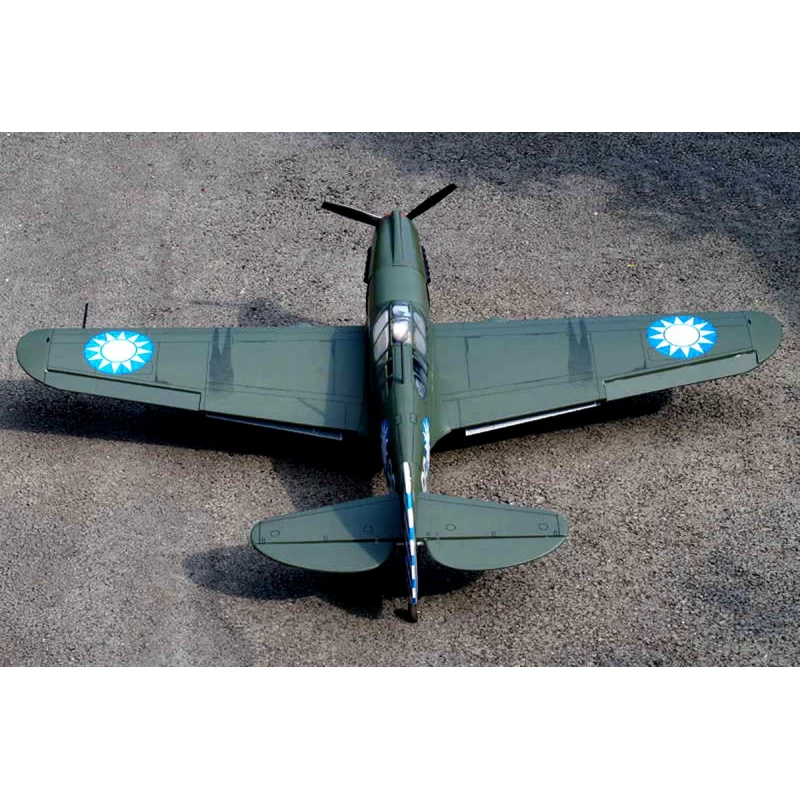

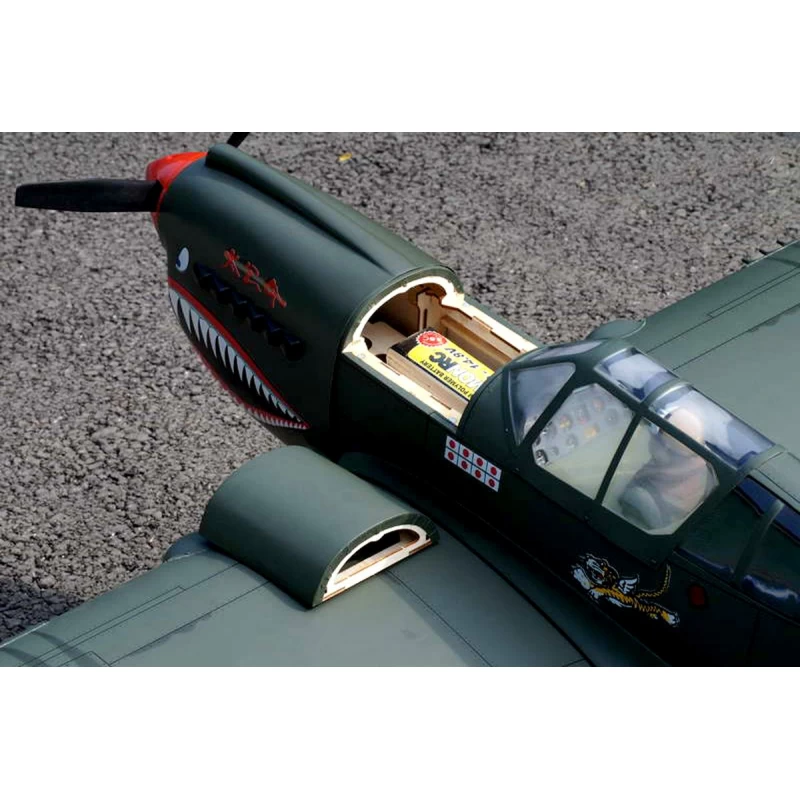

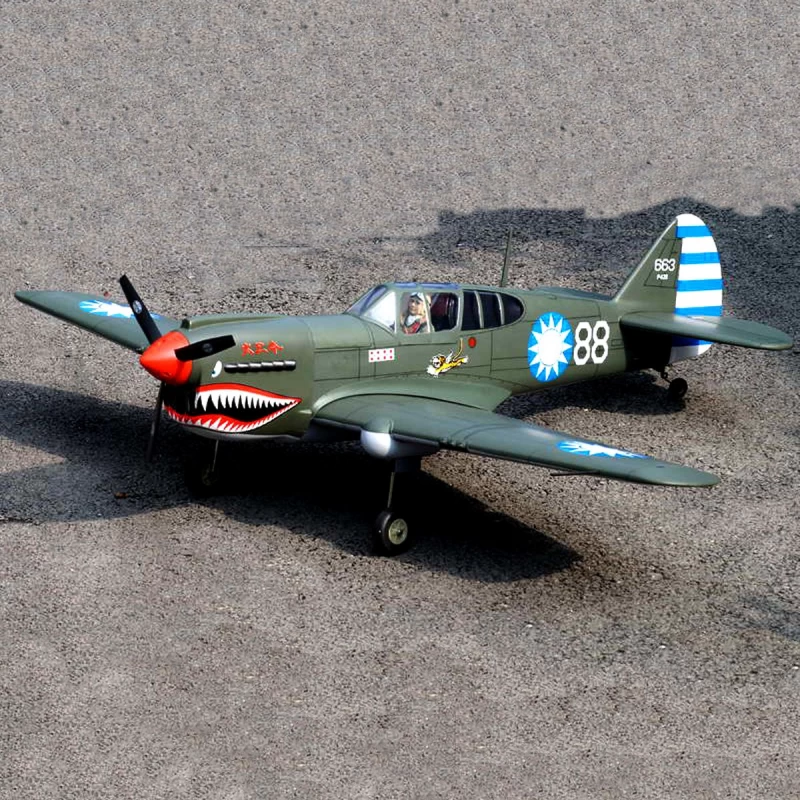

VQ Curtiss P-40 AVG Tomahawk 1570mm ARF
VQ Models introduces the Curtiss P-40 1570mm model in choice of electric motor or turbine in special livery of the AVG (American Volounteer Group) squadron. You can install either an electric or combustion motors.
The Curtiss P-40 Warhawk was an American single-engined, single-seat, all-metal fighter and ground-attack aircraft that first flew in 1938.
The P-40 design was a modification of the previous Curtiss P-36 Hawk which reduced development time and enabled a rapid entry into production and operational service. The Warhawk was used by most Allied powers during World War II, and remained in frontline service until the end of the war. It was the third most-produced American fighter, after the P-51 and P-47; by November 1944, when production of the P-40 ceased, 13,738 had been built.
Features
- All Balsa and lite-ply construction
- Fully covered in weathered detail
- Fiberglass cowling
- Reinstall Canopy
- Hand painted pilot
- Control surfaces pre-hinged and installed
- Two piece wing with Aluminium Wing Joiner
Technical specifications
- Wingspan: 1570mm (61.8in)
- Length: 1360mm (53.5in)
- Electric Motor: Boost 60 motor or any Electric Motor
- Glow Engine: .60Â (10cc) (2 stroke) /Â .90 (15cc) (4 stroke)
- ARF Weight:Â 3.3Kg / 7.27lbs (will vary with Equipment used)
- Radio: 6 Channels
- R/CÂ FunctionsÂ
- Rudder
- Elevator
- Ailerons
- Flaps
- Motor

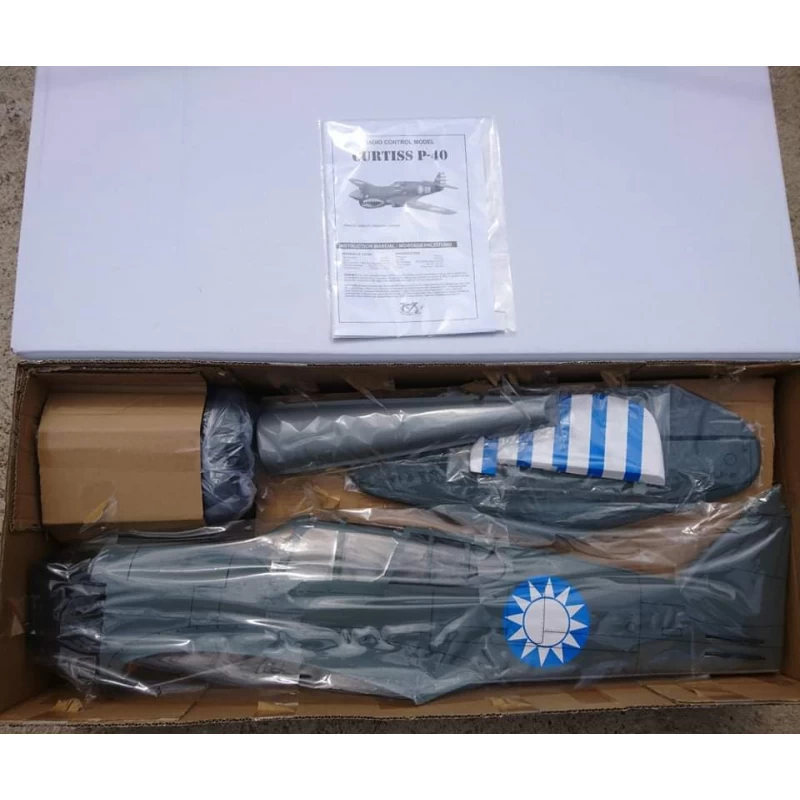

ContentsÂ
- VQ Curtiss P-40 AVG Tomahawk 1570mm ARF
- Assembly instructions with stage photos
- Tail Gear assembly
- Fiberglass cowling
- Spinner
- Wheels
- Servos trays
- Engine mounts
- Fuel tank
- Decals and all hardware
Options (contact us)

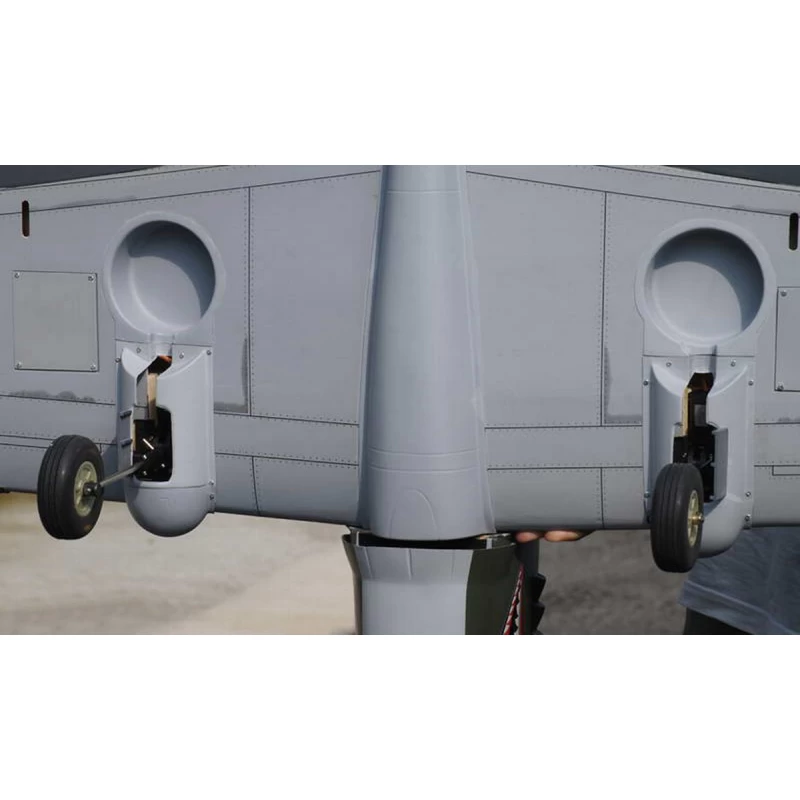

- E-Retracts set
- 1x servo for Electric Retracts
- 2x Linkage stopper for Electric Retracts
Required
- Brushless Combo BOOST 60Â or gas engines and fuel tank
- Recommended Radio and Receiver: 6 channels
- Propeller: 12×6 for .60 – 2 cycle engine / 13×7 for .90 – 4 cycle engine or 14X8 for BOOTS 60 electric motor
- Battery 4s 14.8V 5000mAh Li-Po
- 1x servo for Motor control
- 2x servos for Ailerons
- 2x servos for Flaps
- 1x servo for Elevator
- 1x servo for Rudder
Data sheet
| Type of kit: | ARF |
| Wingspan (mm): | 1570mm (61.8in) |
| Length (mm): | 1360mm (53.5in) |
| Flying weight (gr) | 3.3Kg (7.27lbs) |
| CG (Center of Gravity) | Check manual |
| Servos | 7x digital |
| Propeller | 12×6 for .60 – 2 cycle engine 12×7 for .90 – 4 cycle engine 14×8 for Electric motor |
| Power System | Brushless Boost 60 / .60 (2 stroke) / .90 (4 stroke) |
| Battery Cells: | 4s – 14.8v |
| Battery Capacity (mAh) | 5.000 mAh |
| Surfaces | Ailerons, Elevator, Rudder, Flaps |
| Landing Gear | Fixed landing gear , (optional landing gear) |
| Material | Balsa, Plywood, Aluminium |
| Build time | 3 hours |
| Required Radio | 6 channels minimum |
| Recommended pilot skill level | Beginner, Intermediate, Advanced |
