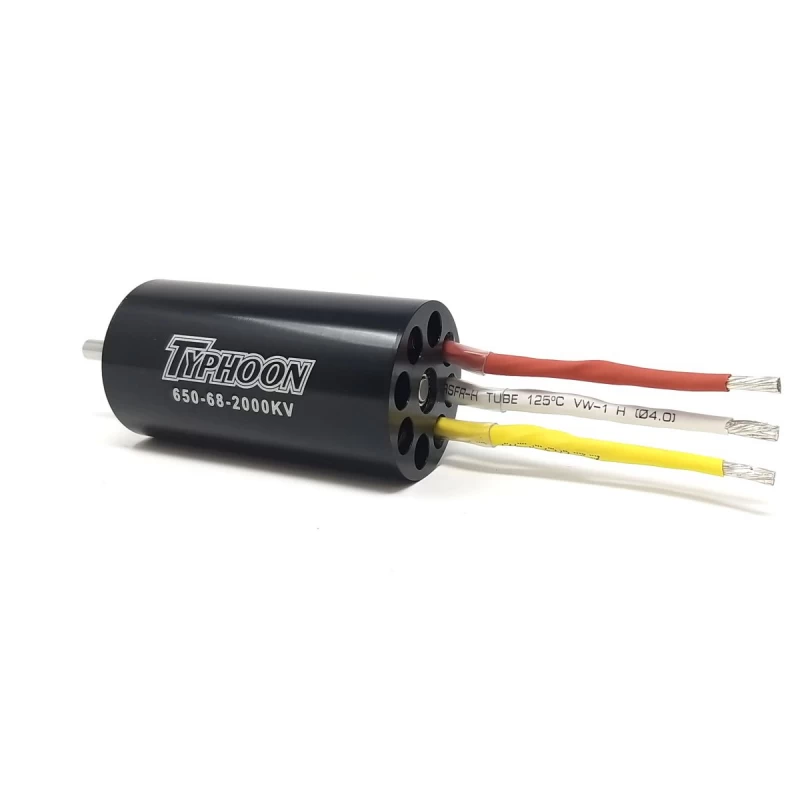

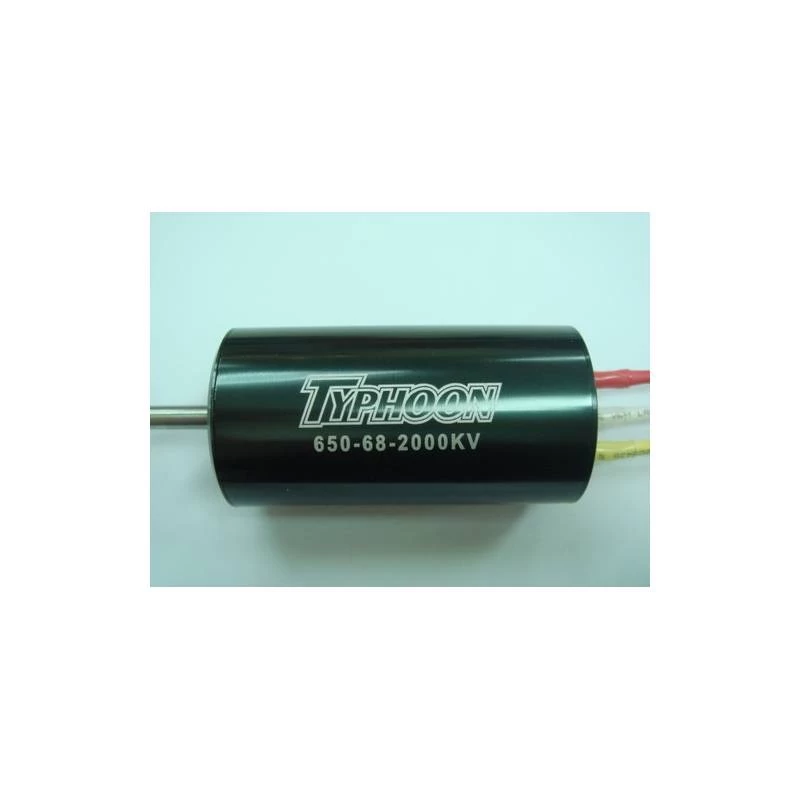

Typhoon HET EDF 650-68 Motor 36mm 2000Kv
The 650 Series from HET are designed around the hugely successful 700 series construction but in a smaller case size to suit fans that take 36mm motors.
Typhoon HET EDF 650-68-2000 Motor 36mm, recommended for 6s configuration. Suitable for 90mm HET EDF unit 9305 and WeMotec Midi Fan pro and evo or Schubeler DS-51-AXI HDS.
Description:
- High Temperature magnets and stator wire
- 0,2mm silicon steel stator from Japan
- Hardened shaft
- CNC precision parts
- Dynamically balanced
Specification:
- Diameter : 36 mm
- Length : 67.5 mm
- Shaft Dia. : 5 mm
- Weight : 300 grams
- Internal resistance: 6.2
- No load current (lo): 3.2
- Max efficiency: 88%
- Poles : 4
- No load KV : 2000
- Suggested lipo cells.: 6s
- Max amps: 120A (6S)
- Power Nominal: 2250 watts
- Thrust: 3.5kgs (22.2V)
- Recommended advance timing : low
- Specially designed for 9305 and Midi fan units

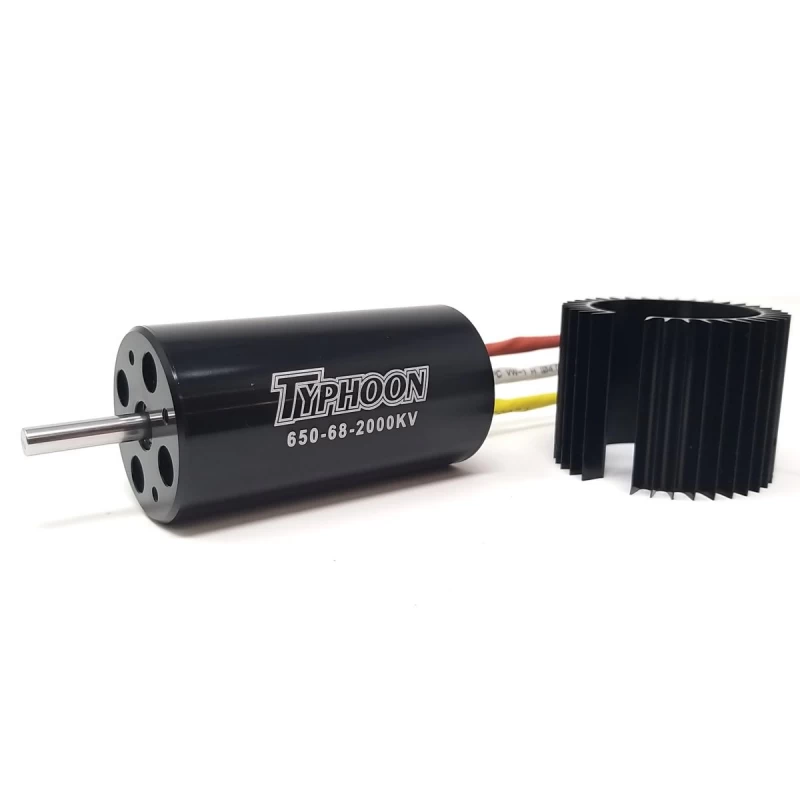

- Includes Aluminum Heat Sink and tools
Note: Use adhesive adhésive or glue to securely attach the cooling ring to the motor before running the motor. In case of use with an EDF fan unit, strong air current could blow away the colling ring. Thermal paste usage is also recommended.
WARNING: Operating the motor outside of the specifications listed above can either damage the motor, battery or esc. It is important that these components are set up properly. Failure to do so can void the warranty. It is strongly encouraged to use a Watt Meter to test the watt and amp performance when setting up a new system. If the output is above the factory recommended specs, then it needs to be adjusted by the esc. The timing and throttle settings on the esc can help to set the appropriate levels.
Data sheet
| Length (mm): | 67.5 |
| Weight (gr): | 300 |
| Turns/min/Volt (Kv): | 2000 |
| Motor Type: | In-Runner |
| Motor Diameter (mm): | 36 |
