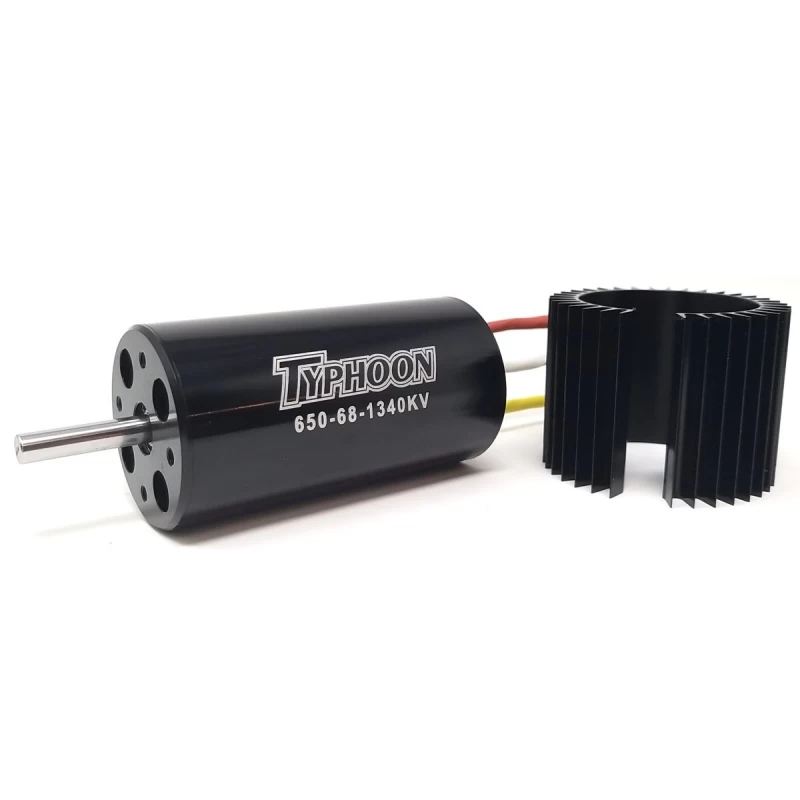

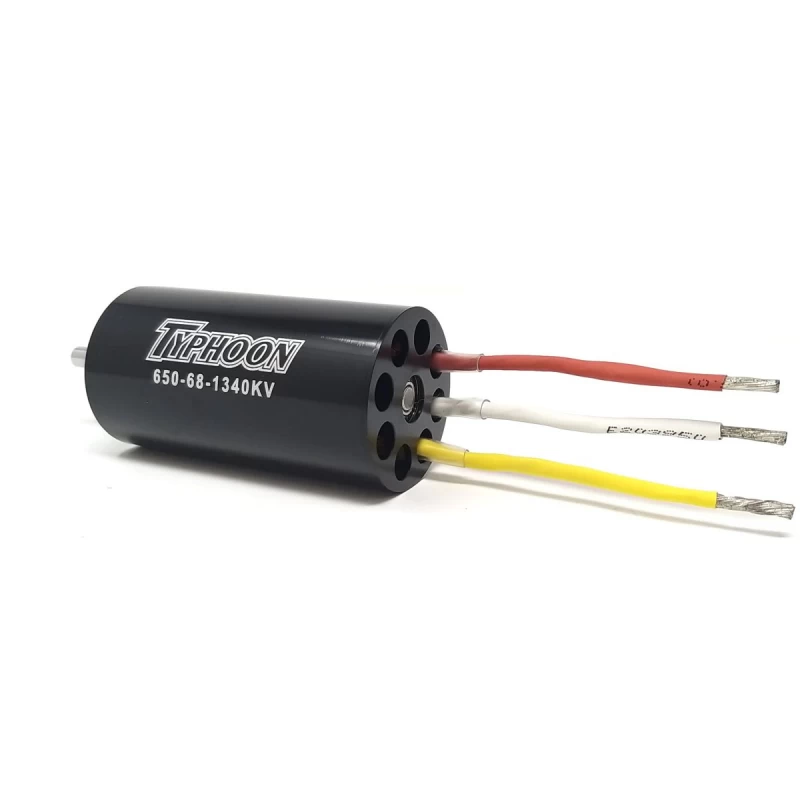

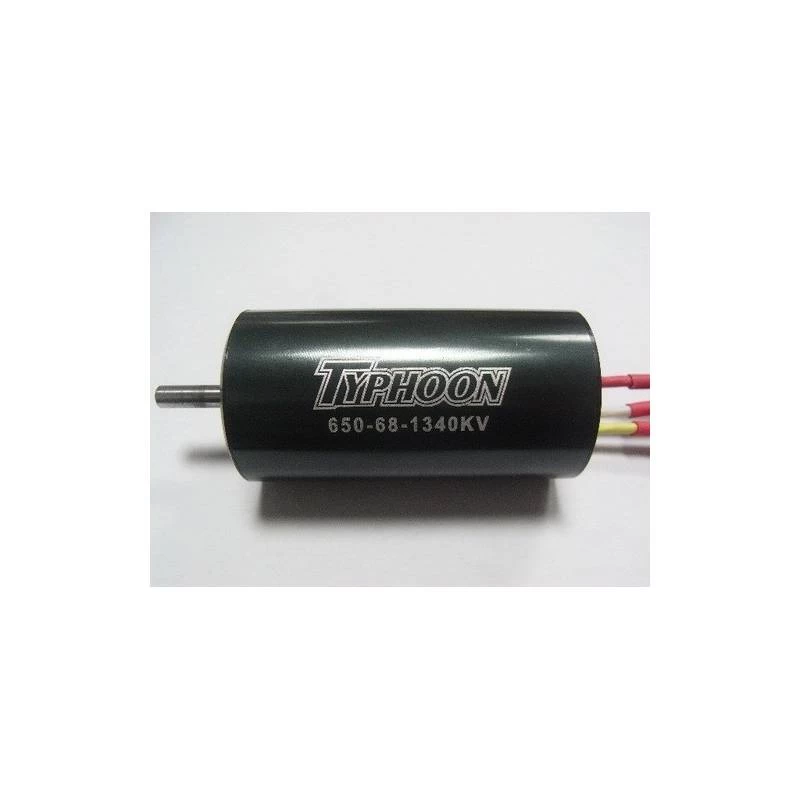

Typhoon HET EDF 650-68 Motor 36mm 1340Kv

Typhoon HET EDF 650-68 Motor 36mm 1340Kv - Afbeelding 2

Typhoon HET EDF 650-68 Motor 36mm 1340Kv - Afbeelding 3

Typhoon HET EDF 650-68 Motor 36mm 1340Kv

Oorspronkelijke prijs was: 107,50 €.Huidige prijs is: 75,25 €.

Artikelnummer: HET-650-68-1340 Categorieën: 35-36mm Brushless Motors, Brushless Motors

100% kwaliteitsbelofte
Veilige transacties, tevreden klanten
7 dagen gratis retourneren
Meerdere betaalmethoden, veilig en betrouwbaar

Beschrijving
Beoordelingen (0)

More info

The 650 Series from HET are designed around the hugely successful 700 series construction but in a smaller case size to suit fans that take 36mm motors.

Typhoon HET EDF 650-68-1340 Motor 36mm, recommended for 10s or 12s configuration. Suitable for 90mm HET EDF unit 9305 and WeMotec Midi Fan pro and evo. Thrust: 4.1kgs (37V) / 5.6 kgs (44,4V) with a HET 9305 EDF unit.

Description:

High Temperature magnets and stator wire
0,2mm silicon steel stator from Japan
Hardened shaft
CNC precision parts
Dynamically balanced

Specification:

Diameter : 36 mm
Length : 67.5 mm
Shaft Dia. : 5 mm
Weight : 300 grams
Internal resistance: 17.5
No load current (lo): 1.5
Max efficiency: 88%
Poles : 4
No load KV : 1340
Suggested lipo cells. : 10-12S
Max amps: 120A (12S)
Power Nominal: 4100 watts
Thrust: 4.1 kgs (37.0V) / 5.6 kgs (44.4V)
Recommended advance timing : low
Specially designed for 9305 and Midi fan units
Includes Aluminum Heat Sink and tools

Note: Use adhesive adhésive or glue to securely attach the cooling ring to the motor before running the motor. In case of use with an EDF fan unit, strong air current could blow away the colling ring. Thermal paste usage is also recommended.

WARNING: Operating the motor outside of the specifications listed above can either damage the motor, battery or esc. It is important that these components are set up properly. Failure to do so can void the warranty. It is strongly encouraged to use a Watt Meter to test the watt and amp performance when setting up a new system. If the output is above the factory recommended specs, then it needs to be adjusted by the esc. The timing and throttle settings on the esc can help to set the appropriate levels.
