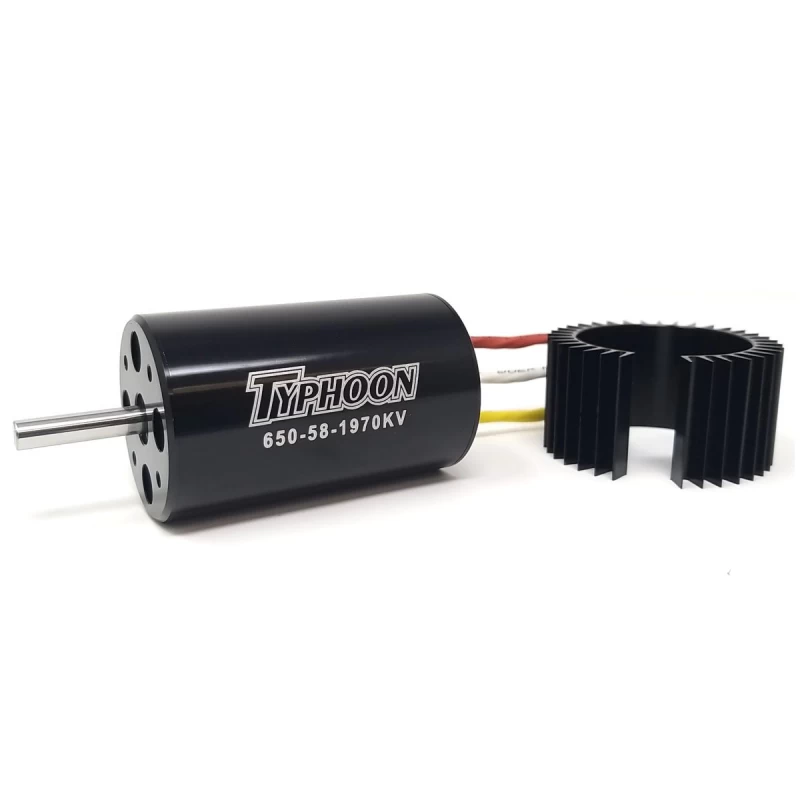

Typhoon HET EDF 650-58 Motor 36mm 1970Kv

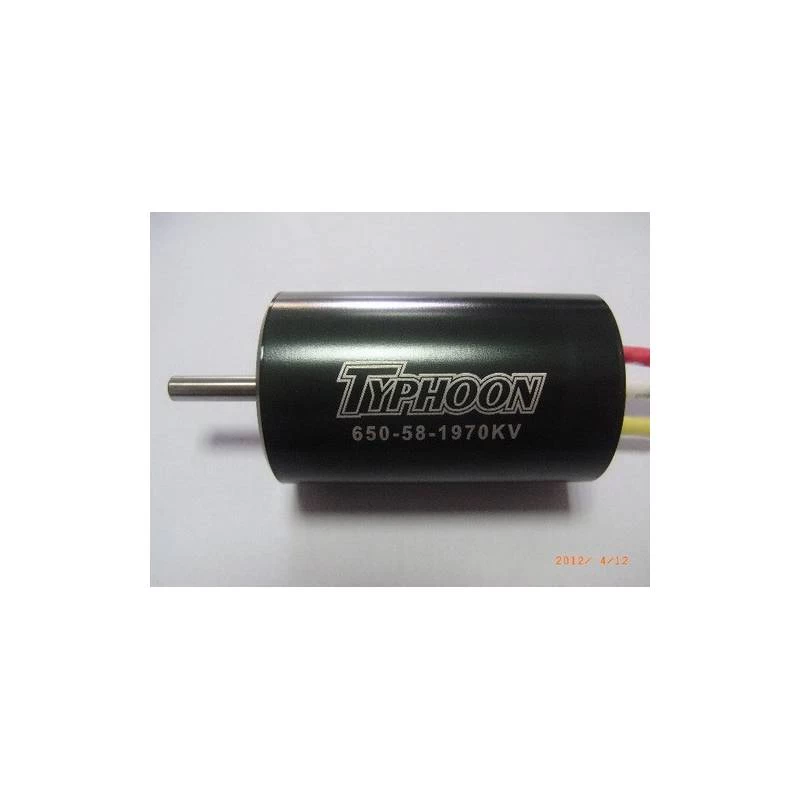

Typhoon HET EDF 650-58 Motor 36mm 1970Kv - Afbeelding 2

Typhoon HET EDF 650-58 Motor 36mm 1970Kv - Afbeelding 3

Typhoon HET EDF 650-58 Motor 36mm 1970Kv

Oorspronkelijke prijs was: 90,83 €.Huidige prijs is: 63,58 €.

Artikelnummer: HET-650-58-1970 Categorieën: 35-36mm Brushless Motors, Brushless Motors

100% kwaliteitsbelofte
Veilige transacties, tevreden klanten
7 dagen gratis retourneren
Meerdere betaalmethoden, veilig en betrouwbaar

Beschrijving
Beoordelingen (0)

More info

Typhoon HET EDF 650-58-1970 Motor 36mm, recommended for 6s configuration. Suitable for 90mm HET EDF unit 9305 and WeMotec Midi Fan pro and evo.

Description:

High Temperature magnets and stator wire
0,2mm silicon steel stator from Japan
Hardened shaft
CNC precision parts
Dynamically balanced

Specification:

Diameter : 36 mm
Length : 57.5 mm
Shaft Dia. : 5 mm
Weight : 250 grams
Internal resistance: 12
No load current (lo): 2.3
Max efficiency: 88%
Poles : 4
No load KV : 1970
Suggested lipo cells. : 6S
Max amps: 100A (6S)
Power Nominal: 2200 watts
Recommended advance timing : low
Specially designed for 9305 and Midi fan units
Includes Aluminum Heat Sink and tools

Note: Use adhesive adhésive or glue to securely attach the cooling ring to the motor before running the motor. In case of use with an EDF fan unit, strong air current could blow away the colling ring. Thermal paste usage is also recommended.

WARNING: Operating the motor outside of the specifications listed above can either damage the motor, battery or esc. It is important that these components are set up properly. Failure to do so can void the warranty. It is strongly encouraged to use a Watt Meter to test the watt and amp performance when setting up a new system. If the output is above the factory recommended specs, then it needs to be adjusted by the esc. The timing and throttle settings on the esc can help to set the appropriate levels.
