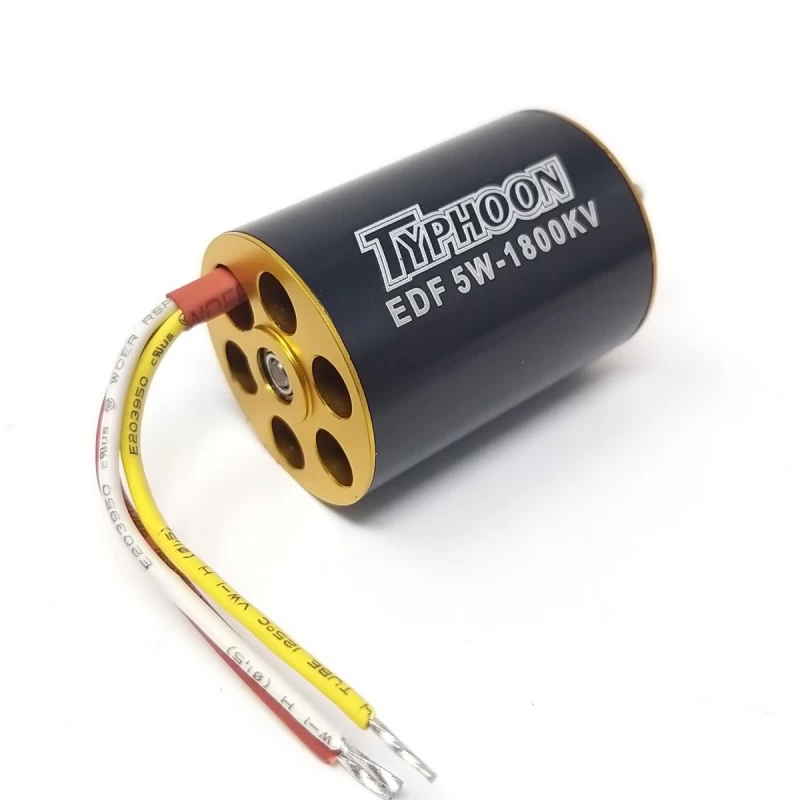

Typhoon HET EDF 5W Motor 28mm 1800Kv

Typhoon HET EDF 5W Motor 28mm 1800Kv

Typhoon HET 5W Motor 28mm 1800Kv, for pylon / EDF jets up to 1300 grams.

Suitable for HET EDF unit 6904, WemoTec Mini Fan or Changesun 70mm and equivalent.

• Diameter : 28 mm
• Length : 38 mm
• Distance between the mounting holes: 16.5 and 19 mm
• Shaft Dia. : 3.17 mm
• Weight : 78 grams
• No load current(lo) : 0.8
• Internal resistance: 0.069
• KV : 1800
• No. of poles: 6
• Max Current: 28 A
• Max efficiency: 88%
• Power Nominal: 450 Watts
• Recommended Props: APC E 6.5 X 4 or 7 X 4
• Advance timing : 18° Middle PWM: 16 Khz

Note: Use adhesive or glue to securely attach the cooling ring to the motor before running the motor. In case of use with an EDF fan unit, strong air current could blow away the colling ring. Thermal paste usage is also recommended.
