More info

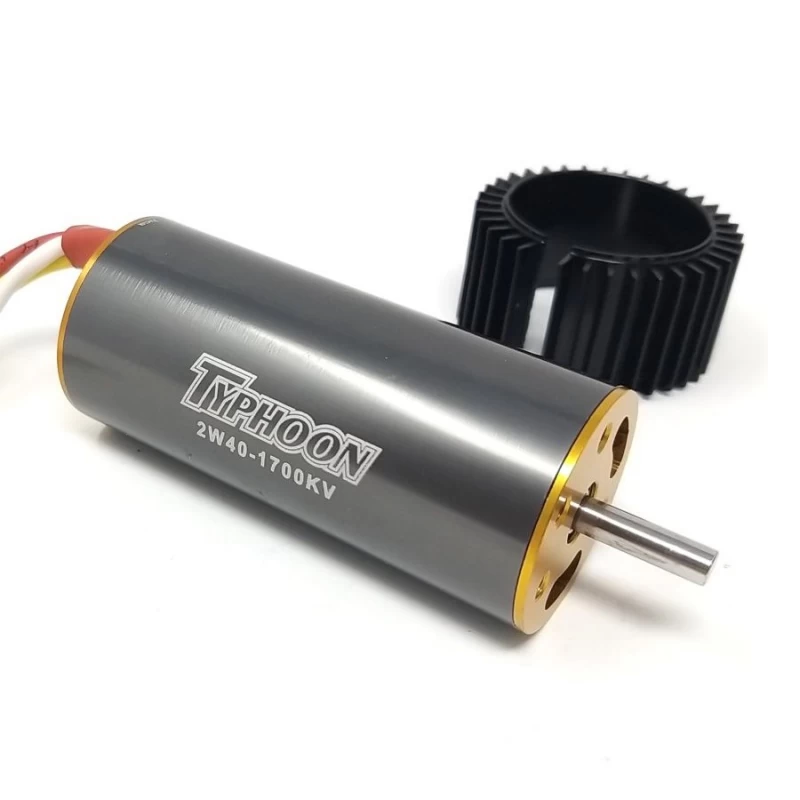

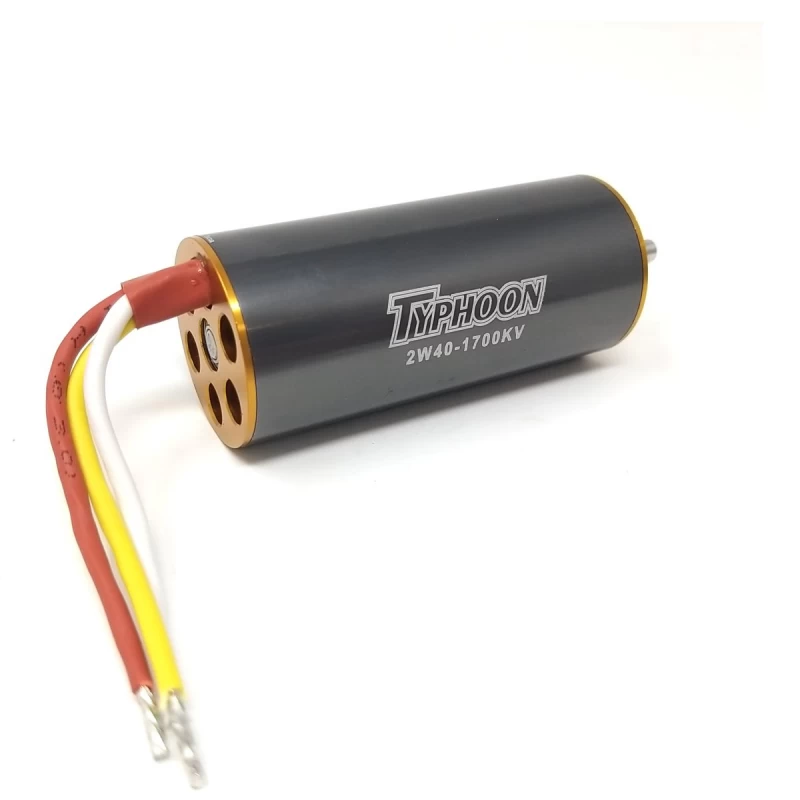

Typhoon HET EDF 2W-40 Motor 28mm 1700Kv. Specially designed for 6S, 8S and 10S Lipo Extreme setups. This motor usage above 2400W is restricted to professional and specialists.
Extreme motor ! This motor as been specially designed for extreme 6S, 8S and 10S Lipo configurations.
ATTENTION! Using this motor with 8S and 10S configuration over 2400W is not recommended and is restricted to professional people and specialists doing tests at their own risks. We do not offer any guarantee above 2400W usage and we strongly recommend not using it at these power levels. Please note a classic 70mm EDF unit will not resist to the extreme power of this motor with 8S and 10S setups.
- Diameter : 28 mm
- Length : 62 mm
- Shaft Dia. : 4 mm
- Weight : 180 grams
- No load current(lo) : 1.5
- Current: 80A
- Internal resistance: 0.21
- KV : 1700
- No. of poles: 6
- Max Current: non available
- Max efficiency: 87%
- Power Nominal: non available
- Recommended usage : Specially for 8S.
- Advance timing : 18° Middle PWM: 16 Khz
Note: Use adhesive adhésive or glue to securely attach the cooling ring to the motor before running the motor. In case of use with an EDF fan unit, strong air current could blow away the colling ring. Thermal paste usage is also recommended.
Data sheet
| EDF Diameter Class (mm): | 28 |
| Motor Type: | In-Runner |
| Motor Diameter (mm): | 28 |
