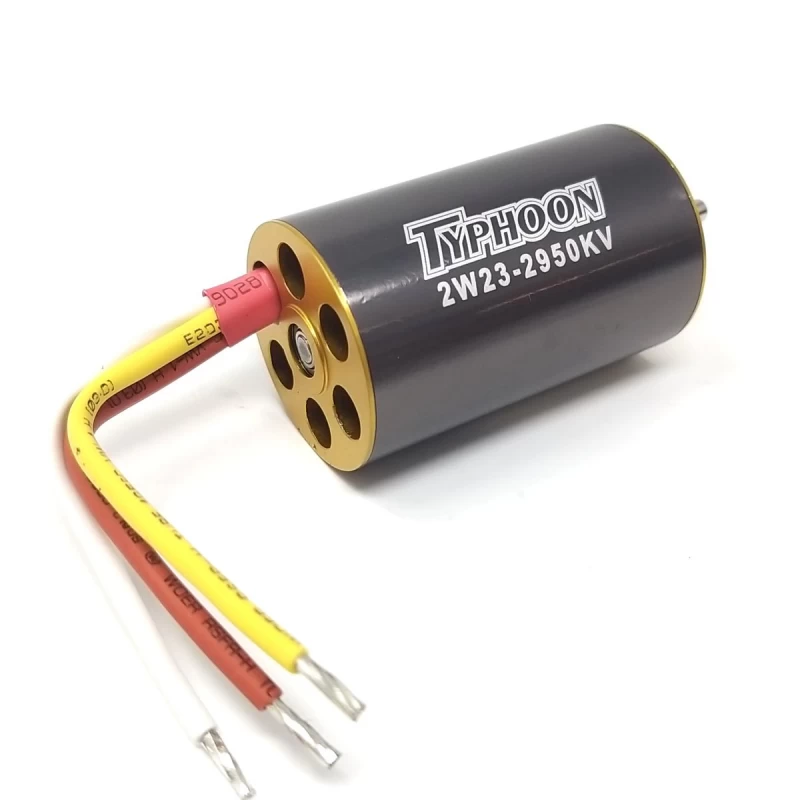

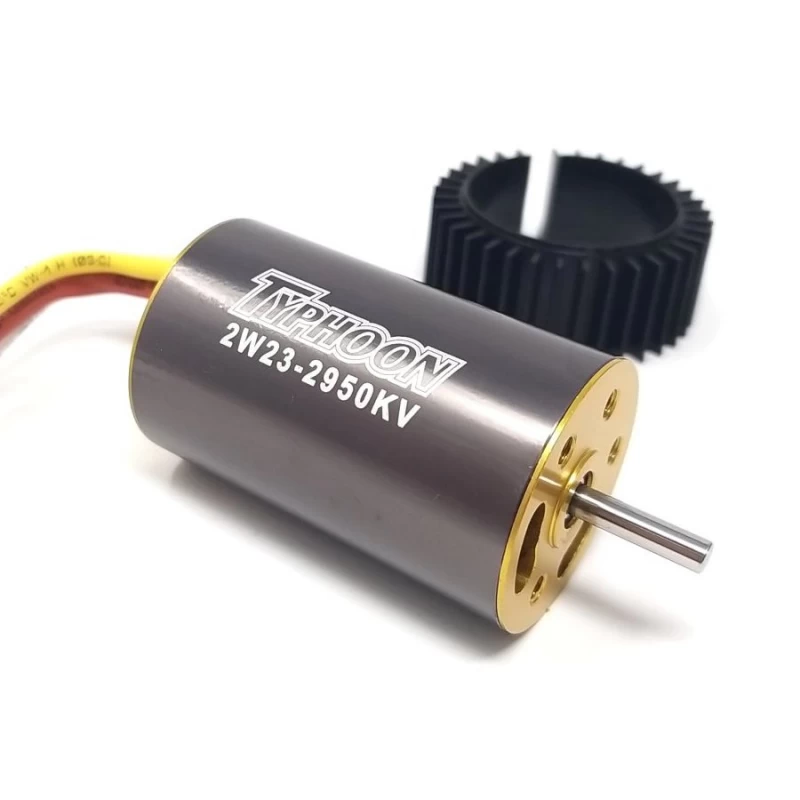

Typhoon HET EDF 2W-23 Motor 28mm 2950Kv, for pylon / EDF jets up to 2 kgrams (5s). Suitable for HET EDF unit 6904, WemoTec Mini Fan, Changesun 70mm or equivalent.
- Diameter : 28 mm
- Length : 48 mm
- Shaft Dia. : 4 mm
- Weight : 100 grams
- No load current(lo) : 2.2
- Internal resistance: 0.015
- KV : 2950
- No. of poles: 6
- Max Current: 75 A
- Max efficiency: 87%
- Power Nominal: 850 Watts on 5 cells
- Advance timing : 18° Middle PWM: 16 Khz
Note: Don’t run 2W-23 for over 30 seconds at full throttle. On 5s the RPM is close to 45000 in our 6904 fan unit. It is better to use throttle management. After flight cool the motor for 20-30 seconds at low RPM

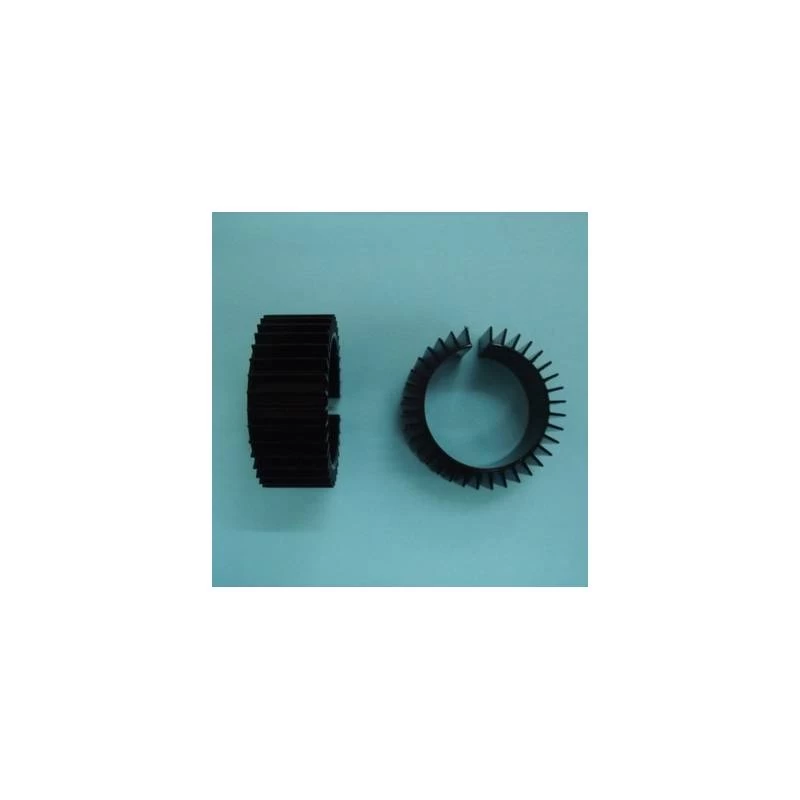

Note: Use adhesive adhésive or glue to securely attach the cooling ring to the motor before running the motor. In case of use with an EDF fan unit, strong air current could blow away the colling ring. Thermal paste usage is also recommended.
Data sheet
| Motor Type: | In-Runner |
| Motor Diameter (mm): | 28 |
