Typhoon HET EDF 1W-45 Motor 28mm 3000Kv

Oorspronkelijke prijs was: 74,17 €.Huidige prijs is: 51,92 €.

Artikelnummer: HET-TYPH1W45 Categorieën: 28mm Brushless Motors, Brushless Motors

100% kwaliteitsbelofte
Veilige transacties, tevreden klanten
7 dagen gratis retourneren
Meerdere betaalmethoden, veilig en betrouwbaar

Beschrijving
Beoordelingen (0)

More info

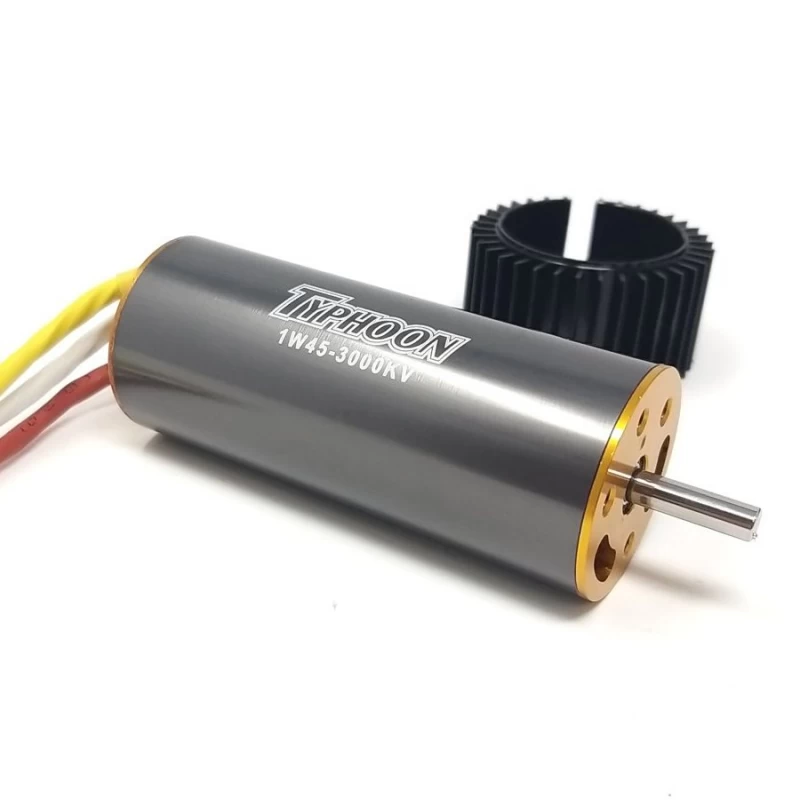

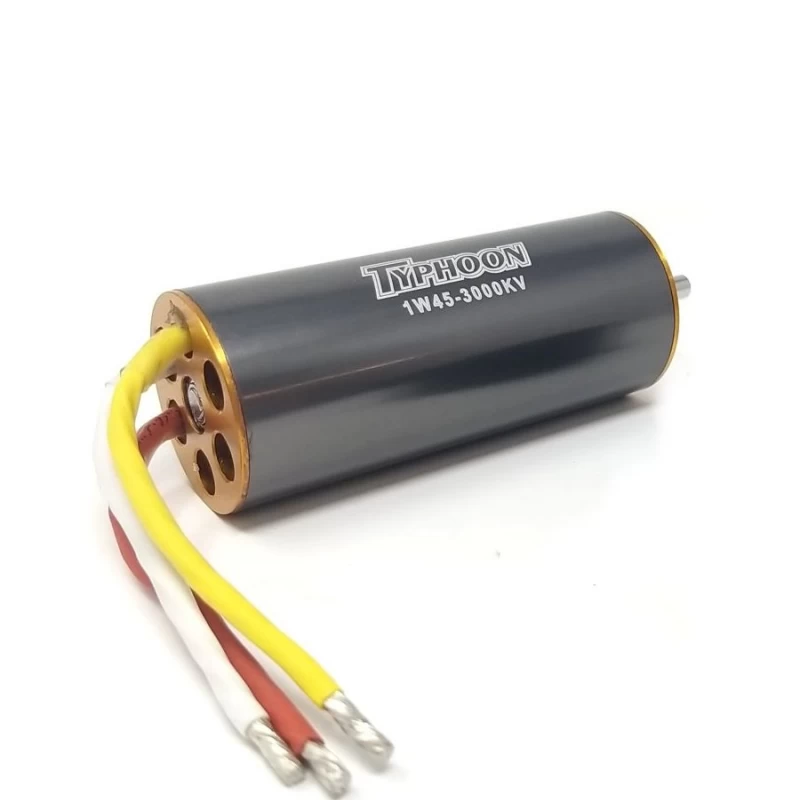

Typhoon HET EDF 1W-45 Motor 28mm 3000Kv

Typhoon HET EDF 1W-45 Motor 28mm 3000Kv, for pylon / EDF jets up to 1600 grams. Suitable for HET EDF unit 6904, WemoTec Mini Fan and equivalent.

Specifications

Diameter : 28 mm
Length : 68 mm
Shaft Dia. : 4 mm
Weight : 193 grams
No load current (lo): nc
Internal resistance: nc
KV : 3000
No. of poles: 6
Max Current: 140 A (6S)
Thrust: 2000g (5S) / 2500g (6S)
Max efficiency: nc
Power Nominal: nc
Advance timing : 18° Middle PWM: 16 Khz

Note: Use adhesive adhésive or glue to securely attach the cooling ring to the motor before running the motor. In case of use with an EDF fan unit, strong air current could blow away the colling ring. Thermal paste usage is also recommended.

Important: We do not recommend to use the 1W45 motor with more than 6S lipo as it may burn the motor for high amp draw  - 40C lipo cells are recommended - Do not use over 4S lipo on prop application

Data sheet

Length (mm):	68 mm
Weight (gr):	193 gr
EDF Diameter Class (mm):	28 mm
Turns/min/Volt (Kv):	3000
Motor Type:	In-Runner
Motor Diameter (mm):	28
Shaft diameter (mm):	4
