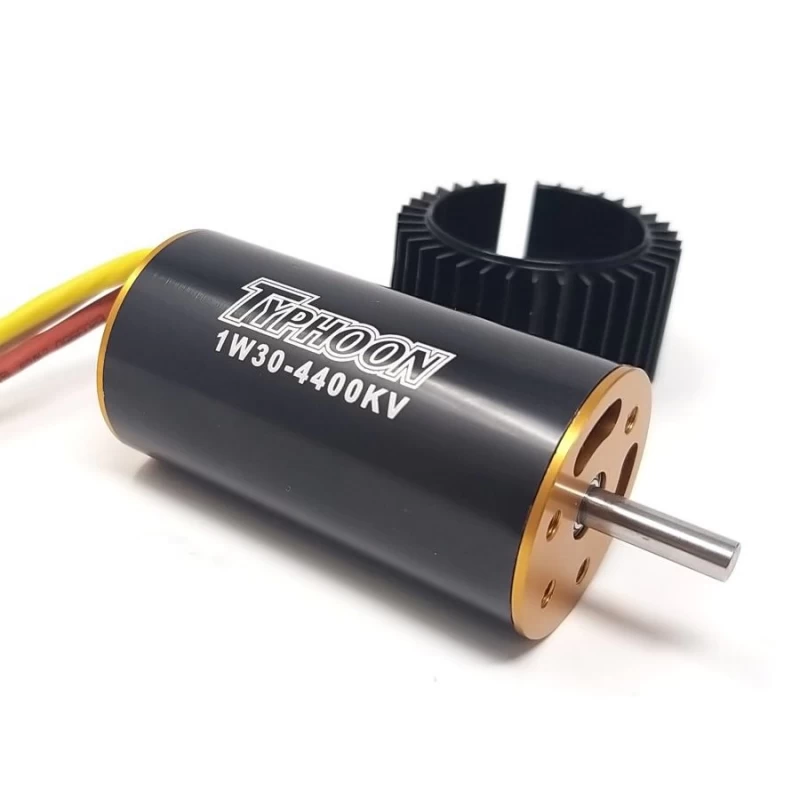

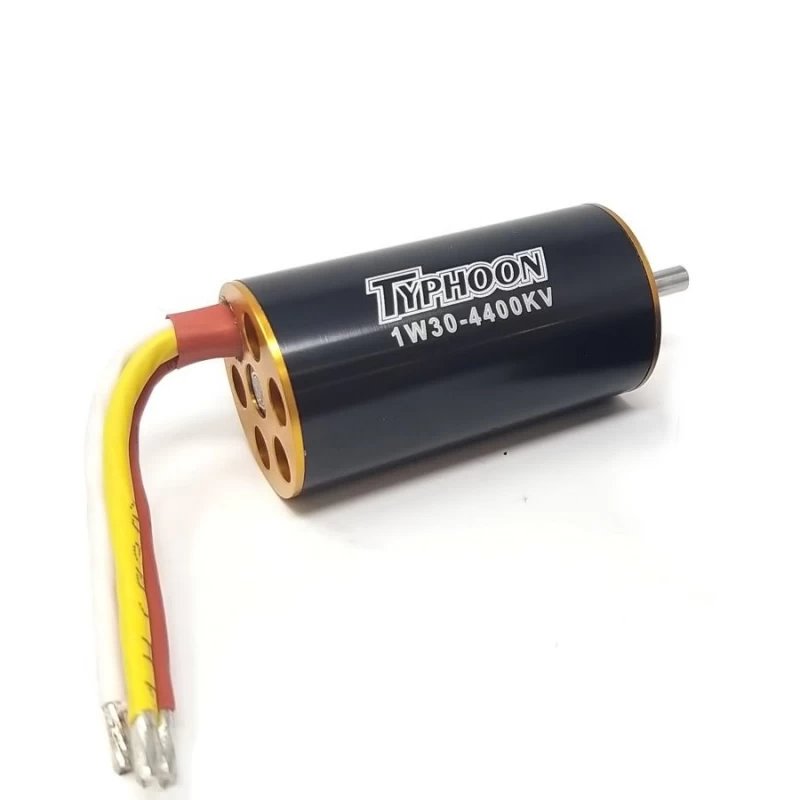

Typhoon HET EDF 1W-30 Motor 28mm 4400Kv, for pylon / EDF jets up to 2,8 Kgrams. Suitable for HET EDF unit 6904, WemoTec Mini Fan or equivalent. 4S power beast that generates 1400 watts and 2kgs thrust.
- Diameter : 28 mm
- Length : 52 mm
- Shaft Dia. : 4 mm
- Weight : 130 grams
- No load current(lo) : 5.5
- Internal resistance: 4.5
- KV : 4400
- No. of poles: 6
- Max Current: 120 A
- Max efficiency: 87%
- Power Nominal: 1400 Watts on 4 cells (6904 fan unit)
- Advance timing : 18° Middle PWM: 16 Khz

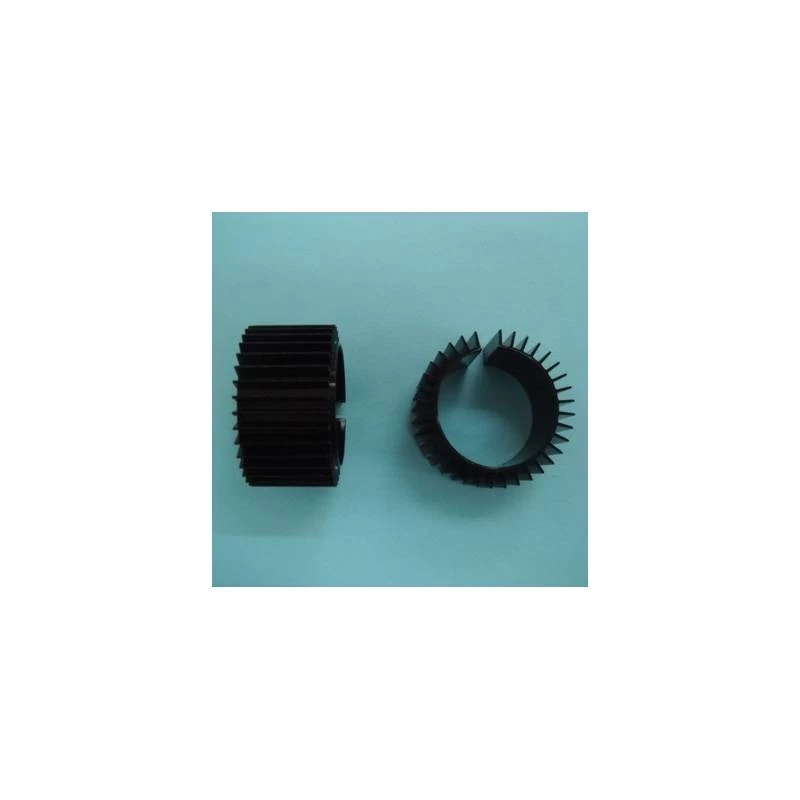

Note: Use adhesive adhésive or glue to securely attach the cooling ring to the motor before running the motor. In case of use with an EDF fan unit, strong air current could blow away the colling ring. Thermal paste usage is also recommended.
Important: We do not recommend to use the 1W30 motor with more than 4S lipo as it may burn the motor for high amp draw. 35C lipo cells are recommended.
Data sheet
| EDF Diameter Class (mm): | 28 |
| Motor Type: | In-Runner |
| Motor Diameter (mm): | 28 |
