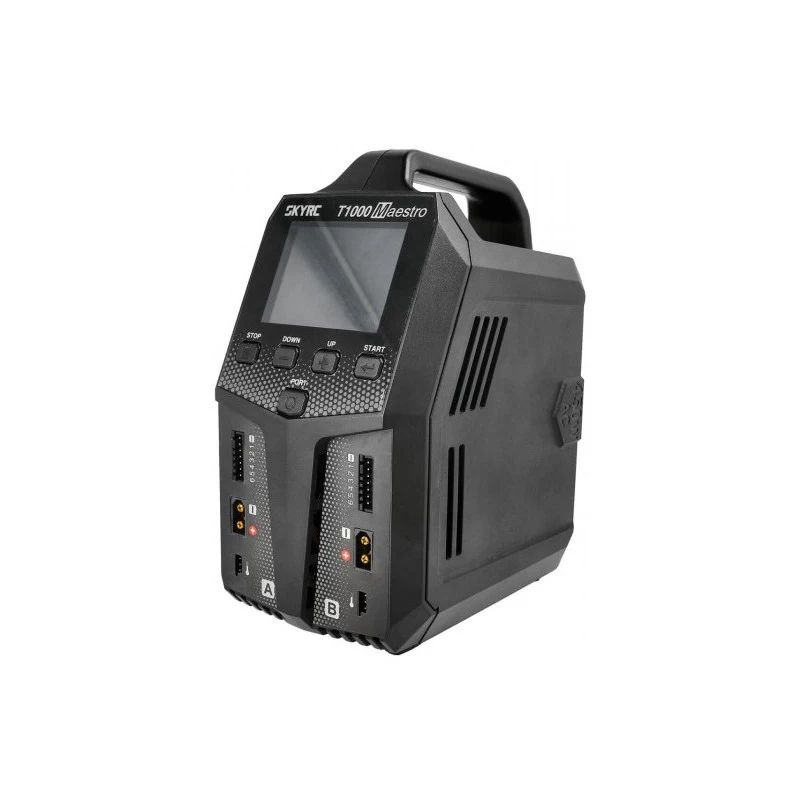

SkyRC T1000 Mastro Charger 4x100w AC 450W / DC 1000W (1-6s)
Push your next RC racing trip beyond the edge with SkyRC T1000!
The Arm Cortex-M4 chip takes our most versatile, dual output T1000 into another dimension with a built-in DSP instruction. The chip core features a Floating Point Unit (FPU) that accelerates single precision floating point math operations and supports all ARM single precision instructions and data types.
Multiplied by proprietary Hyperboost
Thanks to the 200 MHz ARM Microcontroller, the deployed Oversampling Technology can improve ADC Resolution to 16bit. The efficient PID mechanism can fine-tune the current to increase response speed and the charge current accuracy.
Dual AC/DC input
Get ready to work, play, and race with SkyRC T1000 to pump the speed and power beyond you ever imagined!
Your battery packs have been fully charged while you are still brewing coffee!
That is how you get supercharged by co-designing hardware, software, and MCU.
That is how you get supercharged by co-designing hardware, software, and MCU.
20A per port
Dual ports work independently to charge two battery packs efficiently and simultaneously. RC hobbyists can flexibly choose AC or DC input according to the scenarios.
In AC mode, the charging power is up to 450W, while the performance is even more powerful, up to 1000W in DC mode. Whether you are a beginner or an RC guru engaging in racing, it is the charger to push the limits of what is possible!
In AC mode, the charging power is up to 450W, while the performance is even more powerful, up to 1000W in DC mode. Whether you are a beginner or an RC guru engaging in racing, it is the charger to push the limits of what is possible!
Smart power distribution
When a single port works, the T1000 will be pumping full power into that port! The charging power is dynamically and intelligently distributed in the circumstance that two ports work at the same time. Whenever either port finishes working, the other port will fully charge at full power. The total power is always used intelligently and efficiently! Charging is so flexible!
Digital power supply
T1000 is not only professional in charging but also can act as a digital power supply.
After clicks on the menu, T1000 is ready for your application, offering an optimal voltage of 5-27V with 0.1V increment, adjustable 1-15A current. Short circuit, Overload, and Reverse polarity protection are all included!
After clicks on the menu, T1000 is ready for your application, offering an optimal voltage of 5-27V with 0.1V increment, adjustable 1-15A current. Short circuit, Overload, and Reverse polarity protection are all included!

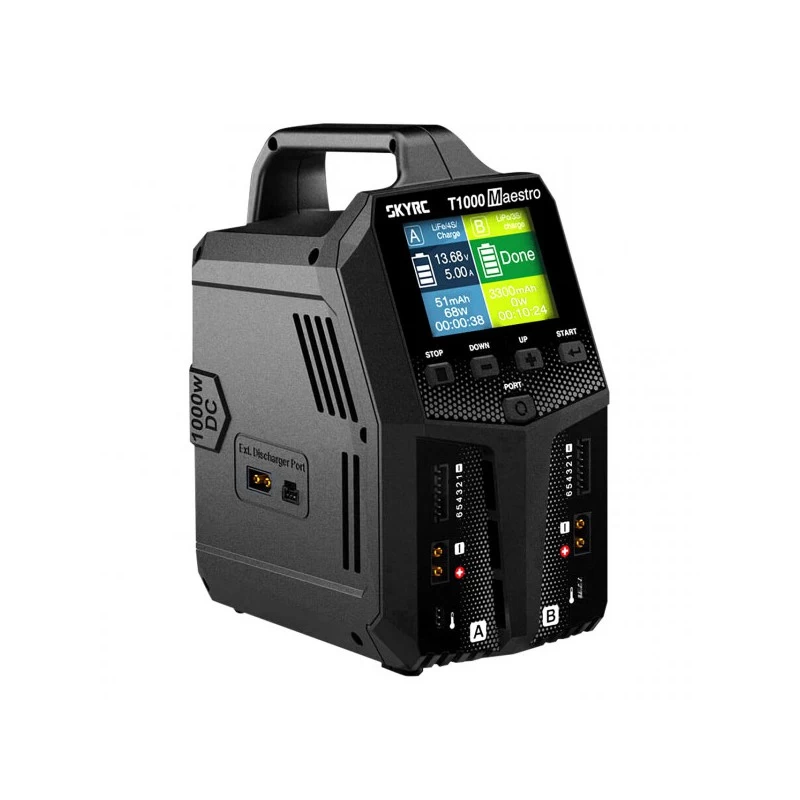

Color X display & intuitive UX
Discover a new ColorX interface introduced by T1000 based on simple and textured visuals! The tailor-designed light cyan and green color scheme is for RC charging. It helps you focus on the setting. The Web2.0 responsive menu and well-designed icons make the operation more suitable for players accustomed to operating smartphones! Time to say bye-bye to dull typography and welcome bold and beautiful brand-new UI. Charging doesn’t have to be boring, and neither does life!
Smart thermal fan

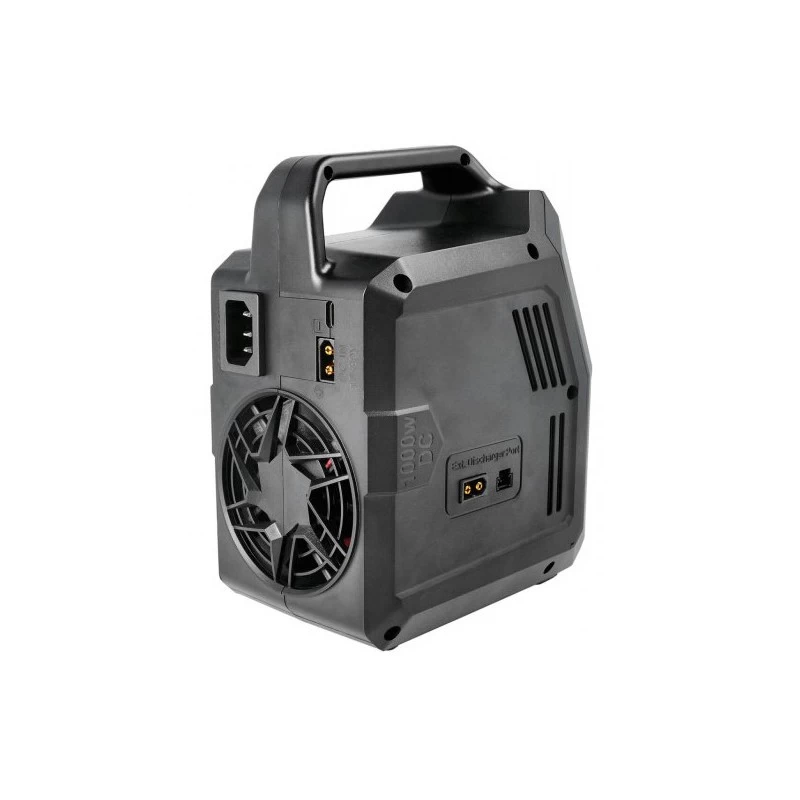

Within the sleek enclosure lies a groundbreaking thermal system designed to let Arm Cortex-M4 fly through heavy workloads at screaming-fast speeds — and stay whisper quiet. The fan will adjust the speed accordingly and dissipate heat more effectively according to the different power usage.
Stunningly sleek
With the classic, minimal, and sleek vertical tower design, T1000 frees up more bench space for RC hobbyists to tweak gadgets by taking the footprints of a pair of battery packs. Sleek design serves your charging and delights your charging!
The ergonomic handle makes it easy to store, carry, and travel with.
Features
- 2 independent charging channels
- Up to 450W (AC) or 1000W (DC) charging power
- Smart power distribution
- High-contrast 2.8” LCD display with ColorX user interface
- Intelligent fan control
- 20A per port for charging, 40A for discharging
- 35A parallel charging
- PD power charging hub
- Available languages: German, English, Japanese and Chinese
- Various security measurements
- XT60 ports
Charge Modes
- LiPo/LiFe/LiIon/LiHV
- Balance, Charge, Discharge, Storage, Parallel
- NiMH/NiCd
- Charge, Cycle, Re-Peak, Discharge
- Pb
- Normal, AGM Charge, Cold Charge, Discharge
Specifications
-
Input Voltage AC: 100V – 240V (50-60Hz) Input Voltage DC: 10V – 30V Output Voltage DC: 5V – 27V Output Current DC: 1.0A – 15.0A Charge Power: max. 450W (AC)
max. 1000W (DC)Discharge Power: 10W (main port)
max. 37W (balance port)
max. 350W (external)Charge Current: 0.1A – 20.0A
20.0A – 35.0A (parallel charging)Discharge Current: 0.1A – 2.0A
0.1A – 40.0A (external)Balance Current: max. 1.5A Cells: LiPo/LiFe/LiIon/LiHV 1S – 6S Cells: NiMH/NiCd 4S – 15S Cells: Pb 3S / 6S / 12S Weight: 1370g Dimensions: 190.3 x 153.5 x 100mm
Content
- SkyRCÂ T1000
