SkyRC E8 Charger 100W 100-240V

SkyRC e8 Charger 100W 100-240V

SKYRC e8 Charger is an economic, high quality 100-240V AC balance charger,designed for charging LiPo and LiFe batteries from 2-8 cells in balance mode. The circuit power is 100W and max charge current can reach to 6A. There are four kinds of charge current 1A/3A/5A/6A that can be selected. You could select the proper charge current according to the battery capacity.

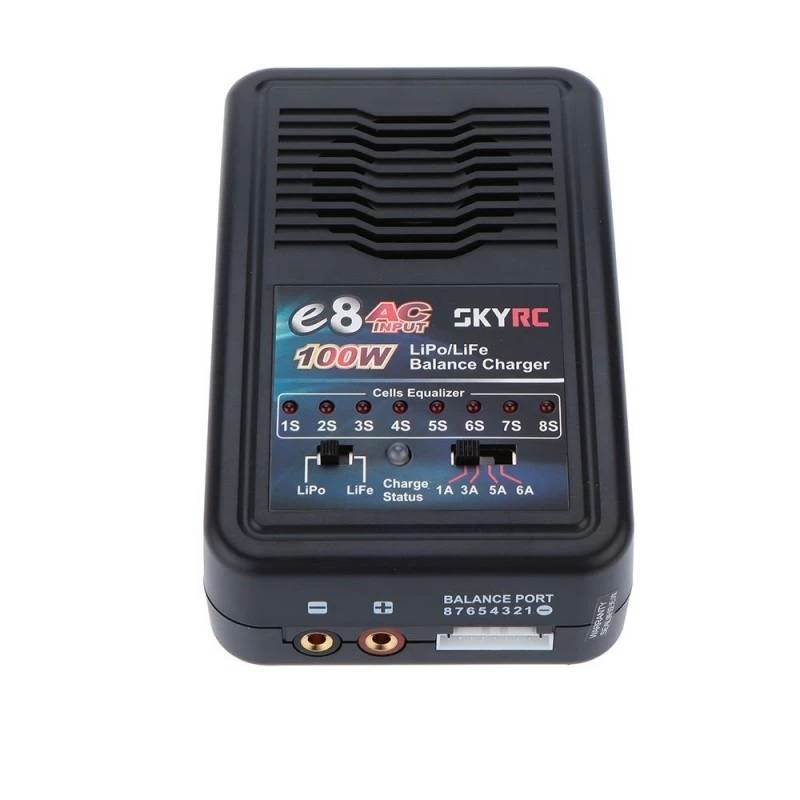

There is one LED indicating the charge status (ready to charge/charge in CC mode/charge in CV/ mode/charge finish) and 8 LEDs indicating each battery cell status (charge/discharge).In this case, we could know the charge process at any time easily through the LEDs status.The operation of the charger is also very simple.There are two toggle switches in the charger which can be used to select battery type and charge current.After you power on the charger,select the battery type and charge current,connect the battery and charger with the balance board,the charger will start working

Specifications

• Item brand: SKYRC
• Item model: e8
• Charge battery type: LiPo/LiFe
• Battery cell count: 2-8 cells
• Input voltage: AC 100-240V
• Circuit power: 100W
• Charge current: 1A/3A/5A/6A ± 10%
• Current drain for balancing: 200mA
• Weight: 448g / 15.8oz
• Size: 150 * 93 * 51mm / 5.9 * 3.7 * 2.0in

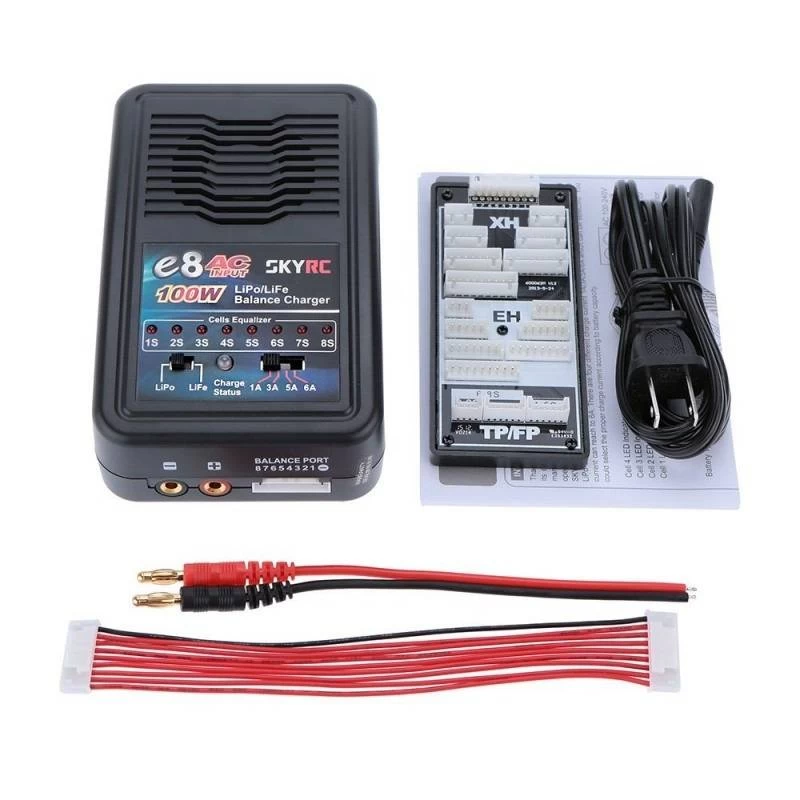

Package information

Package list
