SkyRC E680 Charger 80W 11-18V/100-240V

SkyRC e680 Charger 80W 11-18V/100-240V

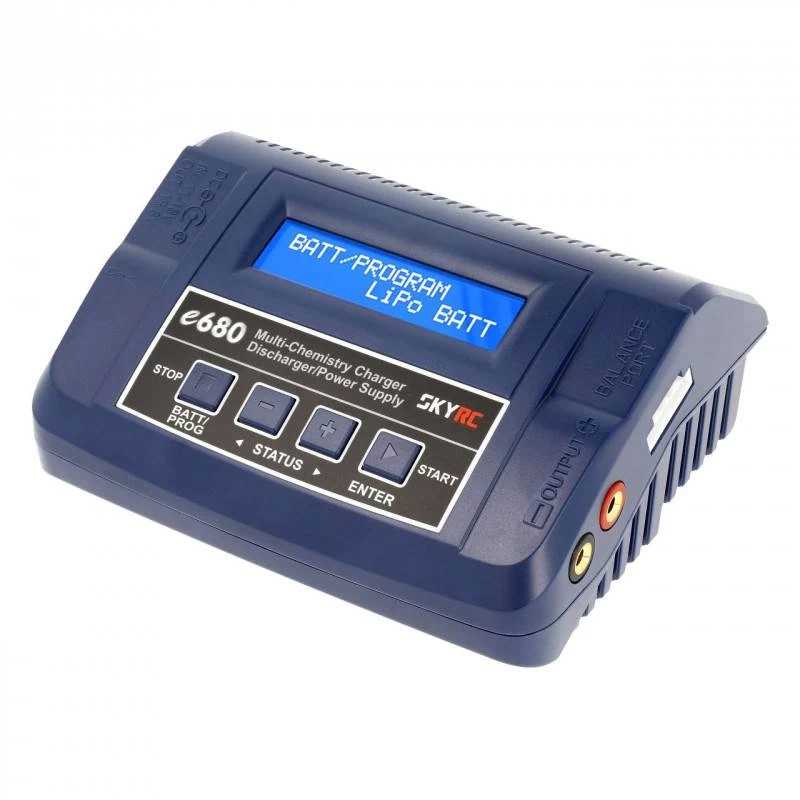

SkyRC e680 is a high-performance, micro processor control charge / discharge / power supply with battery management suitable for use with all current battery types. It is with integral equalizer for six-cell Lithium-Polymer (LiPo), Lithium iron phosphate (LiFe), Lithium-ion (Lilon) and Lithium High Voltage (LiHV) battery.

Features

• Max. 8A charge current and 80W charge power
• Converts standard household power 100-240V AC to 13.8V DC power
• For PB battery, e680 adds AGM and cold charge modes
• It can charge AGM battery, and Pb battery can be charged in cold charge mode in cold days
• This charger can be powered by 11-18V DC or 100-240V AC power source via the built in switch-mode power supply
• e680 is able to power DC equipment such as tire sander, LED pit light and motor checker, etc.

Specifications

• Input Voltage: AC 100-240V / DC 11-18V
• Charge wattage: Max.80W
• Discharge wattage: 10W
• Charge current range: 0.1-8.0A
• Discharge current range: 0.1-2.0A
• Power Supply Voltage: 13.8V adjustable from 0 to 80 W
• Power Supply Power: 10-50W
• Current Drained for Balancing: Max 300mA/element
• Battery types/Cells LiPo/LiIon/LiFe/LiHV : 1-6 cells
• Battery types/Cells NiMH/NiCd : 1-15 cells
• Battery types/Cells DJI : 3 cells (LiHV)
• Balance Cells: 2-6 cells
• Delta Peak sensitivity for NiMH/NiCd
• Charge method: CC/CV for Lithium types and lead (Pb) batteries
• Charge Voltage LiPo : 4,18-4,25 V/cell – LiIon : 4,08-4,2 V/cell
• Charge Voltage LiFe : 3,58-3,7 V/cell – LiHV : 4,25-4,35 V/cell
• Charge Voltage Pb normal : 2.4V/cell – Pb AGM : 2.45 V/cell
• Charge Voltage DJI : 13.05 V  –  Pb Cold : 2.45 V/cell
• Tension d’accu au plomb : 2-20V
• Delta-Peak detection for NiMH/NiCd : 3-15 mV/cell, Default 4 mV/cell.
• Discharge Cutt-off Voltage NiMH/NiCd : 0,1 à 1,1 V/cell
• Discharge Cutt-off Voltage LiPo : 3,0-3,3 V/cell – LiIon : 2,9-3,2 V/cell
• Discharge Cutt-off Voltage LiFe : 2,6-2,9 V/cell – LiHV : 3,1-3,4 V/cell
• Discharge Cutt-off Voltage Pb : 1,8 V
• Reading Voltage range: 0.1 à 26,1 V/cell
• Battery capacity range NiMH/NiCd : 100-50000 mAh
• Battery capacity range LiPo/LiIon/LiFe/LiHV: 100-50000 mAh
• Battery capacity range Pb: 100-50000 mAh
• Battery Cut-off Temperature: 20 °C/68 °F à 80 °C/176 °F (adjustable)
• Safety Timer: 1-720mn / OFF (Default: 120mn)
• Display type: LCD 2×16
• Display backlight: Blue
• Case material: Plastic
• Controls: 4 buttons
• Memory: 10 different charge/discharge profils

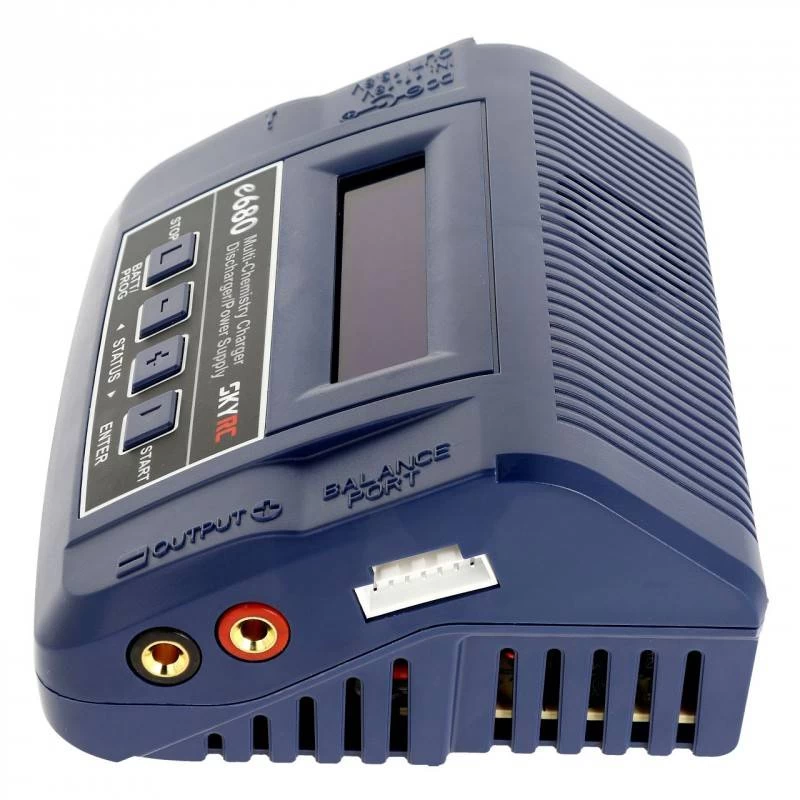

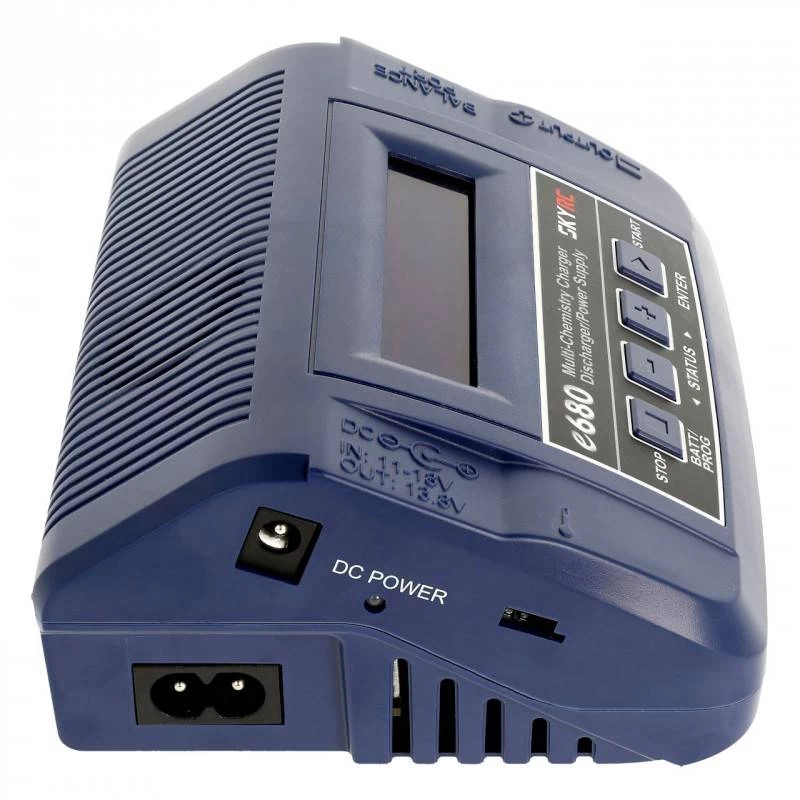

• External Ports: 1-6S Balance Socket-XH, Temperature Probe Socket,
  Battery Socket, DC Input
• Dimensions: 135 x 11 x 60 mm
• Weight: 390 g

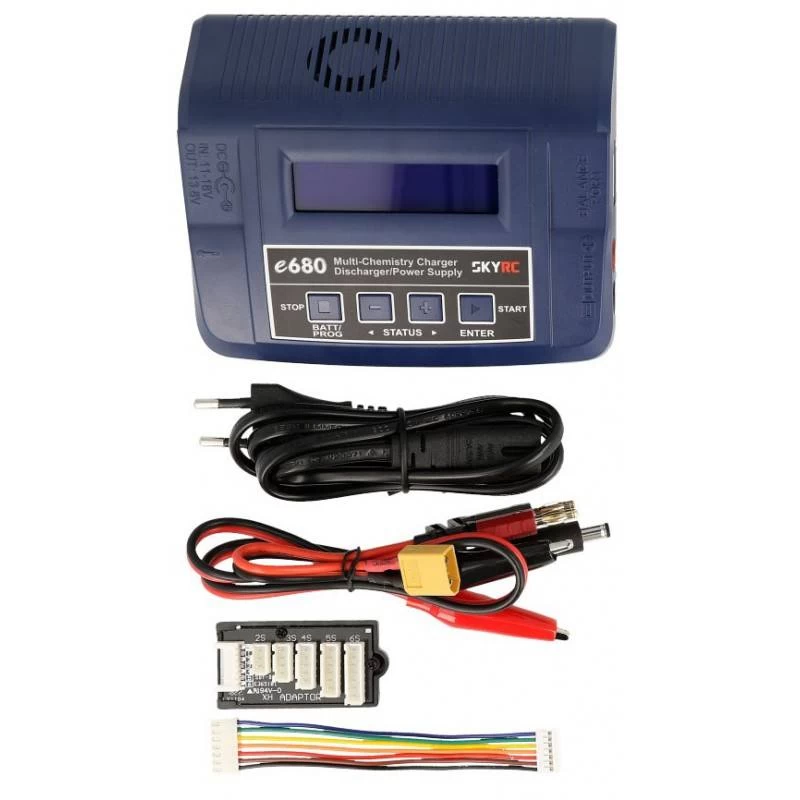

Content

• SkyRC e680 Charger
• Power Cord
• XT60 connector Charging Cable
• DC Cable with Alligator Clip Connector
• XH Adaptor
