SAB Avio M138 LIZARD Antartica Robodrone ARF
Pre-order: Pay 15% now to reserve the product (this amount will be deducted from your final payment at the time of shipment).
Important information: the date of availability is not yet confirmed, nevertheless we offer the pre-order because the quantities will be limited when this model will be available. Pre-orders can be canceled at any time.

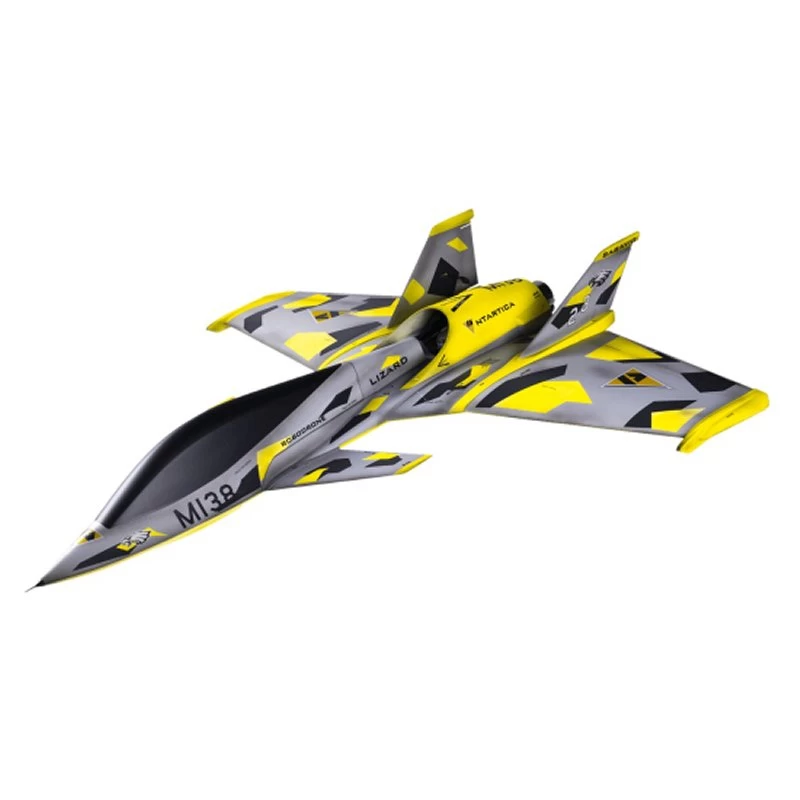

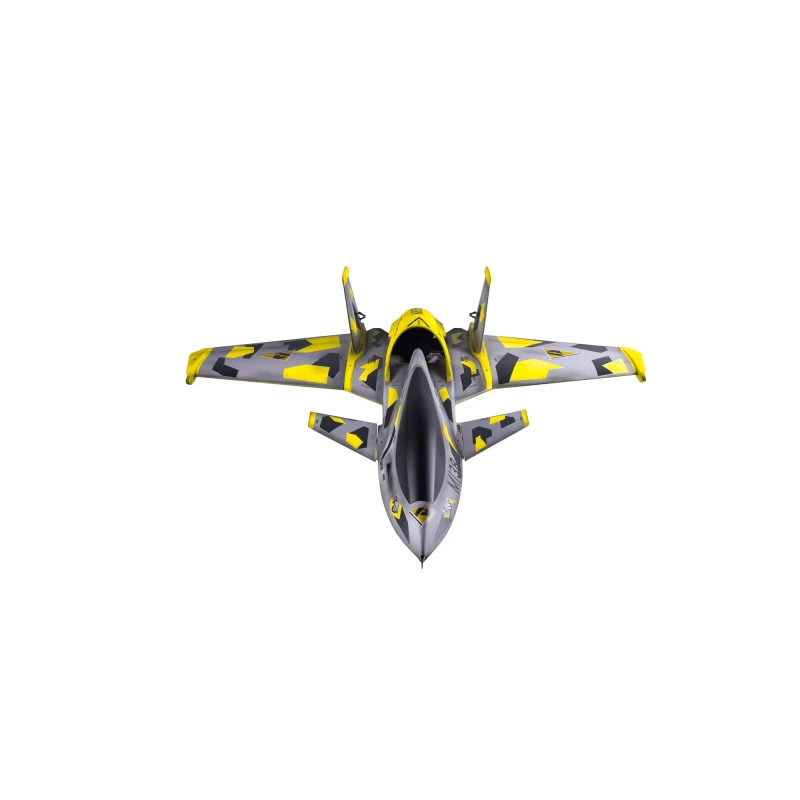

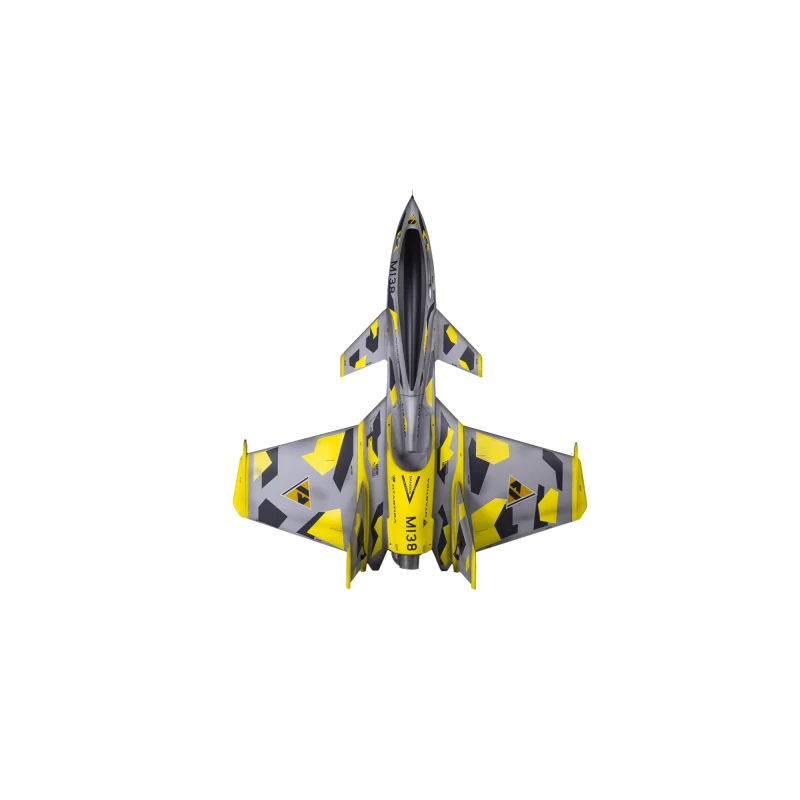

The SAB Avio model is the semi-scale 1/8 of the M138 LIZARD Robodrone version. This ARF model is suitable for electric or turbine version which version requires the conversion kit.
This SAB Avio high-performance model is able to achieve, through its vector thrust, 3D figures and high speeds. Its futuristic shapes defy the laws of aerodynamics. From the imagination of the designers of SAB Avio this model is part of a line called “ANTARTICA” grouping TORTUGA – DRAKE – HAVOK (also available on our website).
The videos and photos speak for themselves. This model will really turn heads on the ground, both in flight and on the ground.
Features
- Painted fiberglass fuselage / Airex fuselage (vacuum technology)
- All parts and horns are already painted
- Control surface horns and servo mounts installed
- Ready to install retractable landing gear (in option)
- Super-fast assembly, everything setup at the factory
Technical specifications

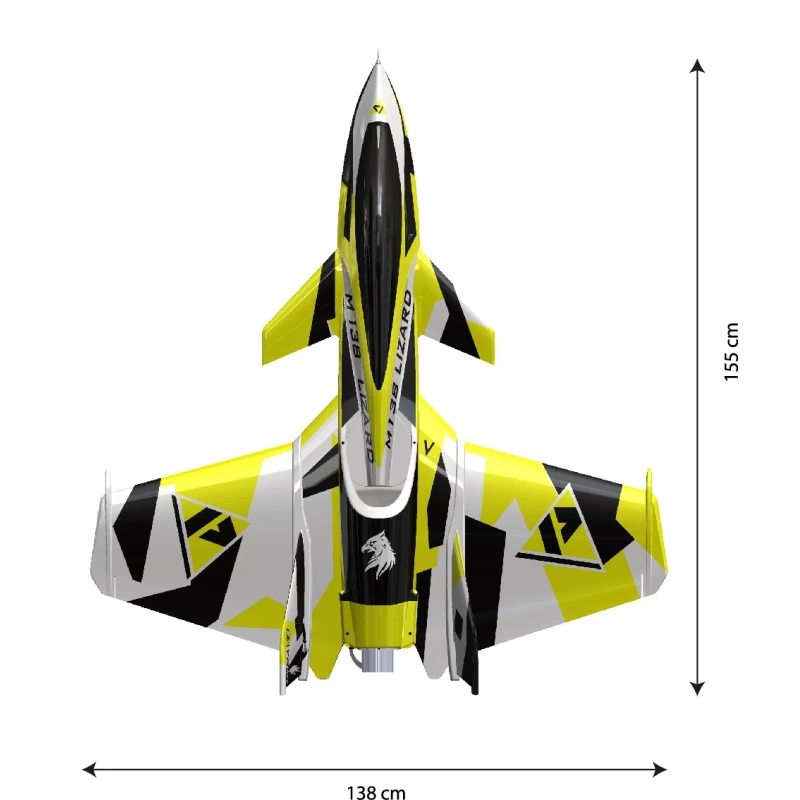

- Wingspan: 1380mm / 54.33in
- Length: 1550mm / 61in
For EDF Version
- EDF 100-120mm 12S 5000mAh
- ESC 160/200A
- Weight RTF from 6.5-7.5kg
- 3 mini or standard servos
- 1 standard servo
- 2 mini wing servos (optional for Rudder)
For Turbine Version
- Turbine 4.5-12kg
- Capacity Tank 2 liters
- Weight RTF from 5.8-6.5kg (dry)
- 3 mini or standard servos
- 1 standard servo
- 2 mini wing servos (optional for Rudder)
- 2 mini or standard servos (optional for vector)
Included
- SAB Avio M138 LIZARD ARF
- Manual in English
Required
- EDF: 100-120mm
- ESC 160-200A
- Turbine: 12 to 25kg thrust
- Conversion turbine kit
- Servos
- Landing gear
- Minimum 6 channels radio and receiver
- Estimated build time is 12 hours
Data sheet
| Type of kit: | ARF |
| Wingspan (mm): | 1380mm / 54.33in |
| Length (mm): | 1550mm / 61in |
| Flying weight (gr) | Turbine version 5.8-6.5kg (empty tank and according equipments) EDF version 6.5-7.5kg |
| CG (Center of Gravity) | Check manual |
| Surfaces | Elevons, Rudder, Canards |
| Landing Gear | (optional landing gear) |
| Material | Fiberglass |
| Required Radio | 6 channels minimum |
| Recommended pilot skill level | Advanced, Expert |
