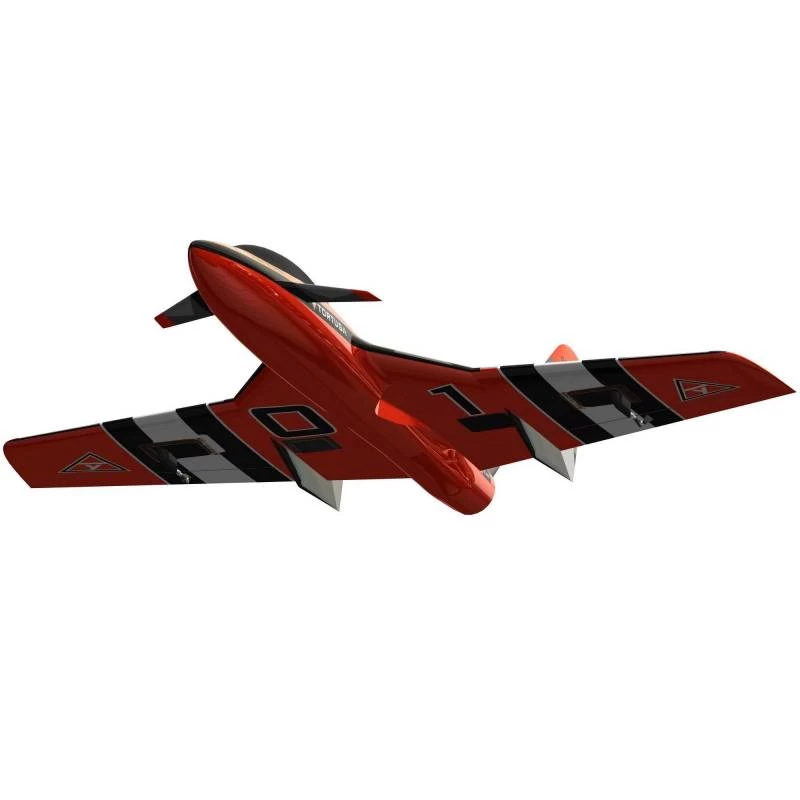

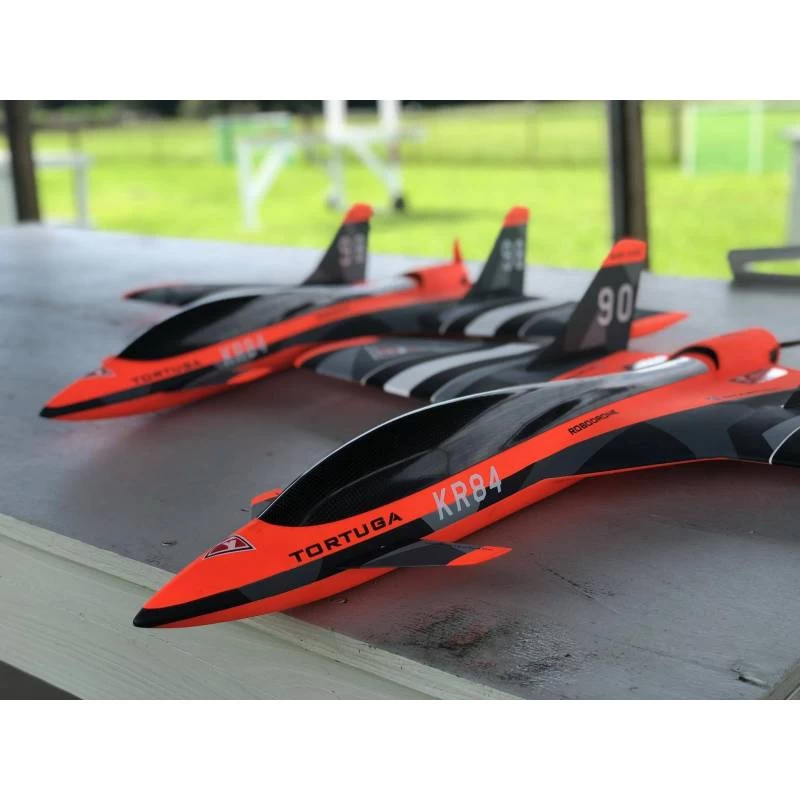

SAB Avio KR84 TORTUGA Antartica Robodrone ARF

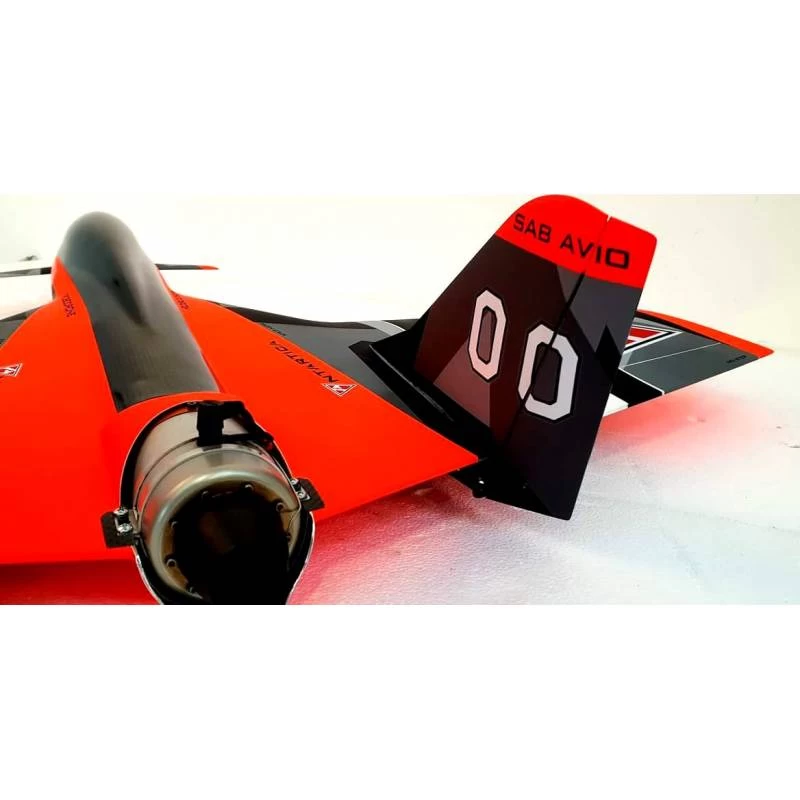

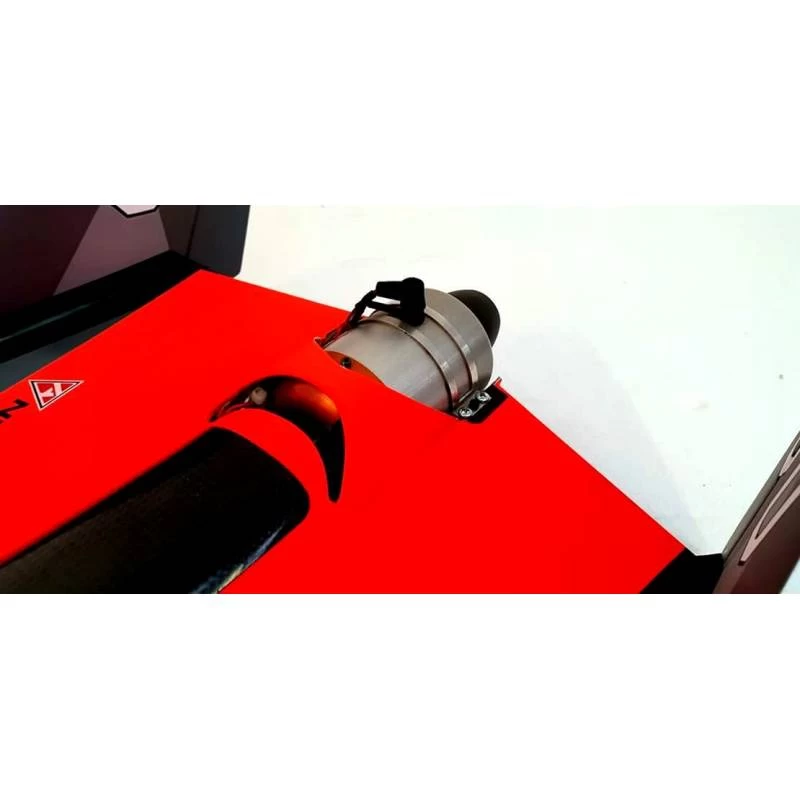

The SAB model is 1/8 scale of the KR84 TORTUGA Robodrone version, designed around the Lambert Kolibri T15 / T25 / T35 turbine. It is also possible to install another type of turbine with the same characteristics of thrust and size.

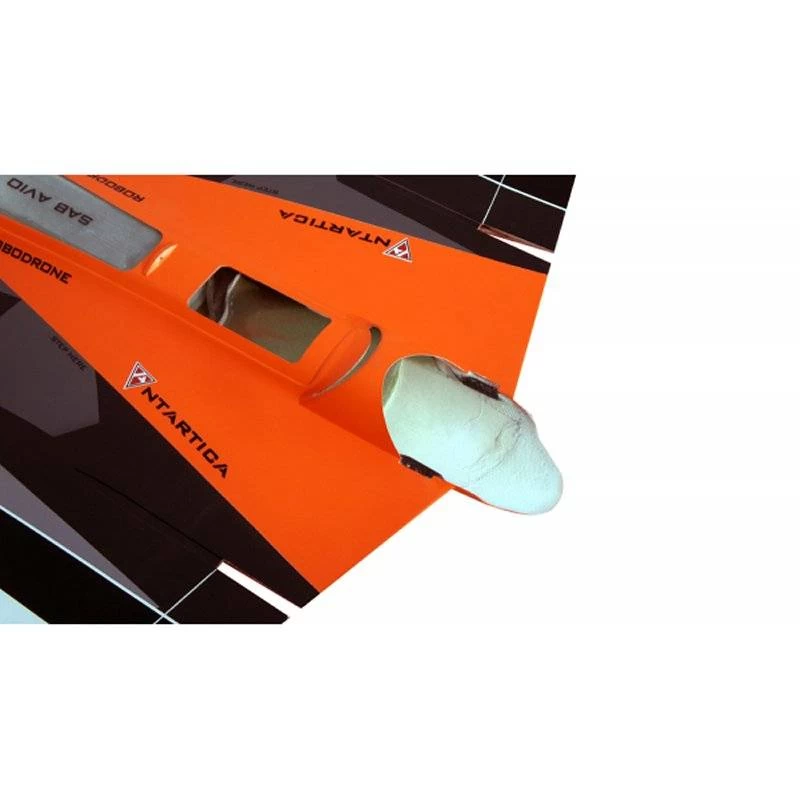

Ducks at the front of the fuselage increase maneuverability even in slow flight. This very resistant and very solid model can realize all basic aerobatics at high and low speeds. Due to its profile, the Tortuga is also capable of very short landings. Ultra rigid structure for a very high speed.
A functional rudder kit upgrade is available as an option for this model.
Warning ! This model is very fast and requires advanced control of driving. Using a catapult system is an advised safe method for launch (a dedicated hook for this purpose is delivered with the kit).Features

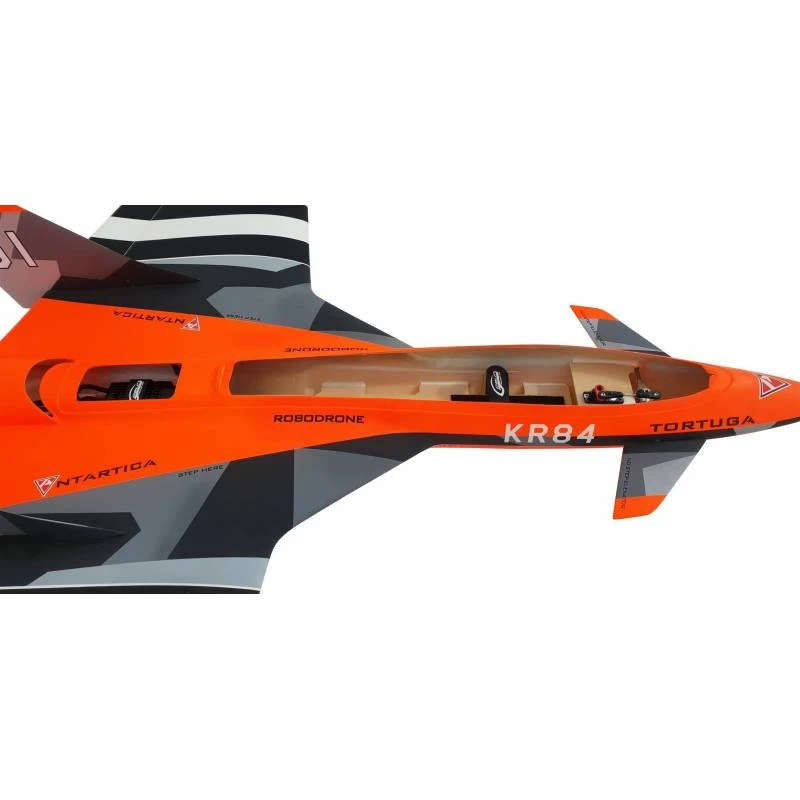

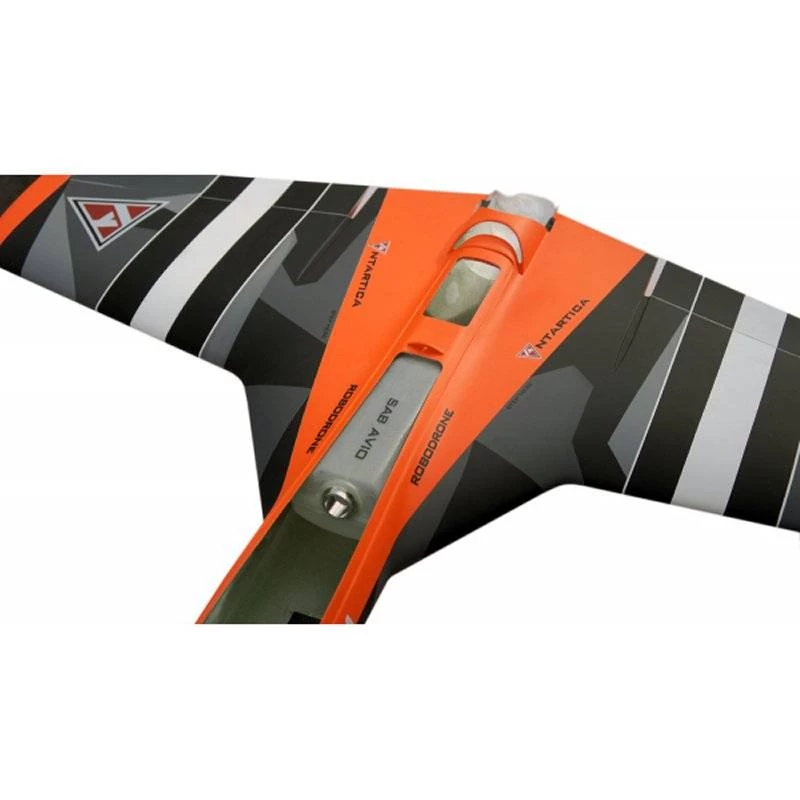

- Painted fiberglass fuselage / Airex fuselage (made under vacuum)
- All parts and horns are already painted
- Launch hook if necessary
- Fuel tank
- Super-fast assembly
Technical specifications
- Wing Span: 840mm /Â 33.07in
- Length: 810mm /Â 31.89in
- Weight: 1.5kg /Â 52.91oz
- Flying weight: max. 1.7kg / 59.96oz

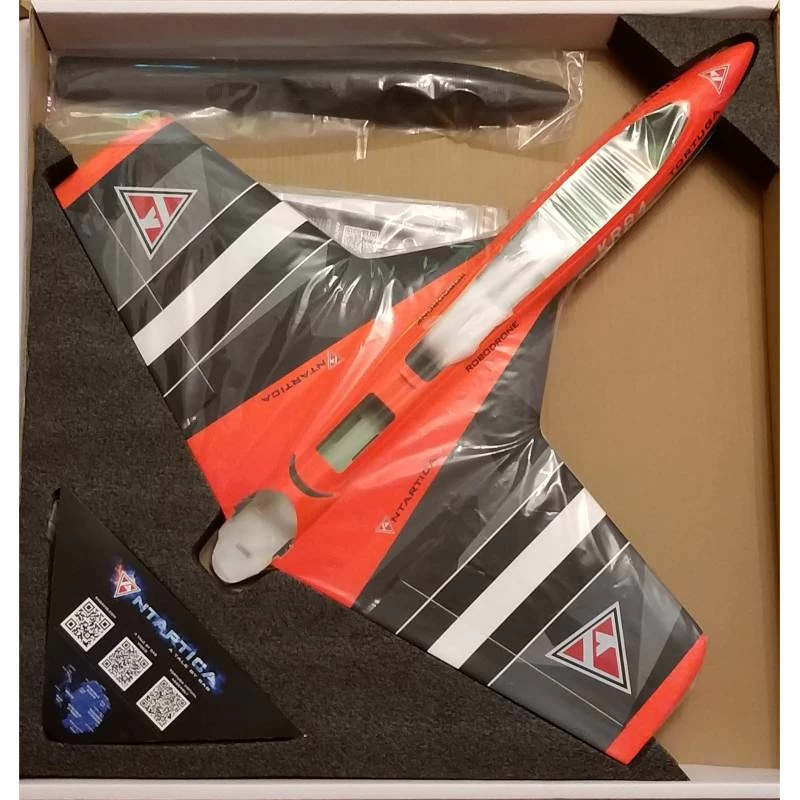

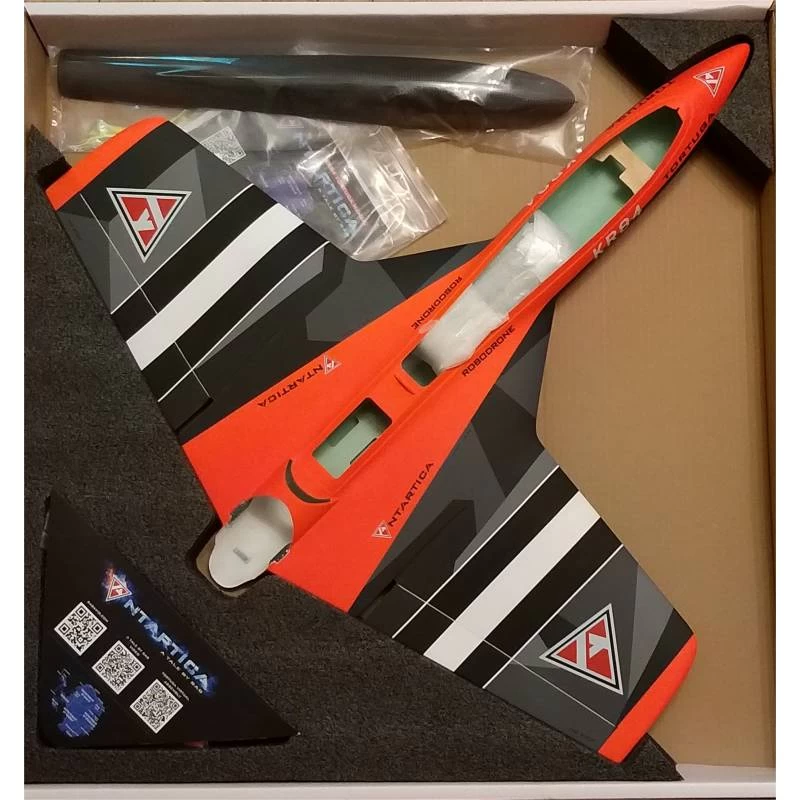

Includes
- SAB Avio KR84 TORTUGA ROBODRONE

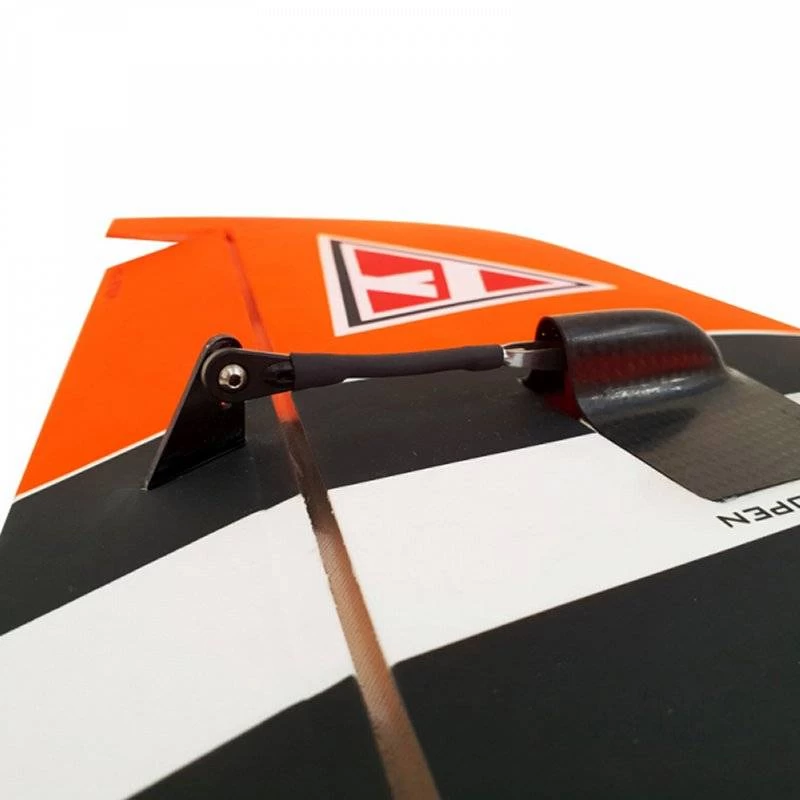

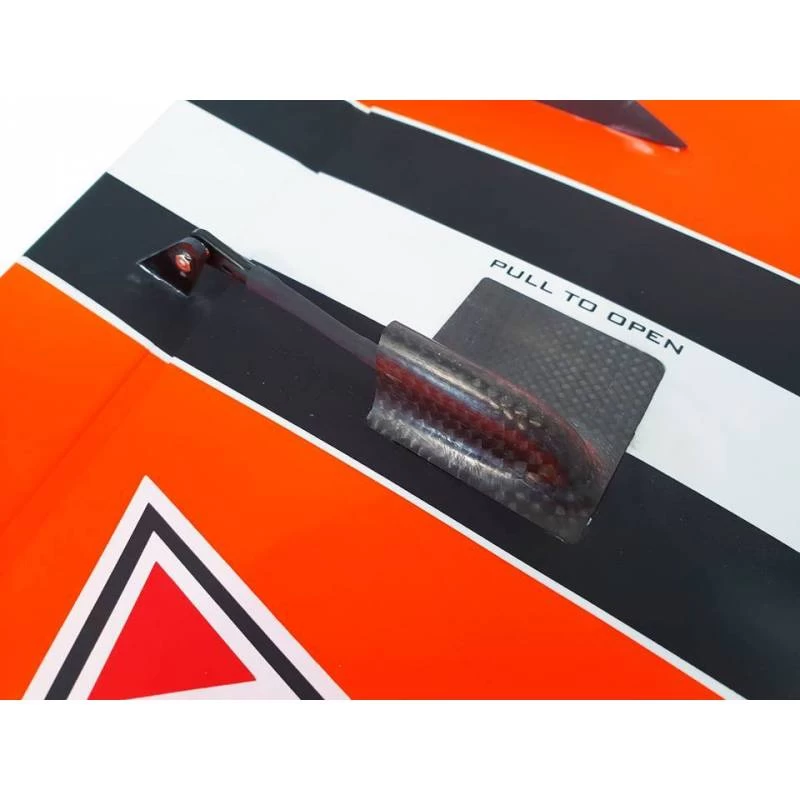

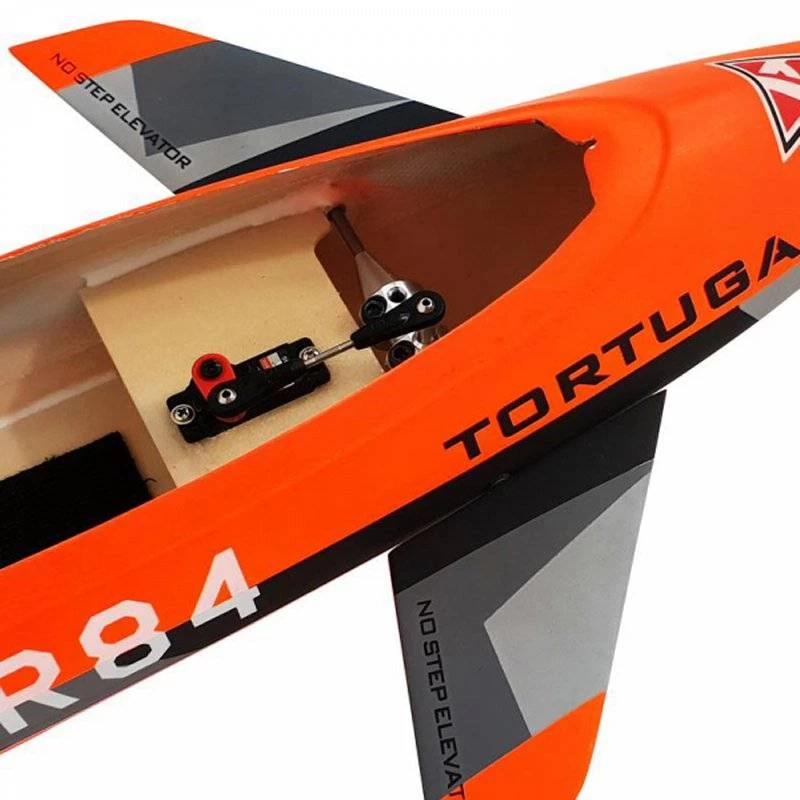

- Horns and servo holders
- Screws and bolts
- Linkages (all you need)
- Manual in English
Requires
- Minimum 4 channels radio and receiver
- 2x mini wing servos 30x10x30
- 1x micro servo 12×23

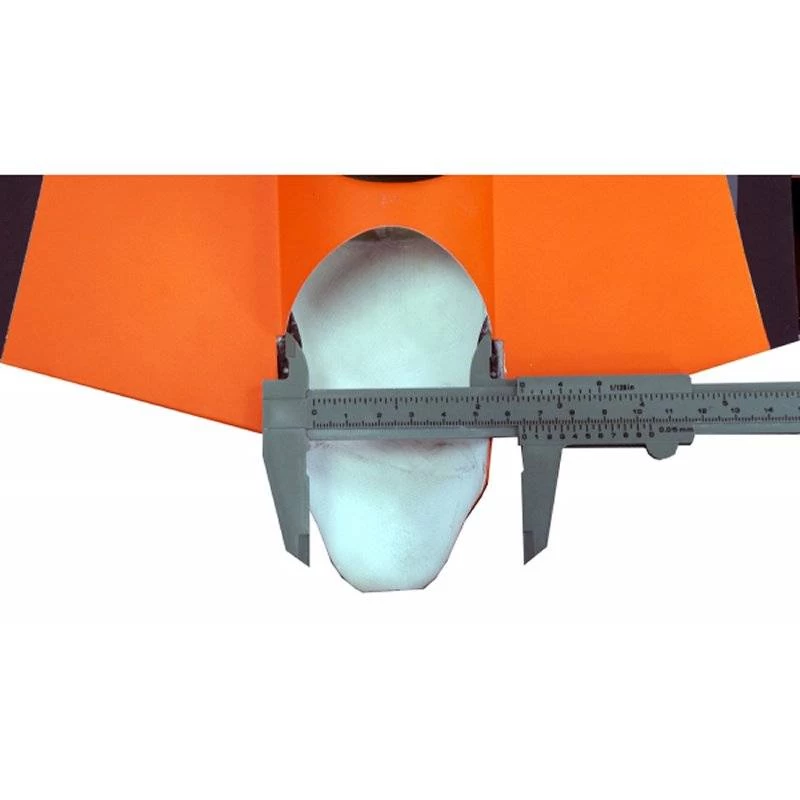

- Reactor thrust: 27N (2,7kg) diameter 55mm
- Estimated build time is 2 hours
Data sheet
| Type of kit: | ARF |
| Wingspan (mm): | 840mm / 33.07in |
| Length (mm): | 810mm / 31.89in |
| Flying weight (gr) | max. 1.7kg / 59.96oz |
| CG (Center of Gravity) | Check manual |
| Surfaces | Elevons, Canards |
| Landing Gear | None – belly lander |
| Material | Fiberglass |
| Build time | 2 heures |
| Required Radio | 4 channels minimum |
| Recommended pilot skill level | Advanced, Expert |
