RC Lander One To Four Remote Control On/off Switch

RC Lander One to Four Remote Control on/off Switch

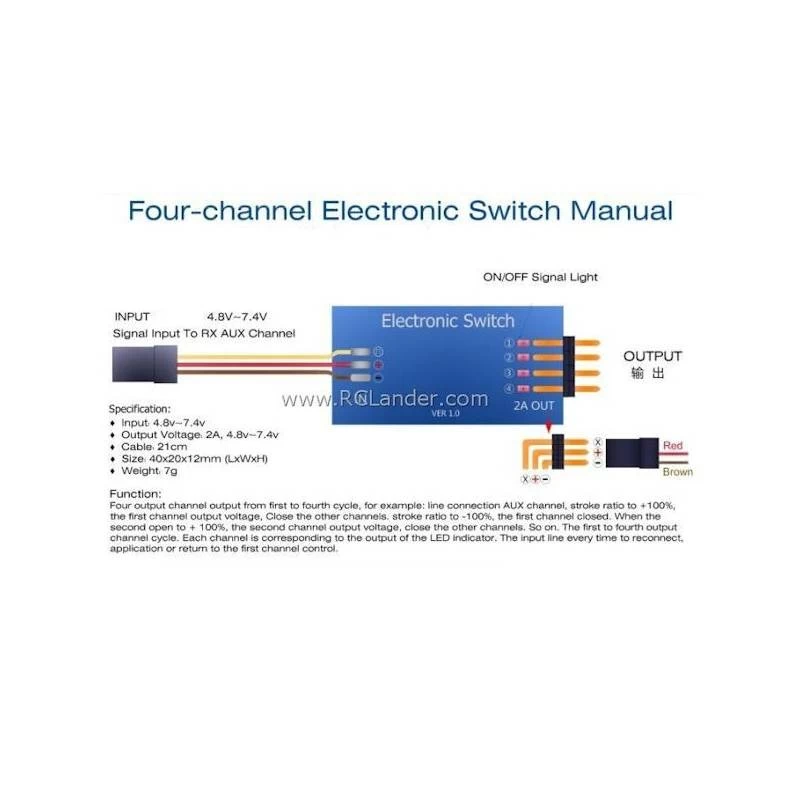

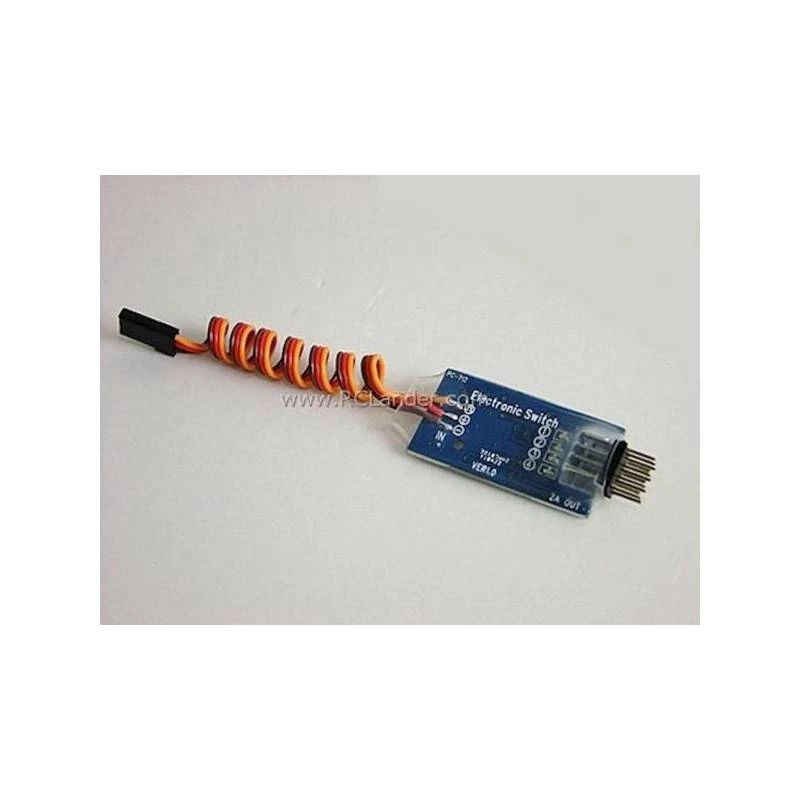

This electronic switch features 4 independent 4.8~7.4V switches in one compact light weight unit. It can be connected to a spare receiver channel for example: AUX or gear channel, to operate ancillary equipment such as lights, a smoke system, bomb drop, sound effects system, canopy operation, etc.

The switches are activated in a cyclic sequence as follows:

• switch 1 – on, switch 1 – off,
• switch 2 – on, switch 2 – off,
• switch 3 – on, switch 3 – off,
• switch 4 – on, switch 4 – off,
• switch 1 – on, switch 1 – off… and so on.

The switches are opened and closed one after the other when +100% / -100% signals are received from the receiver channel thus switching the output voltage from each switch on then off.

This makes it possible, for example, to switch individual lighting circuits on and off one after the other simply by flicking the gear switch on and off.

Each switch has an LED indicator.

Note that the sequence cannot be changed. If only two of the switches are in use, it is necessary to cycle through switches 3 and 4 before returning to switch 1.

Specifications

• Input voltage: 4.8~7.4V
• Output voltage: 4.8~7.4V
• Max current: 2A
• Cable length: 20cm
• Dimensions: 40 x 20 x 12mm (LxWxH)
• Weight: 7g
