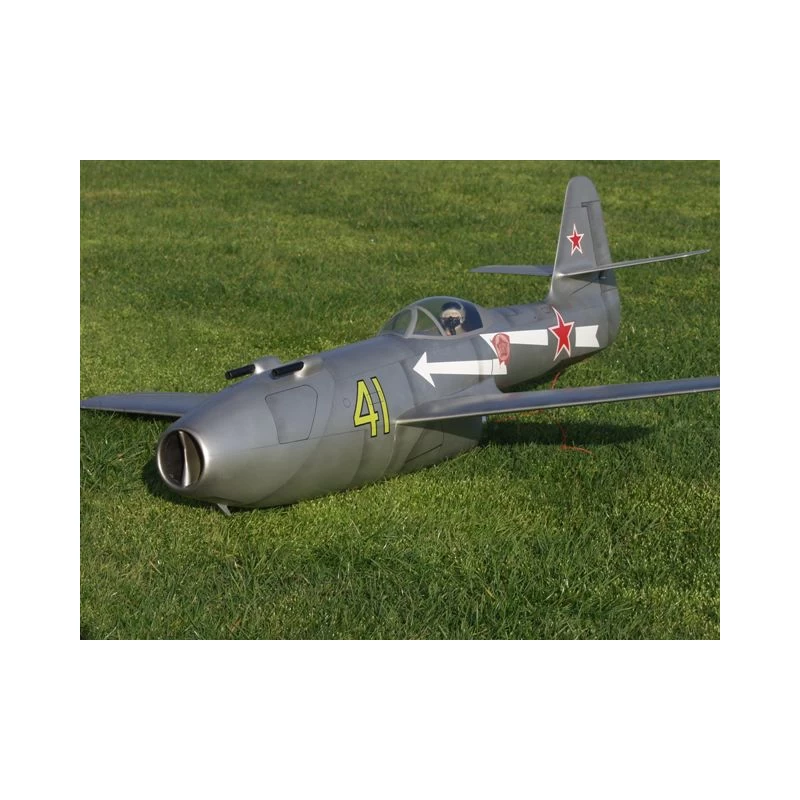

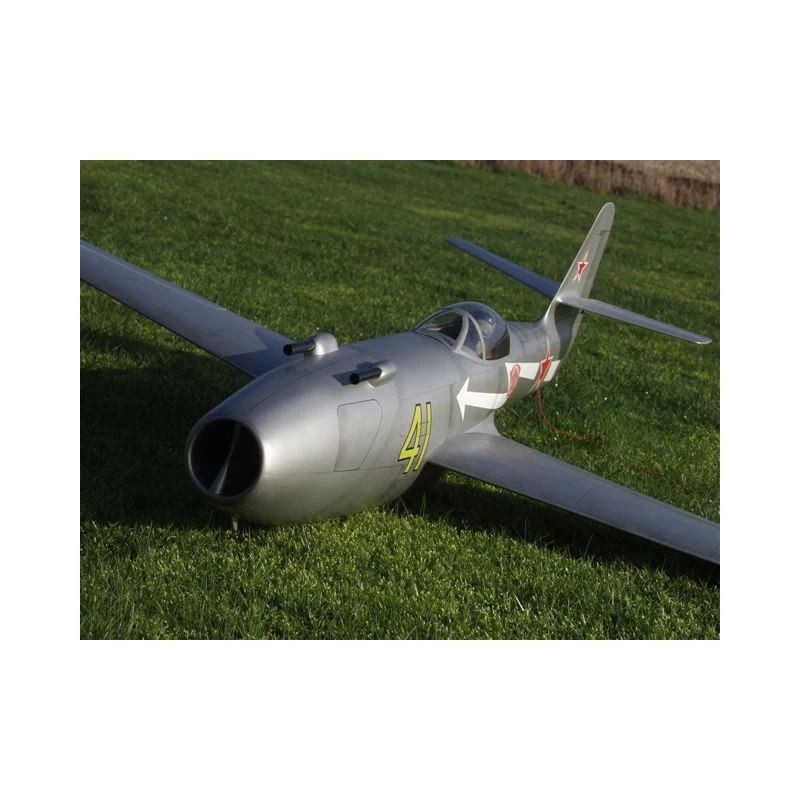

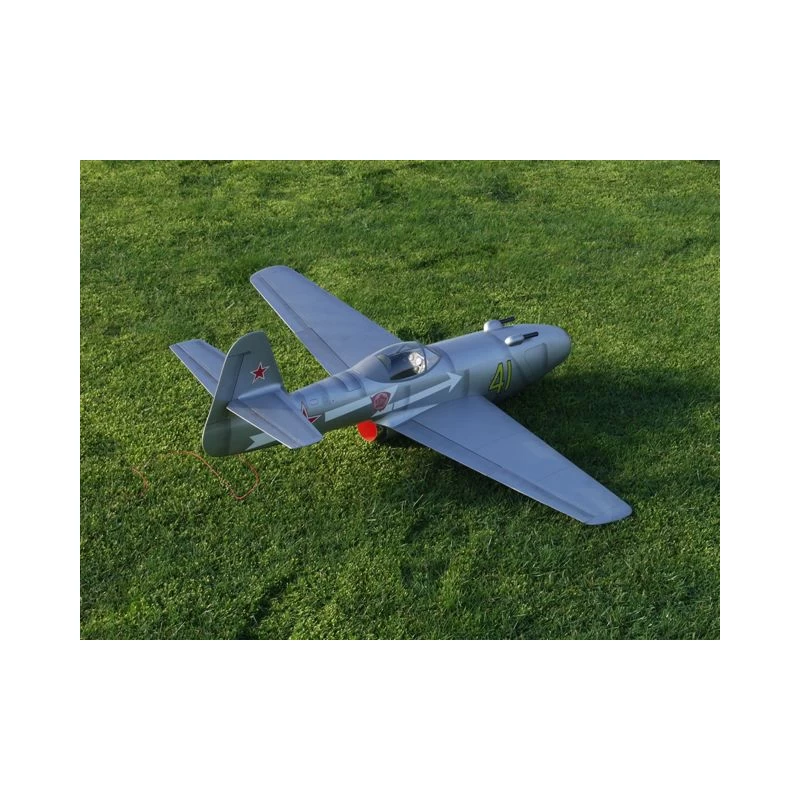

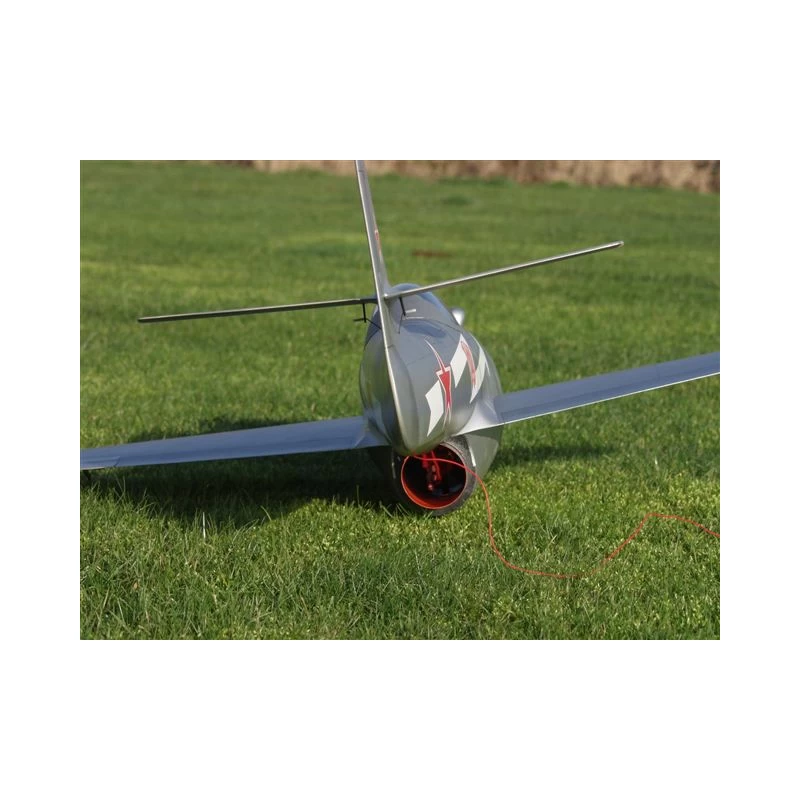

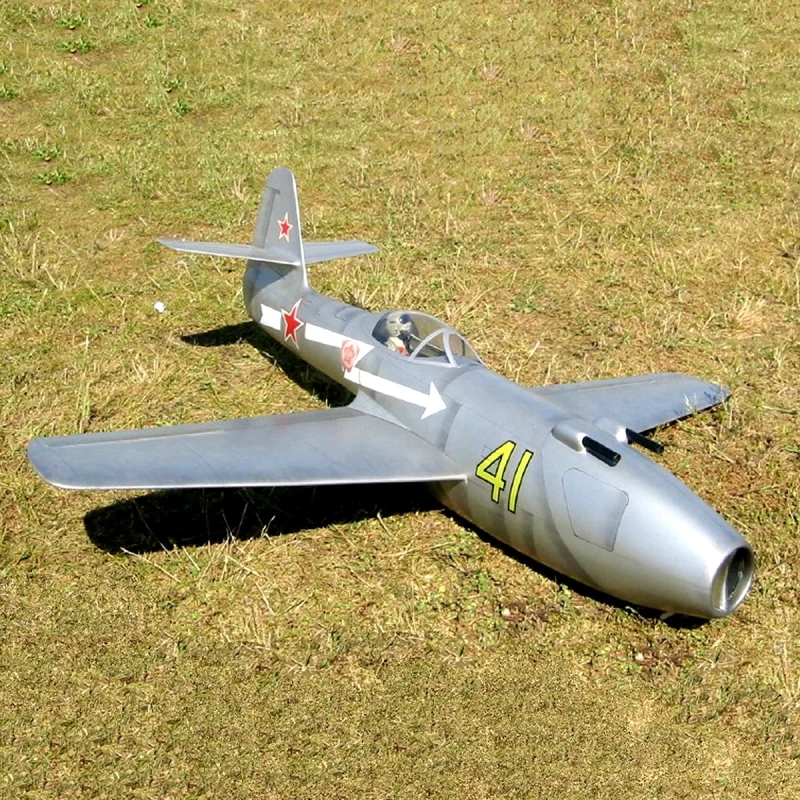

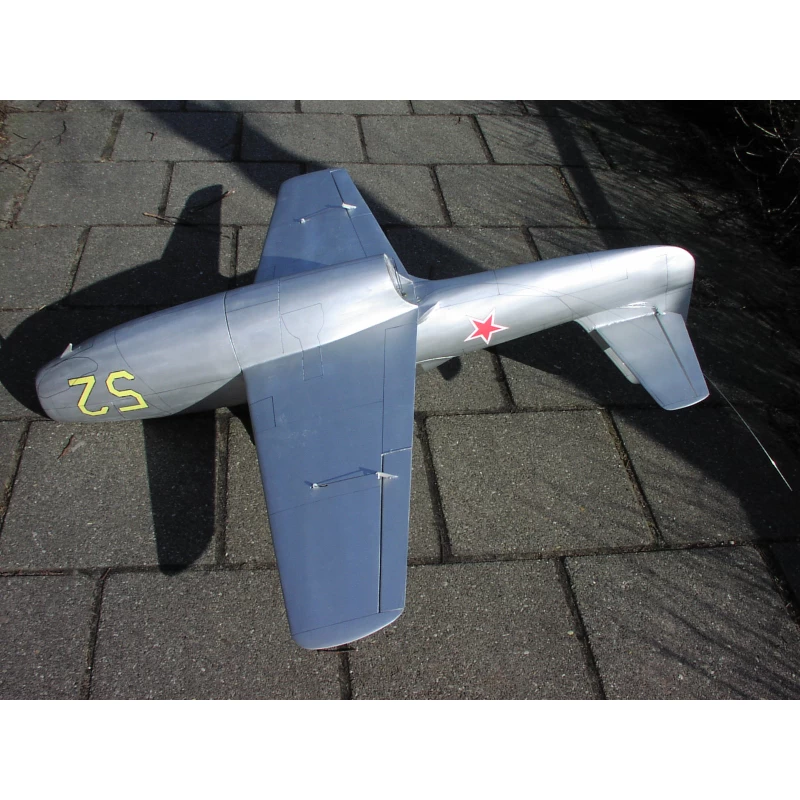

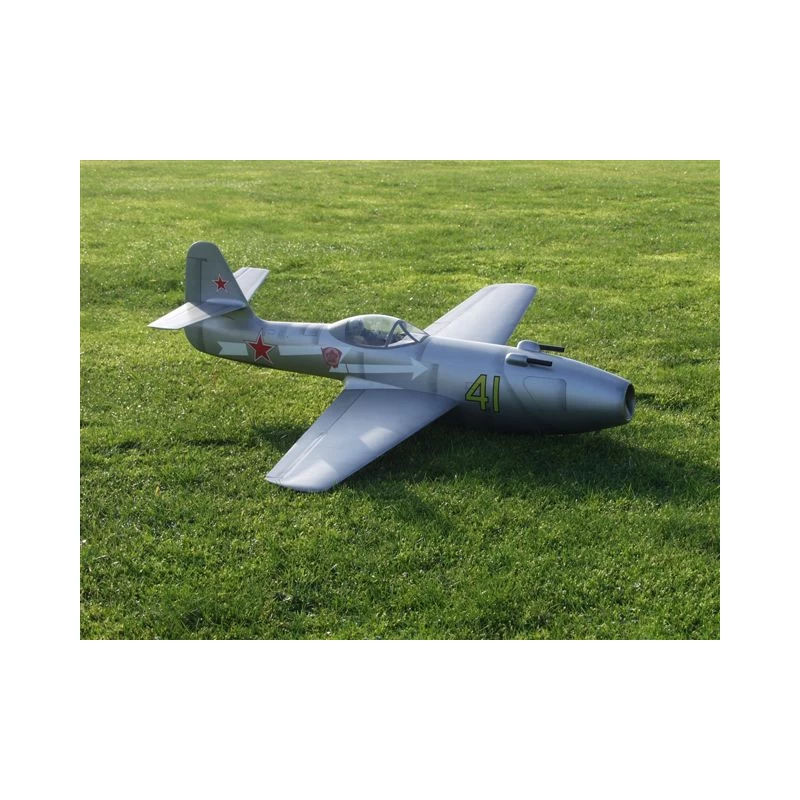

RBC Kits YAK 23 "Flora" Jet EDF 70mm (Wood Kit CNC)

RBC Kits YAK 23 "Flora" Jet EDF 70mm (Wood Kit CNC) - Afbeelding 2

RBC Kits YAK 23 "Flora" Jet EDF 70mm (Wood Kit CNC) - Afbeelding 3

RBC Kits YAK 23 "Flora" Jet EDF 70mm (Wood Kit CNC) - Afbeelding 4

RBC Kits YAK 23 "Flora" Jet EDF 70mm (Wood Kit CNC) - Afbeelding 5

RBC Kits YAK 23 "Flora" Jet EDF 70mm (Wood Kit CNC) - Afbeelding 6

RBC Kits YAK 23 "Flora" Jet EDF 70mm (Wood Kit CNC) - Afbeelding 7

RBC Kits YAK 23 "Flora" Jet EDF 70mm (Wood Kit CNC) - Afbeelding 8

RBC Kits YAK 23 "Flora" Jet EDF 70mm (Wood Kit CNC) - Afbeelding 9

RBC Kits YAK 23 "Flora" Jet EDF 70mm (Wood Kit CNC) - Afbeelding 10

RBC Kits YAK 23 "Flora" Jet EDF 70mm (Wood Kit CNC) - Afbeelding 11

RBC Kits YAK 23 "Flora" Jet EDF 70mm (Wood Kit CNC) - Afbeelding 12

RBC Kits YAK 23 "Flora" Jet EDF 70mm (Wood Kit CNC) - Afbeelding 13

RBC Kits YAK 23 "Flora" Jet EDF 70mm (Wood Kit CNC) - Afbeelding 14

RBC Kits YAK 23 "Flora" Jet EDF 70mm (Wood Kit CNC) - Afbeelding 15

RBC Kits YAK 23 "Flora" Jet EDF 70mm (Wood Kit CNC) - Afbeelding 16

RBC Kits YAK 23 “Flora” Jet EDF 70mm (Wood Kit CNC)

Oorspronkelijke prijs was: 90,83 €.Huidige prijs is: 63,58 €.

Artikelnummer: RBC-YAK23 Categorieën: Airplanes, Jets EDF

100% kwaliteitsbelofte
Veilige transacties, tevreden klanten
7 dagen gratis retourneren
Meerdere betaalmethoden, veilig en betrouwbaar

Beschrijving
Beoordelingen (0)

More info

RBC Kits YAK23 Jet EDF 70mm (Wood Kit CNC)

Turbines RC is pleased to introduce the new RBC range of high-quality all-wood kits to assemble yourself. All CTP and Balsa parts are CNC cut. This model is in two pieces for easy transport.

RBC jets are made for standard combos (motor + EDF) available on our website.

Technical specifications

All Formers And Ribs CNC Cut
Unique Tab Lock Design
Two piece design easy transportation
Motor/Fan compartment easy accesable through wing
Battery Access through wing

Features

Wing Area: 19dm2
Wing Loading: 47gr dm² to 66gr dm²
Wing Span: 1040mm
Flight Weight: starts at 900grams
Functions: 3 Channel, Ailevons & Throttle
EDF: Mini Fan 70mm (not included)

Includes

YAK 23 “Flora” wood kit (to be assemble)
Full Size Rolled Cad Plans With All Parts Shown
Vacuformed Canopy
Paper intake tube (preprinted)
PVC outlet tube
Control horns, Steering cables
Instructions manual in English (downloadable hereunder)
All Mounting pictures by the hereunder link :
https://www.rbckitsinstructions.com/edf-jets/instructions-yak-23

Requires

3 Channel Radio with delta mixer
Light weight Receiver
Light weight Servos: 2x9gr
Motor HETrc 2W (3S) or 2W-20 (4S)
ESC: 60-80A
EDF: Wemotec Mini fan 480 or HET 6904 any other 70mm fan with motor
Battery: 3S-4S 3200mAh Li-Po
Thick and Thin CA glue
Bungee Launch req.: the model needs a 8mmx7.5m bungee with 8kg of pulling power (possible hand lauching)

Data sheet

Type of kit:	Wood kit
Wingspan (mm):	1040
Flying weight (gr)	900
Wing Surface Area:	19 dm²
Wing Loading:	47gr to 66gr dm²
CG (Center of Gravity)	Check manual
Servos	9 gr
EDF Diameter Class (mm):	70
Battery Cells:	3s – 11.1v, 4s – 14.8v
Battery Capacity (mAh)	3200
Surfaces	Ailerons, Elevator
Landing Gear	None – belly lander
Material	ABS, Balsa, Wood
Required Radio	3 channels minimum
