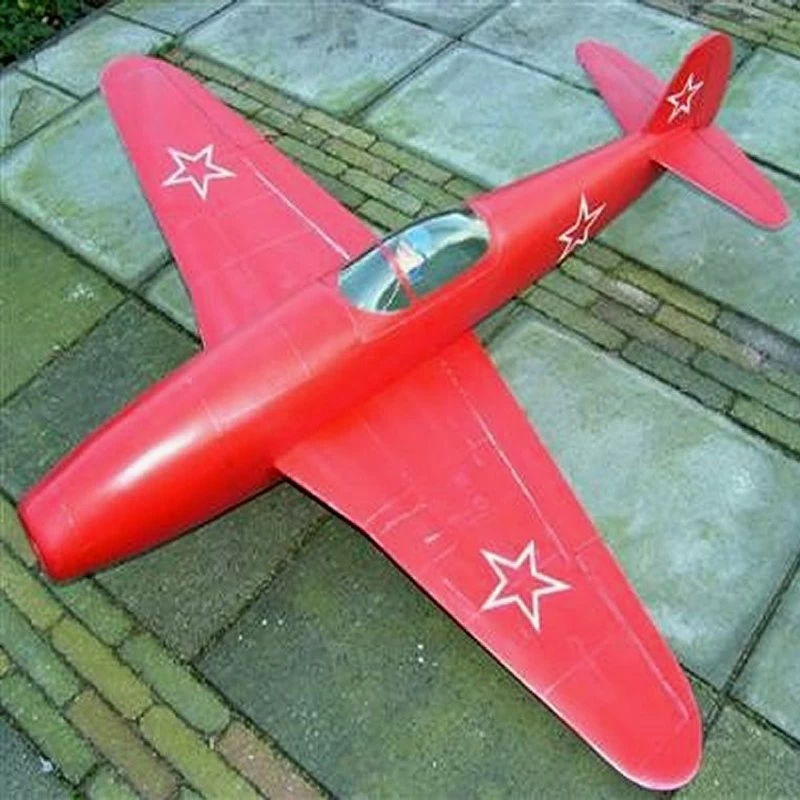

RBC Kits Yak 15 Jet EDF 90mm (Wood Kit CNC)

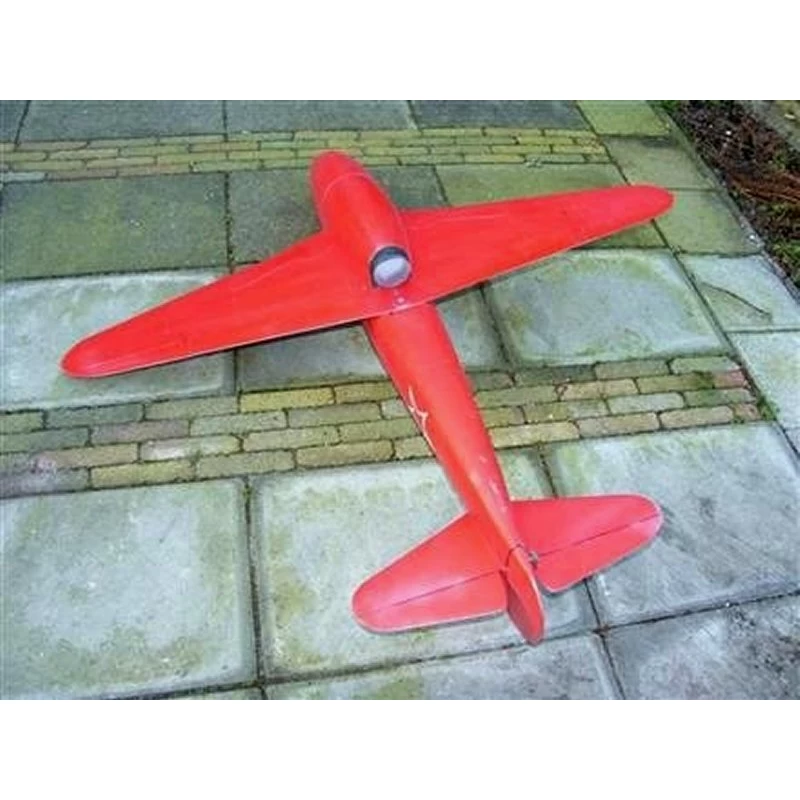

RBC Kits Yak 15 Jet EDF 90mm (Wood Kit CNC) - Afbeelding 2

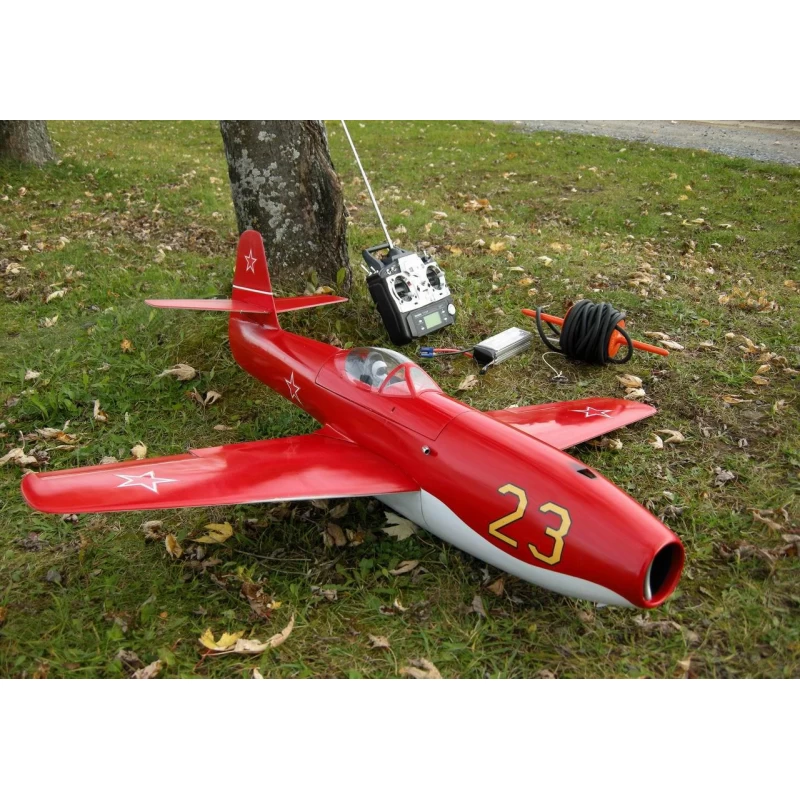

RBC Kits Yak 15 Jet EDF 90mm (Wood Kit CNC) - Afbeelding 3

RBC Kits Yak 15 Jet EDF 90mm (Wood Kit CNC)

Oorspronkelijke prijs was: 149,17 €.Huidige prijs is: 99,99 €.

Artikelnummer: RBC-YAK15 Categorieën: Airplanes, Jets EDF

100% kwaliteitsbelofte
Veilige transacties, tevreden klanten
7 dagen gratis retourneren
Meerdere betaalmethoden, veilig en betrouwbaar

Beschrijving
Beoordelingen (0)

More info

RBC Kits Yak 15 Jet EDF 90mm (Wood Kit CNC)

Turbines RC is pleased to introduce the new RBC range of high-quality all-wood kits to assemble yourself. All CTP and Balsa parts are CNC cut. This model, once mounted, can be split in 2 parts for easy transport.

You can fligh it 5s or 6s, we can fly with ease 5 minutes plus full speed.

RBC jets are made for standard combos (motor + EDF) available on our website.

Nota: It is possible to install electric retracts.

Technical specifications

All Formers And Ribs CNC Cut
Unique Tab Lock Design
Two Piece Design Easy transportation
Motor/Fan compartment Easy accesable
Battery Acces Through Canopy
The Yak 15 is Easy Flying

Features

Wing Area: 36dm2
Wing Span; 1400 mm
Flight Weight: starts at 1800 grams
Wing Loading: 53gr dm2 to 66gr dm2
Functions: 5 Channel, aileron, elevator, rudder, retracts and throttle
EDF: 90mm (not included)

Includes

F9F Yak 15 wood kit (to be assemble)
Full Size Rolled Cad Plans With All Parts Shown
Vacuformed Canopy
Paper in and outlet tubes
No Control Horns , Steering Cables
No hardware in this kit
All Mounting pictures by the hereunder link :
https://www.rbckitsinstructions.com/edf-jets/instructions-yak-15

Requires

Wemotec Midi fan or schubeler HDS51 or any other 90mm fan
3 to 5 Channel Radio
Light weight Receiver
Light weight Servos: About Metal gear (3-5x)
RBC controller 70 amp
Wemotec Midi Fan
Battery: 5S 3200 lipo to 6S
Thick and Thin CA glue
Strong Bungee Launch req.
The Yak 15 needs a 8mmx7,5mtr bungee with 14kg of pulling power.

Lots of wood parts

Frame up of the fuselage

Sheeting of the fuselage

Profiled tail

Wing prepared for retracts

Motor housing.

Data sheet

Type of kit:	Wood kit
Wingspan (mm):	1160
Length (mm):	1080
Flying weight (gr)	2200-2400
CG (Center of Gravity)	Check manual
Servos	2 x 17 gr standard gear
EDF Diameter Class (mm):	90
Battery Cells:	6s – 22.2v
Surfaces	Elevons
Landing Gear	(optional landing gear)
Material	ABS, Balsa, Wood
Required Radio	3 channels minimum
