RBC Kits CNC P-59 Airacomet Jet EDF 90mm (CNC wood Kit)
Turbines RC is pleased to introduce the new RBC range of high-quality all-wood kits to assemble yourself. All CTP and Balsa parts are CNC cut. This model, once mounted, remains in one piece for easy transport.
The Bell P-59 Airacomet is the first jet fighter designed by the United States. It made its first flight in October 1942 but, because of its disappointing performance, was never hired for combat missions. Less than 60 copies were built.
RBC jets are made for standard combos (motor + EDF) available on our website.
Nota: It is possible to install electric retracts.
Technical specifications
- All formers and ribs CNC cut
- Unique tab lock design
- Removable wings for easy tranportation and storage
Features
- Wingspan: 1570mm
- Length: 1300mm
- Wing area [dm]: 44dm²
- Flying weight: starts at 4100gr
- Functions: Ailerons, Elevator, Throttle, Flaps, Retracts (optional), Nose wheel steering
- EDF: 90mm (no included)
Includes
- P-59 Airacomet Jet (to be assemble)
- AUTOCAD plans with all parts shown
- Vacuumformed canopy, nose cone
- Exhaust ducting,
- PVC outlet tube (to roll)
- Illustrated instructions manual (downloadable hereunder)
- All Mounting pictures by the hereunder link :
- https://www.rbckitsinstructions.com/edf-jets/instructions-p59-airacomet
Requires
- EDF 90mm type MidiFan Evo Wemotec + Motor HET Typhoon class 650-58-1480Kv in 8S or similar
- ESC 80A
- Lipo Battery 8S 5000mAh
- 13gr Metal Servos
- 30gr Ailerons servos
- Landing gear retracts
- Thick and thin Cyano glue
- Cover (fiber 2m² 25gr + Epoxy)
- Recommended Radio and Receiver: 6 channel
- Small parts screws (list of parts is included)
Wing classic build wood ribs and formers sheeted
Stick on wings with dowels, very strong
Build up stabilizers
Exhaust duct vacuumformed builds into fuselage
All strip sheeting fuselage, a nice job

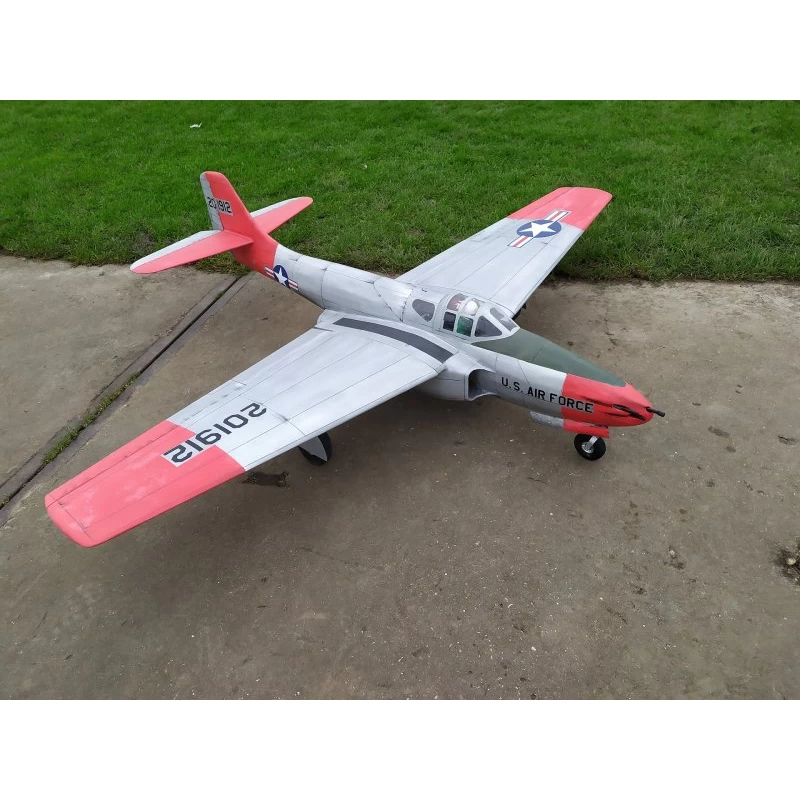

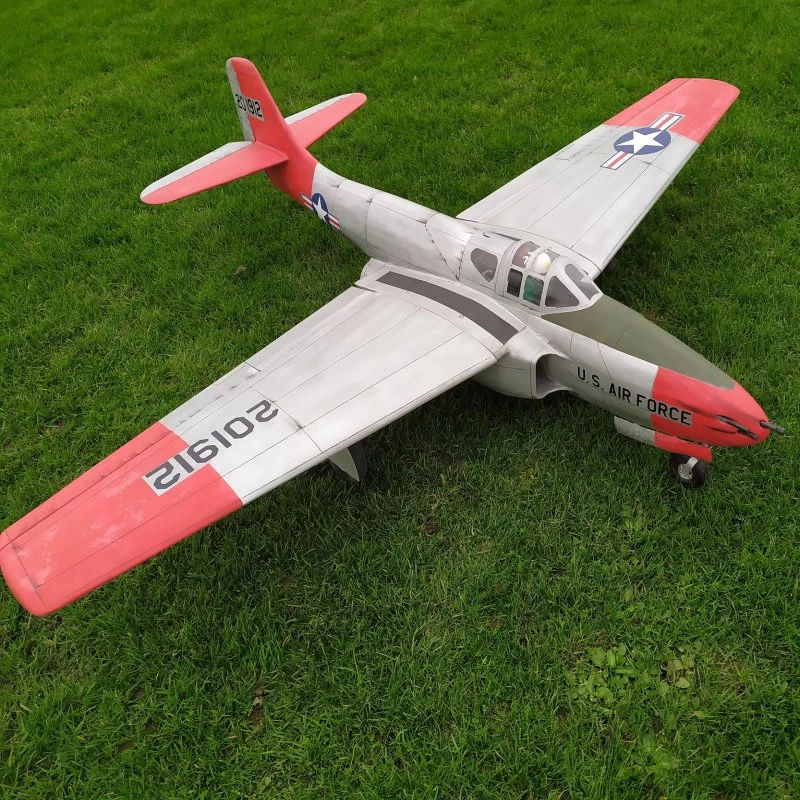

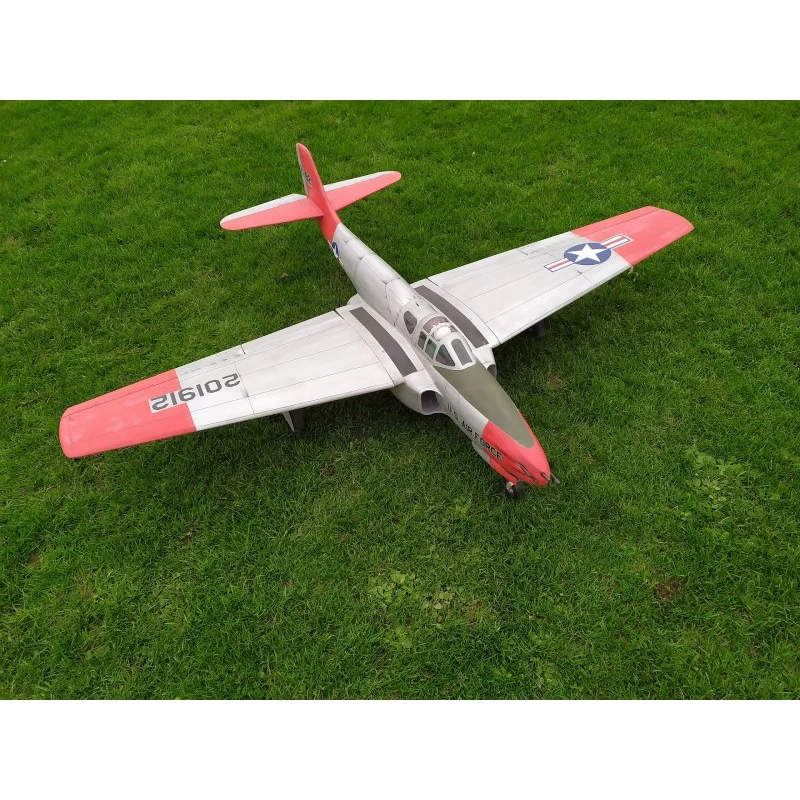

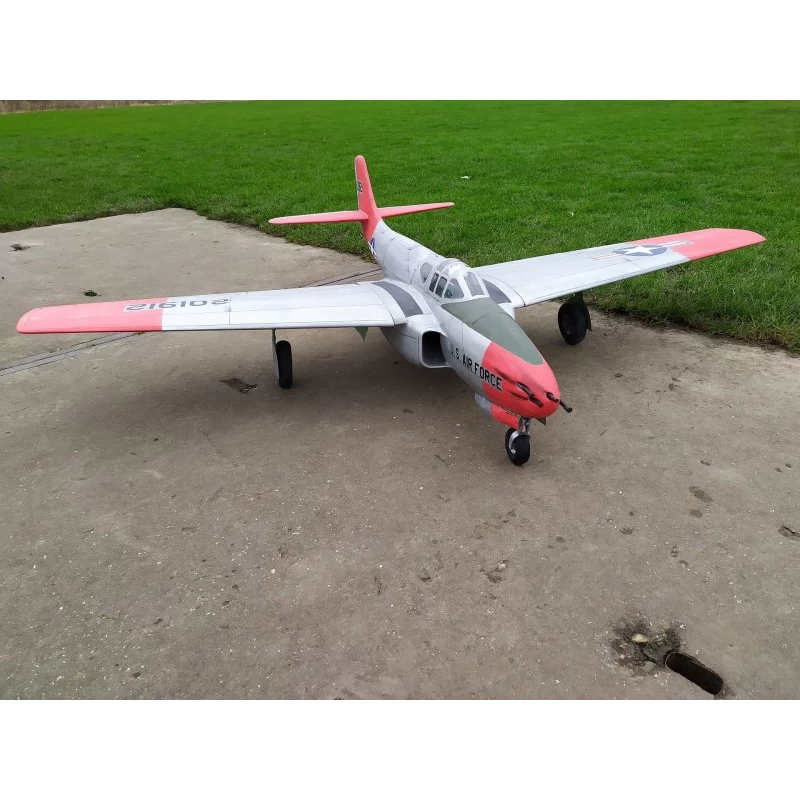

Nice job when finished
Batterie space tight fit you can slide battery in nose also.
Finished, retracts are explained on drawing and there are a lot of pictures on teh cd
including building instructions
Data sheet
| Type of kit: | Wood kit |
| Wingspan (mm): | 1570mm |
| Length (mm): | 1300mm |
| Flying weight (gr) | starts at 4100gr |
| CG (Center of Gravity) | Check manual |
| Servos | metal 13gr + 40gr for ailerons |
| EDF Diameter Class (mm): | 90 |
| Surfaces | Ailerons, Elevator, Rudder, Flaps |
| Landing Gear | (optional landing gear) |
| Material | ABS, Balsa, Wood |
| Required Radio | 6 channels minimum |
