RBC Kits JET PROVOST T-4 EDF 90mm (Wood Kit CNC)

RBC Kits JET PROVOST T-4 EDF 90mm (Wood Kit CNC) - Afbeelding 2

RBC Kits JET PROVOST T-4 EDF 90mm (Wood Kit CNC) - Afbeelding 3

RBC Kits JET PROVOST T-4 EDF 90mm (Wood Kit CNC) - Afbeelding 4

RBC Kits JET PROVOST T-4 EDF 90mm (Wood Kit CNC) - Afbeelding 5

RBC Kits JET PROVOST T-4 EDF 90mm (Wood Kit CNC) - Afbeelding 6

RBC Kits JET PROVOST T-4 EDF 90mm (Wood Kit CNC) - Afbeelding 7

RBC Kits JET PROVOST T-4 EDF 90mm (Wood Kit CNC) - Afbeelding 8

RBC Kits JET PROVOST T-4 EDF 90mm (Wood Kit CNC)

Oorspronkelijke prijs was: 182,50 €.Huidige prijs is: 97,99 €.

Artikelnummer: RBC-JET PROVOST Categorieën: Airplanes, Jets EDF

100% kwaliteitsbelofte
Veilige transacties, tevreden klanten
7 dagen gratis retourneren
Meerdere betaalmethoden, veilig en betrouwbaar

Beschrijving
Beoordelingen (0)

More info

RBC Kits JET PROVOST T-4 Jet EDF 90mm (Wood Kit CNC)

Turbines RC is pleased to introduce the new RBC range of high-quality all-wood kits to assemble yourself. All CTP and Balsa parts are CNC cut. You can fligh it in 8S.

The Jet Provost is very easy to fly and lands slow as a trainer.

RBC jets are made for standard combos (motor + EDF) available on our website.

Nota: It is possible to install electric retracts.

Technical specifications

All Formers And Ribs CNC Cut
Unique Tab Lock Design
Removable wings for easy transportation and storage

Features

Wing Area: 40dm2
Wing Span: 1550mm
Total lenght: 1380mm
Flight Weight: starts at 4500grams
Functions: 7 Channel, ailerons, elevator, flaps, throttle, retracts and nosewheel steering
EDF: Midi Fan 90mm (not included)

Includes

Jet Provost T-4 wood kit (to be assemble)
Full Size Rolled Cad Plans With All Parts Shown
Vacuformed Canopy and Inlet Lip
Paper inlet/exhaust ducting
All wood and sheeting
List of required small parts
No hardware in this kit
Illustrated instructions manual (downloadable hereunder)
All Mounting pictures by the hereunder link :
https://www.rbckitsinstructions.com/edf-jets/instructions-jet-provost

Requires

7 Channel Radio
Light weight Receiver
Light weight Servos: 13gr metal gear & 30gr for Ailerons
Wemotec Midi fan or Schubeler HDS51 or any other 90mm fan
Motor HETrc EDF650/1480 8S
Battery: 8S Li-Po 4500mAh
Thick and Thin CA glue, 3/3
Small parts screws

Wing classic build wood ribs and formers sheeted

Build up tail feathers looks good

Fuselage build in 2 halves and sheeted with 2mm balsa

Joined and ducts are made

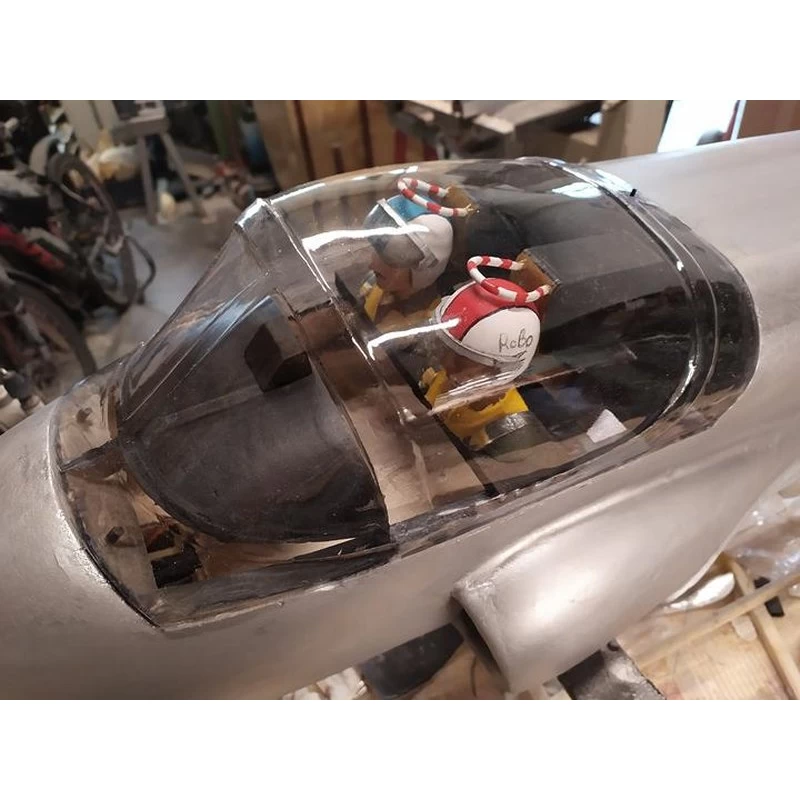

Black parts are vacuumformings to make life easyer , clear canopy

Easy battery and fan access

Data sheet

Type of kit:	Wood kit
Wingspan (mm):	1550
Length (mm):	1380
Flying weight (gr)	4500
Wing Surface Area:	40 dm²
CG (Center of Gravity)	Check manual
Servos	13gr & 40gr metal gear
EDF Diameter Class (mm):	90
Battery Cells:	8s – 29.6v
Battery Capacity (mAh)	4.500 mAh
Surfaces	Ailerons, Elevator, Flaps
Landing Gear	Full metal retractable main and steerable nose gear with shock absorbing struts
Material	ABS, Balsa, Wood
Required Radio	Minimum 7 channels
