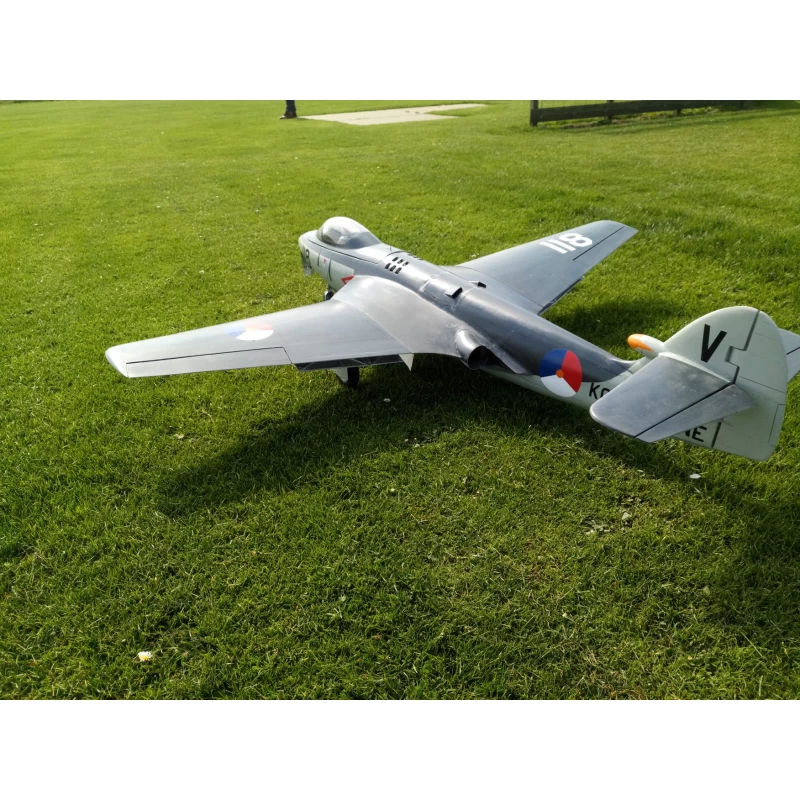

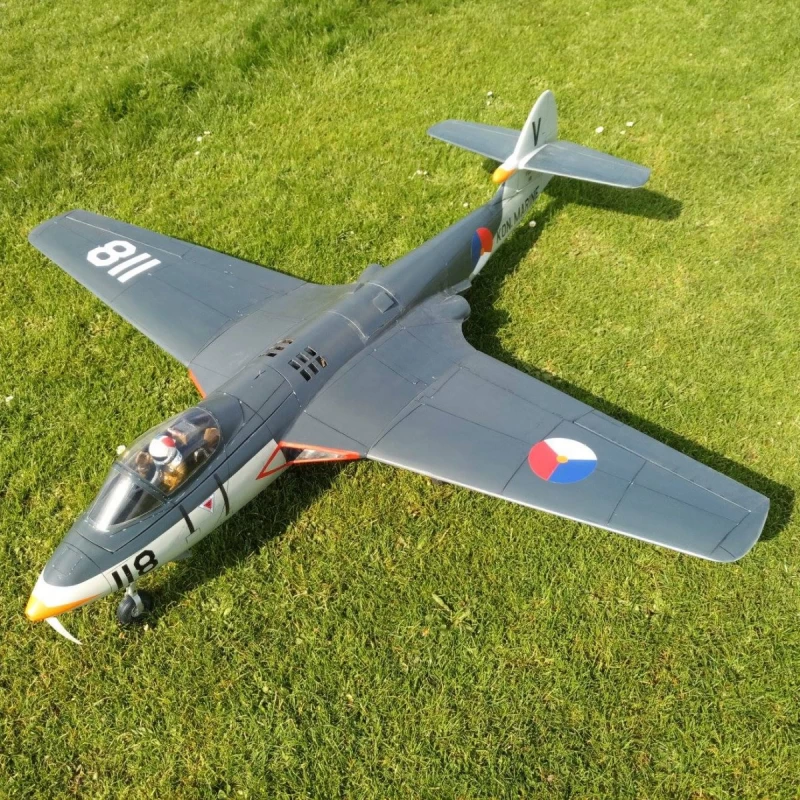

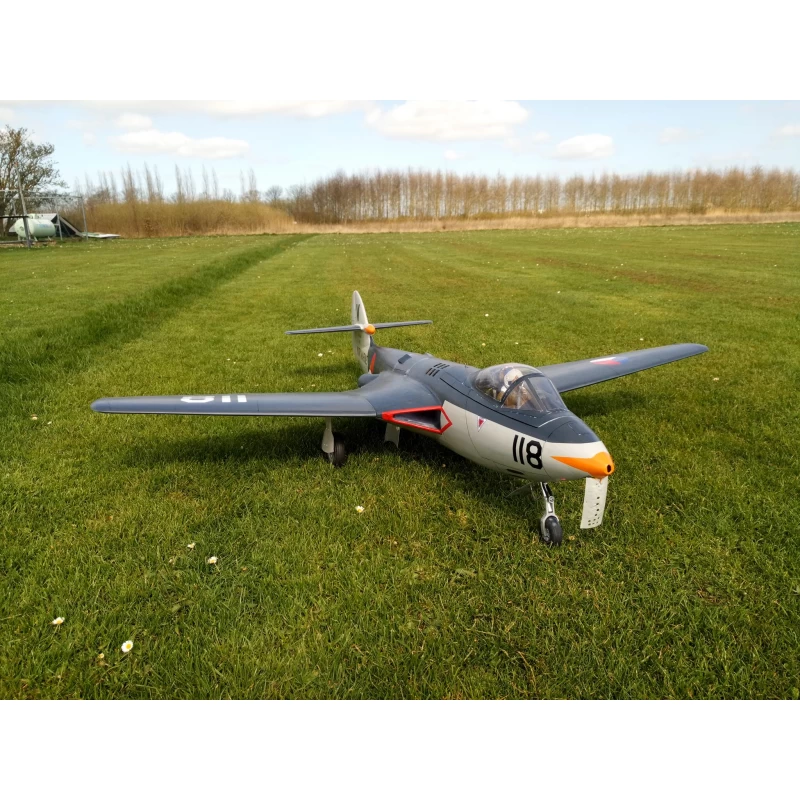

RBC Kits Hawker Sea Hawk Jet EDF 90mm (Wood Kit CNC)
Turbines RC is pleased to introduce the new RBC range of high-quality all-wood kits to assemble yourself. All CTP and Balsa parts are CNC cut. You can fligh it with a 8S Li-Po battery.
The Hawker Sea Hawk is very easy to fly and lands slow as a trainer.
RBC jets are made for standard combos (motor + EDF) available on our website.
Nota: It is possible to install electric retracts.
Technical specifications
- All Formers And Ribs CNC Cut
- Unique Tab Lock Design
- Removable wings for easy transportation and storage
- Canopy interior seat for a pilot (pilot not included)
Features
- Wing Area: 45.4dm2
- Wing Span: 1570mm
- Total lenght: 1550mm
- Flight Weight: starts at 4600grams
- Functions: 7 Channel, ailerons, elevator, flaps, throttle, retracts and nosewheel steering
- EDF: Midi Fan 90mm (not included)
Includes
- Hawker Sea Hawk wood kit (to be assemble)
- Full Size Rolled Cad Plans With All Parts Shown
- Vacuformed Canopy, nose cone and exhaust ducting
- Paper inlet ducting
- All wood and sheeting
- List of required small parts
- No hardware in this kit
- Illustrated instructions manual (downloadable hereunder)
- All Mounting pictures by the hereunder link :
- https://www.rbckitsinstructions.com/edf-jets/instructions-hawker-sea-hawk
Requires
- 7 Channel Radio
- Light weight Receiver
- Light weight Servos: 6x13gr metal gear
- Wemotec Midi fan or Schubeler HDS51 or any other 90mm fan
- Motor HETrc EDF650/1500 8S
- Battery: 8S Li-Po 5000mAh
- Thick and Thin CA glue, 3/3
- Small parts
Wing classic build wood ribs and formers sheeted
Mounted with hardwood Dowels very stiff
Fuselage build up self aligning stick together construction
Intake duct made from heavy stiff paper
Exhaust duct made from vacuumformed parts , incorporated in the construction
Balsa partly strip sheeted fuselage
Canopy interiour basic included in kit
Retract hatches explained on drawing
Front retract working almost as original, also explained on drawing
Data sheet
| Type of kit: | Wood kit |
| Wingspan (mm): | 1570 |
| Length (mm): | 1550 |
| Flying weight (gr) | 4600 |
| Wing Surface Area: | 45.4 dm² |
| CG (Center of Gravity) | Check manual |
| Servos | 6x13gr metal gear |
| EDF Diameter Class (mm): | 90 |
| Battery Cells: | 8s – 29.6v |
| Battery Capacity (mAh) | 5.000 mAh |
| Surfaces | Ailerons, Elevator, Flaps |
| Landing Gear | Retractable |
| Material | ABS, Balsa, Wood |
| Required Radio | Minimum 7 channels |
