RBC Kits CNC Hawker Hunter Jet EDF 90 (CNC wood kit)
Turbines RC is pleased to introduce the new RBC range of high-quality all-wood kits to assemble yourself. All CTP and Balsa parts are CNC cut. Wings of this model are dismountable to easy transport and storage.
The Hawker Hunter is a British fighter jet capable of supersonic flight in light dive. It made its first flight in 1951 and was built in total to nearly 2,000 copies, used by twenty countries until the late 1990s. Highly appreciated by the pilots, the Hunter showed good performance for the time being both fast, very maneuverable and robust. He was withdrawn from armed service in 2014 by Lebanon, his last user in a military force.
RBC jets are made for standard combos (motor + EDF) available on our website.
Nota: It is possible to install flaps and electric retracts.
Technical specifications
- All formers and ribs CNC cut
- Unique tab lock design
- Removable wings for easy tranport and storage
Features
- Wingspan:Â 1125mm
- Length:Â 1500mm
- Wing area [dm]: 40dm²
- Flying weight:Â starts at 4000g
- Functions: Ailerons, Elevator, Throttle, Retracts, Flaps
- EDF: 90mm (no included)
IncludesÂ
- Hawker Hunter Jet (to be assemble)

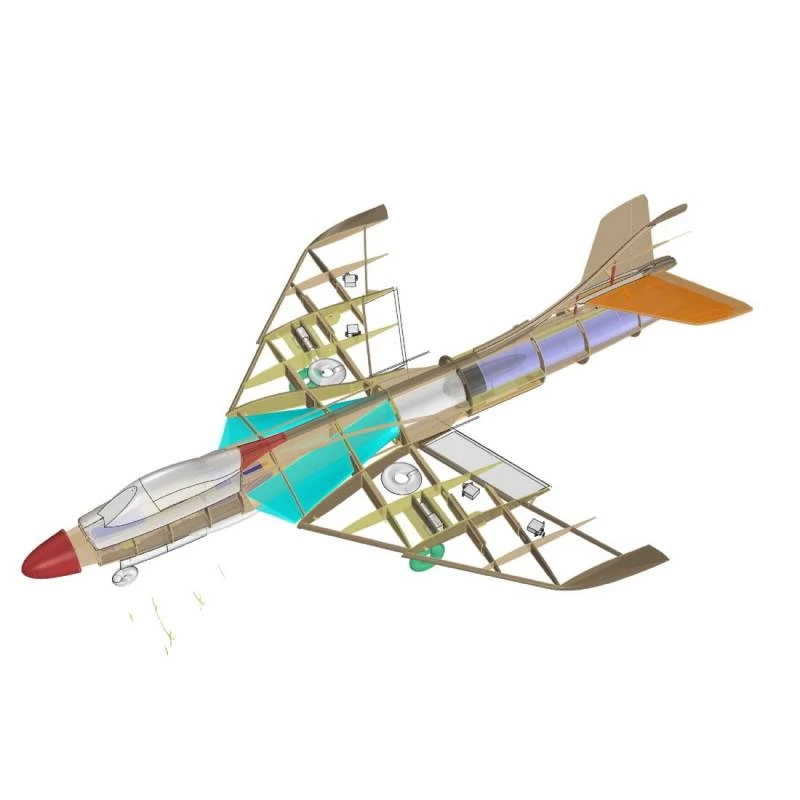

- AUTOCAD plans with all parts shown
- Vacuumformed canopy, nose and guns cowls
- PVC outlet tube (to roll)
- Illustrated instructions manual (downloadable hereunder)
- All Mounting pictures by the hereunder link :
- https://www.rbckitsinstructions.com/edf-jets/instructions-hawker-hunter
Requires

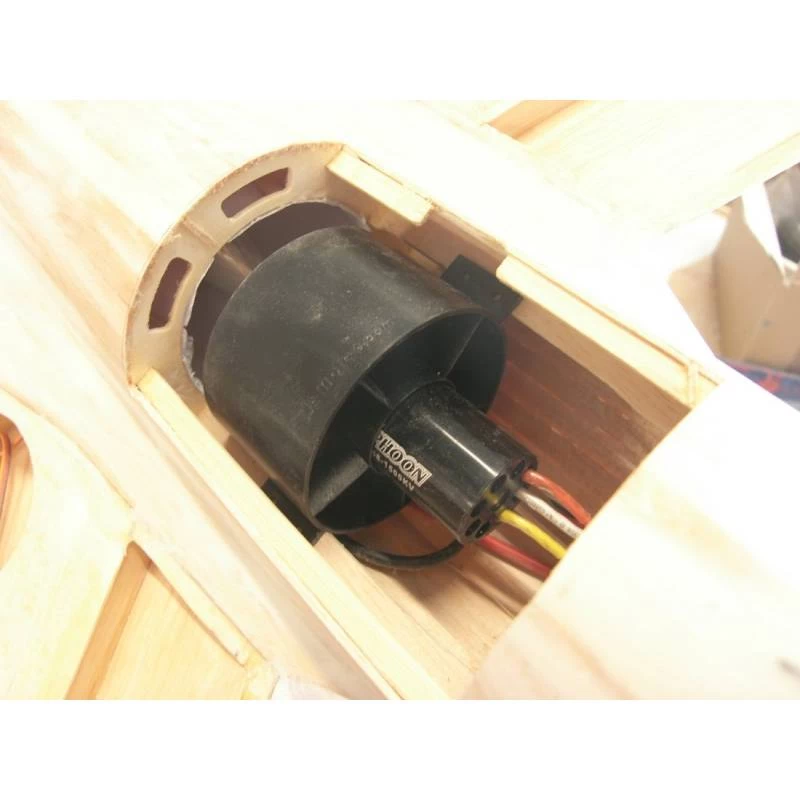

- EDF 90mm type MidiFan Evo Wemotec + Motor HET Typhoon 650-68-1500 or similar
- ESCÂ 120A
- Lipo Battery 8S 5000mAh
- 6x Servos metal
- Landing gear retracts (wheels diam.80/85mm for main gear, diam.55mm for front gear)
- Thick and thin Cyano glues
- Cover (fiber 2m² 25gr + Epoxy)
- Accessories (canopy closing, flaps hinges x4, hatch hinges x8, screws, fastener 2,9×13 x12 for retract mounting)
- Recommended Radio and Receiver: 5Â channel
Rudder made in 2 halves , very light mounting in fuselage with 6mm dowelsT
The Stabilizer mounts in the rudder
Wing made in 2 halvesÂ
servos for ailerons and flaps installed the joining of the halves is with spruce joiners
Fuselage: made of self aligning cnccut parts, no need for complicated jigs just some build
board supports made of scrap balsa is sufficient
Intake ducts made from stiff paper and strenghtend with balsa stringers

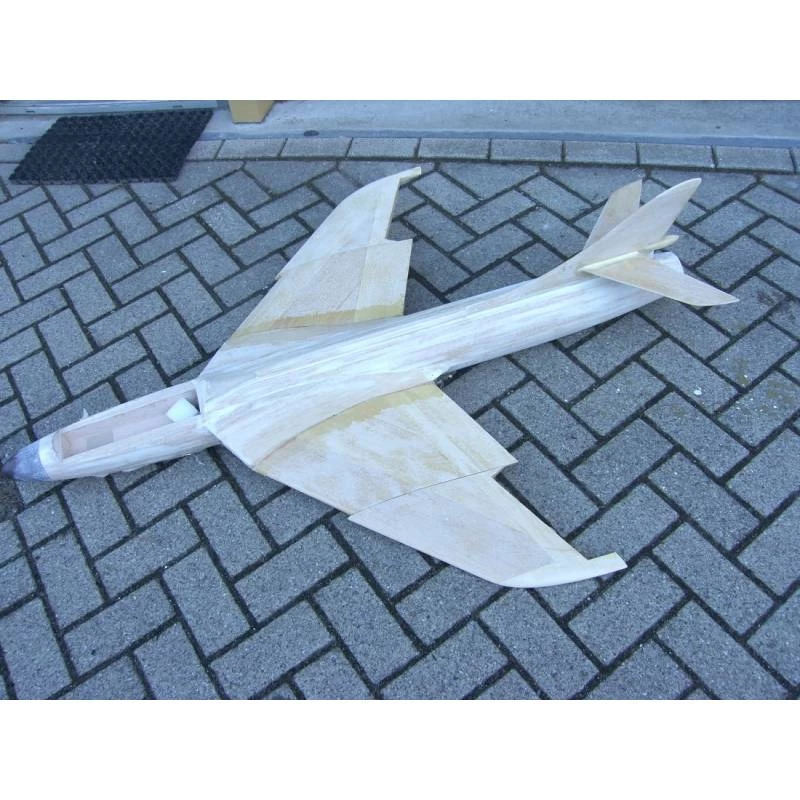

Fuselage is strip sheeted , fairings are cnccut, all included
Vacuumformed nosecone , makes life easyer
Fitting the inner panels of the wing needs some attention

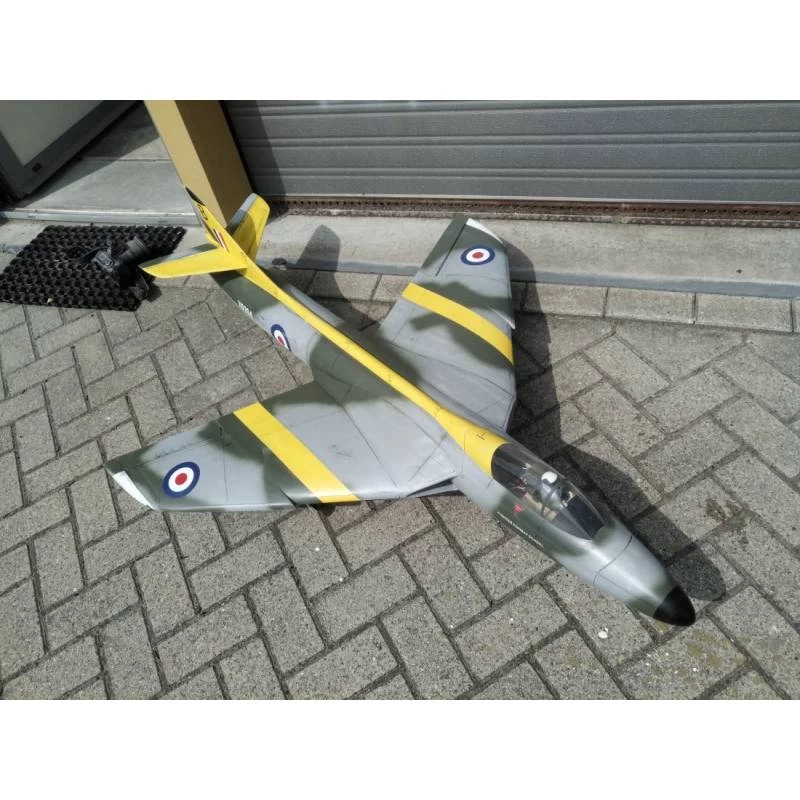

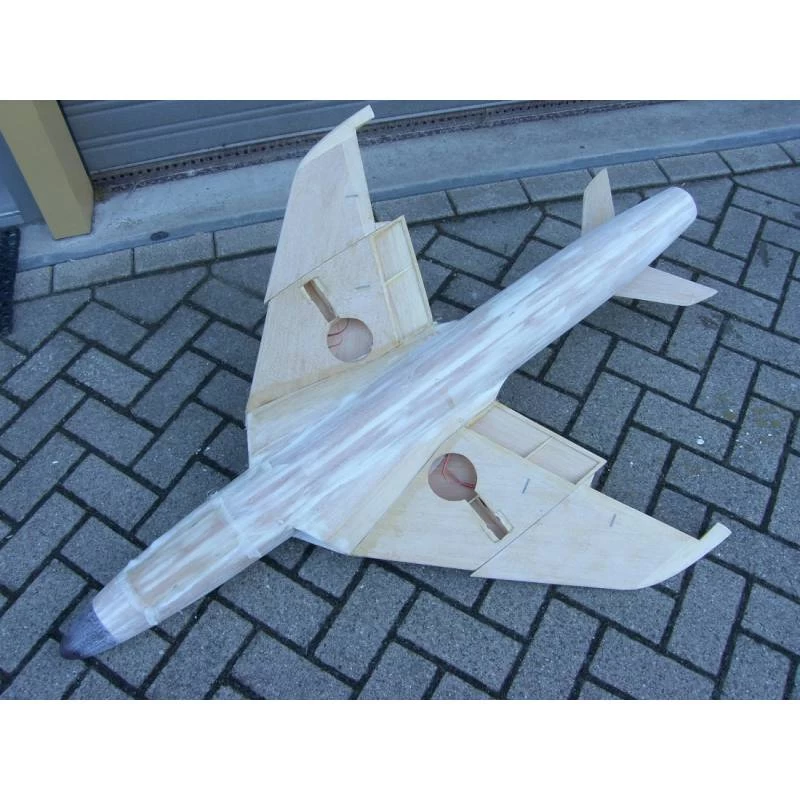

Ready to finish
Many more pictures on the included disk with instructions
Data sheet
| Type of kit: | Wood kit |
| Wingspan (mm): | 1125 |
| Length (mm): | 1500 |
| Flying weight (gr) | starts at 4000g |
| EDF Diameter Class (mm): | 90 |
| Material | ABS, Balsa, Wood |
| Required Radio | 5 channels minimum |
