RBC Kits Fouga Magister Jet EDF 90mm (CNC Wood Kit)
Oorspronkelijke prijs was: 215,83 €.95,99 €Huidige prijs is: 95,99 €.
- 100% kwaliteitsbelofte
- Veilige transacties, tevreden klanten
- 7 dagen gratis retourneren
- Meerdere betaalmethoden, veilig en betrouwbaar
More info

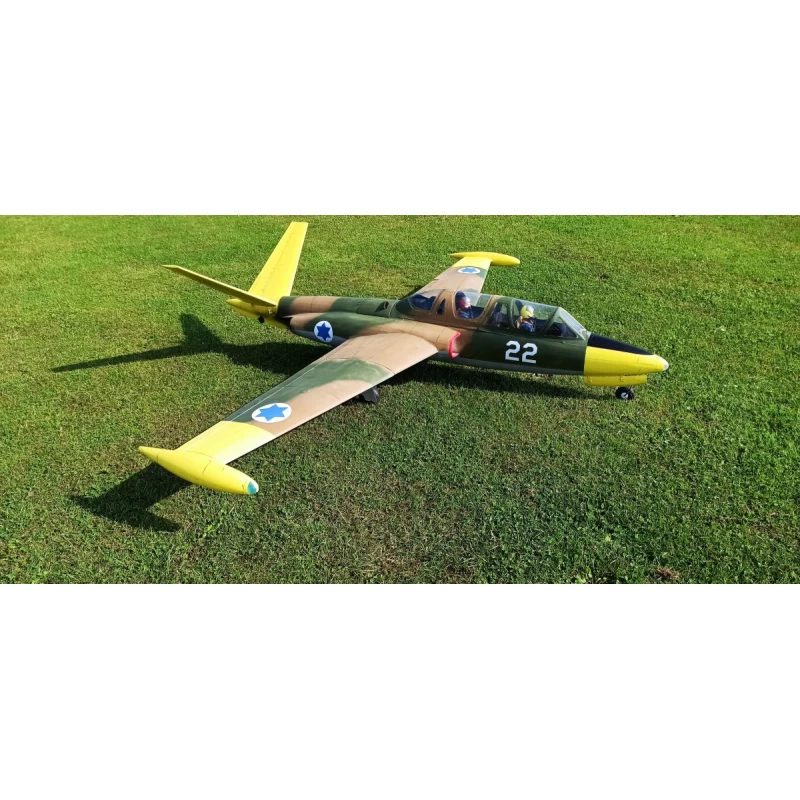

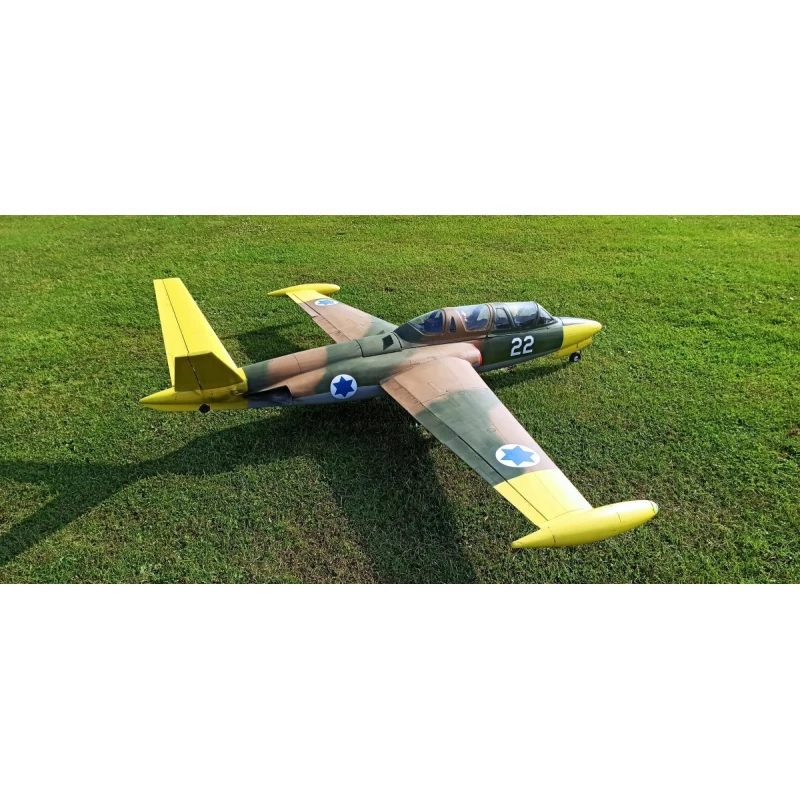

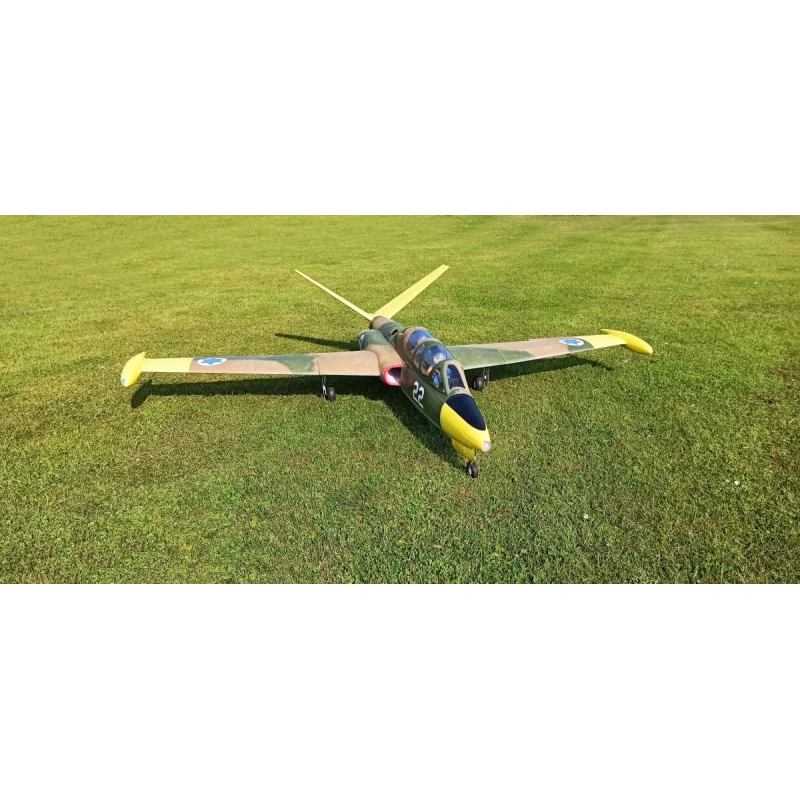

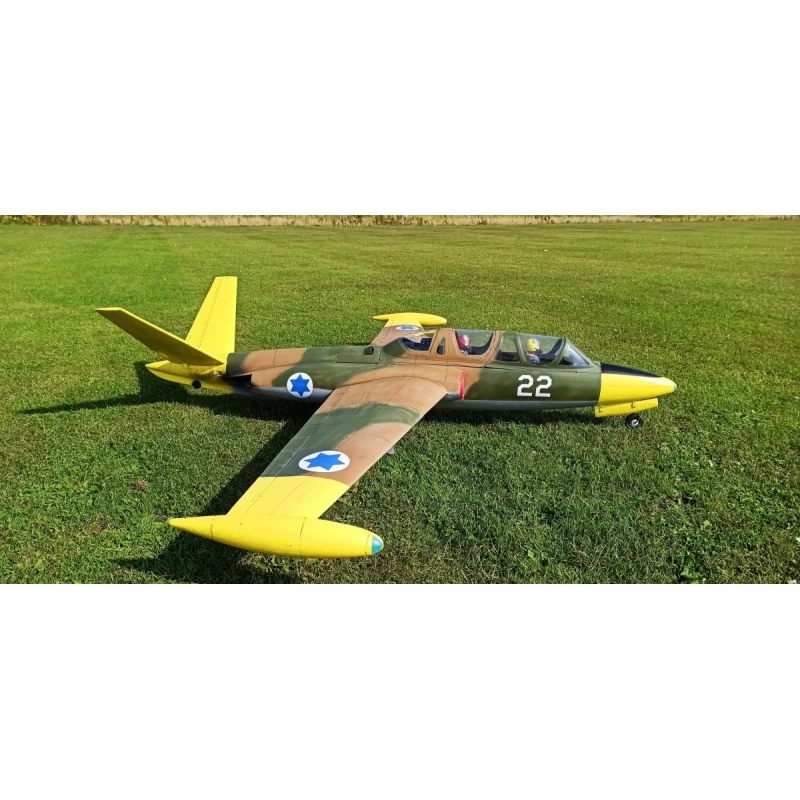

RBC Kits CNC Fouga Magister Jet EDF 90mm (CNC wood Kit)
Turbines RC is pleased to introduce the new RBC range of high-quality all-wood kits to assemble yourself. All CTP and Balsa parts are CNC cut. This model, once mounted, remains in one piece for easy transport.
The Aerospatiale-Potez-Fouga CM170 Magister is a subsonic jet aircraft designed in France in the early 1950s, and initially intended for training military pilots. Recognizable by its rear “V” (called “butterfly”) tail, it has been manufactured in a thousand copies and used by around twenty countries. Many examples are still in service at the beginning of the 21st century.
Thanks to its capabilities, the Fouga Magister was adopted as an aerobatic aircraft for several acrobatic patrols, including the famous Patrouille de France which used it for 16 years (from 1964 to September 16, 1980).
RBC jets are made for standard combos (motor + EDF) available on our website.
Technical specifications
- All formers and ribs CNC cut
- Unique tab lock design

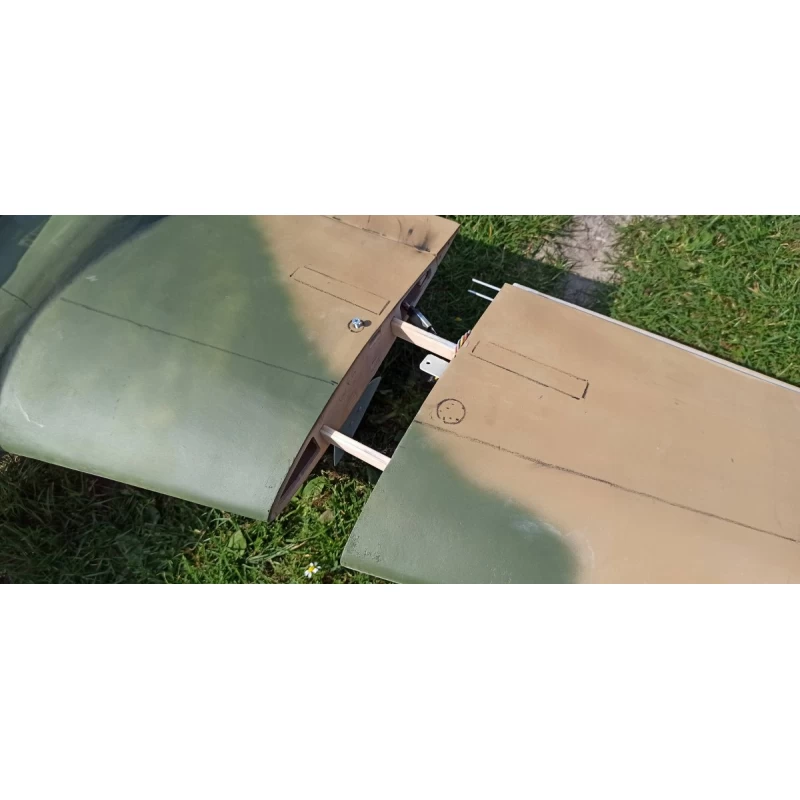

- Removable wings for easy tranportation and storage
Features
- Wingspan: 1990mm
- Length: 1644mm
- Wing area: 48.5dm²
- Flying weight: starts at 4990gr
- Functions:
- Ailerons,
- Elevator,
- Throttle,
- Rudder (V-Tail),
- Flaps,
- Retracts,
- Nose wheel steering
- EDF: 90mm (no included)
Includes
- Fouga Magister Jet (to be assemble)
- AUTOCAD plans with all parts shown
- Vacuumformed canopy, nose cone
- Exhaust ducting,
- PVC outlet tube (to roll)
- Illustrated instructions manual (downloadable here)
Requires
- EDF 90mm in 8S recommended with motor and ESC
- Lipo Battery 8S 5000mAh
- 13gr Metal Servos
- 30gr Flaps servos
- Thick and thin Cyano glue
- Cover (fiber 2m² 25gr + Epoxy)
- Recommended Radio and Receiver: 8 channel
- Small parts screws (list of parts is included)
Wing classic build wood ribs and formers sheeted
Fuselage build in 2 halves joined and sheeted with strip sheeting
A vaccumformed outlet duct and build mould parts included
Canopy seat interiour is also included
Easy mounting retracts and flaps and stick on wings
All wood fun building
Data sheet
| Type of kit: | Wood kit |
| Wingspan (mm): | 1990mm |
| Length (mm): | 1644mm |
| Flying weight (gr) | starts at 4990gr |
| CG (Center of Gravity) | Check manual |
| Servos | metal 13gr + 30gr for flaps |
| EDF Diameter Class (mm): | 90 |
| Surfaces | Ailerons, Elevator, Rudder, Flaps |
| Landing Gear | Full metal retractable main and steerable nose gear with shock absorbing struts |
| Material | ABS, Balsa, Wood |
| Required Radio | Minimum 8 channels |
