RBC Kits F9F Panther Jet EDF 90mm (CNC Wood Kit)

RBC Kits F9F Panther Jet EDF 90mm (CNC Wood Kit) - Afbeelding 2

RBC Kits F9F Panther Jet EDF 90mm (CNC Wood Kit) - Afbeelding 3

RBC Kits F9F Panther Jet EDF 90mm (CNC Wood Kit)

Oorspronkelijke prijs was: 140,83 €.Huidige prijs is: 97,99 €.

Artikelnummer: RBC-PANTHER Categorieën: Airplanes, Jets EDF

100% kwaliteitsbelofte
Veilige transacties, tevreden klanten
7 dagen gratis retourneren
Meerdere betaalmethoden, veilig en betrouwbaar

Beschrijving
Beoordelingen (0)

More info

RBC Kits Grumman F9F Panther Jet EDF 90mm (Wood Kit CNC)

Turbines RC is pleased to introduce the new RBC range of high-quality all-wood kits to assemble yourself. All CTP and Balsa parts are CNC cut. This model, once mounted, remains in one piece for easy transport.

You can fligh it 6s, we can fly with ease 5 minutes plus full speed.

RBC jets are made for standard combos (motor + EDF) available on our website.

Technical specifications

All Formers And Ribs CNC Cut
Unique Tab Lock Design
One Piece Design

Features

Wing Area: na
Wing Span; 1160 mm
Flight Weight: 2200-2400 grams
Wing Loading: na
Functions: 3 Channel, aileron, elevator and throttle
EDF: 90mm (not included)

Includes

F9F Panther wood kit (to be assemble)
Instructions on photo sheet and in written English
Full Size Rolled Cad Plans With All Parts Shown
Vacuformed canopy, wing tips, nose cone
Paper Intake Tube, PVC Outlet Tube

Requires

Wemotec Midi fan or schubeler HDS51 or any other 90mm fan
3 channel radio
Light weight Receiver
Light weight Servos
Electric Speed Controller
Battery: 6s lipo 3200ma
Thick and Thin CA glue
Hardware like hinges steering wires etc
Waterslide Decals
Bungee Launch req. The model needs a 10mmx8.5m bungee with 10kg of pulling power

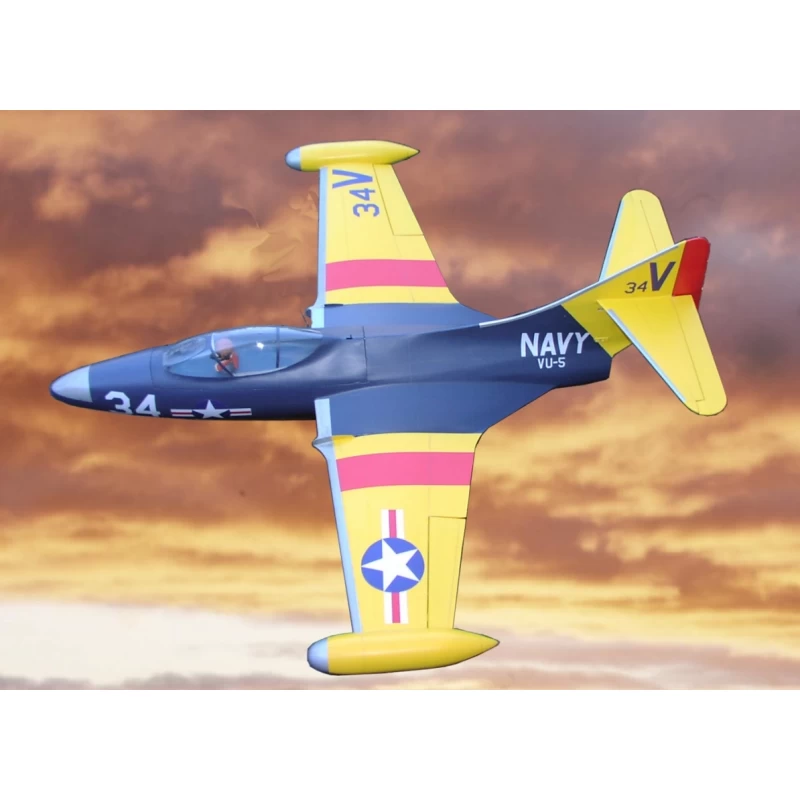

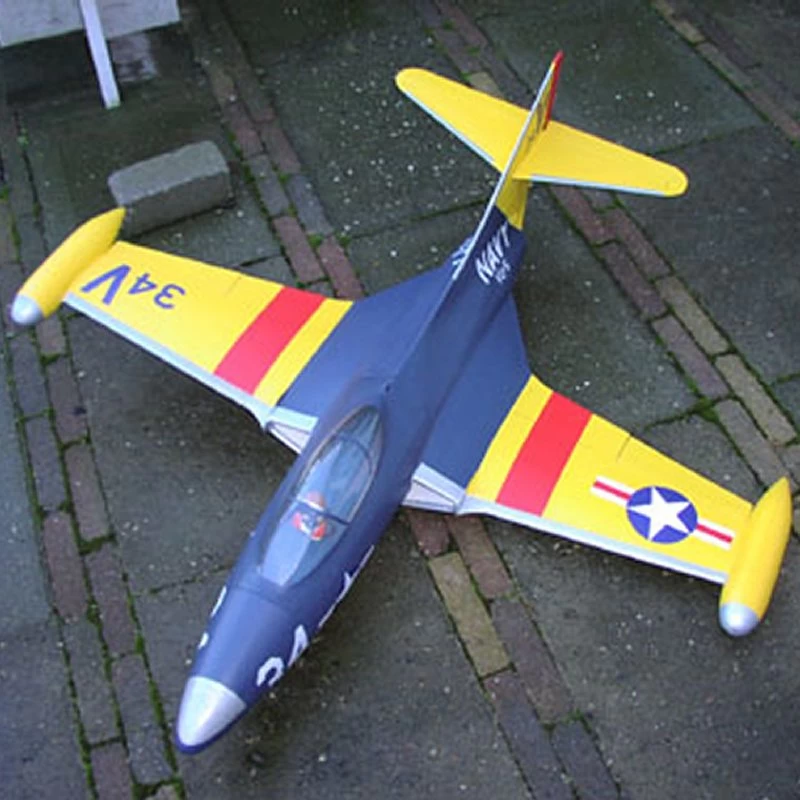

Yellow blue finish is looking very good in the air.

Just a few pictures from the framework, you need a bit of patience with this bird.

Strip planking is necessary and fun to do.

The fan unit is easy accessible through the access hatch.

Receiver , battery , and elevator servo are placed in the fin.

You can see the large access hatch for battery’s.

Decals on the picture are not included

Data sheet

Type of kit:	Wood kit
Wingspan (mm):	1160
Length (mm):	1080
Flying weight (gr)	2200-2400
CG (Center of Gravity)	Check manual
Servos	2 x 17 gr standard gear
EDF Diameter Class (mm):	90
Battery Cells:	6s – 22.2v
Surfaces	Elevons
Landing Gear	None – belly lander
Material	ABS, Balsa, Wood
Required Radio	3 channels minimum
