RBC Kits F-84F “Thunderstreak” EDF 90mm (Wood Kit CNC)

Oorspronkelijke prijs was: 182,50 €.Huidige prijs is: 95,99 €.

Artikelnummer: RBC-F84F Categorieën: Airplanes, Jets EDF

100% kwaliteitsbelofte
Veilige transacties, tevreden klanten
7 dagen gratis retourneren
Meerdere betaalmethoden, veilig en betrouwbaar

Beschrijving
Beoordelingen (0)

More info

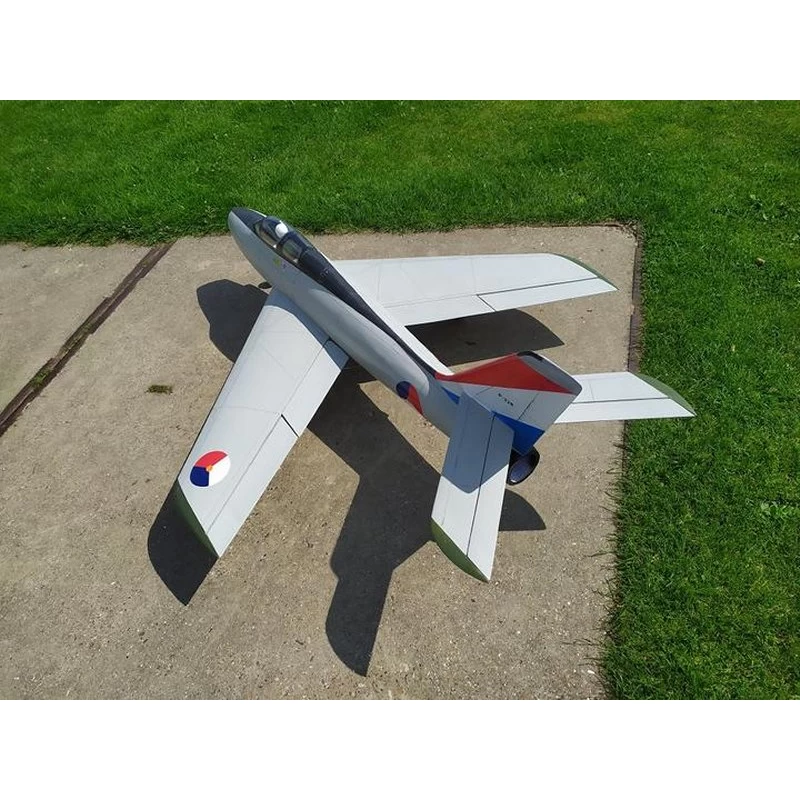

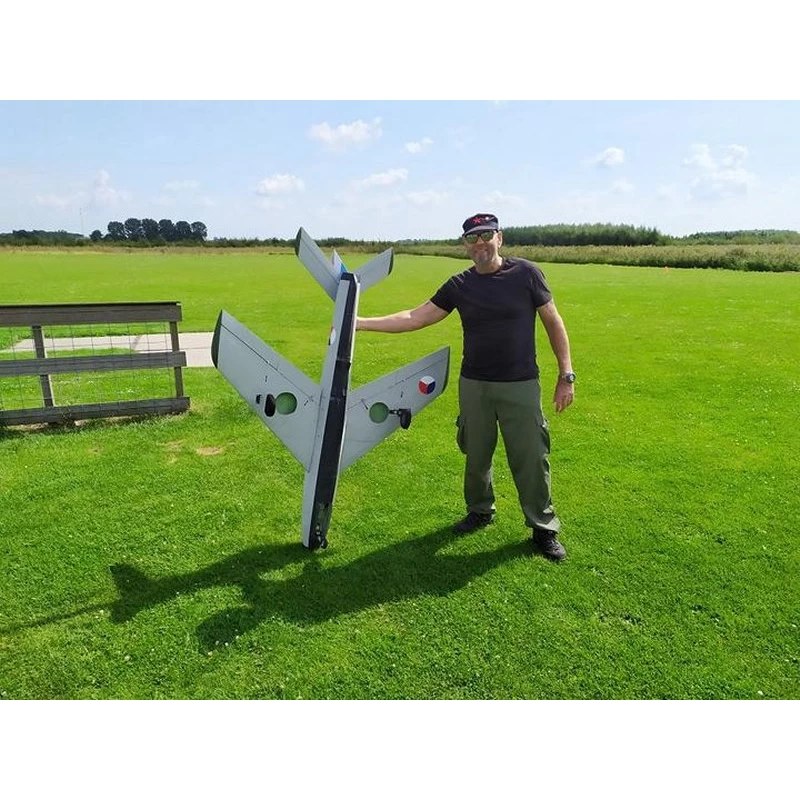

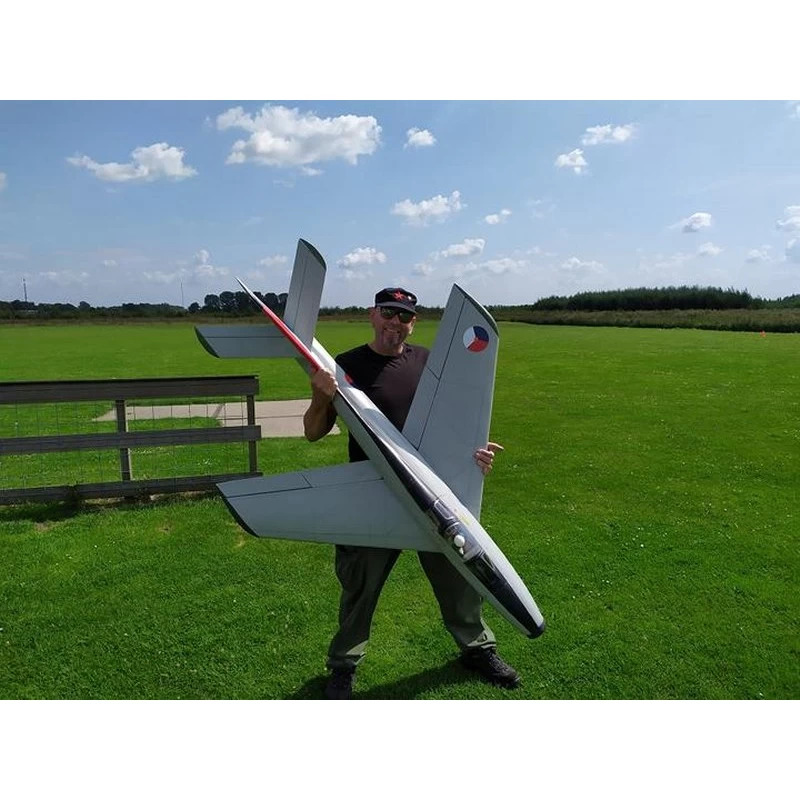

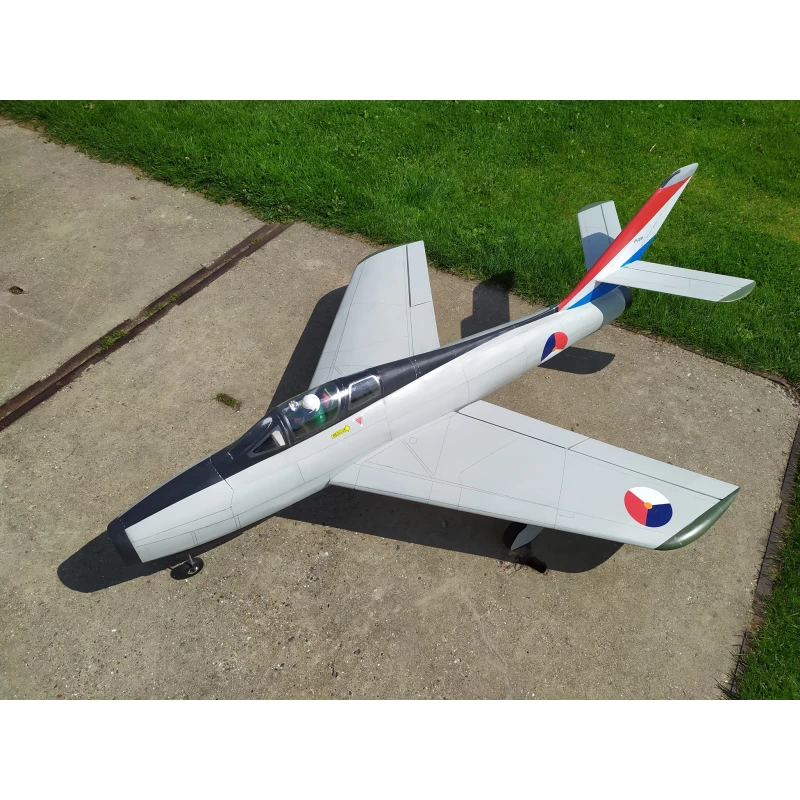

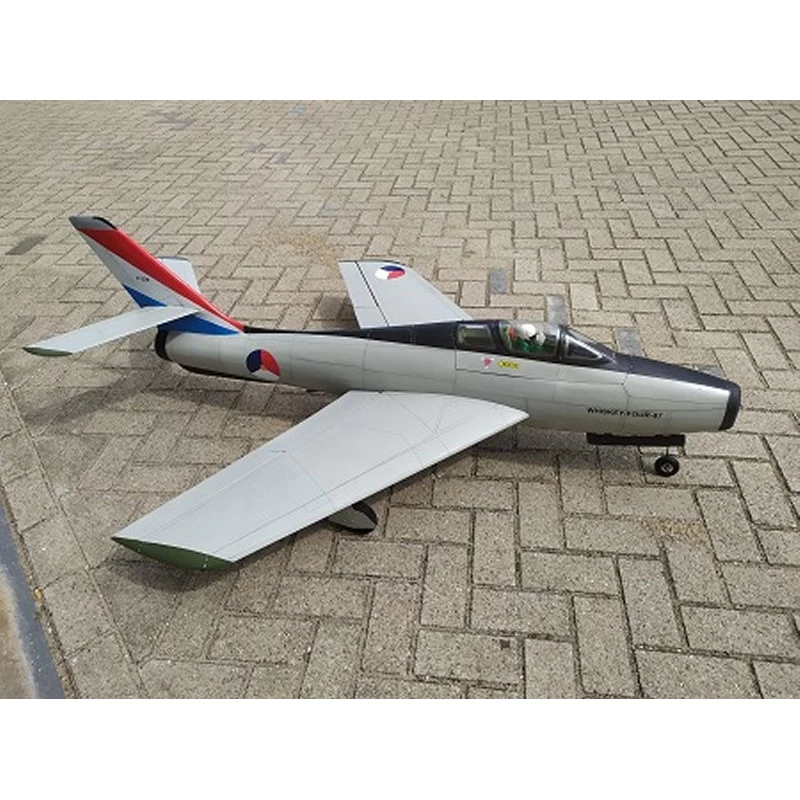

RBC Kits F-84F Thunderstreak Jet EDF 90mm (Wood Kit CNC)

Turbines RC is pleased to introduce the new RBC range of high-quality all-wood kits to assemble yourself. All CTP and Balsa parts are CNC cut. You can fligh it from 6S to 8S.

The F-84F is very easy to fly and lands slow as a trainer.

RBC jets are made for standard combos (motor + EDF) available on our website.

Nota: It is possible to install electric retracts.

Technical specifications

All Formers And Ribs CNC Cut
Unique Tab Lock Design
Removable wings for easy transportation and storage
Canopy interior seat for a pilot (pilot not included)

Features

Wing Area: 48dm2
Wing Span: 1290mm
Total lenght: 1688mm
Flight Weight: starts at 4800grams
Functions: 6 Channel, ailerons, elevator, flaps, throttle, retracts and nosewheel steering
EDF: Midi Fan 90mm (not included)

Includes

F-84F Thunderstreak wood kit (to be assemble)
Full Size Rolled Cad Plans With All Parts Shown
Vacuformed Canopy
Paper inlet/exhaust ducting
All wood and sheeting
List of required small parts
No hardware in this kit
Illustrated instructions manual (downloadable hereunder)
All Mounting pictures by the hereunder link :
https://www.rbckitsinstructions.com/edf-jets/instructions-f84f-thunderstreak

Requires

7 Channel Radio
Light weight Receiver
Light weight Servos: 7x13gr metal gear
Wemotec Midi fan or Schubeler HDS51 or any other 90mm fan
Motor HETrc EDF650/1500 8S
Battery: 8S Li-Po 5000mAh
Thick and Thin CA glue, 3/3
Small parts screws

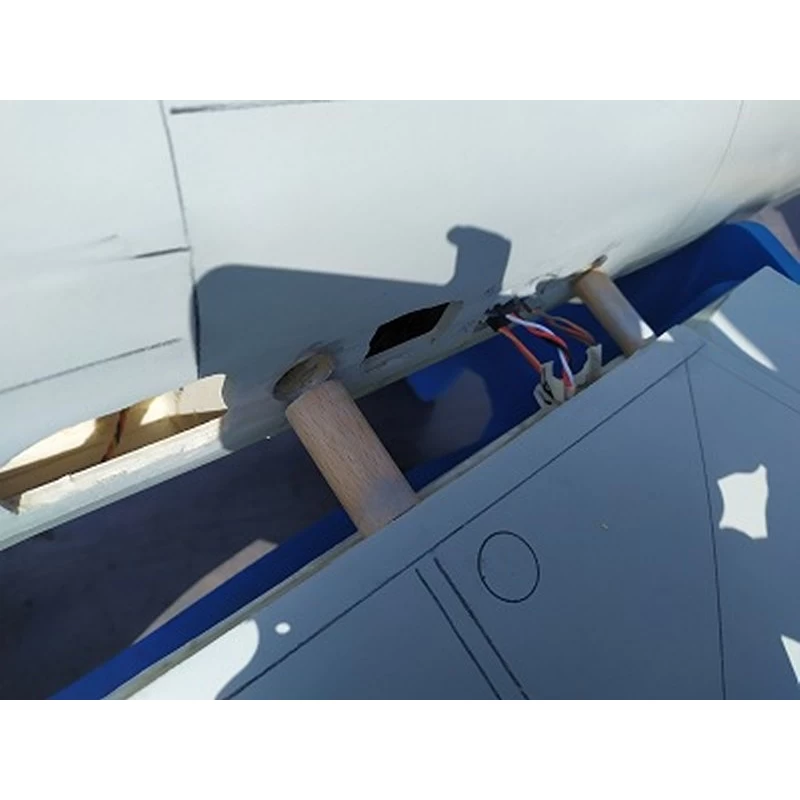

Wing classic build wood ribs and formers sheeted

Fuselage formers and strip planking easy to do

Paper in and outlet tubing simple and effective

strip planking not very hard but some work

Canopy has seat formers included to make it looks

All designed to take retracts

Data sheet

Type of kit:	Wood kit
Wingspan (mm):	1290
Length (mm):	1688
Flying weight (gr)	4800
Wing Surface Area:	48 dm²
CG (Center of Gravity)	Check manual
Servos	7x13gr metal gear
EDF Diameter Class (mm):	90
Battery Cells:	8s – 29.6v
Battery Capacity (mAh)	5.000 mAh
Surfaces	Ailerons, Elevator, Flaps
Landing Gear	Retractable
Material	ABS, Balsa, Wood
Required Radio	Minimum 7 channels
