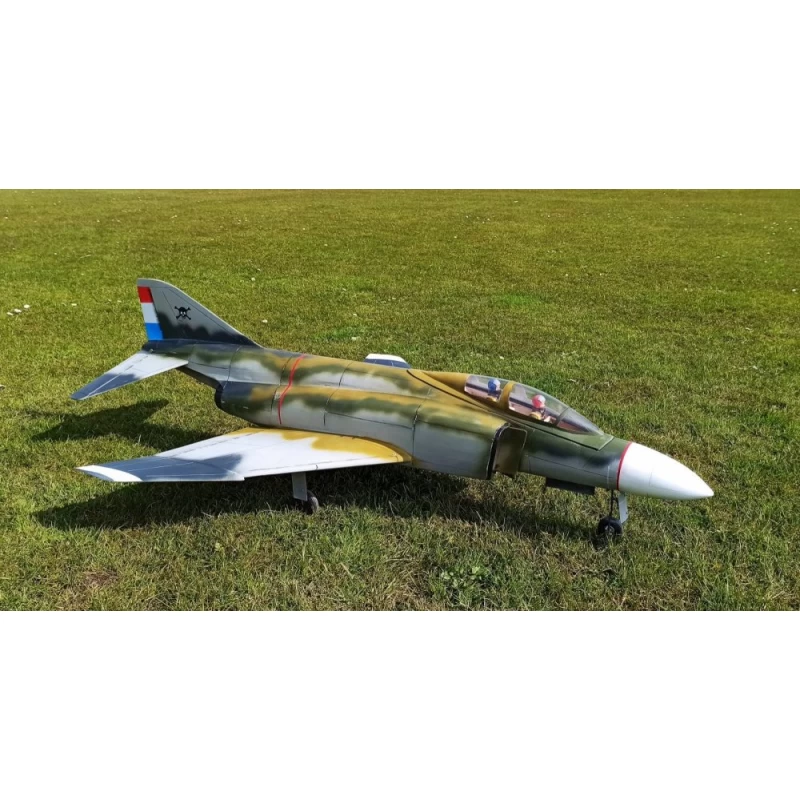

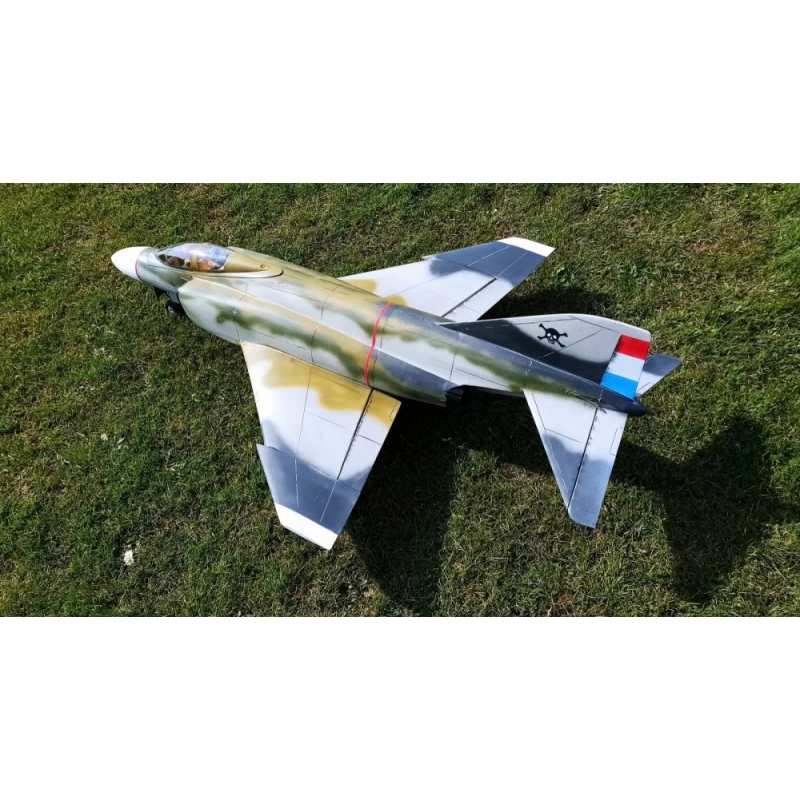

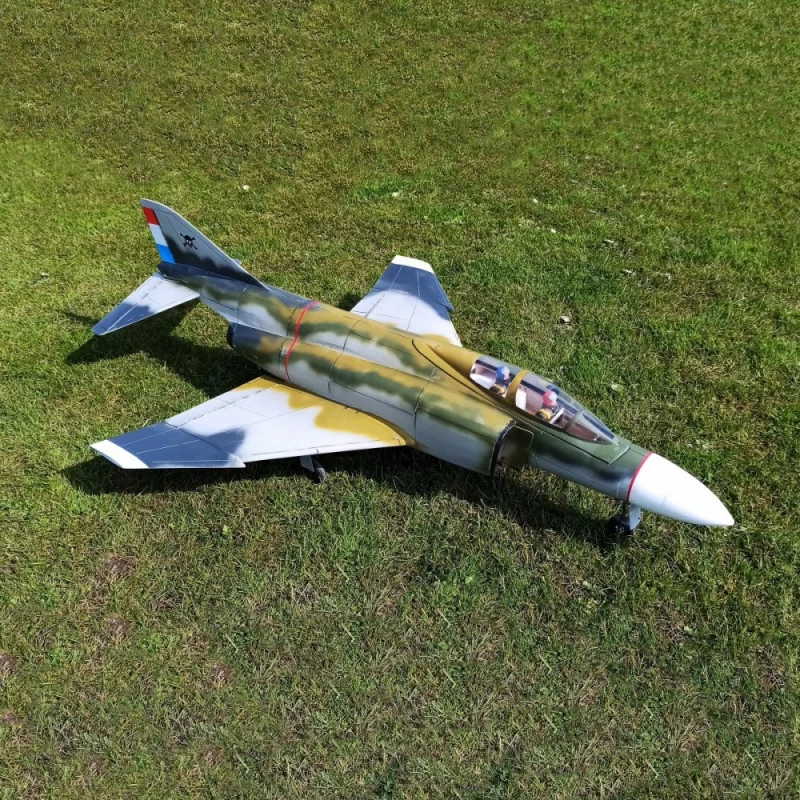

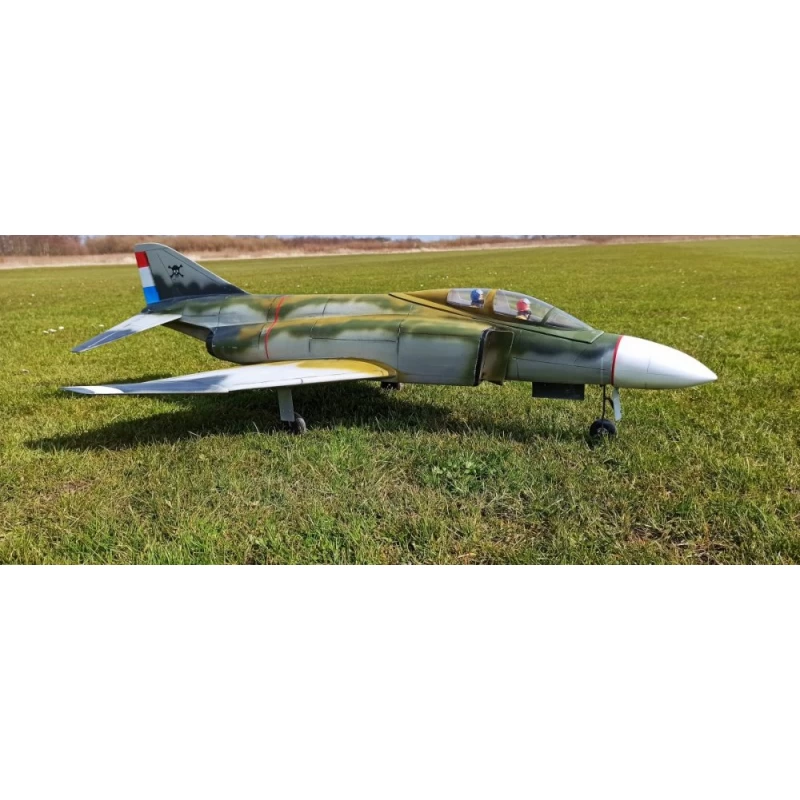

RBC Kits CNC F-4 Phantom Jet EDF 90mm (CNC wood Kit)
Turbines RC is pleased to introduce the new RBC range of high-quality all-wood kits to assemble yourself. All CTP and Balsa parts are CNC cut. This model, once mounted, remains in one piece for easy transport.
The F-4 Phantom II is a military aircraft designed by the American manufacturer McDonnell from 1953. It is one of the most important American military planes of the 20th century and the Western fighter jet having been the most produced since the Korean War: the 5,195th and last copy was delivered in 1981, after more than 20 years of uninterrupted production.
It is one of the very few planes to have been used simultaneously by the US Air Force, US Navy and US Marine Corps, as well as by the two acrobatic patrols of the Blue Angels (US Navy) and the Thunderbirds (US Air Force).
RBC jets are made for standard combos (motor + EDF) available on our website.
Nota: It is possible to install electric retracts.
Technical specifications
- All formers and ribs CNC cut
- Unique tab lock design
- One piece design easy tranport
Features
- Wingspan: 866mm
- Length: 1325mm
- Wing area: 25dm²
- Flying weight: starts at 2600g
- Functions:
- Ailerons,
- Elevator,
- Rudder,
- Throttle,
- Retracts
- EDF: 90mm (no included)
Includes
- F-4 Phantom Jet (to be assemble)
- AUTOCAD plans with all parts shown
- Vacuumformed canopy, fairings, nose and tail cones
- Exhaust ducting
- PVC outlet tube (to roll)
- Control horns
- Illustrated instructions manual (downloadable hereunder)
- All Mounting pictures by the hereunder link :
- https://www.rbckitsinstructions.com/edf-jets/instructions-f4-phantom
Requires
- EDF 90mm type MidiFan Evo Wemotec + Motor HET Typhoon class 600 in 5S or similar
- ESC 70A
- Lipo Battery 5-6S 5000mAh
- Servos: 4x 25gr
- Catapult system or Landing gear retracts (acc. to your choice)
- Thick and thin Cyano glue
- Cover (fiber 2m² 25gr + Epoxy)
- Recommended Radio and Receiver: 4 channel
Wood build up wing, very easy
Fuselage build on building board , self aligning construction
Intake ducts from hard paper
Fuselage sheeted with 2×20 mm balsa strip sheeting
Outlet duct vacuumformed 2 outlets
EDF unit in large hatch
Nice wood build model
Data sheet
| Type of kit: | Wood kit |
| Wingspan (mm): | 866 |
| Length (mm): | 1325 |
| Flying weight (gr) | starts at 2600g |
| Wing Surface Area: | 25 dm² |
| EDF Diameter Class (mm): | 90 |
| Material | ABS, Balsa, Wood |
| Required Radio | 4 channels minimum |
