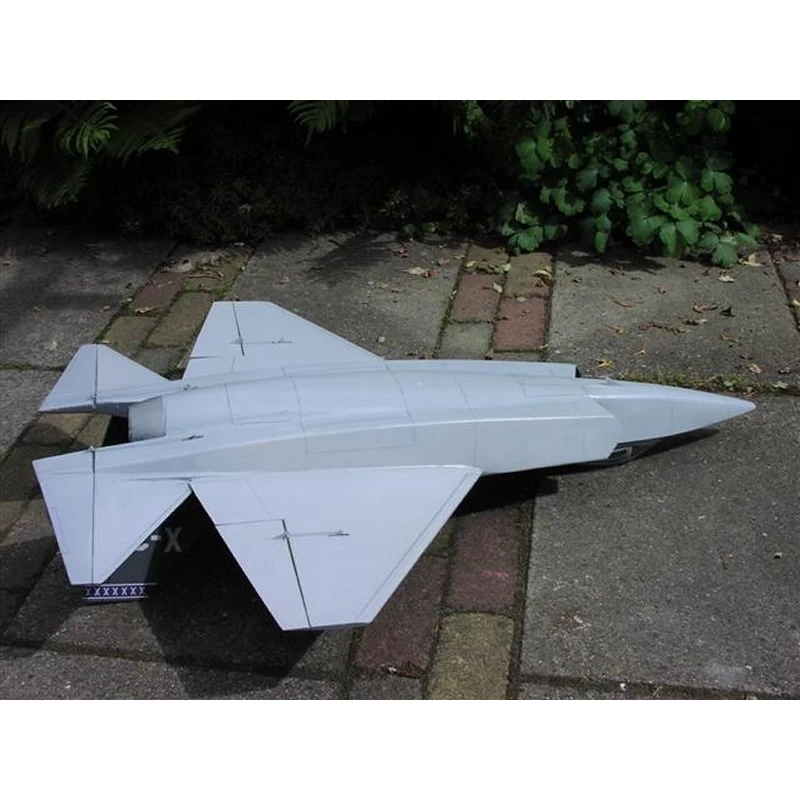

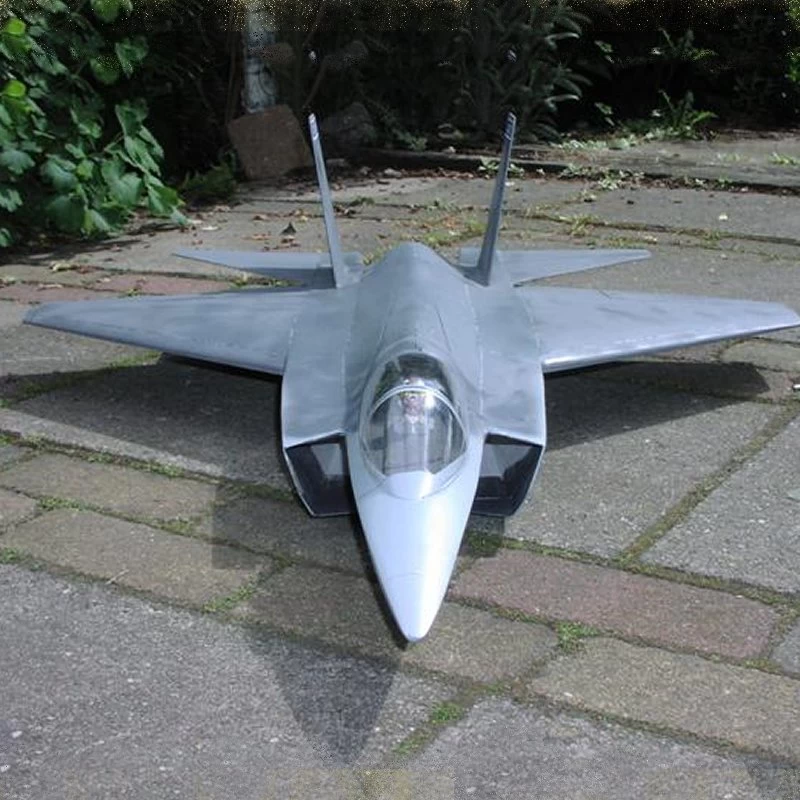

RBC Kits F-35C JSF "Joint Strike Fighter" Jet EDF 70mm (Wood Kit CNC)

RBC Kits F-35C JSF "Joint Strike Fighter" Jet EDF 70mm (Wood Kit CNC) - Afbeelding 2

RBC Kits F-35C JSF "Joint Strike Fighter" Jet EDF 70mm (Wood Kit CNC) - Afbeelding 3

RBC Kits F-35C JSF “Joint Strike Fighter” Jet EDF 70mm (Wood Kit CNC)

Oorspronkelijke prijs was: 82,50 €.Huidige prijs is: 57,75 €.

Artikelnummer: RBC-F35C-70 Categorieën: Airplanes, Jets EDF

100% kwaliteitsbelofte
Veilige transacties, tevreden klanten
7 dagen gratis retourneren
Meerdere betaalmethoden, veilig en betrouwbaar

Beschrijving
Beoordelingen (0)

More info

RBC Kits F35C JSF Jet EDF 70mm (Wood Kit CNC)

Turbines RC is pleased to introduce the new RBC range of high-quality all-wood kits to assemble yourself. All CTP and Balsa parts are CNC cut. This model, once mounted, remains in one piece for easy transport.

RBC jets are made for standard combos (motor + EDF) available on our website.

Nota: It is possible to install electric retracts.

Technical specifications

All Formers And Ribs CNC Cut
Unique Tab Lock Design
One piece design
Easy motor/fan compartment hatch
Easy battery access through hatch
Scale 1:10

Features

Wing Area: 19dm2
Wing Span: 700mm
Flight Weight: starts at 1100grams
Wing Loading: 57gr dm2 to 75gr dm2
Functions: 3 Channel, Ailevons & Throttle (ailerons needs delta mix)
EDF: Mini Fan 70mm (not included)

Includes

F35C “Joint Strike Fighter” wood kit (to be assemble)
Full Size Rolled Cad Plans With All Parts Shown
Vacuformed Canopy
PVC outlet tube
Control horns, Streering cables
Illustrated instructions manual (downloadable hereunder)
All Mounting pictures by the hereunder link :
https://www.rbckitsinstructions.com/edf-jets/instructions-f35-mini

Requires

3 Channel Radio with delta mixer
Light weight Receiver
Light weight Servos: About 9gr x2
Motor HETrc 2W (3S) or 2W-20 (4S) or 3W
ESC 60-80Amp
EDF: Wemotec Mini fan 480 or HET 6904 any other 70mm fan with motor
Battery: 3S or 4S 3200mAh Li-Po
Thick and Thin CA glue
Bungee Launch req.: the model needs 8mmx7 bungee with 5mtr and 8kg of pulling power

Traditional built up wings. Note that the F35 needs only taileron servo’s

Motor hatch sheeting

Framework with ducts

Nose section, ducts added

Data sheet

Type of kit:	Wood kit
Wingspan (mm):	700
Flying weight (gr)	1100
Wing Surface Area:	19 dm²
Wing Loading:	57gr to 75gr dm²
CG (Center of Gravity)	Check manual
Servos	2x 9 gr metal gear
EDF Diameter Class (mm):	70
Battery Cells:	3s – 11.1v, 4s – 14.8v
Battery Capacity (mAh)	3200
Surfaces	Tailerons
Landing Gear	None – belly lander
Material	ABS, Balsa, Wood
Required Radio	3 channels minimum
