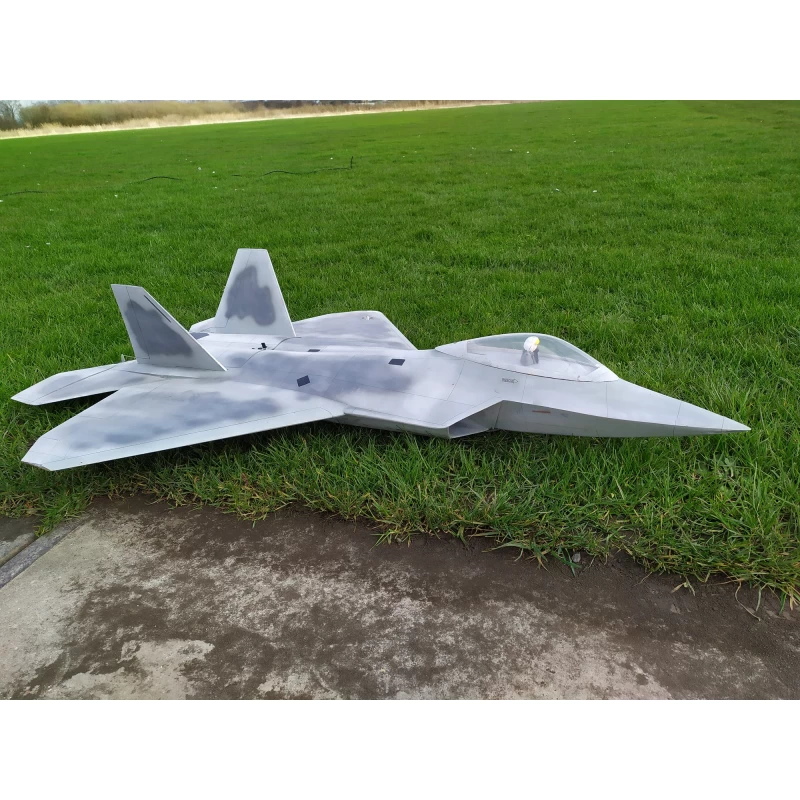

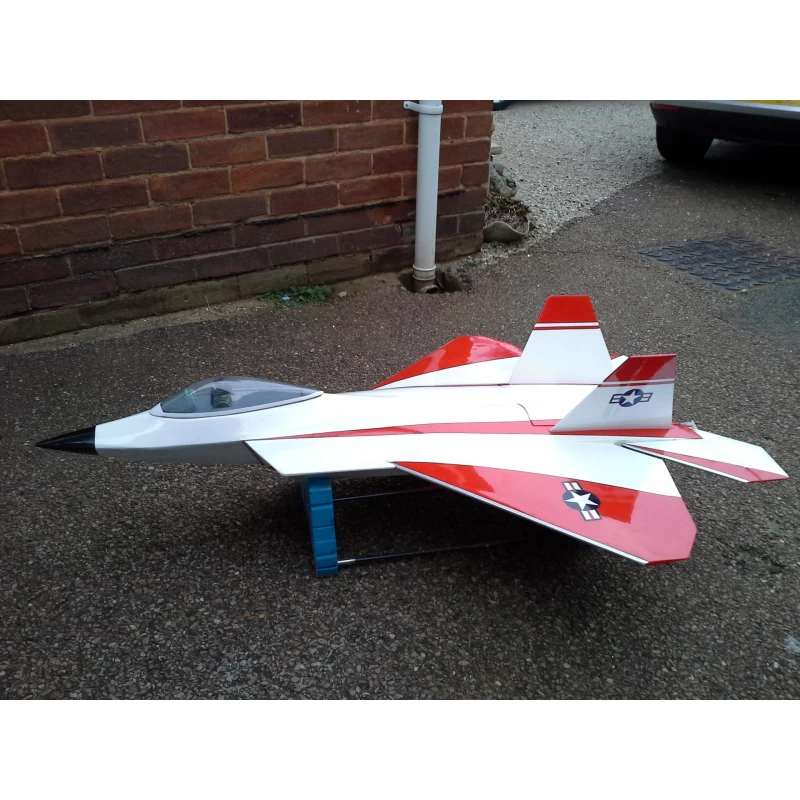

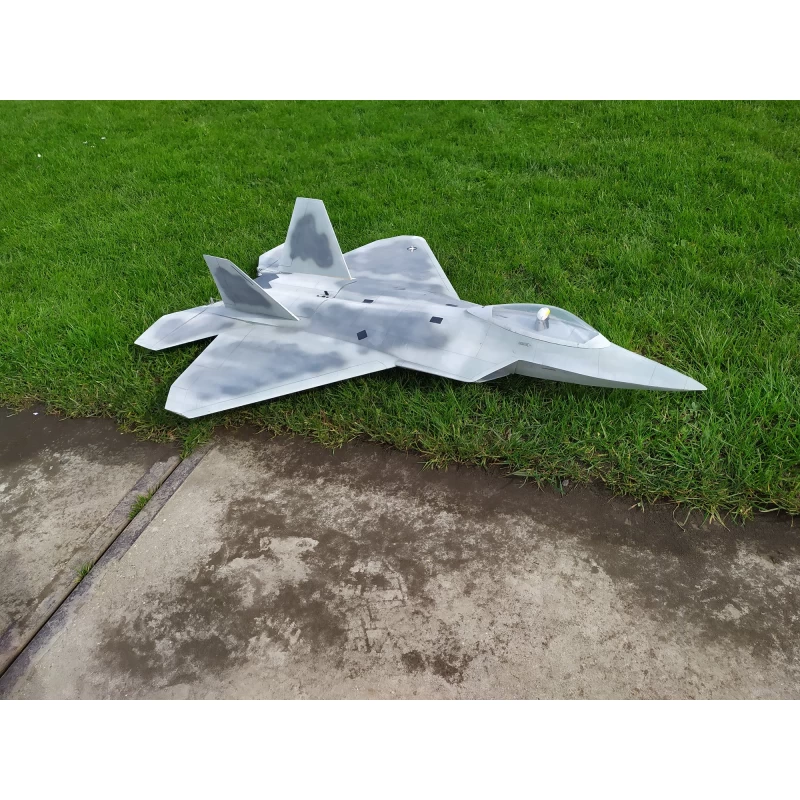

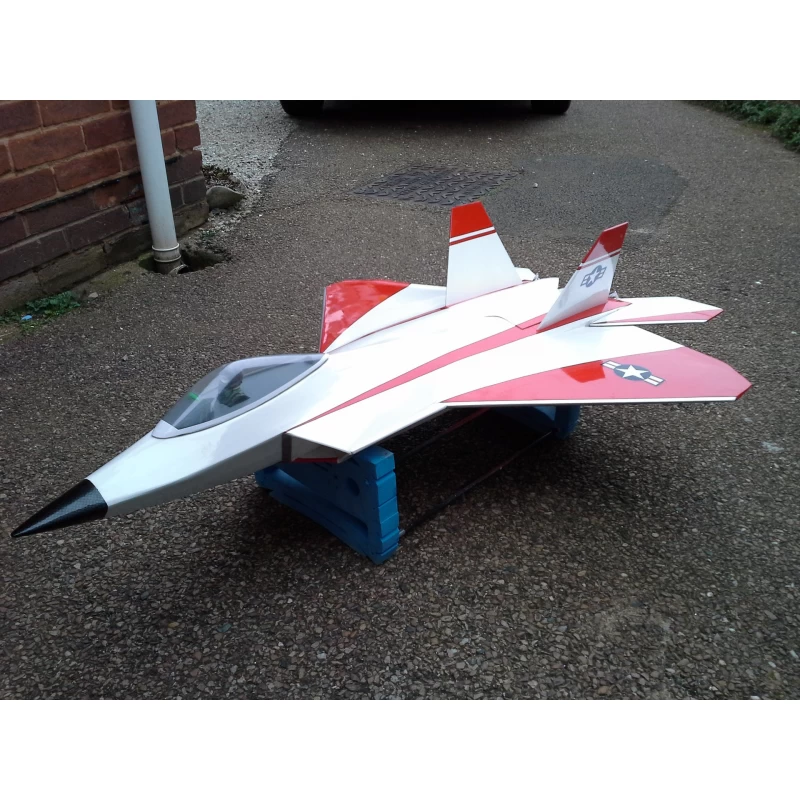

RBC Kits CNC F22 Raptor Jet EDF 2x70mm (CNC wood Kit)
Turbines RC is pleased to introduce the new RBC range of high-quality all-wood kits to assemble yourself. All CTP and Balsa parts are CNC cut. This model, once mounted, remains in one piece for easy transport.
The Lockheed Martin F-22 Raptor is a stealth fighter jet developed by the United States in the late 1980s to replace the F-15s of the US Air Force. Originally designed for air combat, it is also capable of providing military ground support missions, electronic attack or electromagnetic intelligence.
Technical specifications
- All formers and ribs CNC cut
- Unique tab lock design
- One piece design easy tranport
- Motor/EDF compartment easy accesable
- Battery access trough the canopy
Features
- Wingspan:Â 840mm
- Length:Â 1170mm
- Wing area [dm]: 30dm²
- Flying weight:Â starts at 1600g
- Functions: Tailerons, throttle
- EDF: 2x70mm (no included)
IncludesÂ
- F22 Raptor Jet (to be assemble)
- AUTOCAD plans with all parts shown
- Vacuumformed canopy
- PVC outlet tube (to roll)
- Control horns, steering cables
- Illustrated instructions manual (downloadable hereunder)
- All Mounting pictures by the hereunder link :
- https://www.rbckitsinstructions.com/edf-jets/instructions-f22
Requires
- EDF 2x70mm type MiniFan Evo Wemotec + 2x Motors HETÂ 4WÂ 2250Kv 5S or similar
- ESCÂ 45A
- Lipo Battery 5S 3200mAh
- 2x Metal Servos
- Catapult system (8mmx7.5m bungee with 10Kg of pulling power)
- Thick and thin Cyano glue
- Cover (fiber, silk or Oracover according to your choice)
- Recommended Radio and Receiver: 3 channel
Pictures from the build
Easy frame set up
Easy sheeting Balsa intakes.

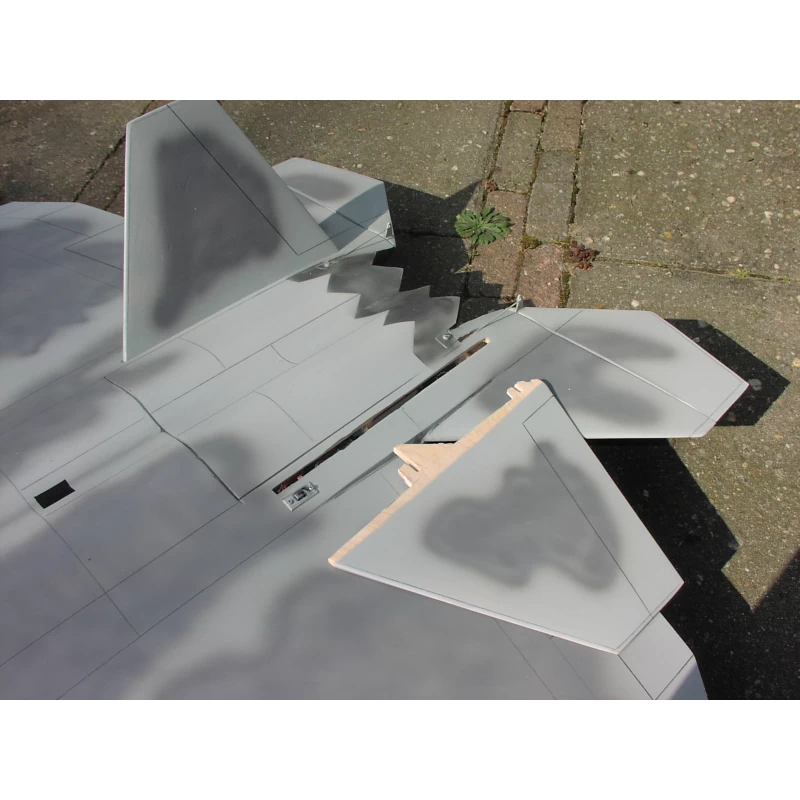

Fins installed, but removable.
Very easy wings, no ailerons.
Quickly sheeted see the connection pegs.
Easy motor acces through hatch.

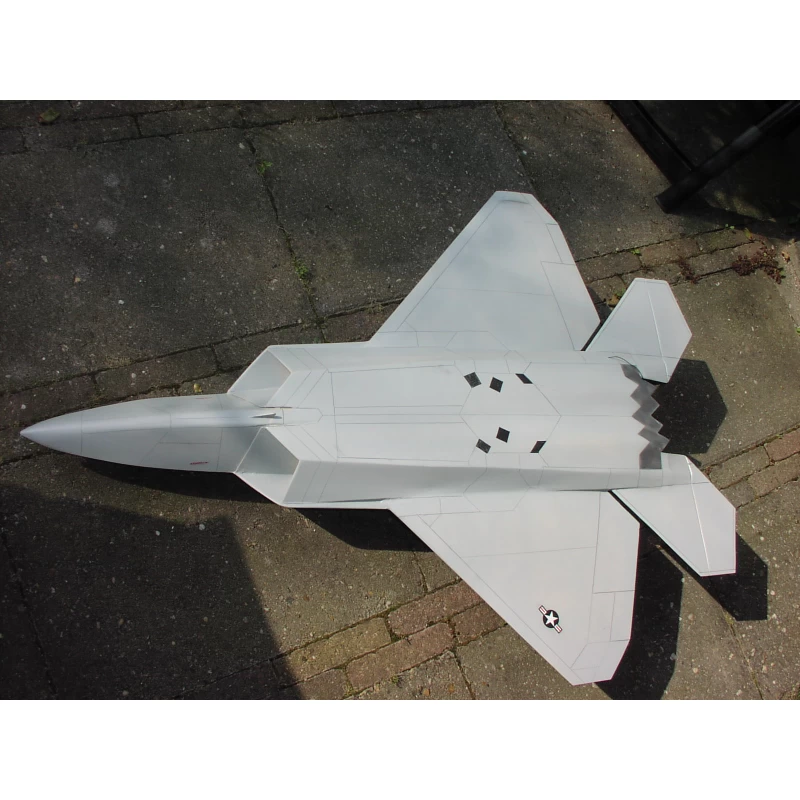

Large intake

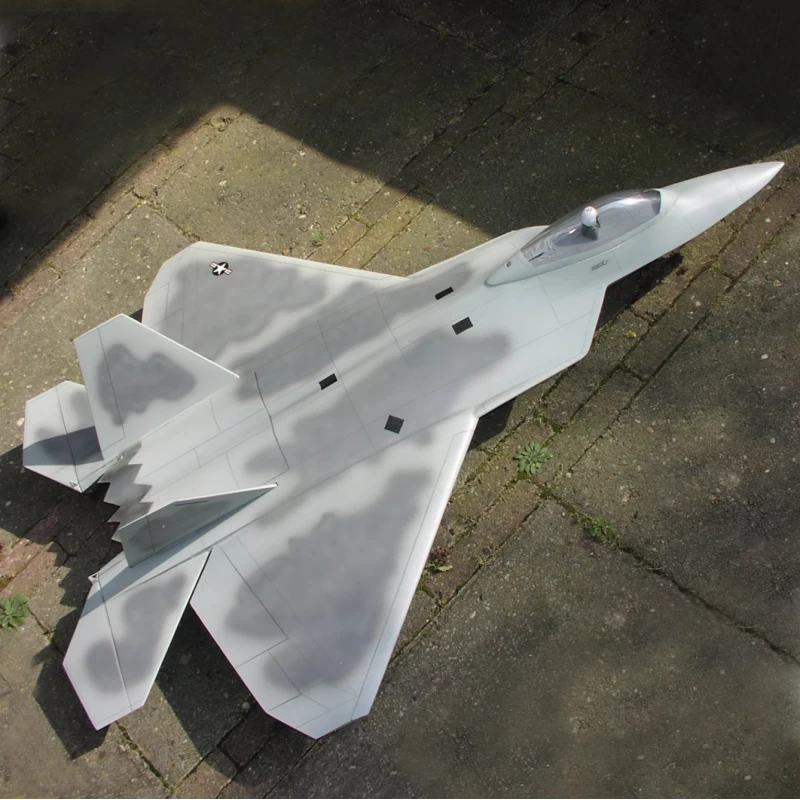

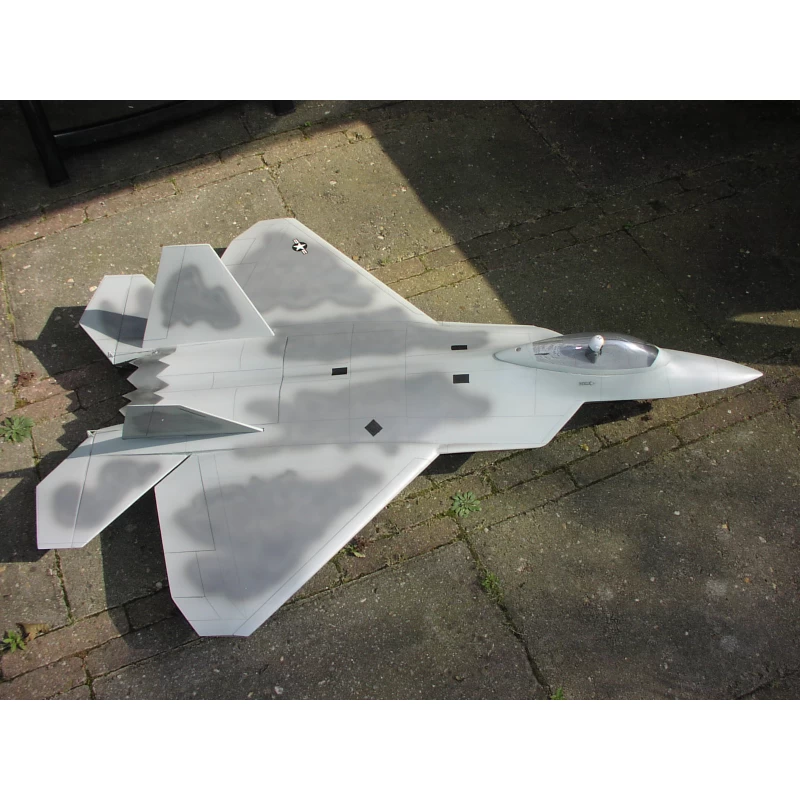

Easy planform
Data sheet
| Type of kit: | Wood kit |
| Wingspan (mm): | 840 |
| Length (mm): | 1170 |
| Flying weight (gr) | starts at 1600g |
| EDF Diameter Class (mm): | 2 x 70 |
| Surfaces | Tailerons |
| Landing Gear | None – belly lander |
| Material | ABS, Balsa, Wood |
| Required Radio | 3 channels minimum |
