RBC Kits CNCÂ DH108 Swallow Jet EDF 90 (CNC wood kit)
Turbines RC is pleased to introduce the new RBC range of high-quality all-wood kits to assemble yourself. All CTP and Balsa parts are CNC cut. Wings of this model are dismountable to easy transport and storage.
The de Havilland DH 108 “Swallow” was a British experimental aircraft designed by John Carver Meadows Frost in October 1945. The DH 108 featured a tailless, swept wing with a single vertical stabilizer, similar to the layout of the wartime German Messerschmitt Me 163 Komet rocket-powered point-defence interceptor.
RBC jets are made for standard combos (motor + EDF) available on our website.
Nota: It is possible to install flaps and electric retracts.
Technical specifications
- All formers and ribs CNC cut
- Unique tab lock design
- Removable wings for easy tranport and storage
Features
- Wingspan:Â 1600mm
- Length:Â 1000mm
- Wing area [dm]: 56dm²
- Flying weight: starts at 3800gr
- Functions: Ailerons, Throttle, Retracts, nosewheel steering
- EDF: 90mm (no included)
IncludesÂ
- DH108 Swallow Jet (to be assemble)
- AUTOCAD plans with all parts shown
- Vacuumformed canopy, nose cone and tail cone
- PVC outlet tube (to roll)
- Illustrated instructions manual (downloadable hereunder)
- All Mounting pictures by the hereunder link :
- https://www.rbckitsinstructions.com/edf-jets/instructions-dh108-swallow
Requires
- EDF 90mm type MidiFan Evo Wemotec + Motor HET Typhoon 650-68-1500 or similar
- ESCÂ 150A
- Lipo Battery 8S 5000mAh
- 3x Servos metal
- Landing gear retracts (legs 4mm with wheels diam.80/85mm for main gear, diam.60mm for front gear)
- Thick and thin Cyano glues
- Cover (fiber 2m² 25gr + Epoxy)
- Accessories (canopy closing, Hinges, screws, fastener 2,9×13 x12 for retract mounting, steering wire 1.2-1.5mm x1)
- Recommended Radio and Receiver: 5Â channel

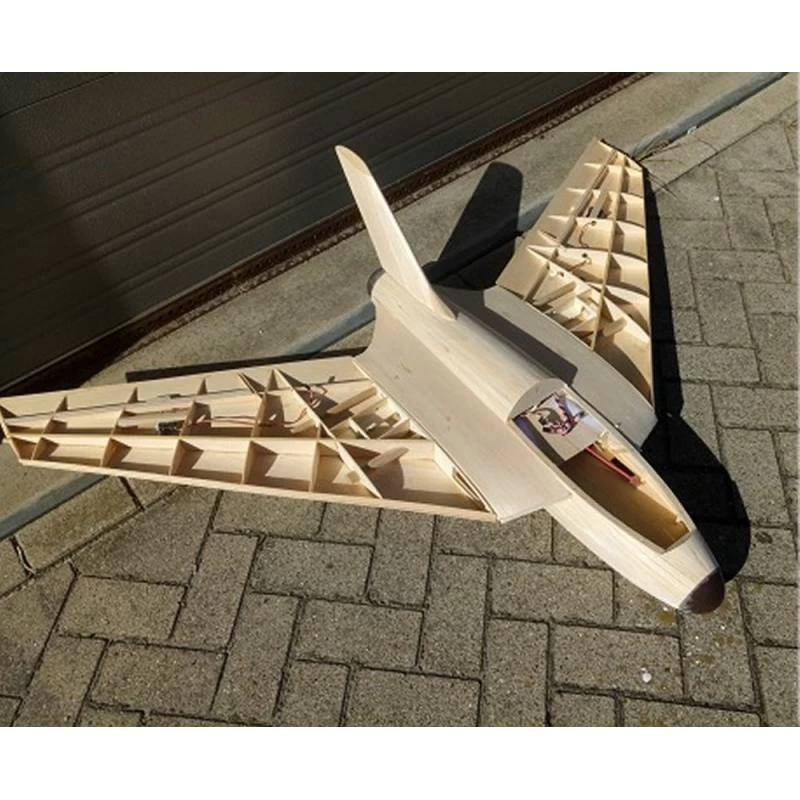

airframe build up step by stepÂ

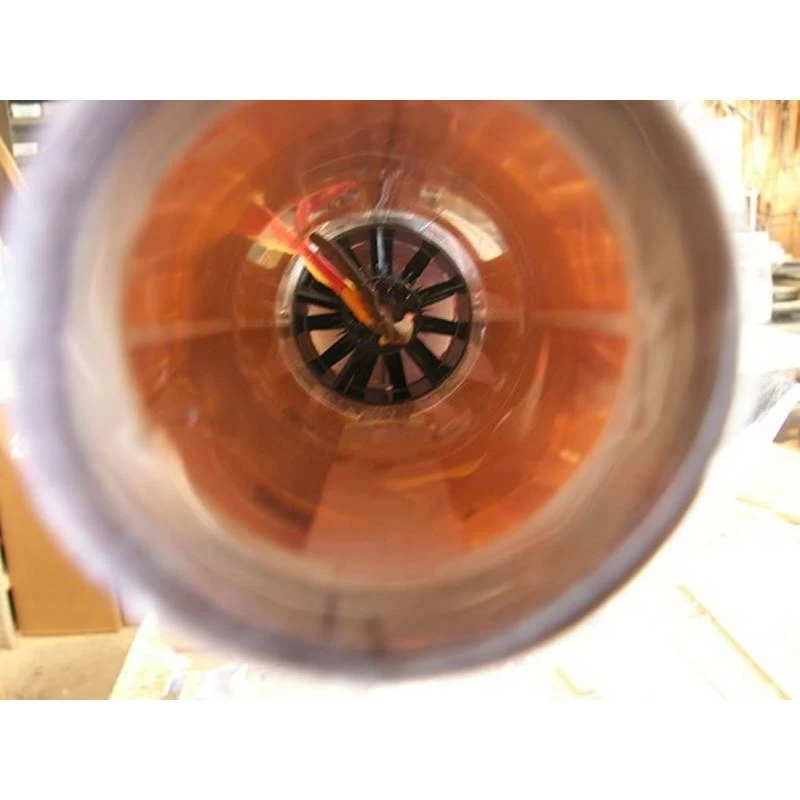

Simple paper ducts working very well
Fuselage is strip planked all strip is pre cut
Easy build up stick on wings , transports very easy
Retracts in wingsÂ
build steps fuselage on cd higher resolution.
airframe showing
Â
Data sheet
| Type of kit: | Wood kit |
| Wingspan (mm): | 1600 |
| Length (mm): | 1000 |
| Flying weight (gr) | starts at 3800g |
| EDF Diameter Class (mm): | 90 |
| Material | ABS, Balsa, Wood |
| Required Radio | 5 channels minimum |
