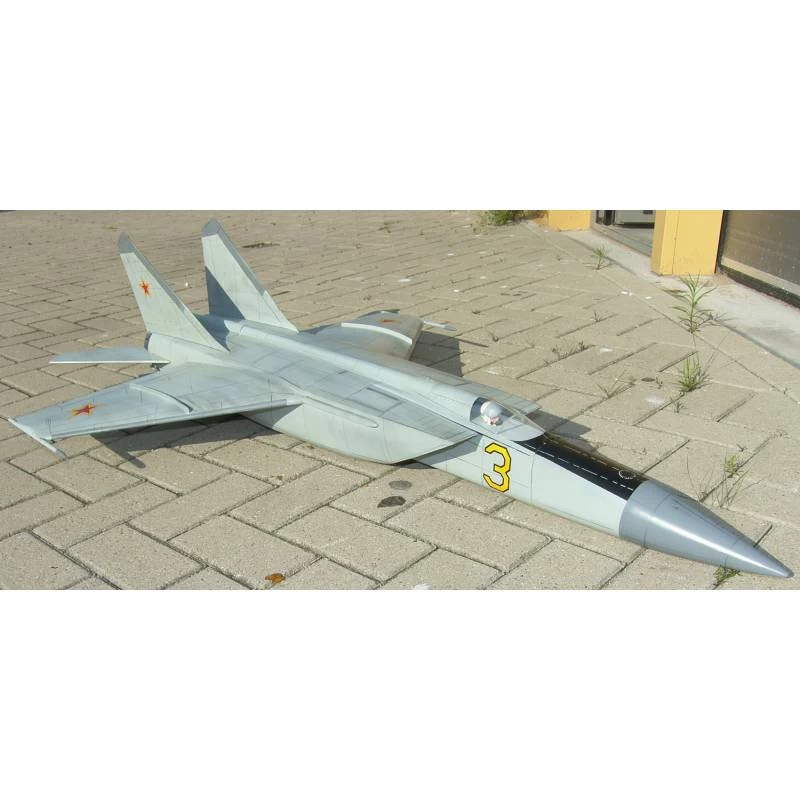

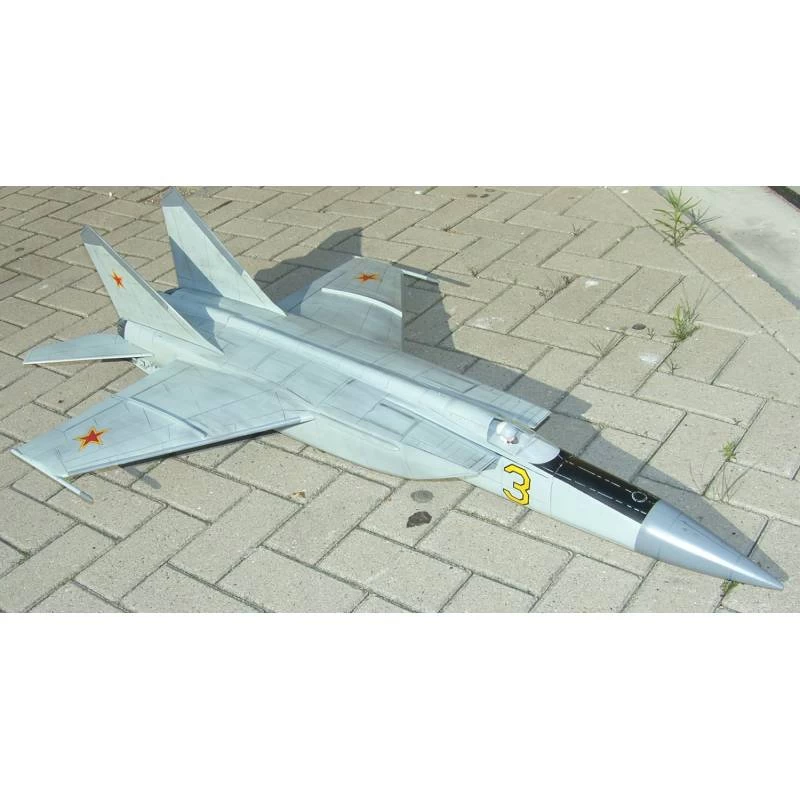

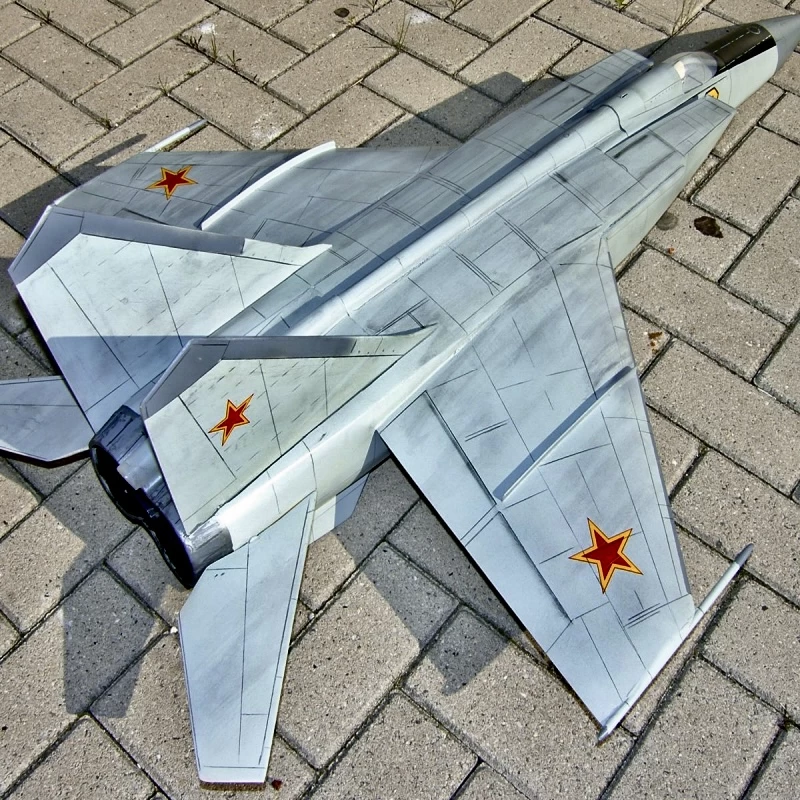

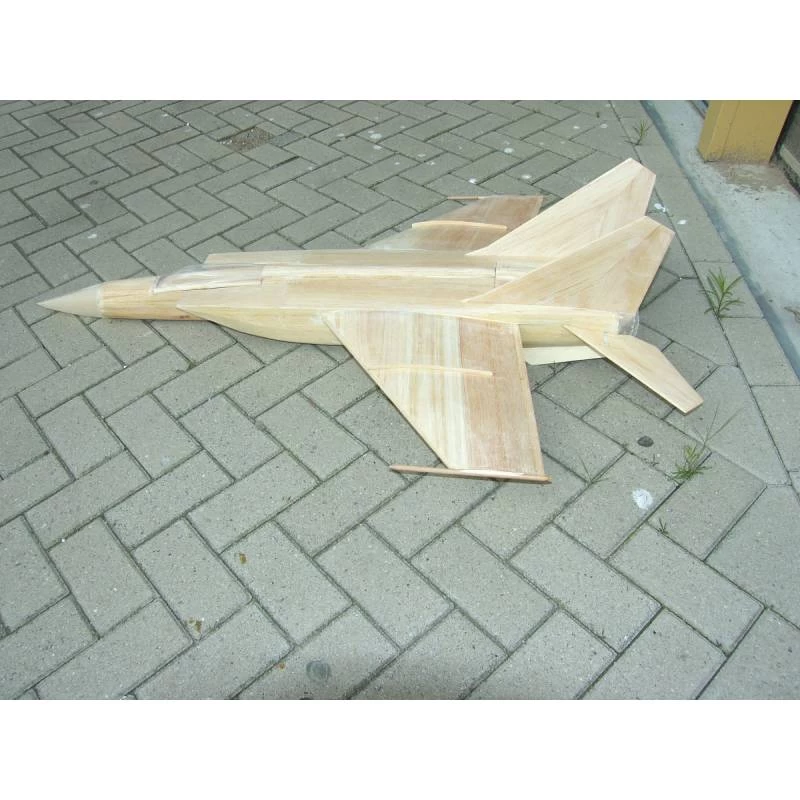

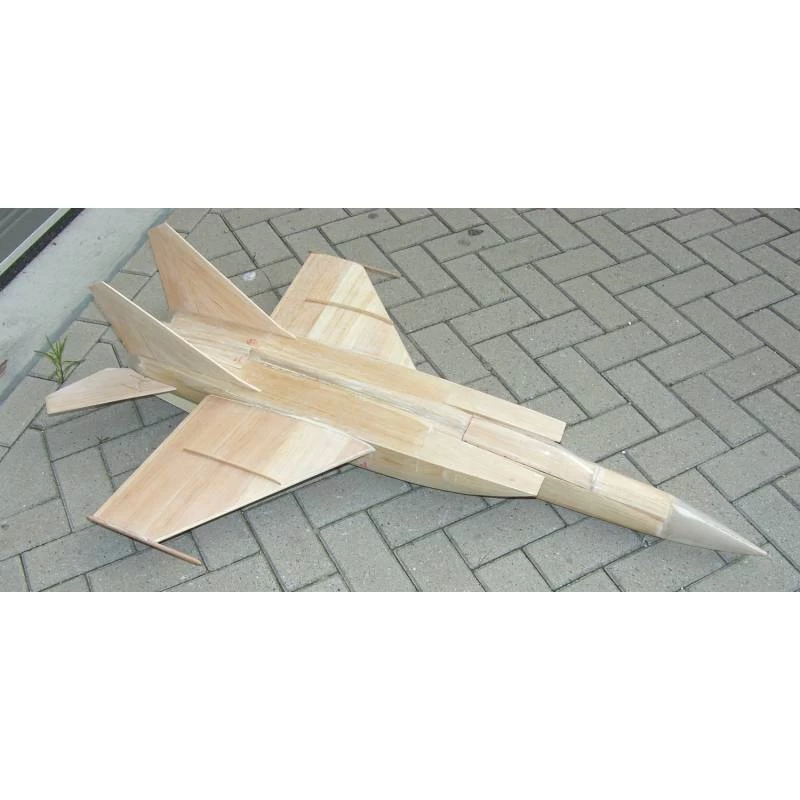

RBC Kits CNC MIG-25 Foxbat Jet EDF 90mm (CNC Wood Kit)
Oorspronkelijke prijs was: 141,58 €.98,99 €Huidige prijs is: 98,99 €.
- 100% kwaliteitsbelofte
- Veilige transacties, tevreden klanten
- 7 dagen gratis retourneren
- Meerdere betaalmethoden, veilig en betrouwbaar
More info
RBC Kits CNC Mig25 Foxbat Jet EDF 90 (CNC wood Kit)
Turbines RC is pleased to introduce the new RBC range of high-quality all-wood kits to assemble yourself. All CTP and Balsa parts are CNC cut. This model, once mounted, remains in one piece for easy transport.

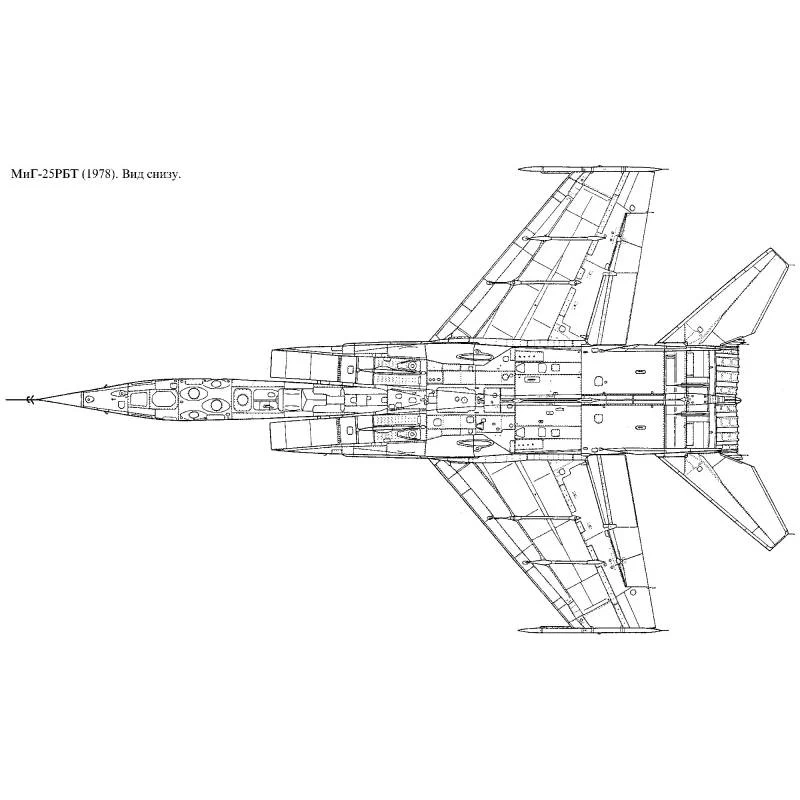

The Mikoyan-Gurevich MiG-25 (NATO reporting name: Foxbat) is a supersonic interceptor and reconnaissance aircraft that was among the fastest military aircraft to enter service. It was designed by the Soviet Union’s Mikoyan-Gurevich bureau and is one of the few combat aircraft built primarily using stainless steel. It was the last plane designed by Mikhail Gurevich before his retirement..
RBC jets are made for standard combos (motor + EDF) available on our website.

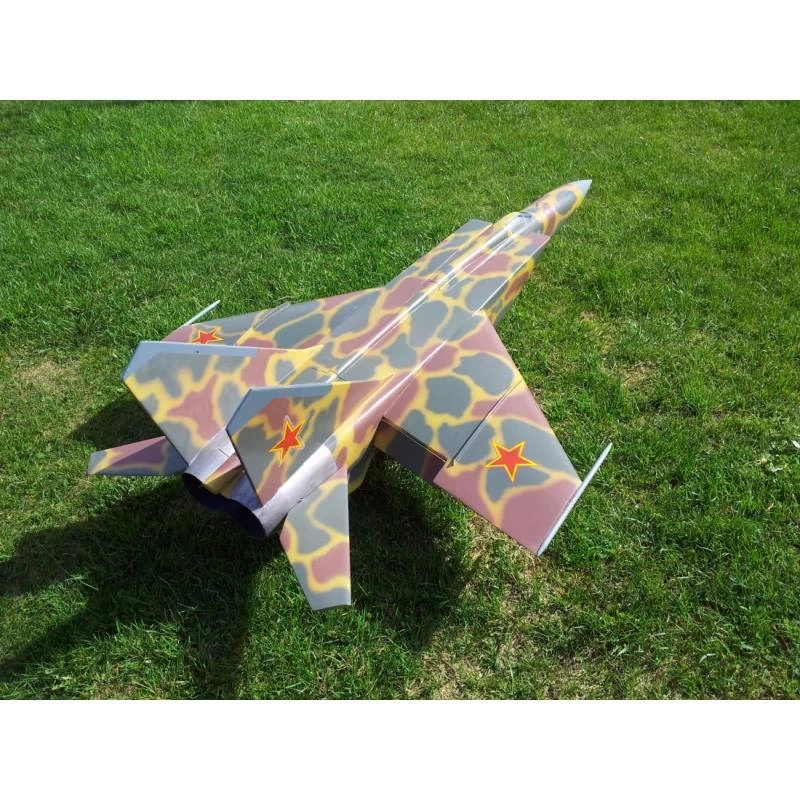

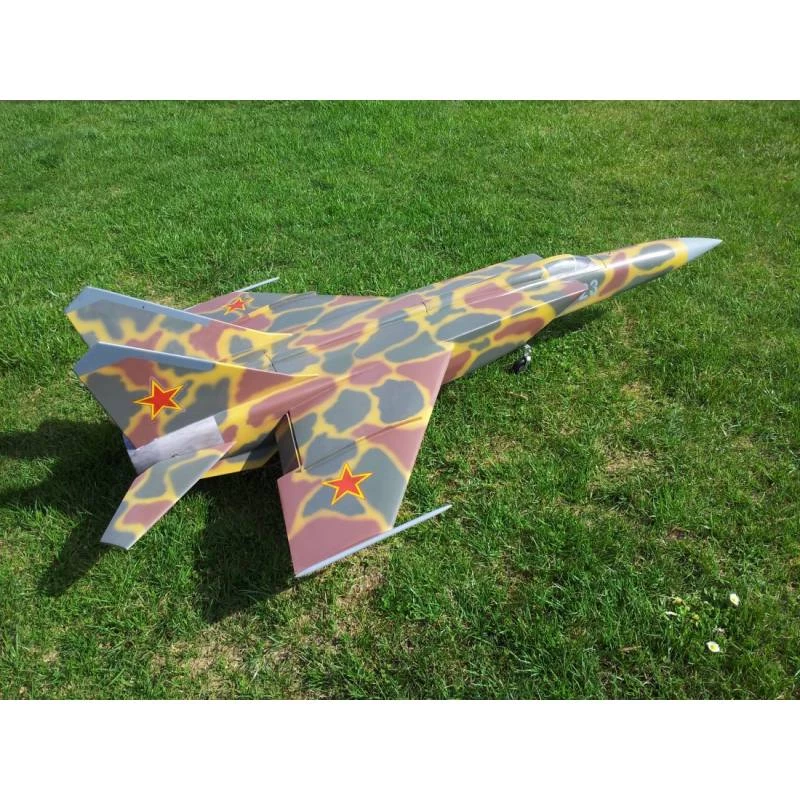

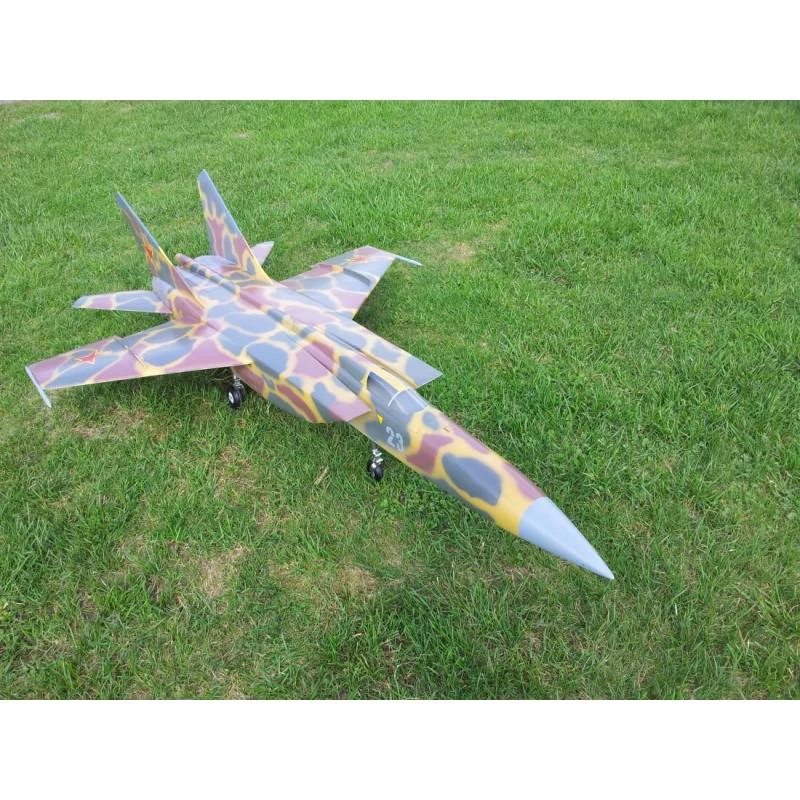

Nota: as on the camouflage version pictures, it is possible to install flaps and electric retracts.
Technical specifications
- All formers and ribs CNC cut
- Unique tab lock design
- One piece design easy tranport
- Motor/EDF compartment easy accesable
- Battery access trough the canopy
Features
- Wingspan:Â 868mm
- Length:Â 1420mm
- Wing area [dm]: 36dm²
- Empty weight:Â starts at 1600g (without battery)
- Functions: Ailevons, throttle
- EDF: 90mm (no included)
IncludesÂ
- MIG25 Jet Foxbat (to be assemble)
- AUTOCAD plans with all parts shown
- Vacuumformed canopy
- PVC outlet tube (to roll)
- Control horns
- For all Mounting pictures and instructions clic here (You need Winrar to unzip the pictures to your system).
Requires
- EDF 90mm type MidiFan Evo Wemotec + Motor HET Typhoon class 600 in 5 or 8S or similar
- ESCÂ 70A
- Lipo Battery 5 to 8S 3200mAh
- 2x Metal Servos 2.5/3kg
- Catapult system or Landing gear retracts (acc. to your choice)
- Thick and thin Cyano glue
- Cover (fiber, silk or Oracover according to your choice)
- Recommended Radio and Receiver: 3 to 5Â channel
Data sheet
| Type of kit: | Wood kit |
| Wingspan (mm): | 868 |
| Length (mm): | 1420 |
| Weight (gr): | Empty 1600g |
| EDF Diameter Class (mm): | 90 |
| Material | ABS, Balsa, Wood |
| Required Radio | 3 channels minimum |
