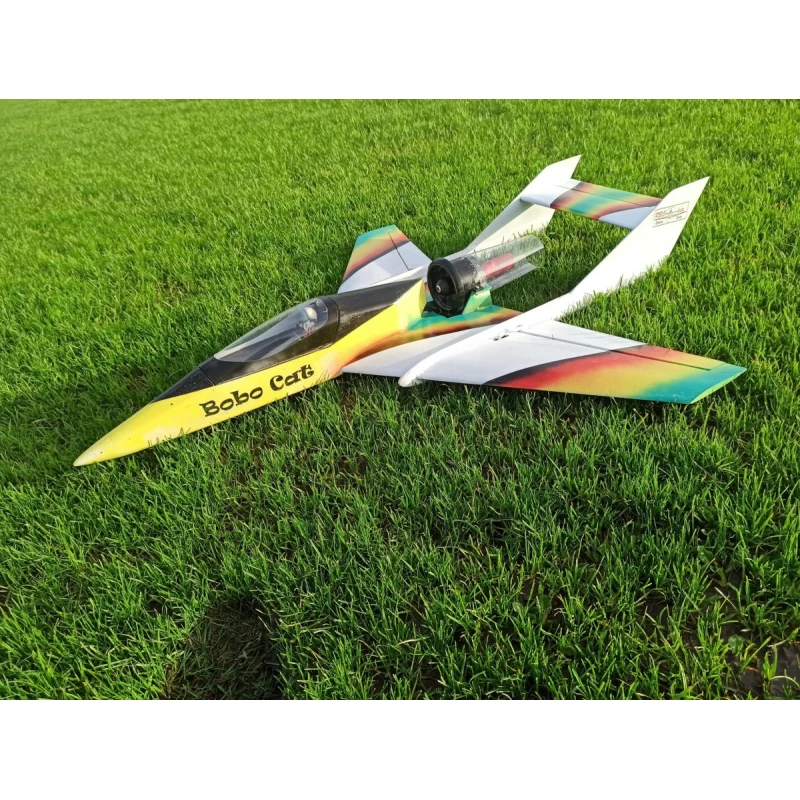

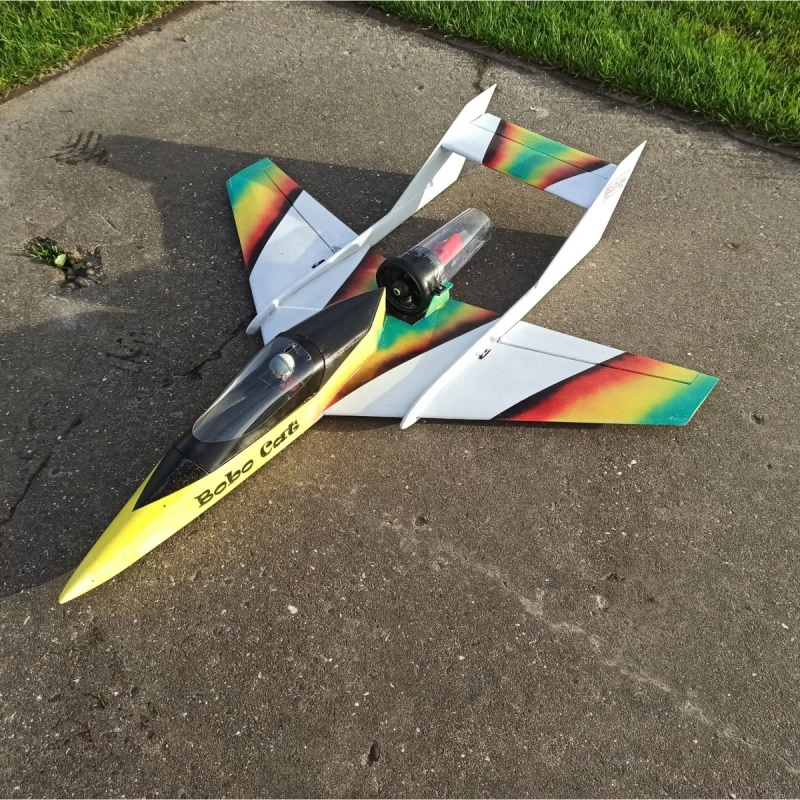

RBC Kits Bobo Cat Jet EDF 70mm (Wood Kit CNC)

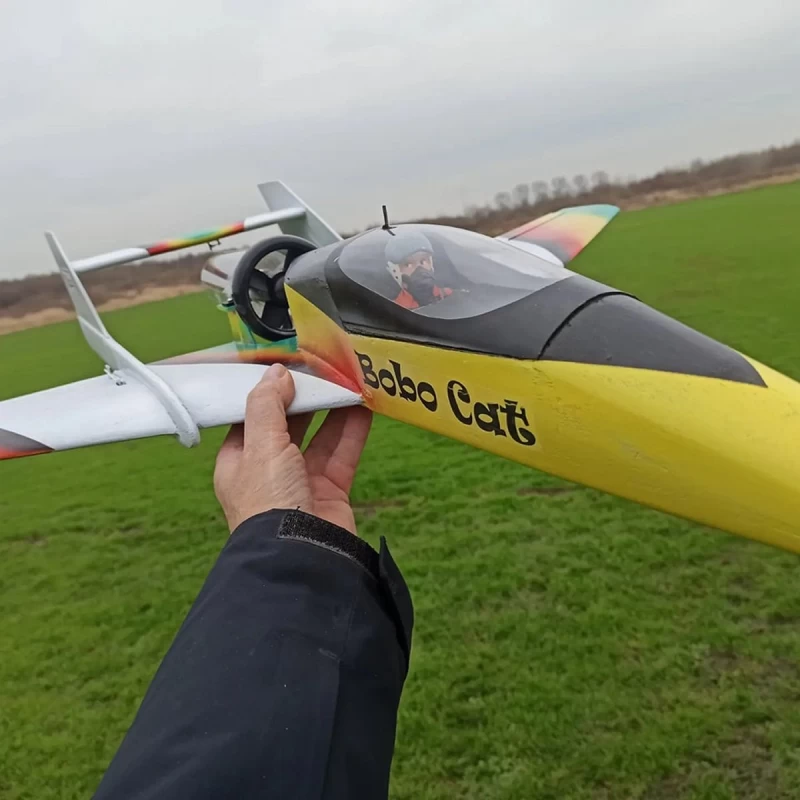

RBC Kits Bobo Cat Jet EDF 70mm (Wood Kit CNC) - Afbeelding 2

RBC Kits Bobo Cat Jet EDF 70mm (Wood Kit CNC) - Afbeelding 3

RBC Kits Bobo Cat Jet EDF 70mm (Wood Kit CNC) - Afbeelding 4

RBC Kits Bobo Cat Jet EDF 70mm (Wood Kit CNC) - Afbeelding 5

RBC Kits Bobo Cat Jet EDF 70mm (Wood Kit CNC) - Afbeelding 6

RBC Kits Bobo Cat Jet EDF 70mm (Wood Kit CNC) - Afbeelding 7

RBC Kits Bobo Cat Jet EDF 70mm (Wood Kit CNC) - Afbeelding 8

RBC Kits Bobo Cat Jet EDF 70mm (Wood Kit CNC) - Afbeelding 9

RBC Kits Bobo Cat Jet EDF 70mm (Wood Kit CNC) - Afbeelding 10

RBC Kits Bobo Cat Jet EDF 70mm (Wood Kit CNC) - Afbeelding 11

RBC Kits Bobo Cat Jet EDF 70mm (Wood Kit CNC)

Oorspronkelijke prijs was: 80,00 €.Huidige prijs is: 56,00 €.

Artikelnummer: RBC-BBCat70 Categorieën: Airplanes, Jets EDF

100% kwaliteitsbelofte
Veilige transacties, tevreden klanten
7 dagen gratis retourneren
Meerdere betaalmethoden, veilig en betrouwbaar

Beschrijving
Beoordelingen (0)

More info

RBC Kits Bobo Cat Jet EDF 70mm (wood Kit CNC)

Turbines RC is pleased to introduce the new RBC range of high-quality all-wood kits to assemble yourself. All CTP and Balsa parts are CNC cut. This model, once mounted, remains in one piece for easy transport.

RBC jets are made for standard combos (motor + EDF) available on our website.

Technical specifications

All Formers And Ribs CNC Cut
Unique Tab Lock Design

Features

Wing Area: 16dm²
Wing Span: 838mm
Length: 1020mm
Flight Weight: starts at 1100grams
Functions: 3 Channel
- Ailerons,
- Elevator,
- Throttle
EDF: Mini Fan 70mm (not included)

Includes

Bobo Cat wood kit (to be assemble)
Full Size Rolled Cad Plans With All Parts Shown
Vacuformed Canopy
PVC outlet ducting
Instructions manual in English (downloadable hereunder)

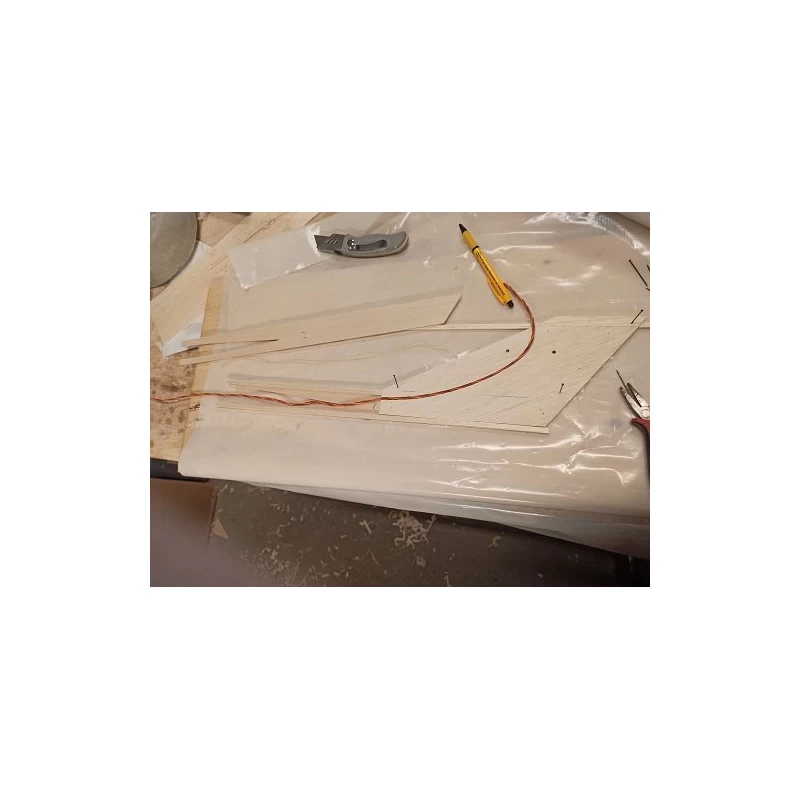

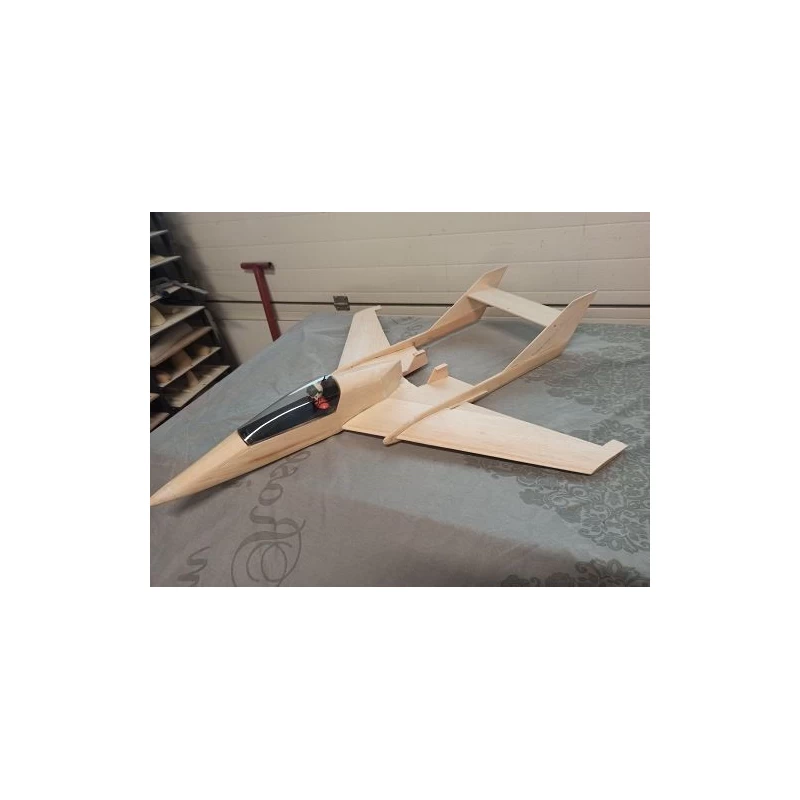

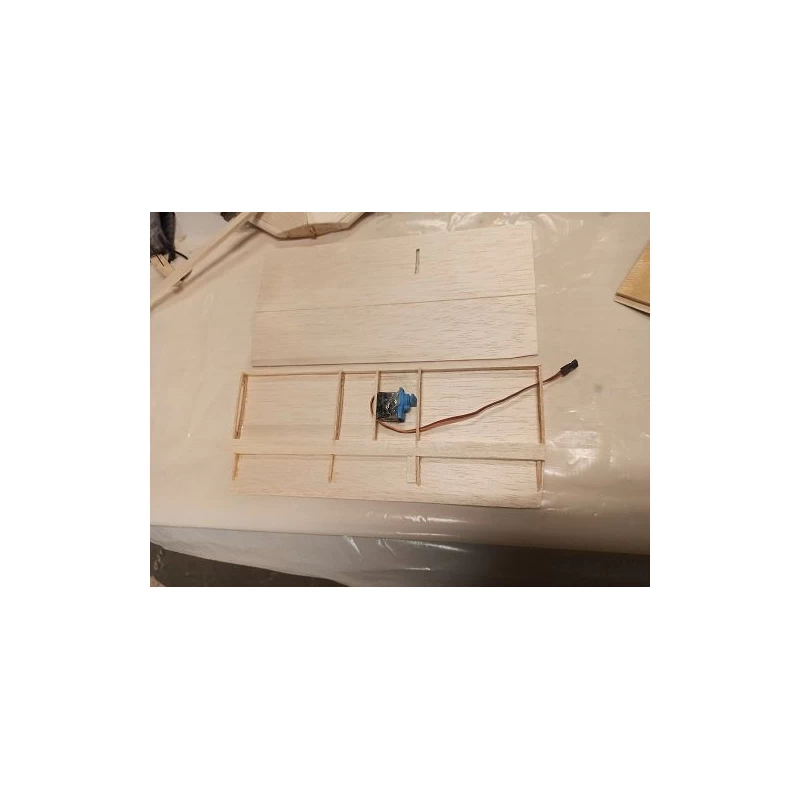

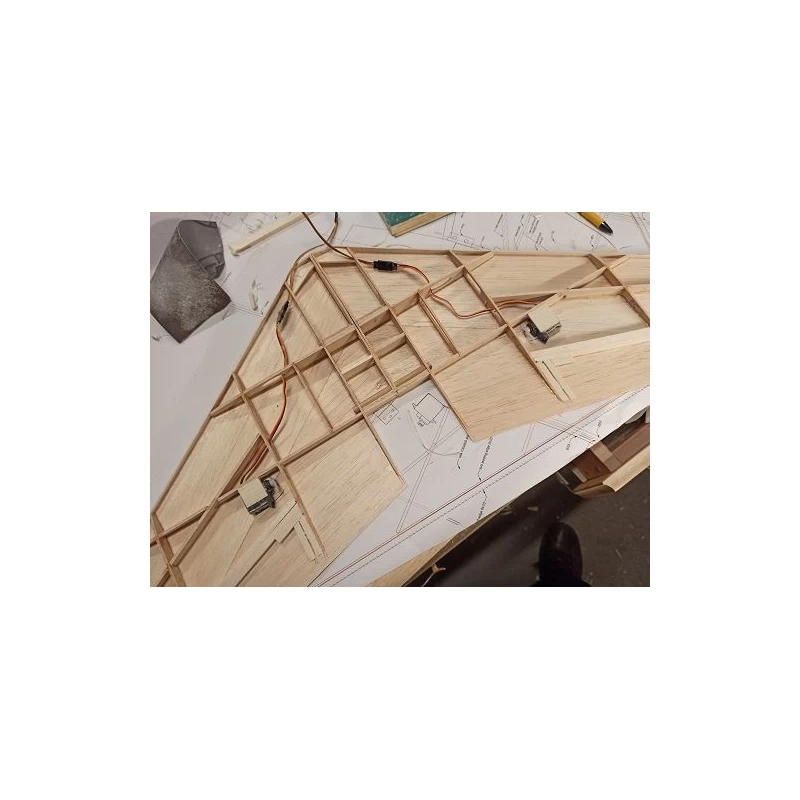

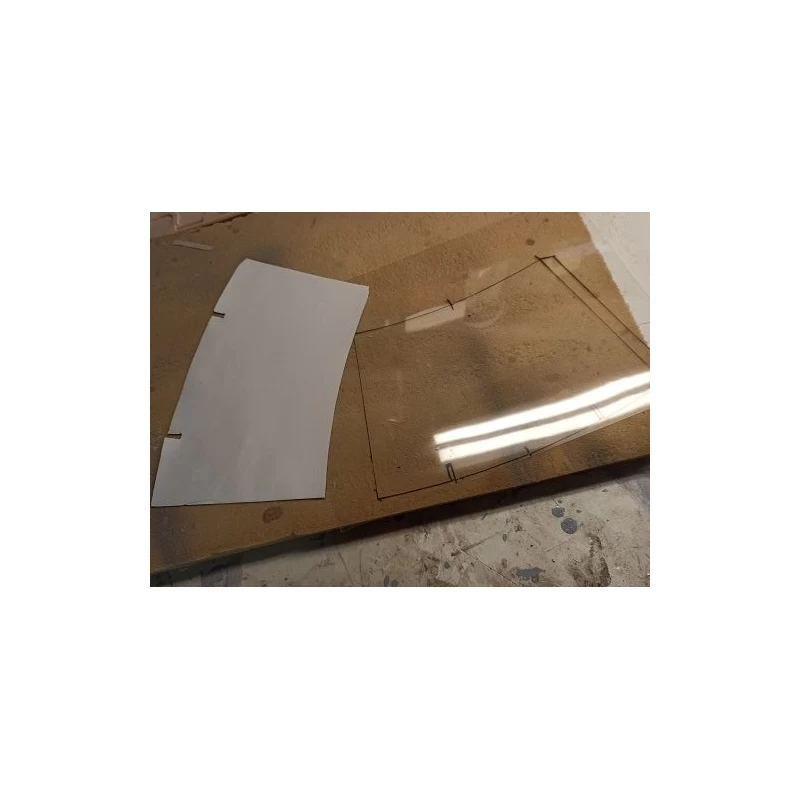

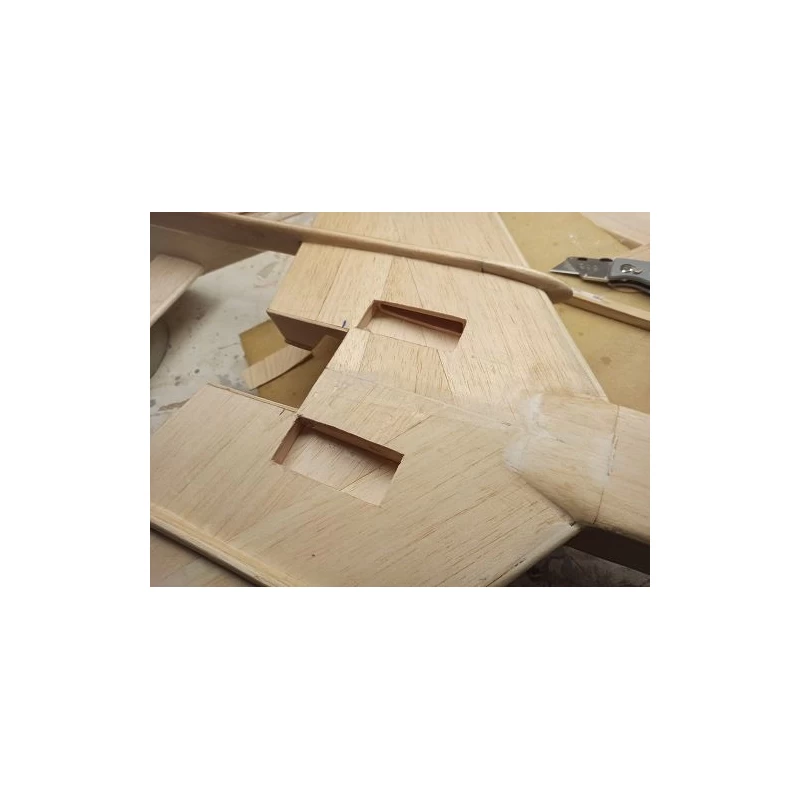

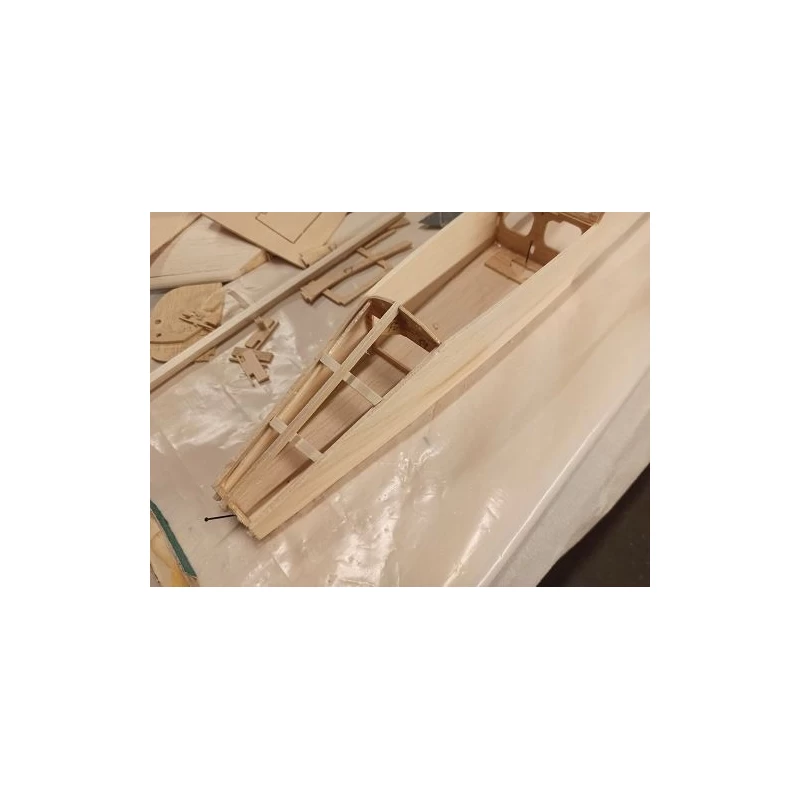

All Mounting pictures by the hereunder link: click here

Requires

8 Channel Radio
Light weight Receiver
Servos: About 13gr
Motor HETrc EDF 2w-20 (4s)
ESC
EDF: Wemotec Mini fan Evo 70mm or equivalent
Battery: 4S 3000mAh Li-Po
finish plastic foil or glass 1mtr2
hinges 9x ca type
steering arms 3x
steering wire steel 1,2mm
servo extension wire for elevator 1000mm
canopy latch
dummy pilot
fasteners 2,9×13 for fanunit
ca glue thick and medium and thin
canopy glue
building nails

Data sheet

Type of kit:	Wood kit
Wingspan (mm):	838mm
Length (mm):	1020mm
Flying weight (gr)	1200
Wing Surface Area:	16 dm²
CG (Center of Gravity)	Check manual
Servos	13gr
EDF Diameter Class (mm):	70
Battery Cells:	4s – 14.8v
Battery Capacity (mAh)	3.000 mAh
Surfaces	Ailerons, Elevator
Landing Gear	None – belly lander
Material	Balsa, Wood, Plastic
Required Radio	Minimum 8 channels
