More info
Motor designed for ducted fan models (ducted fan diameter 50 – 73 mm, 10 cells) and pylon models up to 1,5 kg – ideal setup for 7 cells 2000 mAh, propeller 5″x5″ , JES 40, weight up to 1 kg, (at races is this motor used with up to 18 cells and currents up to 70A), or as drive unit with gearbox MEGA GEAR 16 or MAXON (ratio 1:3,1 recommended propelers from 11×7“ to 13×8“ CAM CARBON, pull 2 kg). Also for scale models and gliders with 7, 8 or 10-ti cells NiCd, NiMH.
Description :
- Two precise ball bearings
- Neodym magnets
- Dynamically balanced rotor
- Kevlar bandage
- Motor mount has two M3 threads for two M3 screws
- Efficiency up to 88%
- Handmade stator
- Lightweight rotor allows up to 55000 ot/min
- Size and weight equivalent to product line MIG 480
- Ideal for 50 – 70 mm diameter ducted fans, racing cars 1:10, racing boats, powerful gearbox units and direct drive electric models.
- Can be used with NiCd, NiMH, Li-POL cells.
- COMBAT version has 5 mm diameter shaft.
- Number of Winds: 2
- KV: 2470
- Lipo Cells: 2-5
- Max. Current: 40*
- Resistance 1 Phase: 7.5
- Weight: 115g

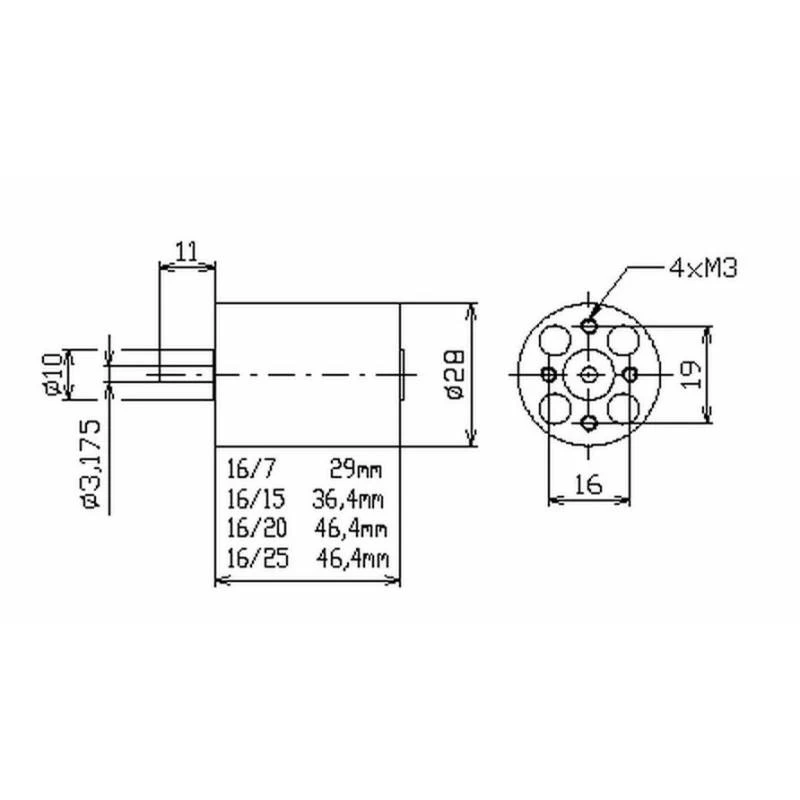

- Diameter: 28 mm
- Shaft diameter: 3.17mm
- Length: 46.5 mm
*Note: at races is this motor used with up to 18 cells and currents up to 70A

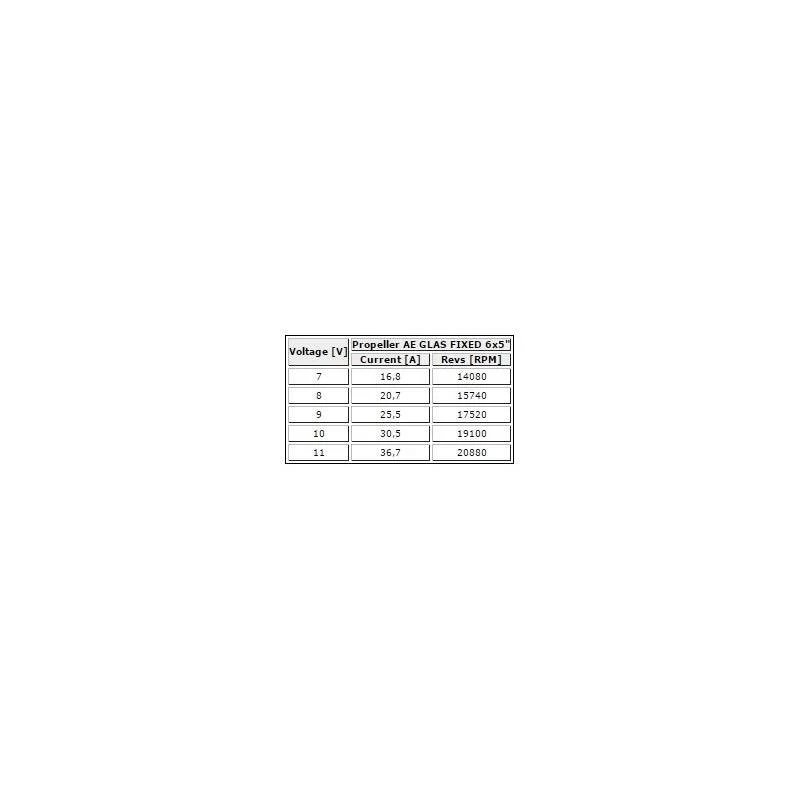

| Voltage [V] | Propeller AE GLAS FIXED 6×5″ | |
|---|---|---|
| Current [A] | Revs [RPM] | |
| 7 | 16,8 | 14080 |
| 8 | 20,7 | 15740 |
| 9 | 25,5 | 17520 |
| 10 | 30,5 | 19100 |
| 11 | 36,7 | 20880 |

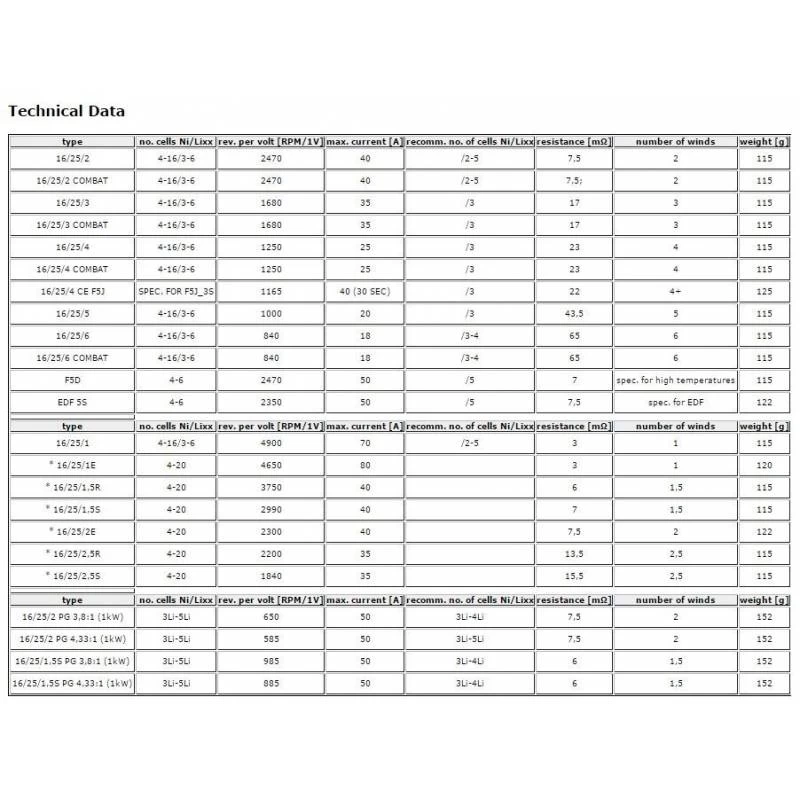

Data sheet
| Length (mm): | 46,4 |
| Weight (gr): | 115 |
| Turns/min/Volt (Kv): | 2470 |
| Motor Type: | In-Runner |
| Motor Diameter (mm): | 28 |
| Shaft diameter (mm): | 3.17 |
