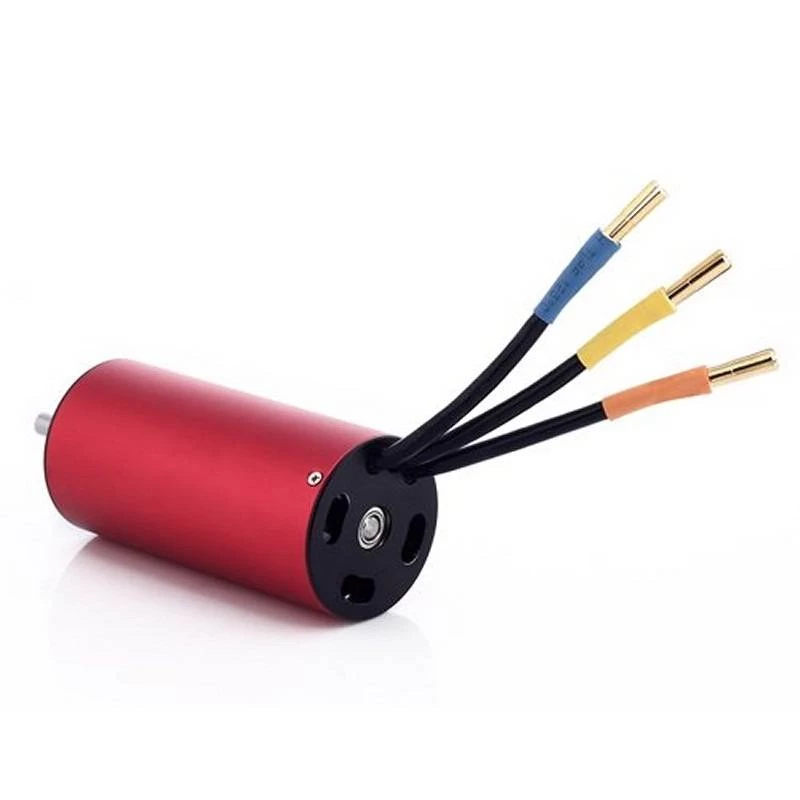

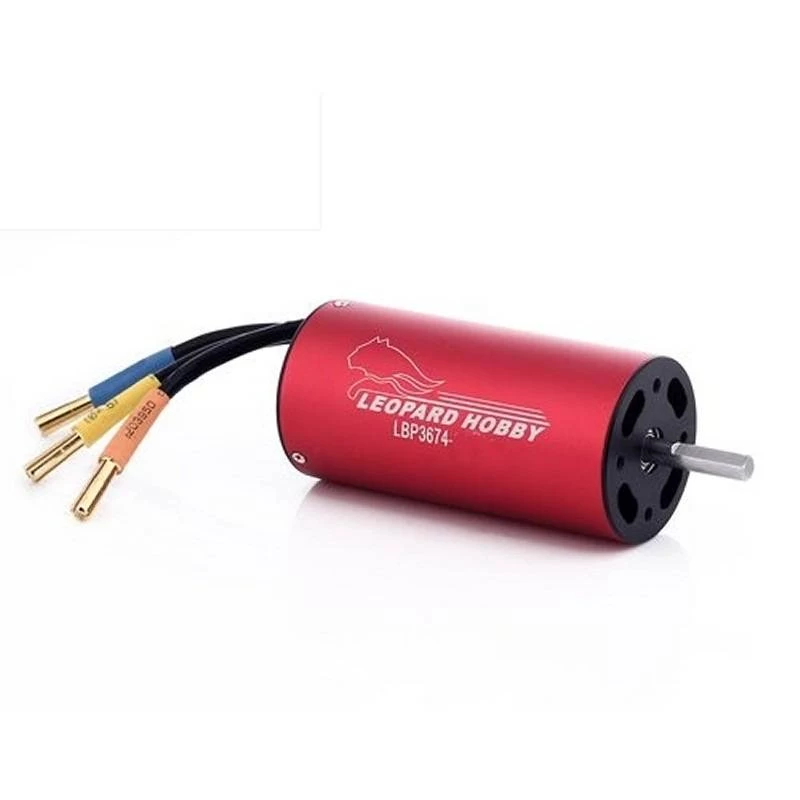

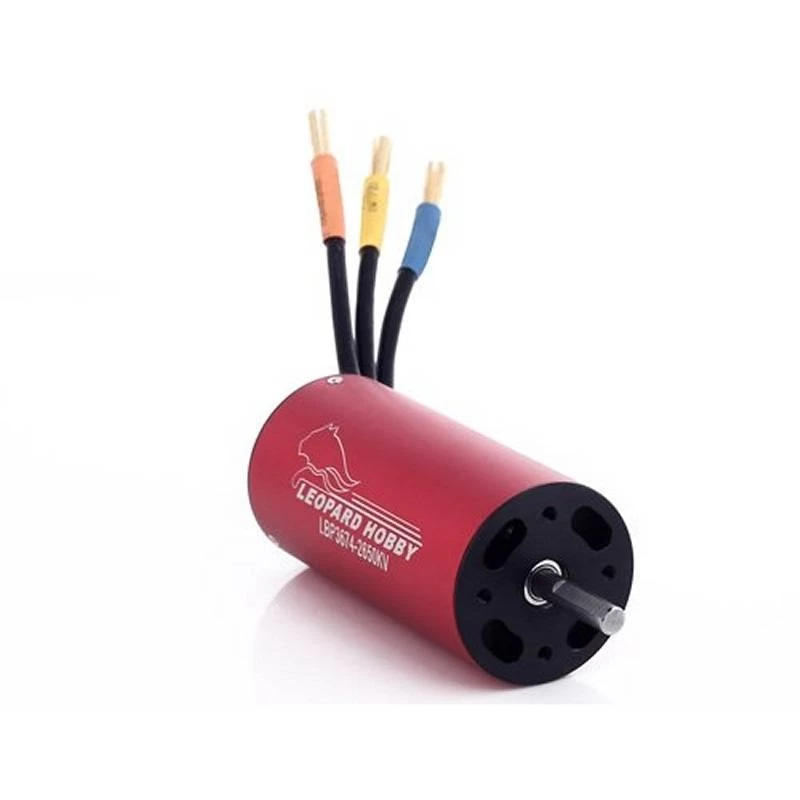

Leopard LBP3674/3D Motor 36mm 2200Kv
Description
- New design, four-pole rotor,the overall efficiency of more than 90%
- Extremely low temperature without additional heat sink can meet the vast majority of applications
- Compared to competitive products,lighter weight,higher torque
- Use of high-quality materials:aluminum alloy shell fine,high-quality magnetic steel,high temperature wire,imported high-quality bearings
- Rotor using special materials reinforced,high-speed operation under the non-burst phenomenon
- Good heat dissipation ,high overload capacity
- Low electromagnetic interference
- Minimum required electrical maintenance
- Long life
Specification
- Model: LBP3674/3D
- Max Amps: 90A
- Max voltage: 27v
- Max Power: 2400W
- KV(RPM/Volt): 2200
- Resistance: 0.0066
- No-load Current (15v): 2.7A

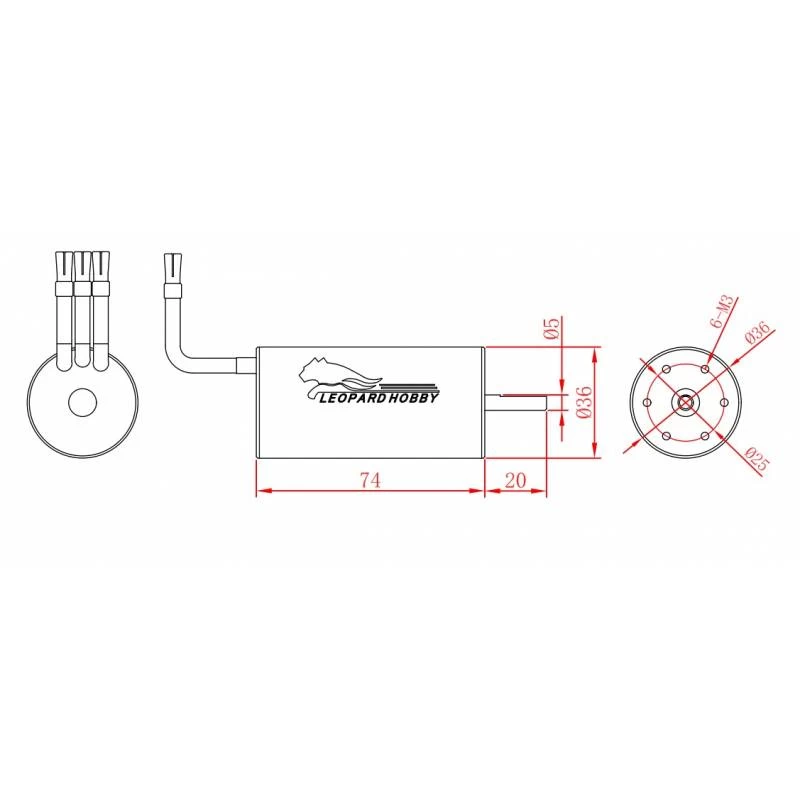

- Diameter×Length (mm): Φ36×74
- Mounting hole depth: 6mm
- Length of extend Shaft : 20mm
- Shaft Diameter (mm): Φ5.0
- Weight: 315g
Warning: Operating the motor outside of the specifications listed above can either damage the motor, battery or esc. It is important that these components are set up properly. Failure to do so can void the warranty. It is strongly encouraged to use a Watt Meter to test the watt and amp performance when setting up a new system. If the output is above the factory recommended specs, then it needs to be adjusted by the esc. The timing and throttle settings on the esc can help to set the appropriate levels.
Warning: Screws that are too long can short out the windings resulting in a cooked motor, this is not covered by warranty
Data sheet
| Length (mm): | 74 mm |
| Weight (gr): | 315 gr |
| No. of Magnet Poles: | 4 |
| Turns/min/Volt (Kv): | 2200 |
| Motor Type: | In-Runner |
| Motor Diameter (mm): | 36 |
| Shaft diameter (mm): | 5 |
| Power (Watts): | 2400 |
| Max Intensity (A): | 90 A |
| Connection: | PK 4mm |
