Leopard LBP2860-B/3D 28mm 3400Kv Motor

Oorspronkelijke prijs was: 41,58 €.Huidige prijs is: 29,11 €.

Artikelnummer: LEO-2860/3400 Categorieën: 28mm Brushless Motors, Brushless Motors

100% kwaliteitsbelofte
Veilige transacties, tevreden klanten
7 dagen gratis retourneren
Meerdere betaalmethoden, veilig en betrouwbaar

Beschrijving
Beoordelingen (0)

More info

Leopard LBP2860-B/3D 28mm 3400Kv motor

Description

New design, four-pole rotor,the overall efficiency of more than 90%
Extremely low temperature without additional heat sink can meet the vast majority of applications
Compared to competitive products,lighter weight,higher torque
Use of high-quality materials:aluminum alloy shell fine,high-quality magnetic steel,high temperature wire,imported high-quality bearings
Rotor using special materials reinforced,high-speed operation under the non-burst phenomenon
Good heat dissipation ,high overload capacity
Low electromagnetic interference
Minimum required electrical maintenance
Long life

Specification

Model: LBP2860-B/3D 3400Kv
Max Amps: 80A
Lipo Cell max: 4-5s (17v)
Max Power: 1300W
KV(RPM/Volt): 3400
Resistance: 0.0098
No-load Current : 2.5A

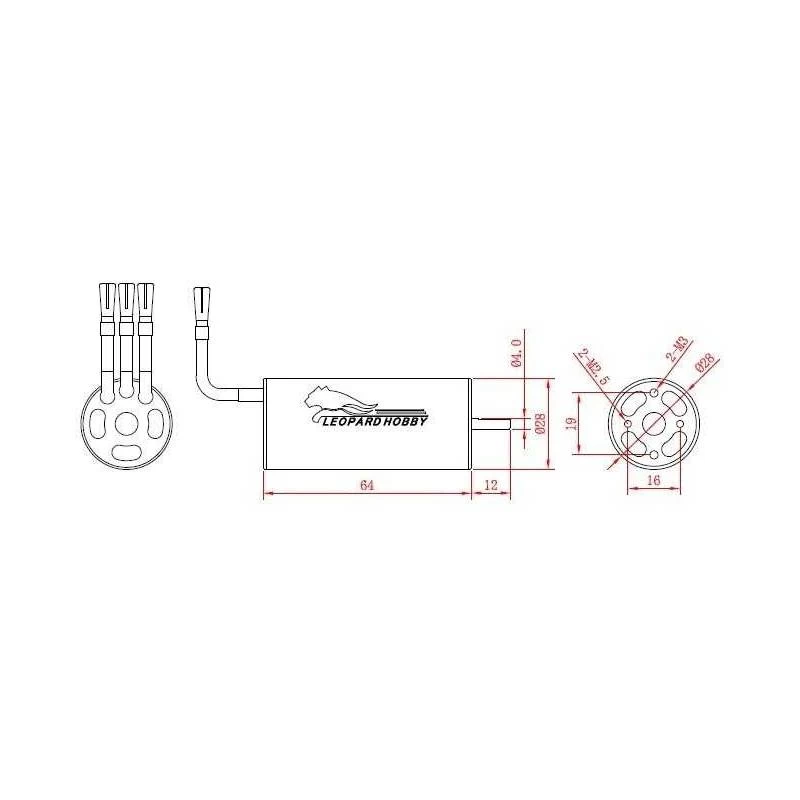

Diameter×Length (mm): Φ28.0×64
Mounting hole depth: 7mm
Length of extend Shaft : 12mm
Shaft Diameter (mm): Φ4.0
Weight: 176g

Warning: Operating the motor outside of the specifications listed above can either damage the motor, battery or esc. It is important that these components are set up properly. Failure to do so can void the warranty. It is strongly encouraged to use a Watt Meter to test the watt and amp performance when setting up a new system. If the output is above the factory recommended specs, then it needs to be adjusted by the esc. The timing and throttle settings on the esc can help to set the appropriate levels.

Warning: Screws that are too long can short out the windings resulting in a cooked motor, this is not covered by warranty

Data sheet

Length (mm):	64 mm
Weight (gr):	176 gr
No. of Magnet Poles:	4
Turns/min/Volt (Kv):	3400 kV
Motor Type:	In-Runner
Motor Diameter (mm):	28
Shaft diameter (mm):	4
Power (Watts):	1300 W
Max Intensity (A):	80 A
Connection:	PK 3.5mm
