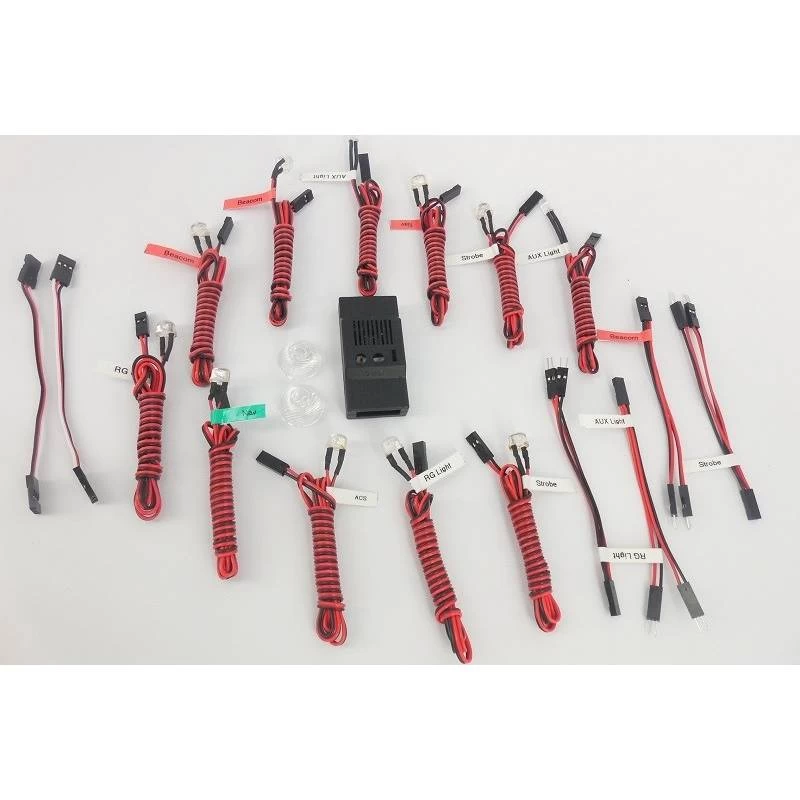

LED Programmable Lighting System For Plane And Helicopter

This is the most advance, realistic lighting R/C lighting system for RC aviation in the market. This system can automatically identify the quantity of used LED.

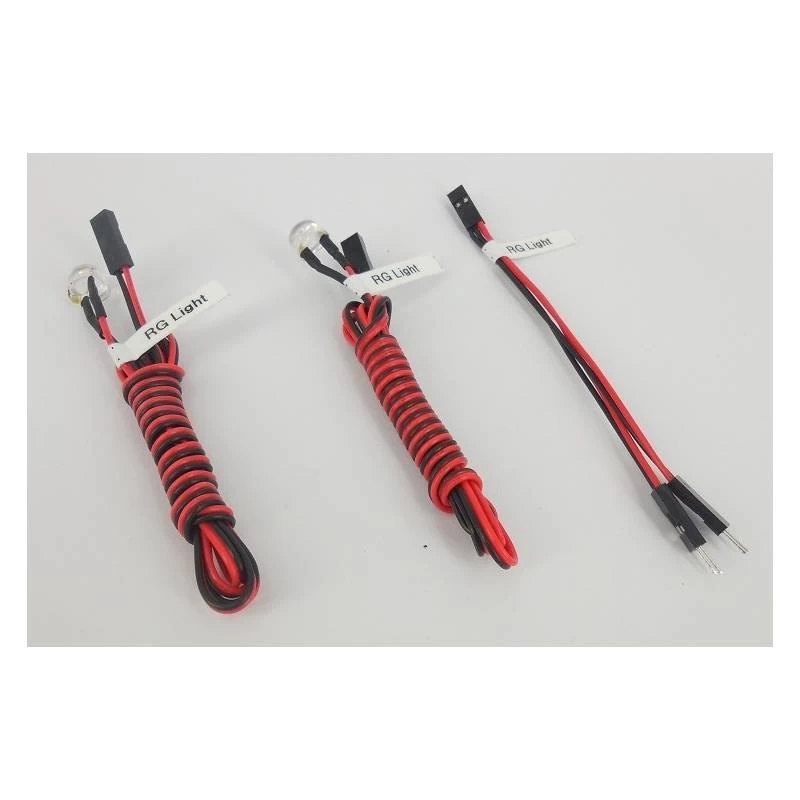

User can add or remove LED at will (Maximum 9 watts on each module); automatically on off when connected to retract channel (nose gear light), The nose gear light will on or off after 3 seconds of gear retract or gear detract.  Individual light can connect to AUX Channel for landing light or logo light.



Because flashing light interval is different for each plane, this system allow to adjust the flashing time interval (flashing time 1 – 3 seconds).



• Internal output voltage control, no need for resistor usage.
• Input voltage is 4.8 – 6V, you can use power supply form ESC/ UBEC or use external independent battery.
• Gas plane can use the 4.8V receiver battery directly.

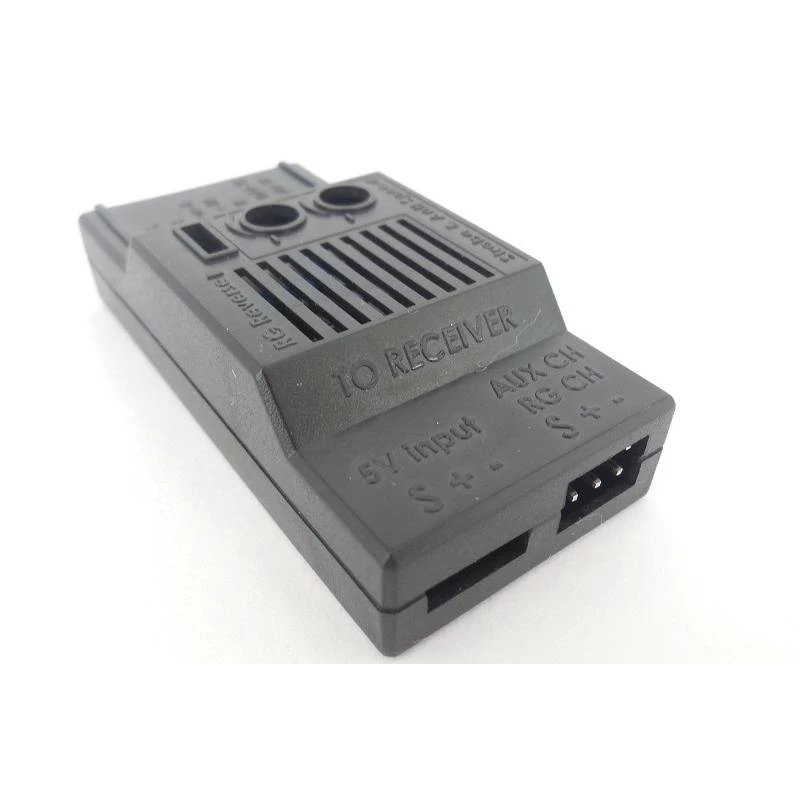

• Circuit board is protected by a plastic housing.
• Length of LED wire 1000 mm

Features

• Total output of all LED 50 Watt
• Auto nose gear light with 3 second delay

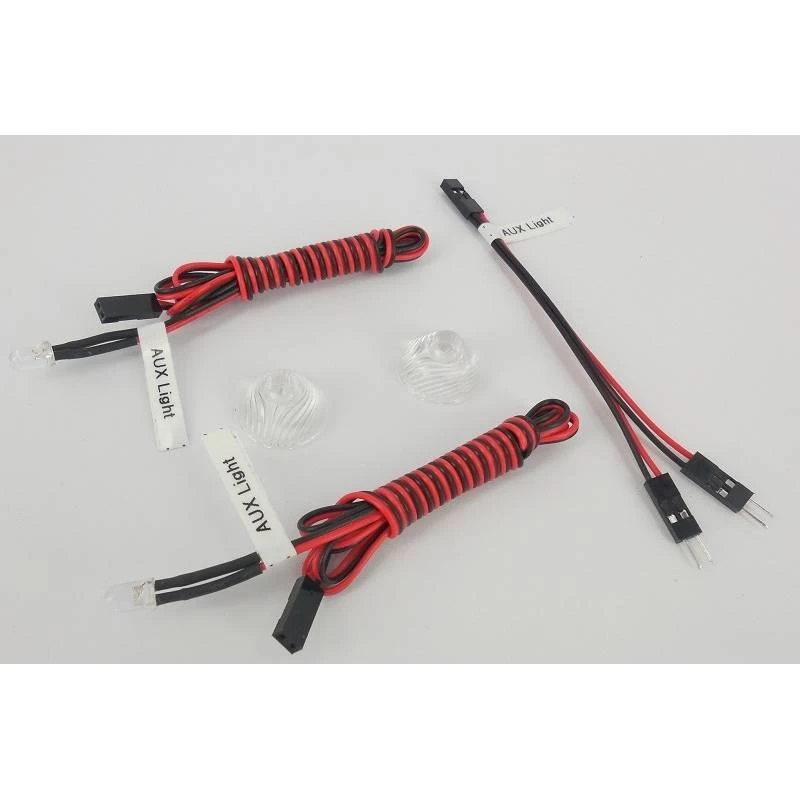

• Additional lighting control by AUX CH
• No resister required to all LED blub
• Free combination LED blub (each module, as long as not over the limit of watt)

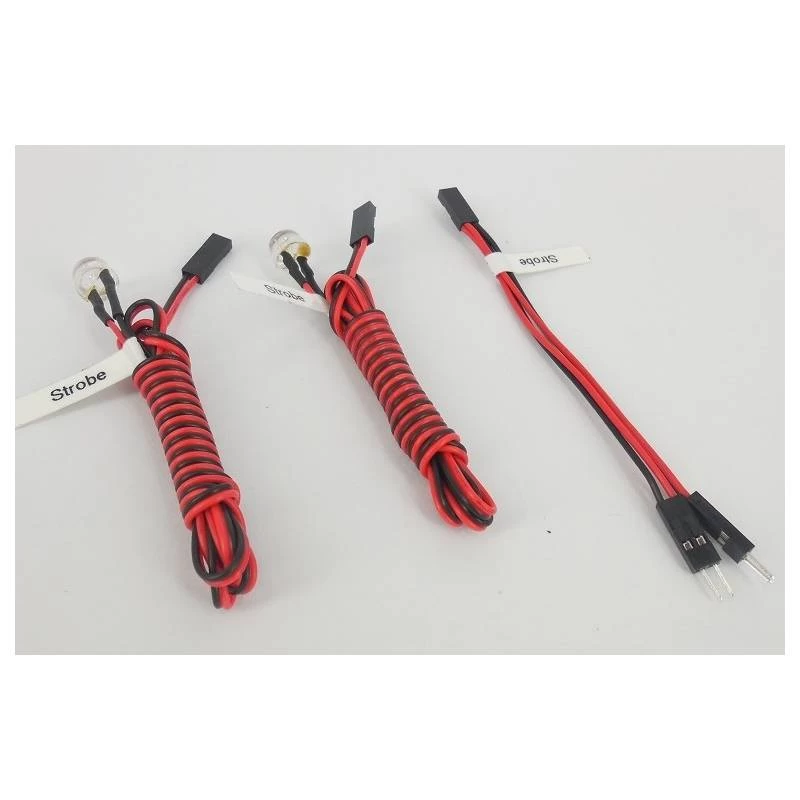

• Adjustable flashing interval to Strobe and Beacon.

• Input: 2 channels (Retract & Aux)
• Power: 4.8V – 6V
• Max draw: 50W
• Weight of module: 14g
• Total Weight: 96g
• Dimensions: (control unit only) 27.5mm x 57.5mm x 15.6mm

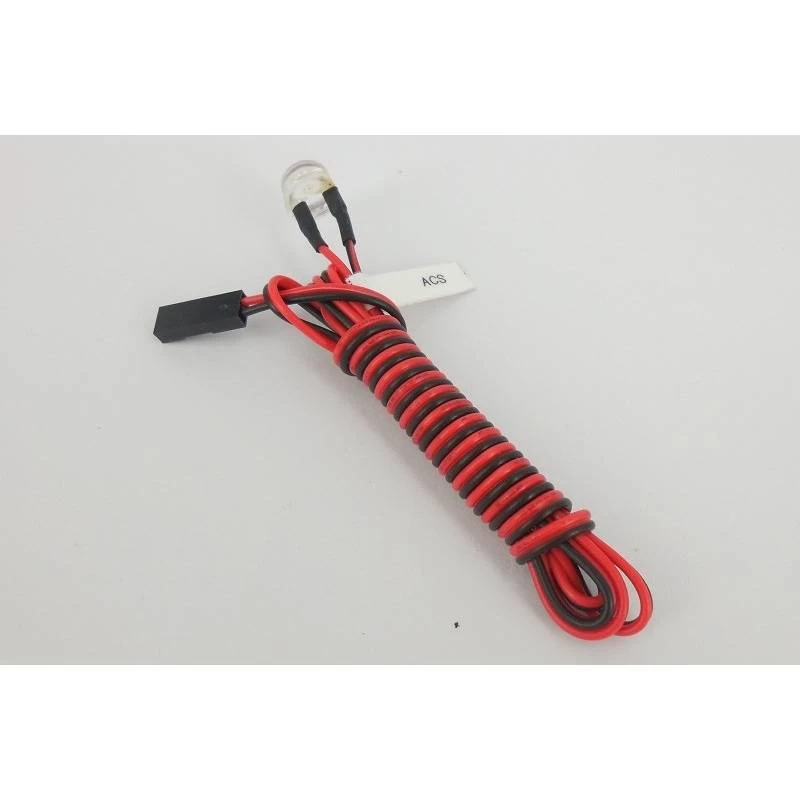

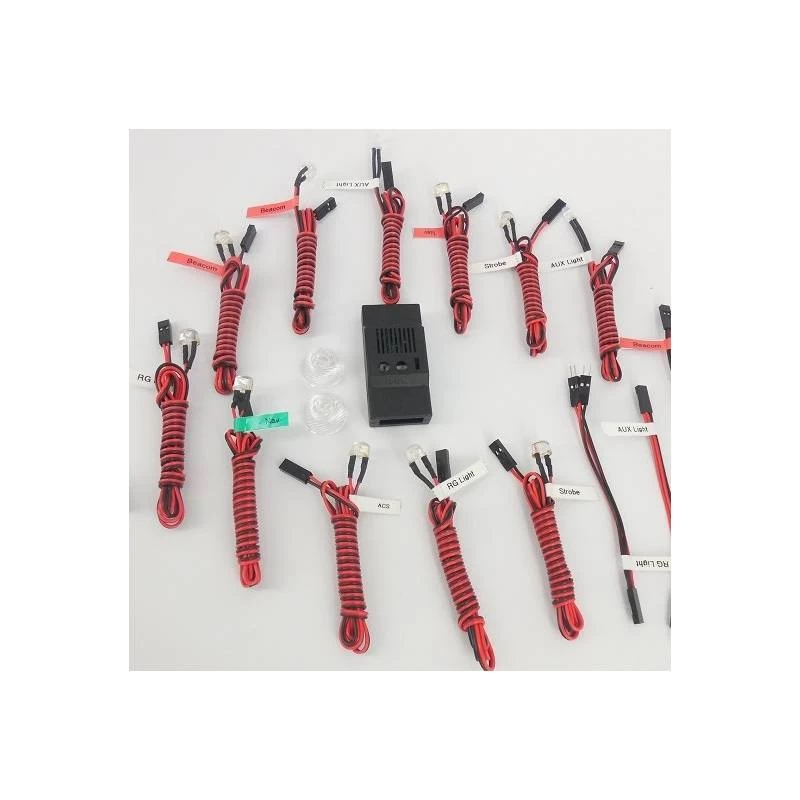

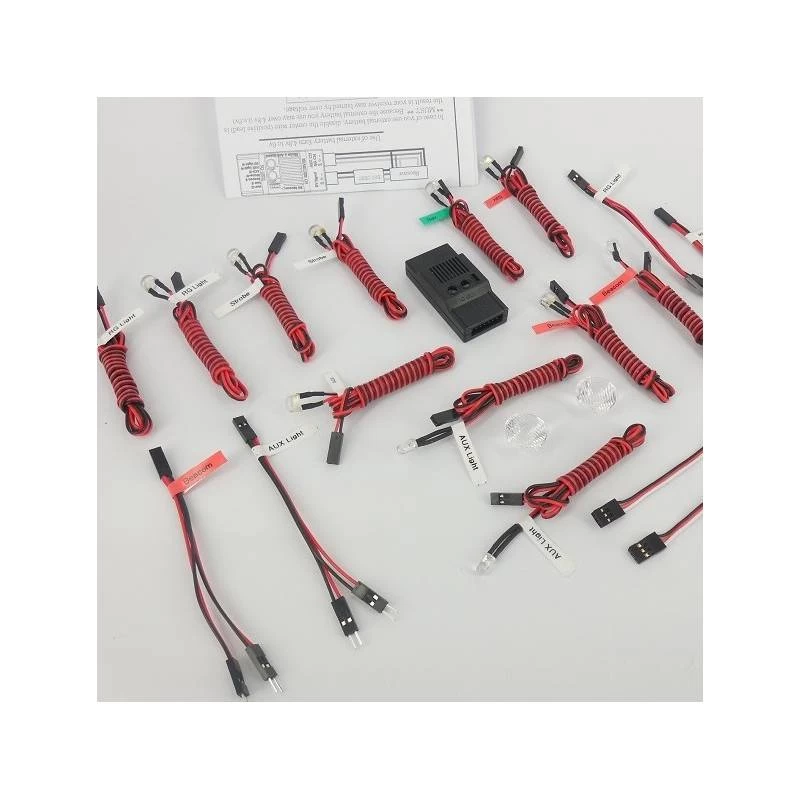

• 5 x 8mm(0.5W) white LED 1M lead
• 3 x 8mm (0.5W) red LED 1M lead

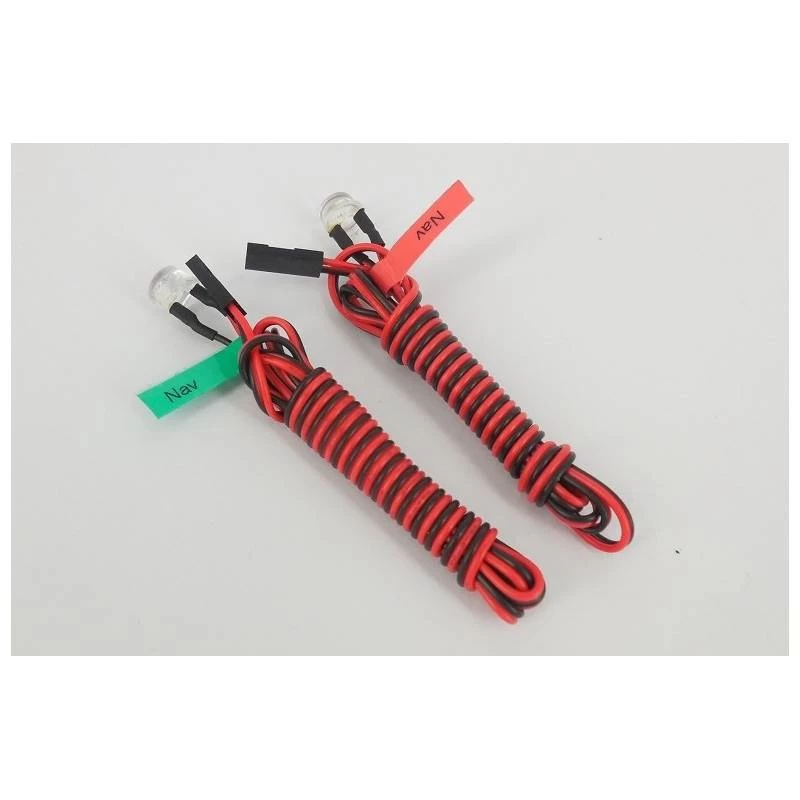

• 1 x 8mm (0.5W) green LED 1M lead
• 2 x 5mm (0.3W) white LED 1M lead (Collecting)

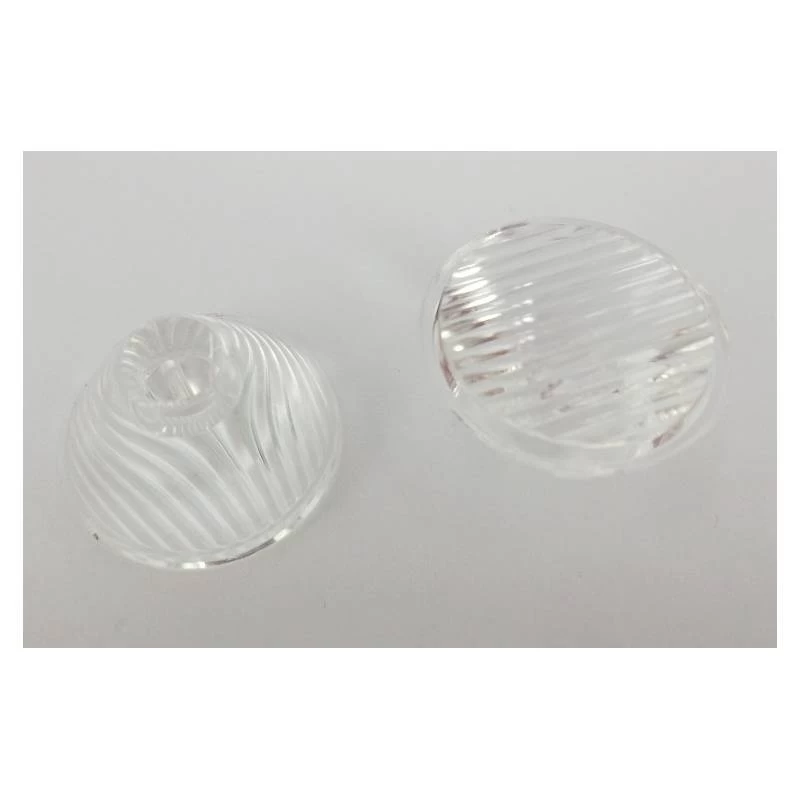

• 2 x 20mm Collecting mirror
