Krill Aircraft Sukhoy T-50 1.4m Jet ARF (+ Landing Gear)
Pre-order: Pay 15% now to reserve the product (this amount will be deducted from your final payment at the time of shipment). The date of availability of pre-order products may change depending on production and transport events from the factories.
Important: Due to high demand for its models and considering its production capacity, the release date of the T-50 has been pushed back to the fall of 2023. The quantities available at release will be limited and pre-order is recommended .
Designed for EDF or Turbine motorization!
Description

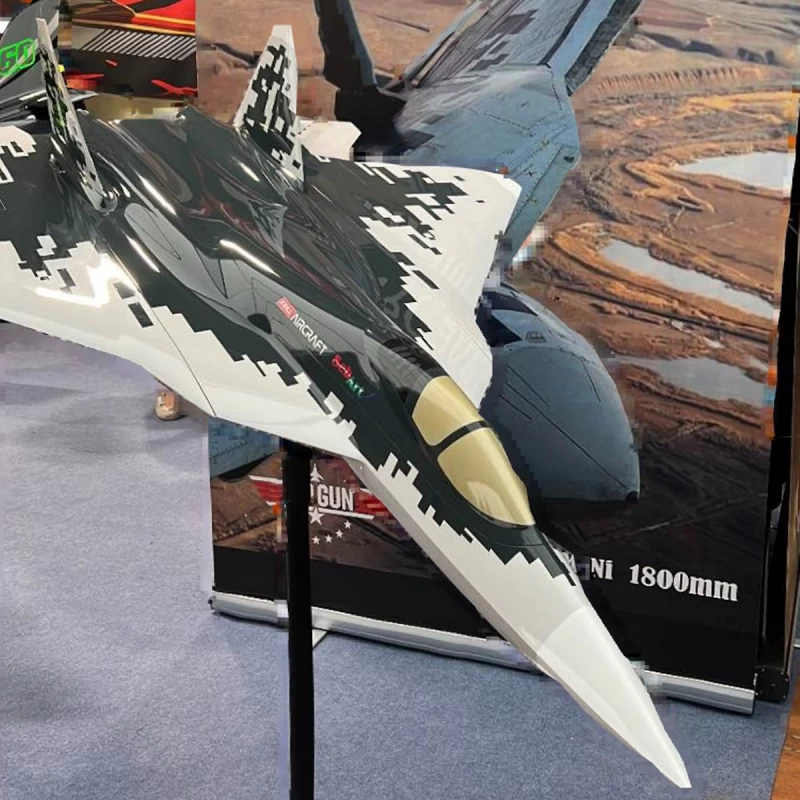

Krill Aircraft presents the Sukhoy T-50 for kero turbine (K70 or X45) or electric turbine. The model offers different configurations with a single central ejection zone or 2 side zones. It is possible to use a Y nozzle to distribute the thrust of a turbine or a single EDF, or to use 2 smaller EDF.
Features
- Glass composite fuselage frame with PLY type rudder structure, strong and light
- Flexible hinges of Kevlar on all control surfaces
- Composite PLY layers of wings and elevators
- JP Hobby electric retract gears with EM brakes included
- JR servo compatible
- 3D printed parts
- No screws, just click on and wings and elevators are connected with fuselage!
- Large canopy opens enough space for equipment installation, and again, no screws, only bayonet connection secured by strong magnets.
- Exclusive and original painting
- Set of stickers to underline the already stunning design
- Great protection for kit packaging
Technical Specifications
- Lenght: 1800 mm
- Wingspan: 1400 mm
- Weight: 5-7 kg
Content of the kit
- Krill Aircraft Sukhoy Jet ARF
- Complete electric landing gear with brakes JP Hobby
- Universal jet engine /EDF/jet pipe holder
- Control horns
- Servo holders/covers
- Carbon fibre joining tube and rod
- Set of stickers
- Detailed illustrated instructions (downloadable on this page)
Not included
- One or two EDF units (both setups are possible) or one Turbine
- ECS brushless (EDF version) (check accessories section on this page)
- Battery: 2x LiPo 6S 5000mAh (EDF version)
- Radio 9 ch. minimum
- Mini Servos
- Conversion kit (Turbine version)
Recommended turbine power set up
- Xicov X45
- KingTech K-45G4+
- P50-60
Recommended EDF power set up
- JP Hobby 105mm 12s (check accessories section on this page)
- JP Hobby mantis ESC (check accessories section on this page)
Data sheet
| Wingspan (mm): | 1400 mm |
| Length (mm): | 1800 mm |
| Weight (gr): | 5 – 7 kg |
| EDF Diameter Class (mm): | 105 |
| Battery Capacity (mAh) | 5.000 mAh |
| Landing Gear | Full metal retractable main and steerable nose gear with shock absorbing struts |
| Material | Fiberglass, Carbon reinforcements |
| Build time | 2 heures |
| Required Radio | Minimum 9 channels |
| Recommended pilot skill level | Intermediate, Advanced |
