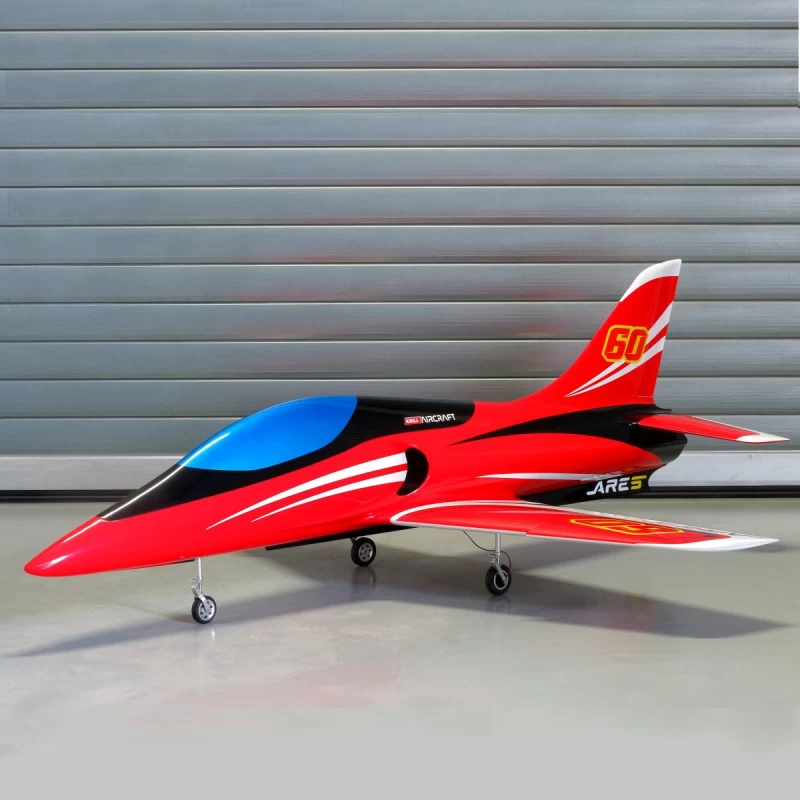

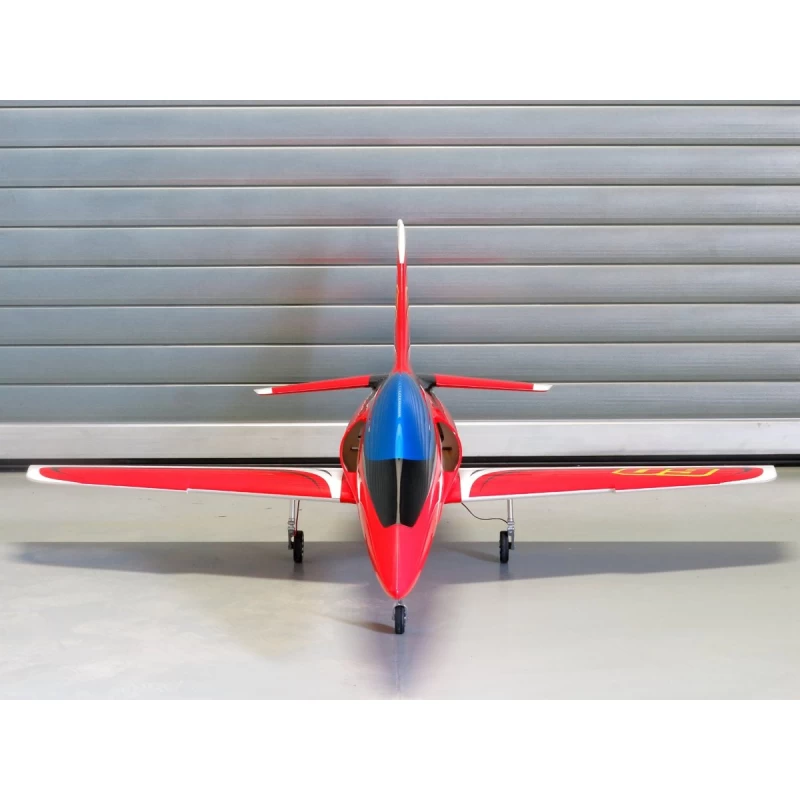

Krill Aircraft Mini AreS 1.5m Jet ARF (FF Red)(+ Landing Gear)
Pre-order: Pay 15% now to reserve the product (this amount will be deducted from your final payment at the time of shipment). The date of availability of pre-order products may change depending on production and transport events from the factories.
Important: To meet the high demand for its models and considering its production capacity, the Krill factory has decided to significantly extend its manufacturing times. The wait is now several months to receive pre-ordered models that are not available in our stock. This delay concerns all aircraft of the brand. Please contact us for more information.
Designed for EDF or Turbine motorization!
Description

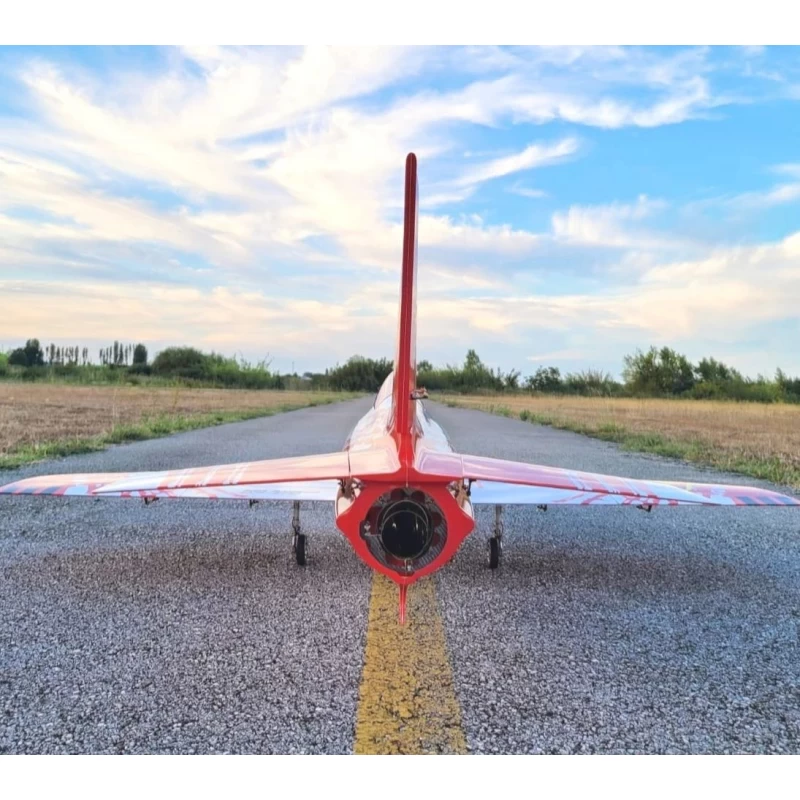

Krill Aircraft presents the Mini AreS, the smallest 3D stunt plane designed by Sebastiano Silvestri from Sebart. A kit without compromise to the fuselage and full composite wings designed for EDF or turbine! Already super powerfull with an EDF equipment, If you choose to install a turbine with vector thrust nozzle, the model becomes an ultimate 3D flying machine in your hands!

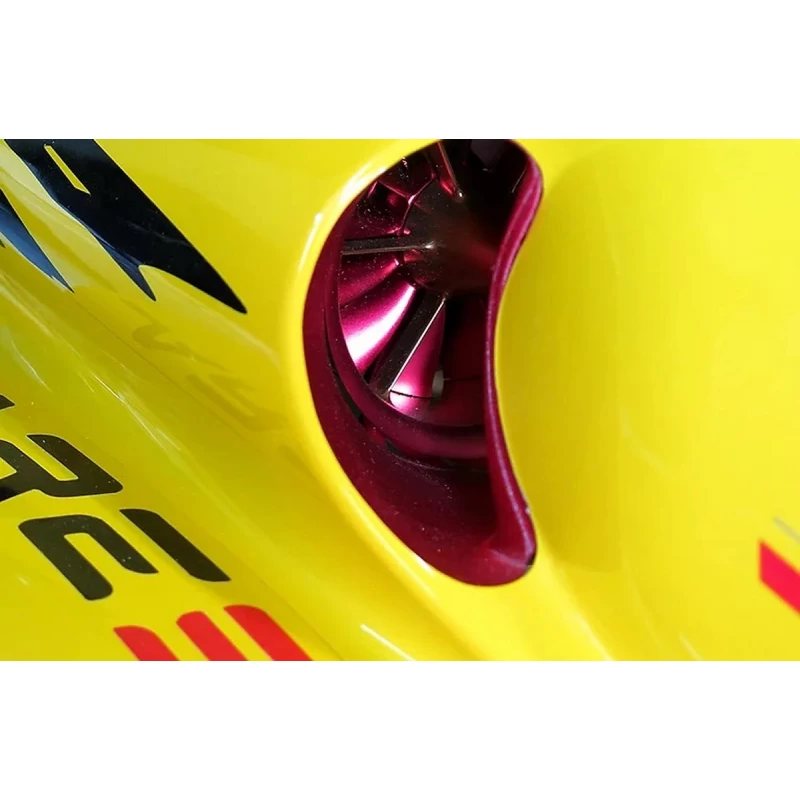

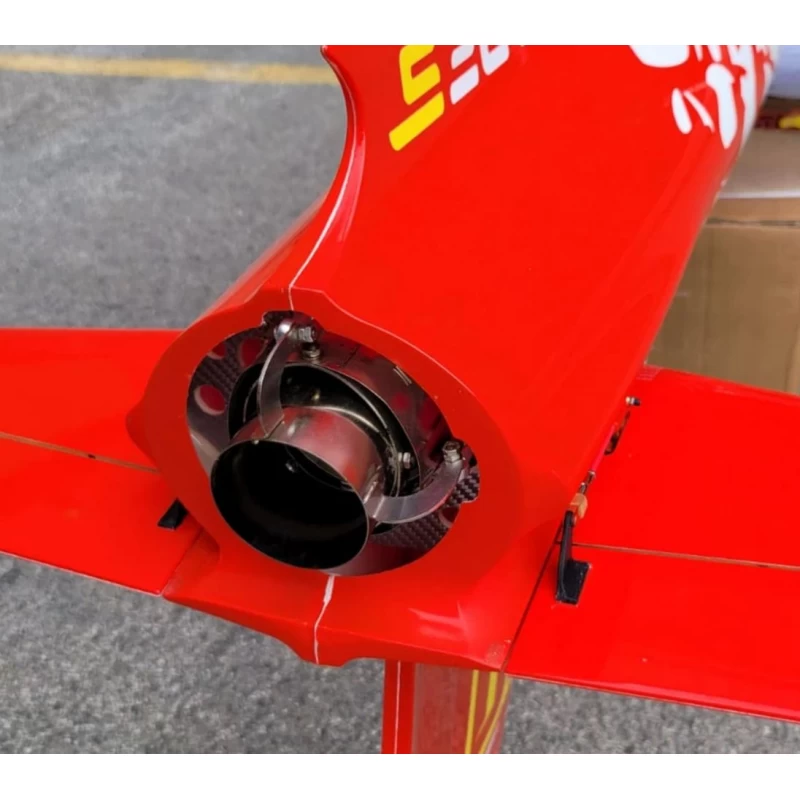

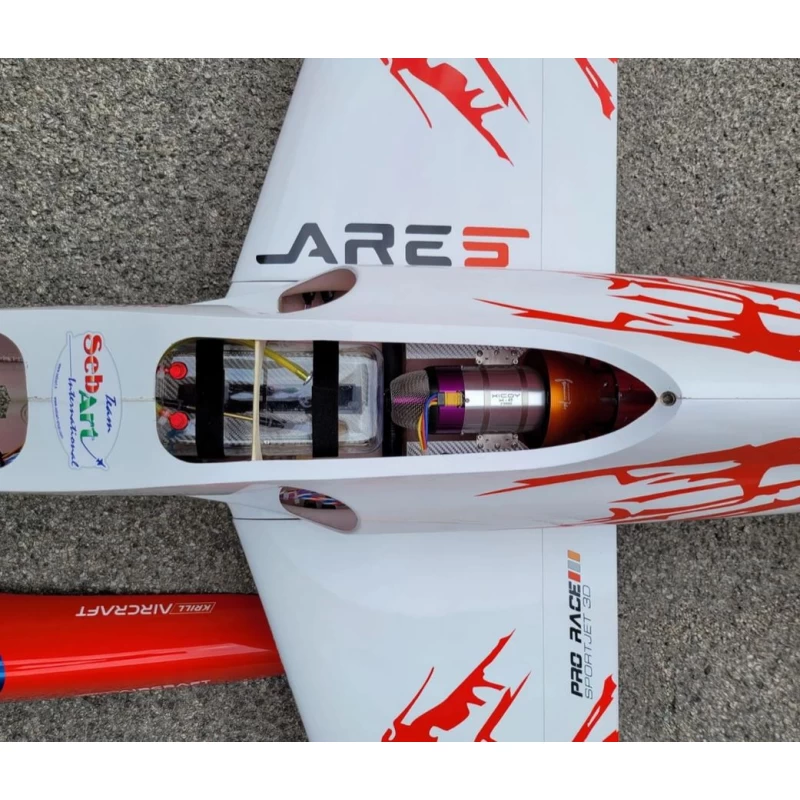

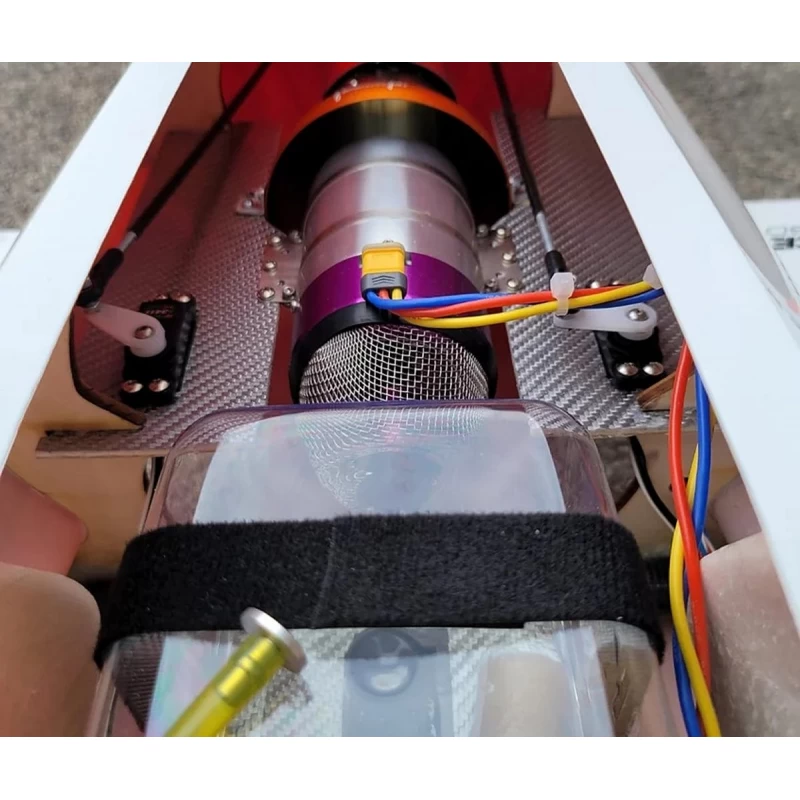

Its large housing provides access to the turbine or the EDF. Fairly large space and various possibilities for equipment locations. Motor mount prepared for vector servos and various types of jet engines and exhaust pipes or EDFs.
The model is very well adapted and pleasant for classic flights, but if you install a turbine with more power or vector thrust, you can evolve into acrobatic flight, the only limits of which are your skills.
Features
- Glass composite fuselage frame with PLY type rudder structure, strong and light
- Flexible hinges of Kevlar on all control surfaces
- Composite PLY layers of wings and elevators

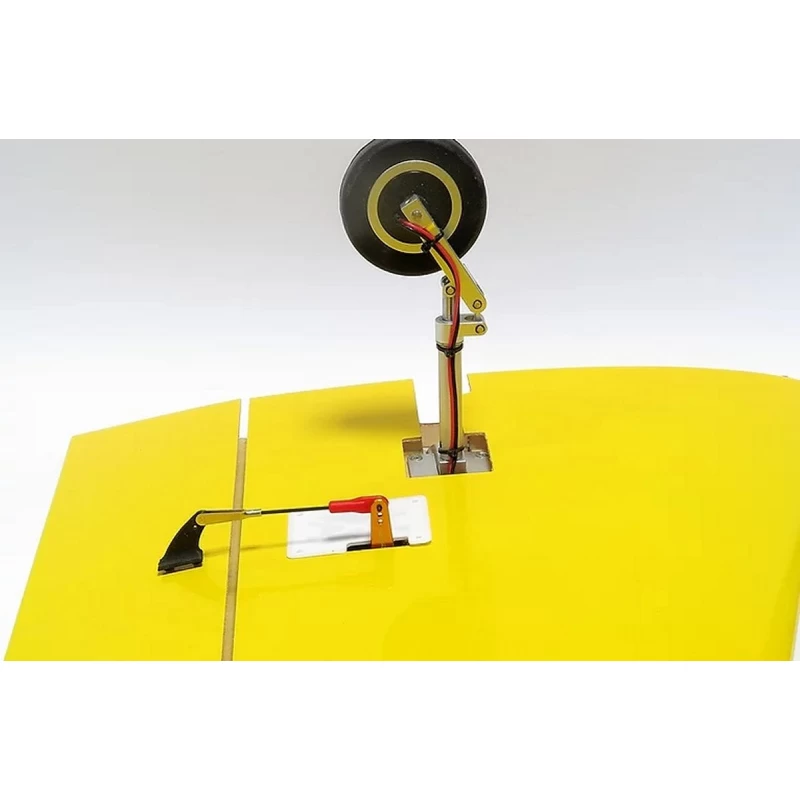

- JP Hobby electric retract gears with EM brakes included
- JR servo compatible

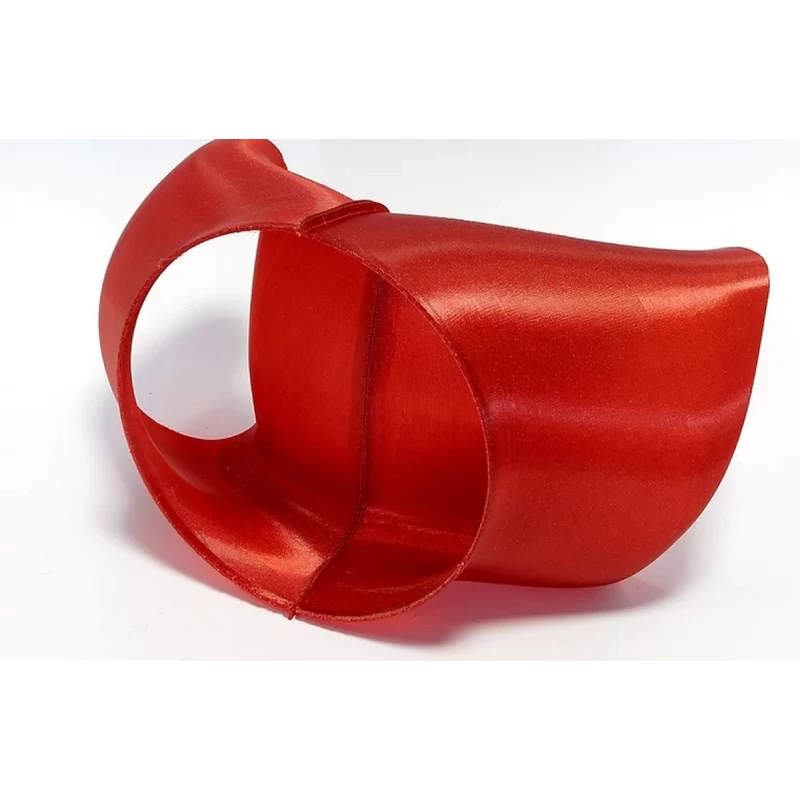

- 3D printed parts
- No screws, just click on and wings and elevators are connected with fuselage!
- Large canopy opens enough space for equipment installation, and again, no screws, only bayonet connection secured by strong magnets.
- Exclusive and original painting (several liveries are available)
- Set of stickers to underline the already stunning design
- Great protection for kit packaging
Technical Specifications
- Wingspan: 1500mm / 59in
- Lenght: 1700mm / 67in
- Dry Weight (w/P60 turbine): 5kg
- Flying Weight (w/EDF 12S): 6.5kg
- Ailerons: Yes
- Elevator: Yes
- Rudder: Yes
- Flaps: Yes
- Radio: 9 channels
Content of the kit
- Krill Aircraft Mini AreS 1.5m Jet ARF
- Complete electric landing gear with brakes JP Hobby
- Universal jet engine /EDF/jet pipe holder
- Control horns

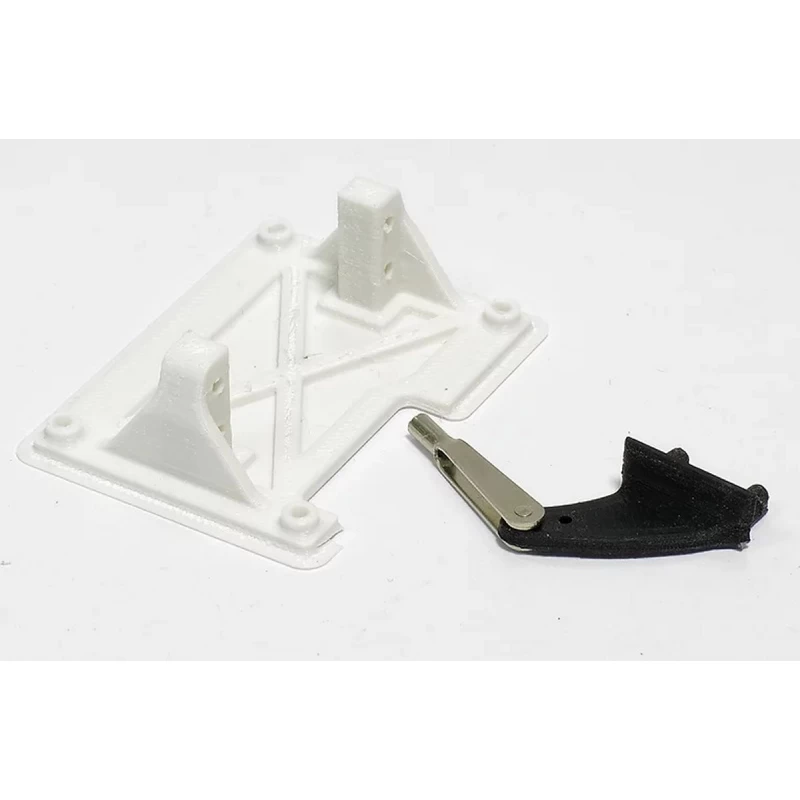

- Servo holders/covers
- Carbon fibre joining tube and rod
- Set of stickers
- Detailed illustrated instructions (downloadable on this page)
Not included
- Turbine or EDF
- ECS brushless (EDF version) (check accessories section on this page)
- Battery: 2x LiPo 6S 5000mAh (EDF version)
- Radio 9 ch. minimum
- 8x mini Servos
- Conversion kit (Turbine version)
Recommended turbine power set up
- Xicov X45
- KingTech K-45G4+
- P50-60
Recommended EDF power set up

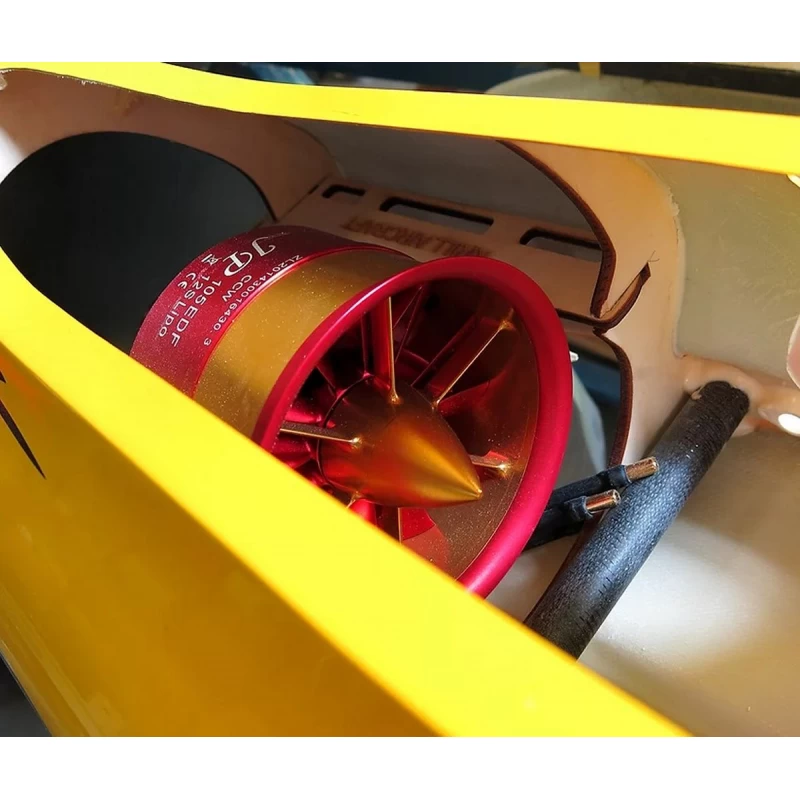

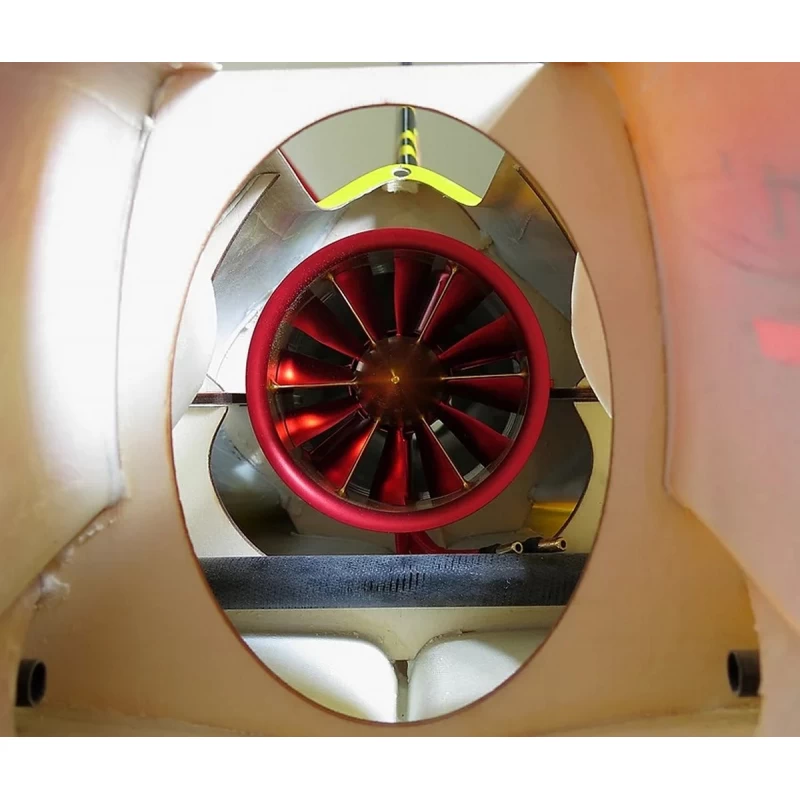

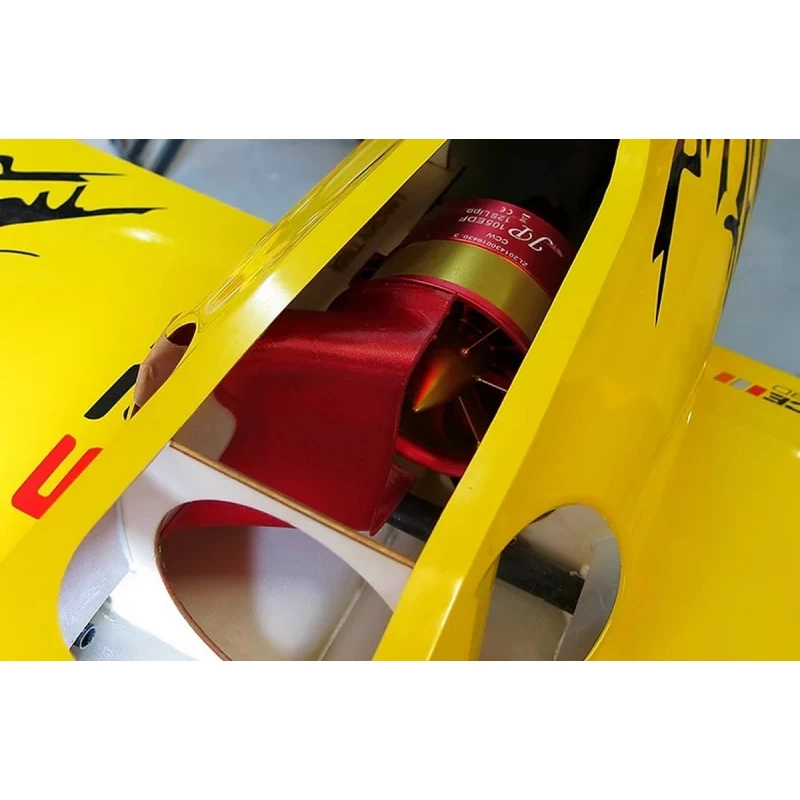

- JP Hobby 105mm 12s (check accessories section on this page)
- JP Hobby mantis ESC (check accessories section on this page)
Data sheet
| Wingspan (mm): | 1500mm / 59in |
| Length (mm): | 1700mm / 67in |
| Battery Capacity (mAh) | 5.000 mAh |
| Landing Gear | Full metal retractable main and steerable nose gear with shock absorbing struts |
| Material | Fiberglass, Carbon reinforcements |
| Build time | 2 heures |
| Required Radio | Minimum 9 channels |
| Recommended pilot skill level | Intermediate, Advanced |
