JP Hobby Navigation Light And Smoke Pump Controller System

JP Hobby Navigation Light and smoke pump Controller system

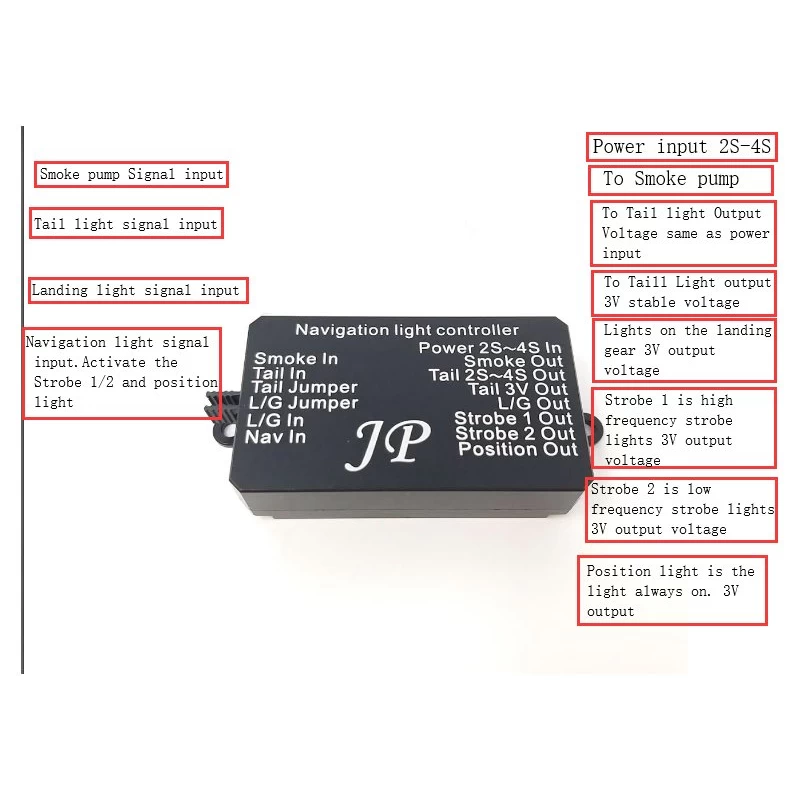

Navigation light controller functions:

• an afterburner on the throttle,
• landing lights on the landing gear
• a smoke pump for kero turbine and low/fast strobe / navigation lights on 2 auxilliary channels ON/OFF

Specifications

•  Input：7.4v~14.8v (2~4S lipo)
•  Output Voltage: 3V or 7.4v~14.8v (2~4S lipo) same power input
•  Size: 56 x 33 x 14mm
•  Weight: 37.5g

Note : please do not plug more than 2 lights 3v Led per channel
