Hacker E40-S 2,5D Motor 27.8mm 2730Kv

Oorspronkelijke prijs was: 95,83 €.Huidige prijs is: 67,08 €.

Artikelnummer: HAK-62100521 Categorieën: 28mm Brushless Motors, Brushless Motors

100% kwaliteitsbelofte
Veilige transacties, tevreden klanten
7 dagen gratis retourneren
Meerdere betaalmethoden, veilig en betrouwbaar

Beschrijving
Beoordelingen (0)

More info

Hacker E40-S 2,5D Motor 27.8mm 2730Kv

4-pole 4-6s ducted fan motor for 70mm fans.

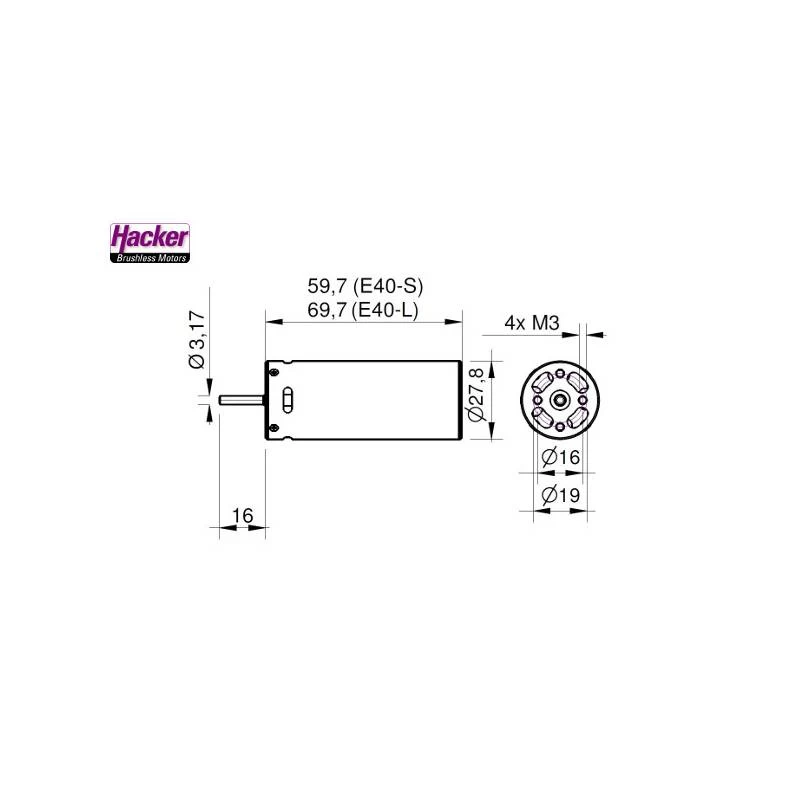

Specification:

Diameter: 27.8mm
Length: 59.7mm
Shaft Diameter: 3.17mm
Weight: 150 grams
R(I): 15mOhm
I(0)8,4V: 1,4A
KV: 2730
Poles: 4
Recommended advance timing: 10-15°
Recommended frequency: nc
Motor Type: Inrunner
4x M4 screws (not provided)

Measurements with e-jets JETFAN 70 :

Voltage under load: 14.8V
ECS: 34A
Thrust: 1200g

Voltage under load: 18.5 V
ECS: 50A
Thrust: 1800g

Voltage under load: 22.2V
ECS: 68A
Thrust: 2400g

WARNING: Operating the motor outside of the specifications listed above can either damage the motor, battery or esc. It is important that these components are set up properly. Failure to do so can void the warranty. It is strongly encouraged to use a Watt Meter to test the watt and amp performance when setting up a new system. If the output is above the factory recommended specs, then it needs to be adjusted by the esc. The timing and throttle settings on the esc can help to set the appropriate levels.

Warning: Screws that are too long can short out the windings resulting in a cooked motor, this is not covered by warranty

Data sheet

Length (mm):	59,7 mm
Weight (gr):	150 gr
No. of Magnet Poles:	4 poles
Turns/min/Volt (Kv):	2730 Kv
Motor Type:	In-Runner
Motor Diameter (mm):	27.8 mm
Shaft diameter (mm):	3.17
Connection:	Delivered without plug
