Fusion Kolibri T25 Autostart Kerosine Turbine Jet Composite PNP (Choice Of Colors)

Fusion Kolibri T25 autostart Kerosine Turbine Jet Composite PNP (Choice of colors)

MADE-TO-ORDER: This product is manufactured on demand when the buy button shows ON DEMAND and not AVAILABLE. Made-to-order products are not subject to right of withdrawal and can't be refunded.

Description

Move to the next Level!

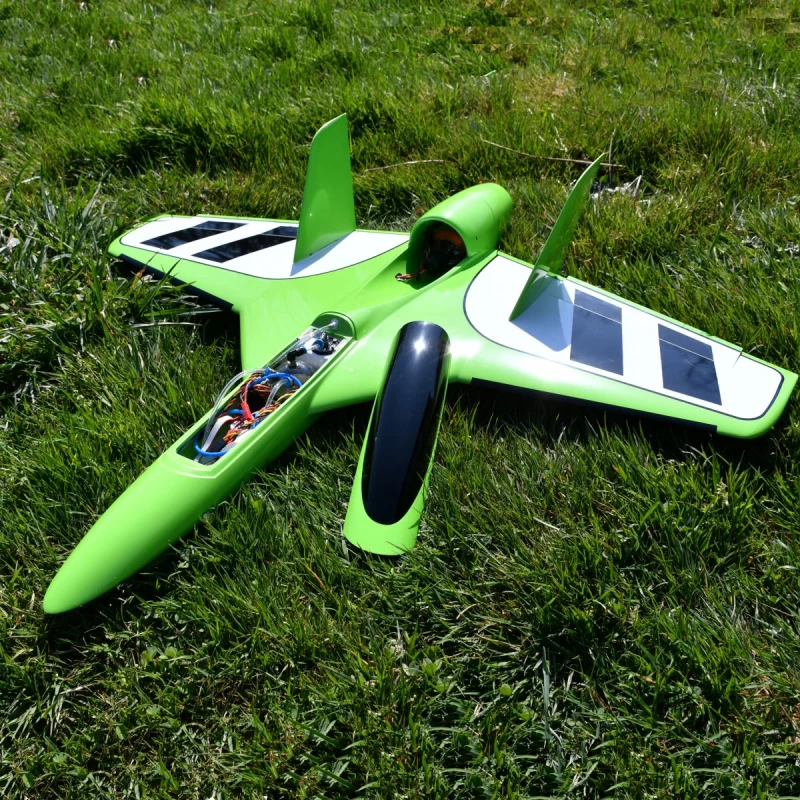

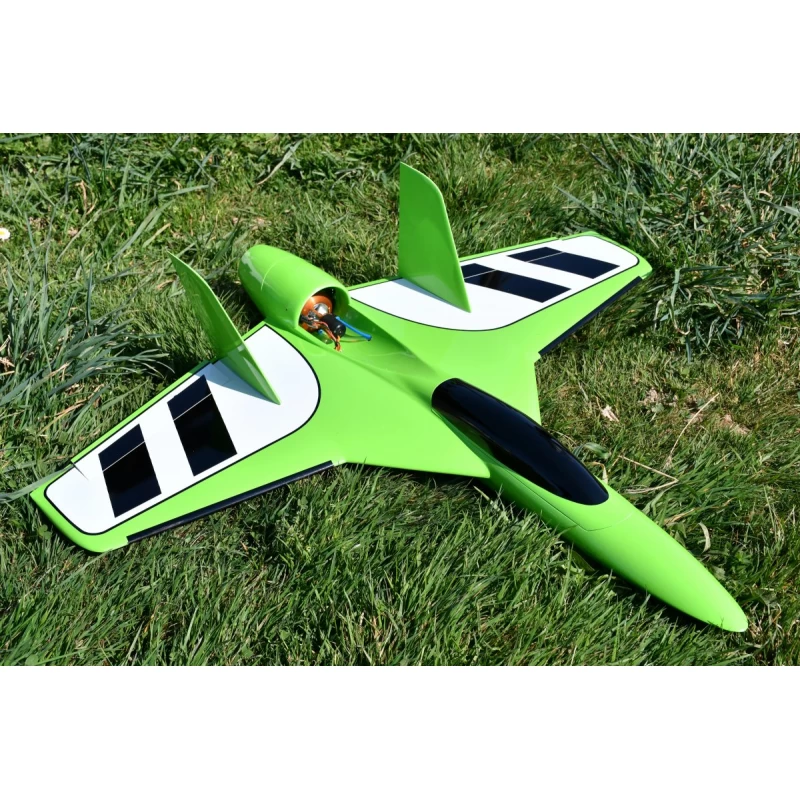

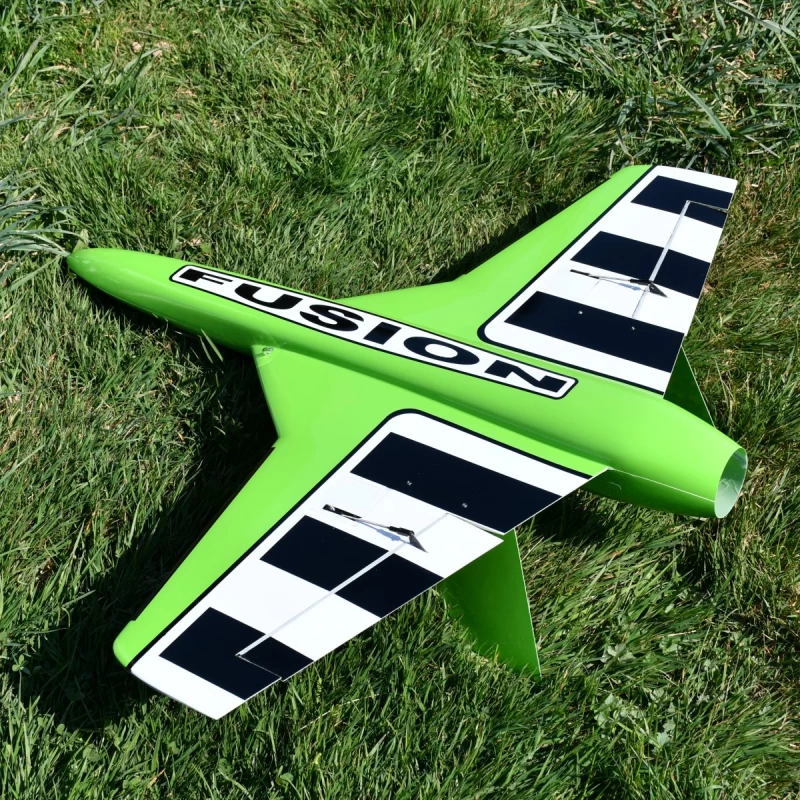

100% molded composite Super “Funjet” equiped with a Kolibri T25 auto-start turbine and servos.

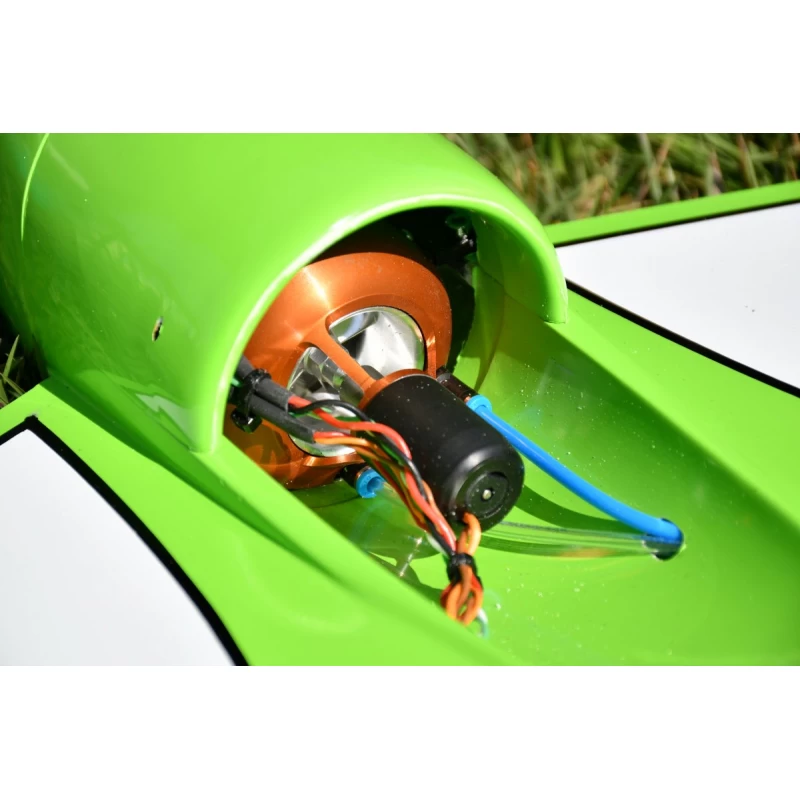

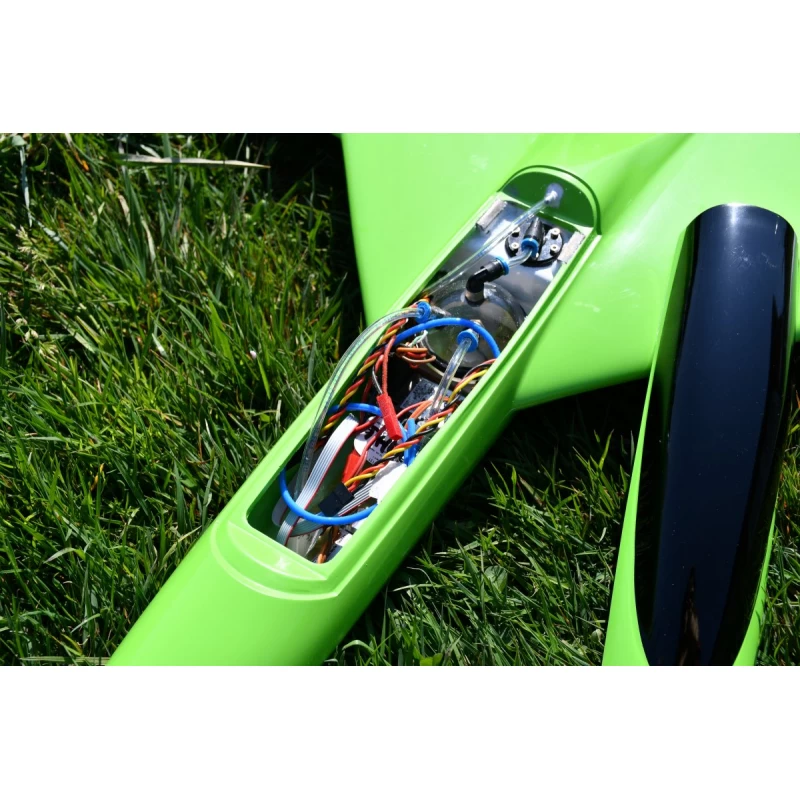

Home-made, high quality small scale production. The Fusion Jet PNP will be delivered almost ready to be hand launched. The Kérozine Kolibri T25 turbine unit, designed for extremely high performances, has been mounted inside the model such as the 2 wings metal high speed digital servos. Then you will also have to screw the 2 vertical fin and install you own receiver.

CAUTION: The Fusion jet is an extremely fast RC model. It can only be used by very experienced RC pilots in the context of a RC model club. Please do not attempt to fly this model if you don't have a large experience of flying very fast models. Additionnaly, the Kirozine version of the Fusion requires other security measures.

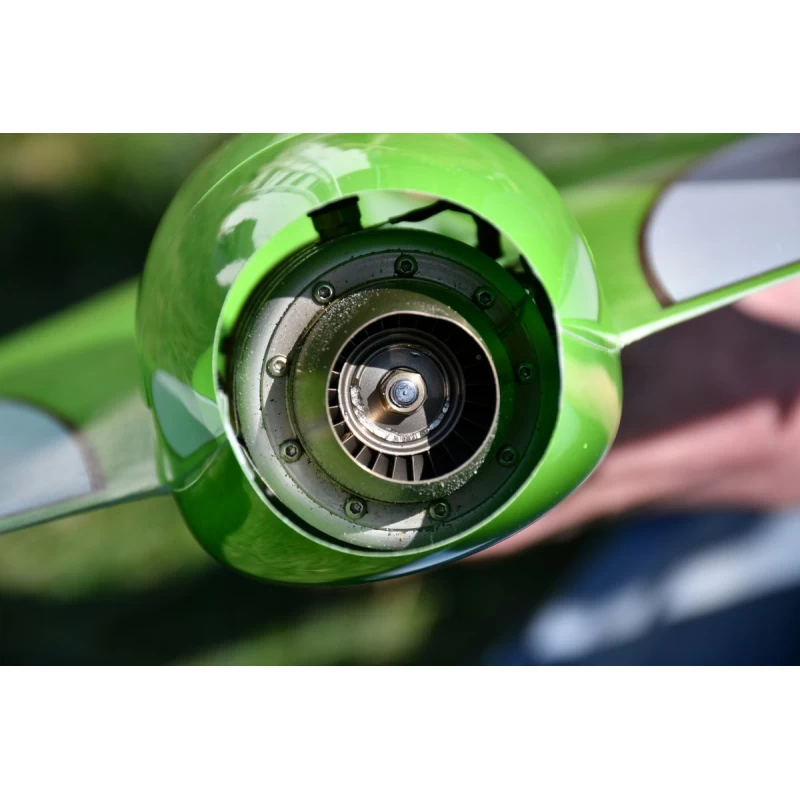

A Lambert Microturbine Kolibri is a true micro gas turbine engine designed for recreational use in model aircraft. Despite its small size, it is a high precision device that can be harmful if not operated properly. Inside this engine, rotational speeds in excess of 240,000 rpm are present. This equals circumferential velocities at the tips of the turbine and compressor blades of almost 1500km/h (930mph). Please therefore scrupulously respect all the necessary precautions and safety rules.

CO2 Fire Estinguisher - Do not start a model turbine engine without having one within arm's reach. If a fire occurs, aim the fire extinguisher nozzle at the inlet of the model (or engine if not ducted) and dispense until the flames are extinguished.

Features

• 100% durable composite fiber construction
• 100% carbon (shroud and rotor) 70mm 6 blade EDF with TP Power 2940 2940 inrunner motor (built and precisely balanced)(mounted inside the model)
• 2 Kingmax CLS0612W 24gr metal digital wing servos. 6.2kg torque and 0.12s speed (7.4v) (mounted inside the model)

Technical specifications

• Thrust: 2.7kg
• Wingspan: 800 mm
• Length: 780 mm
• Weight (empty): +/- tbc
• Flying weight: +/- tbc

Includes

• Fusion Kolibri T25 autostart Turbine Jet Composite PNP (Choice of colors)

Requires

• 4 Channel Radio Minimum
• 4 Channel Receiver Minimum
• Fuel for the turbine
• Propane gas bottle for turbine ignition

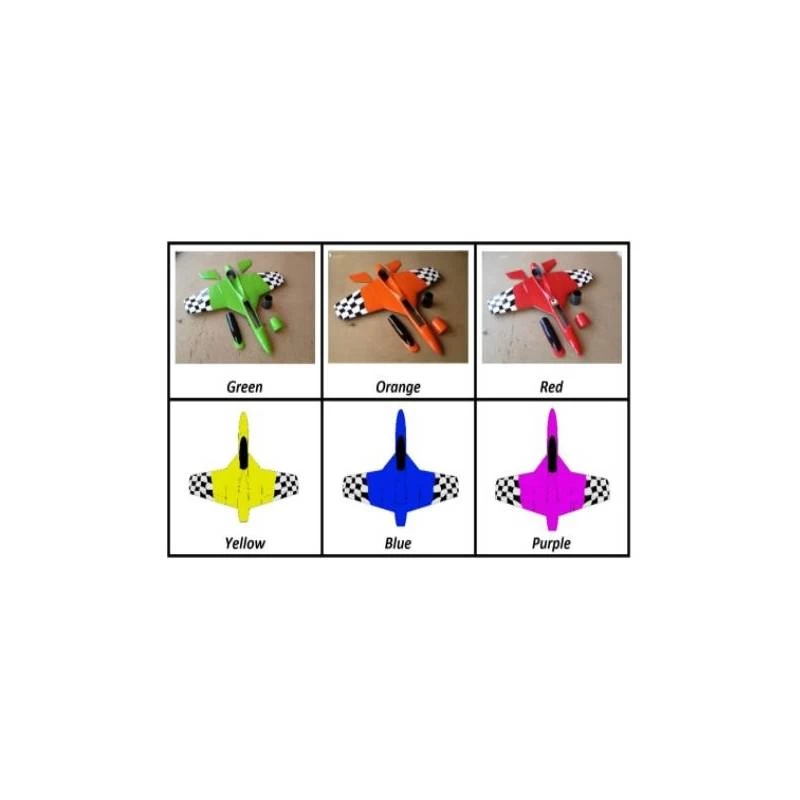

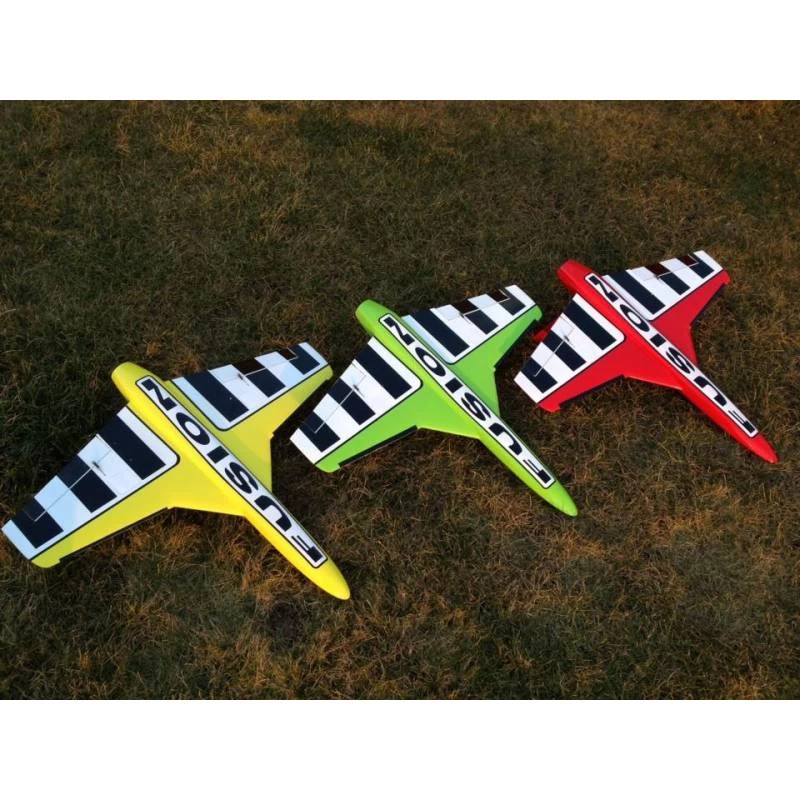

Color

You can select your color on this page before proceeding with the order.

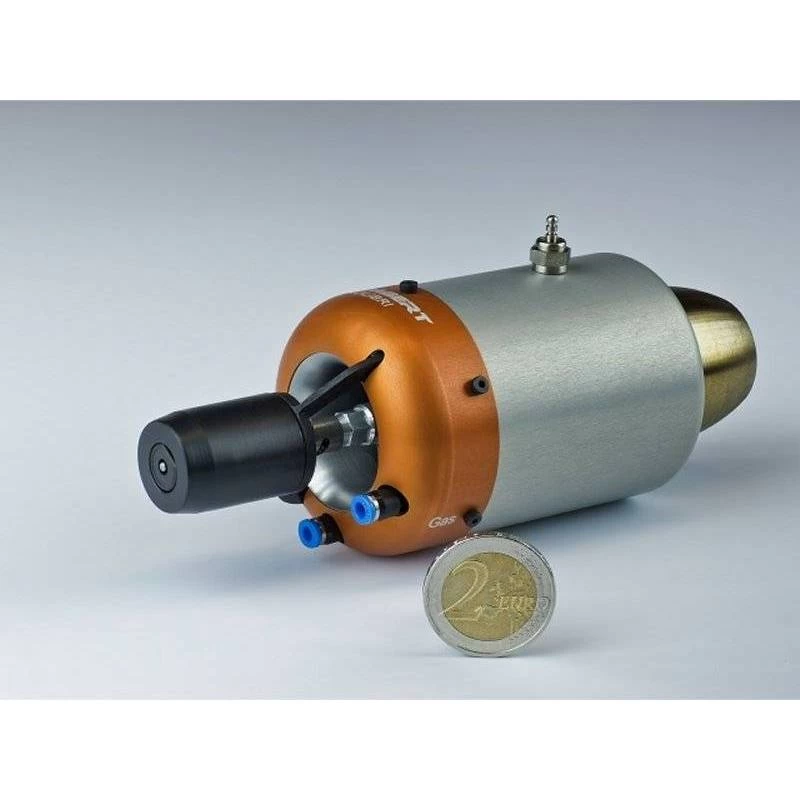

About the Kolibri T25 turbine

The Kolibri is a miniature Jet engine, functioning the same way as the big examples. The  Kolibri Jet engine is suitable for the prototypical drive of extremly small rc-airplanes an jets.

Features

• Thrust: 27N (2.7kp) at 245.000rpm
• Weight: (JetEngine): 255g
• System weight including all neccessary equipment and fuel for 8min of run time: appr. 750g
• Dimensions: 55mm in Diameter, 150mm in Length
• RPM´s: 95.000 to 245.000rpm
• Fuel: Kerosine, JetA1, Petroleum, each mixed with 5% Aeroshell 500
• Fuel consumption @ full thrust: appr. 96ml/min

Kit includes

• Turbine T25 Kolibri with Turbine bracket
• Fuel pump
• Magnetic valve
• LiPo battery with 2Cells and 800mAh capacity
• Tube Set and Connectors
• Fuelfilter
• Control Unit
• Display Unit
• Starting Motor mounted and adjusted

Information about the order button:
GREEN: The product is in stock and will be shipped without any delay.
ORANGE: The product will be shipped with a usual delay of 30 days.
Availability may vary pending color choice.
