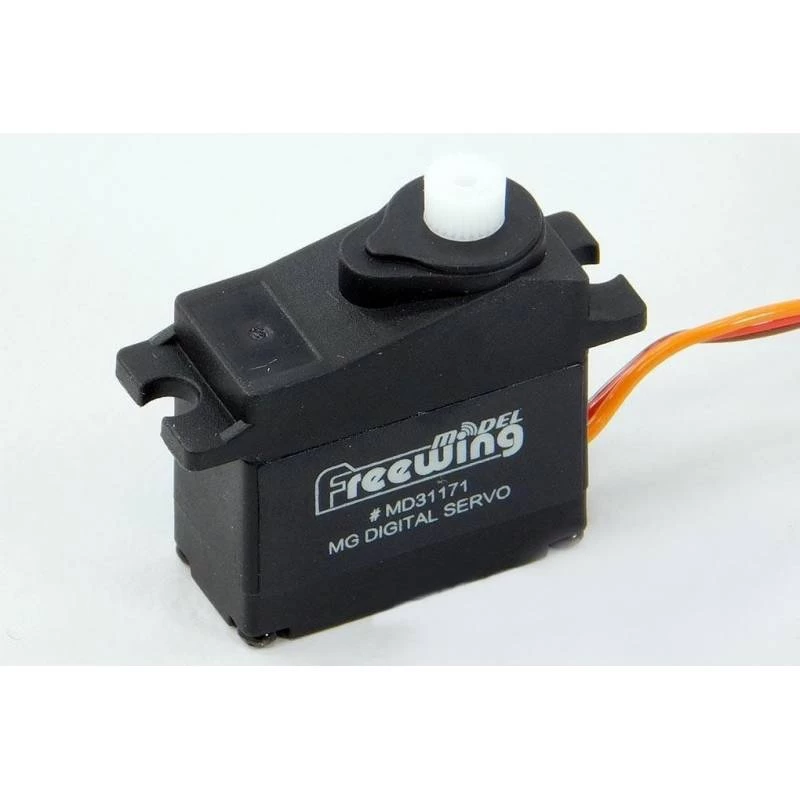

Freewing 17g MD31171R-300 Inversed Servo (300mm Lead)

Freewing 17g MD31171R-300 inversed Servo (300mm lead)

This servo is used on various Freewing jets.  It can be used with other aircraft with compatible specifications.

Description

Lightweight, efficient high torque nylon gear servo perfect for mid-sized to large planes and EDF jets

Specifications

• Weight: 17g
• Servo Type: Analogic
• Gear Material: Nylon
• Direction: Reverse
• Operating Voltage Range: 4.8V to 6V
• Speed (4.8V): 0.13 sec @ 60 deg
• Speed (6V): 0.12 sec @ 60 deg
• Torque (4.8V): 2.1 kg/cm (29.16 oz/in)
• Torque (6V): 2.5 kg/cm (34.71 oz/in)
• Current Draw at Idle: 20mA
• Current Draw Operating (No Load): 120mA
• Dimensions (L x W x H): 28.5 x 13.5 x 30mm
• Weight: 17g (.59oz)
• Lead Length: 300mm

Content

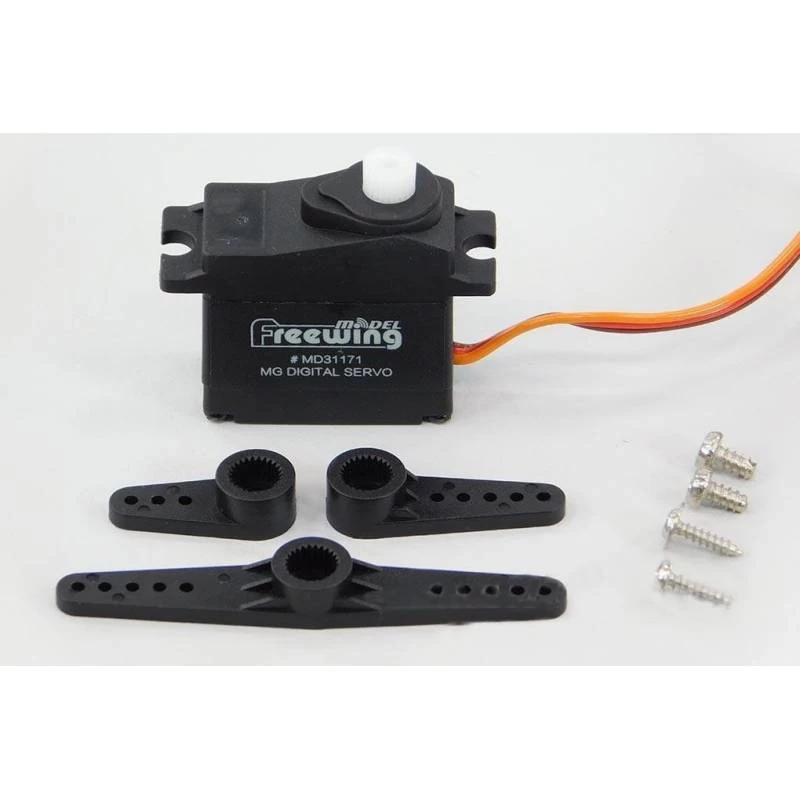

• The servo with servo horns and screws
