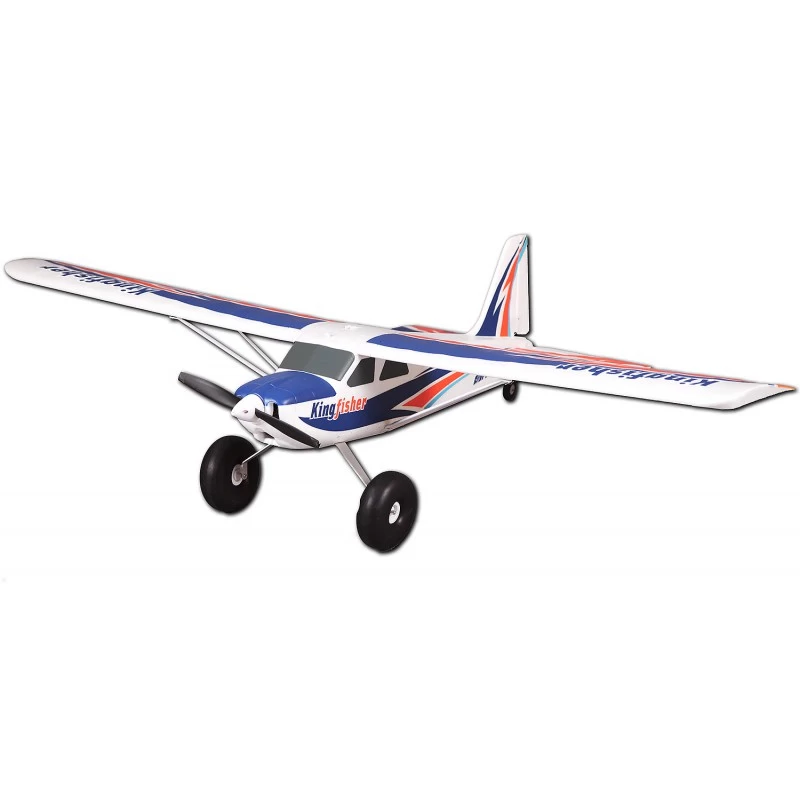

FMS Kingfisher 1400mm PNP with Floats and Skis + Free Reflex System

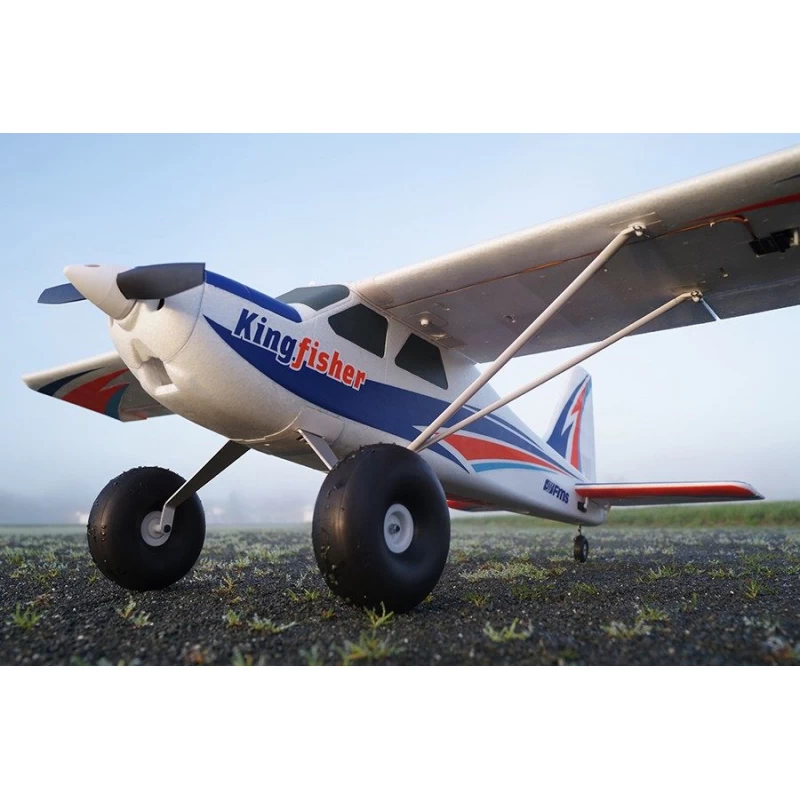

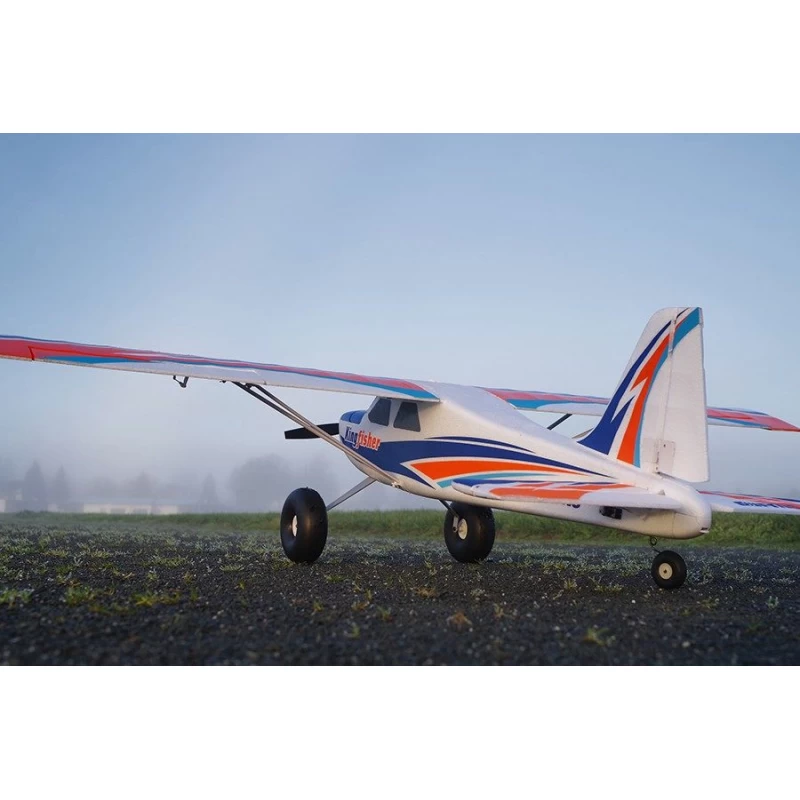

This the brand new FMS 1400mm Kingfisher multirole trainer airplane. Comes with big “tundra” wheels. Optionnal floats or skis can be fitted.
With simple assembly, easy of control and stability in performance, the Kingfisher is perfect for beginners. Assembly is easy with a super convenient bolt-type structure used on the wings, stabilizers, battery cover, and supporting struts. Minimal usage of screws ensure that the beginner pilot completes assembly quickly and safely. Less assembly time = more flying time!

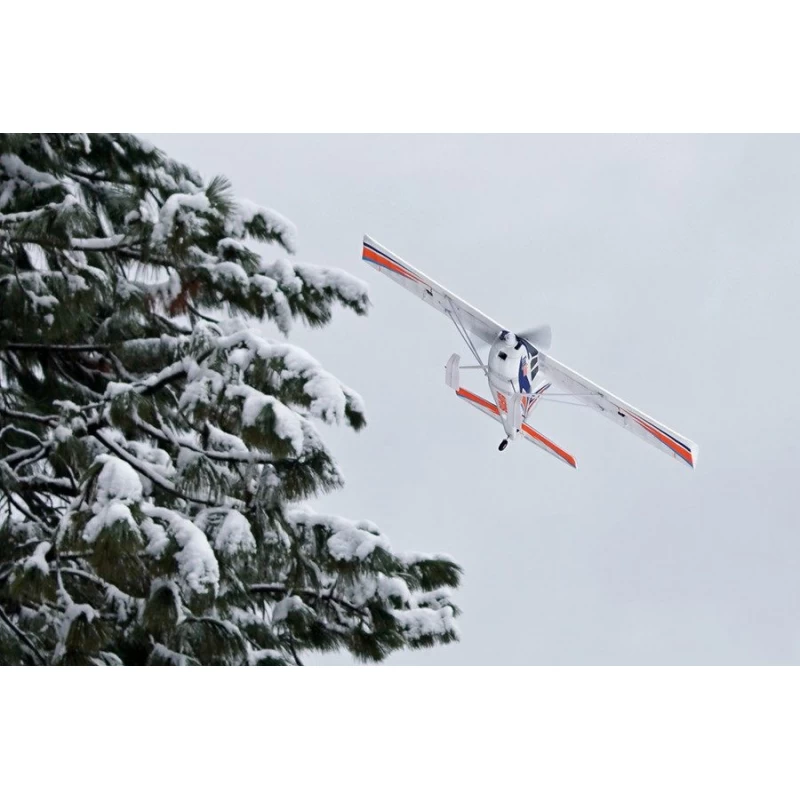

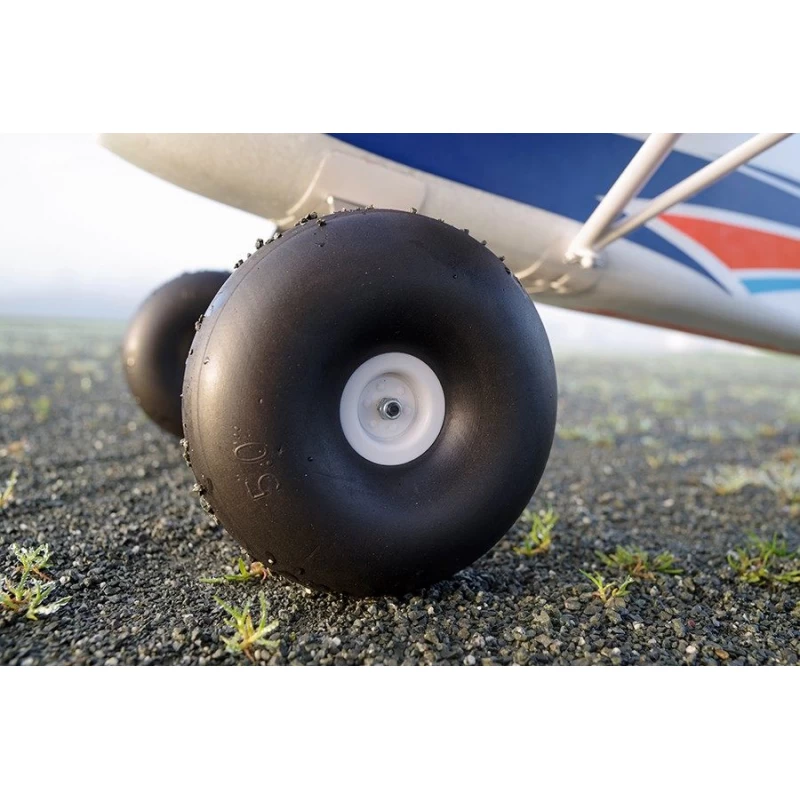

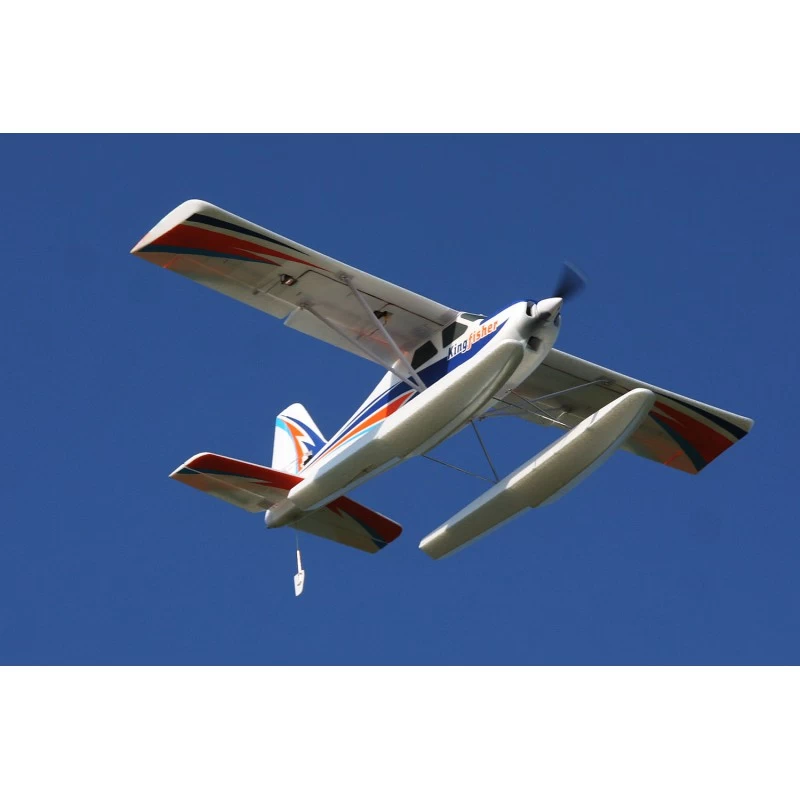

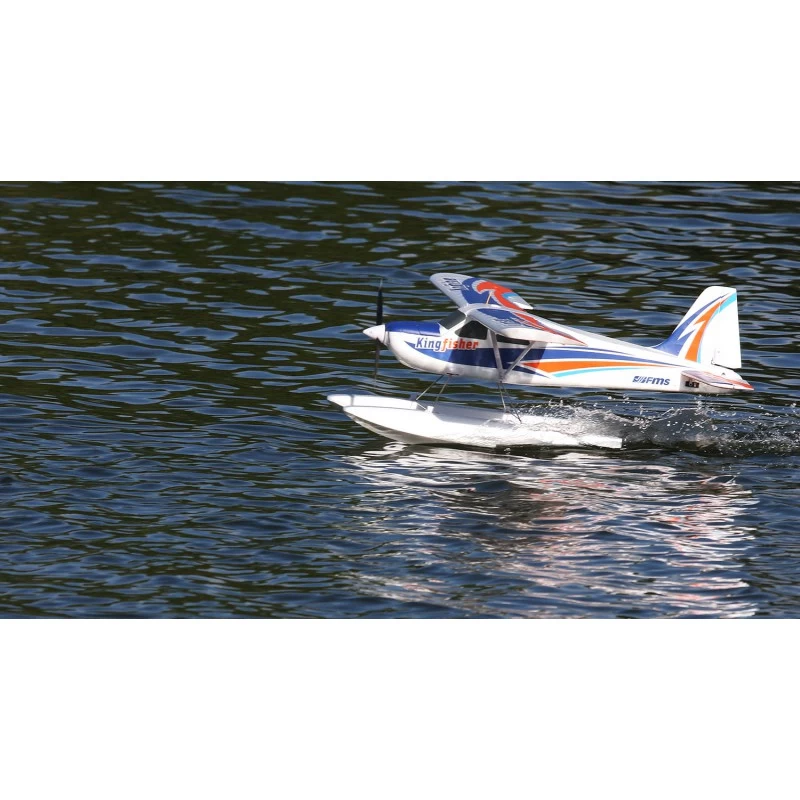

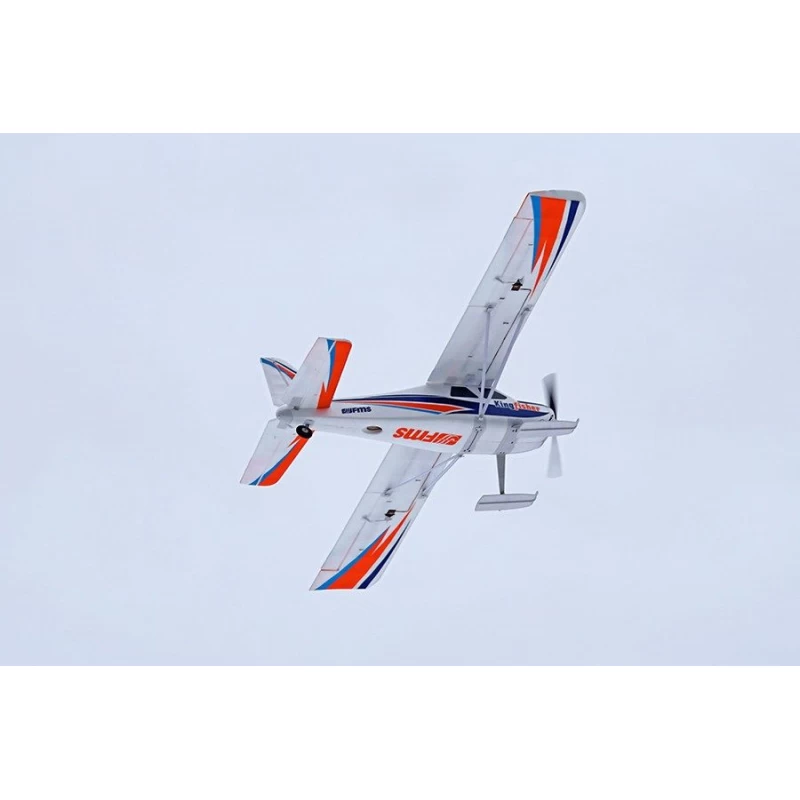

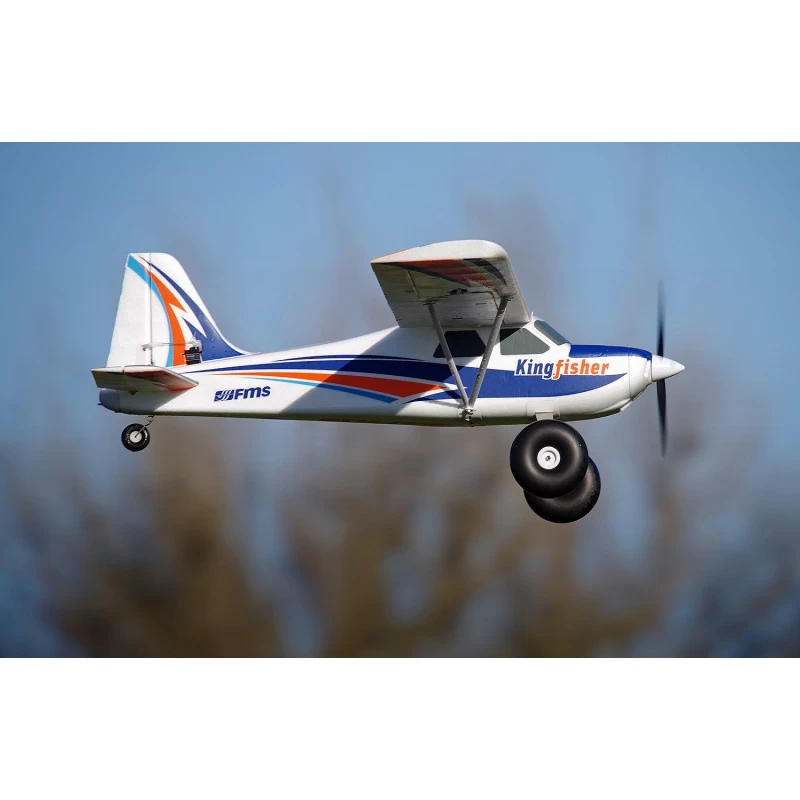

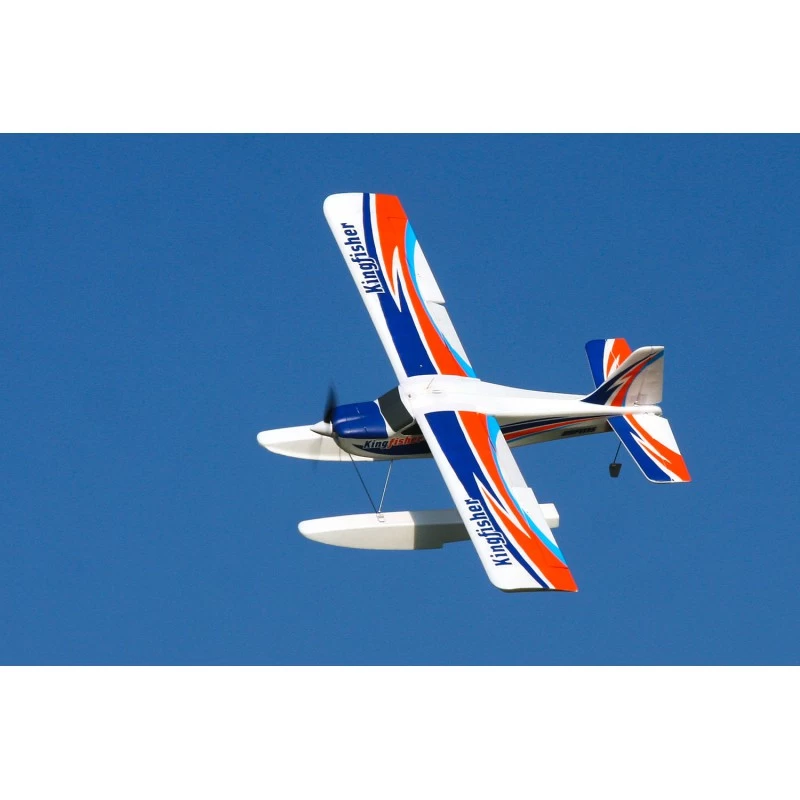

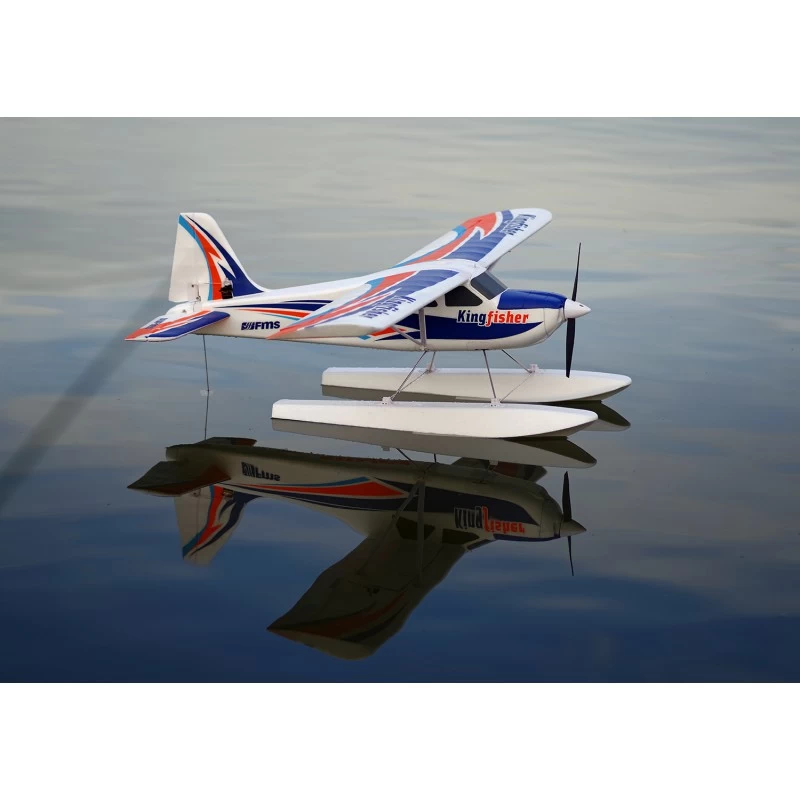

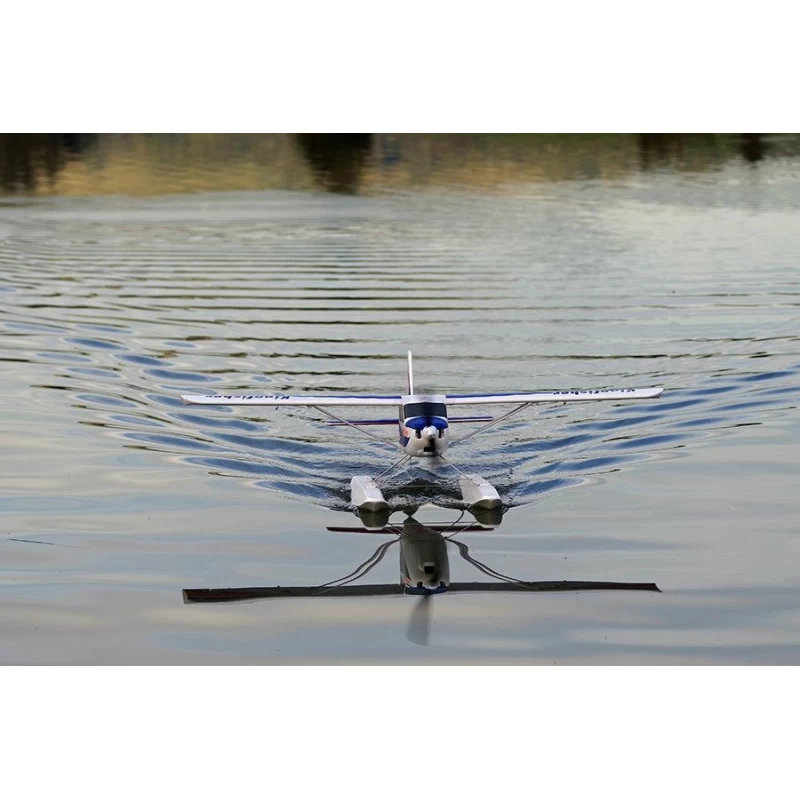

The oversized wheel set makes take-off and landing from grass fields and gravel roads very easy. Optionnal floats set and skis set (included) allows to fly from water or on the snow.
The Kingfisher is easily upgradable with optional electric towing hook for banners and gliders.
FPV equipment bay ready ! It comes equipped with large functionnal flaps for STOL operations and slow flight.Â
Do not miss this revolutionary multipurpose trainer. The Kingfisher is ONE plane with endless potential! Enjoy the flight!
Include a free Reflex flight stabilization system
The FMSÂ Kingfisher comes with the free Reflex flight stabilization system. 2 years in the making and after hundreds of test flights in all conditions, the Reflex system features Stabilized (accelerometer and gyro), Optimized (gyro-only) and Manual (off) flight modes- a trusty co-pilot, perfect for pilots of any skill level.
Features
- High quality Predator 40A ESC, 3536-KV850 motor
- Recommended 11.1V 2200mAh 35C battery
- FPV and Towing capable!
- Large flaps for STOL operations
- Bolt-together construction! Easy to build!
- 10-15 mins fly time (based on a fully-charged recommended battery)
- Strong Durable EPO material
- Skis and floats included
Technical specifications
- Wingspan: 1400mm / 55.12in
- Length: 915mm / 36.02in
- Flying weight: around 1400g
- Motor: Brushless outrunner 3536-KV850
- ESC: Predator 40A
- Servos: 6x9g
- Ailerons:Â Yes
- Elevator:Â Yes
- Rudder:Â Yes
- Flaps:Â Yes
- Fixed landing gear
- Propeller: 11*7Â 2-Blade
- Approx. Flying Time: 10-15 minutes
Includes
- FMSÂ Kingfisher 1400mm PNP
- Floats
- Skis
- Free Reflex System
- Illustrated Manual
Requires
- Minimum 6 channels radio
- 6 channels receiver
- 3S 11.1V 2200mAh LiPo battery 35c
- Lipo battery charger 3 cells
- Approx. Mounting Time: 15 minutes
Data sheet
| Type of kit: | PNP |
| Wingspan (mm): | 1400mm / 55.12in |
| Length (mm): | 915mm / 36.02in |
| Flying weight (gr) | 1400g |
| Wing Surface Area: | 29.1dm² |
| Wing Loading: | 48.1g/dm² |
| CG (Center of Gravity) | Check manual |
| Servos | 6x 9 gr standard gears |
| Propeller | 11*7 2-blades |
| Power System | Brushless 3536-KV850 |
| Turns/min/Volt (Kv): | 850 |
| Motor Type: | In-Runner |
| Electronic Speed Control | Predator 40A |
| Battery Cells: | 3s – 11.1v |
| Discharge Rate (C): | 35c |
| Battery Capacity (mAh) | 2.200 mAh |
| Surfaces | Ailerons, Elevator, Rudder, Flaps |
| Landing Gear | Fixed landing gear |
| Material | EPO Foam |
| Build time | 1/2 hour |
| Required Radio | 6 channels minimum, |
| Recommended pilot skill level | Beginner |
