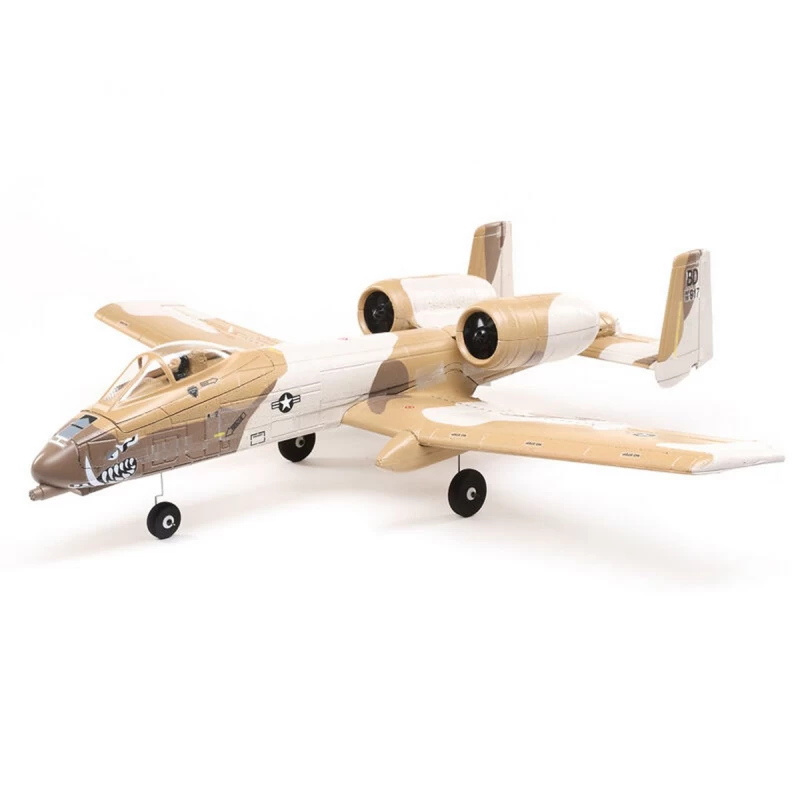

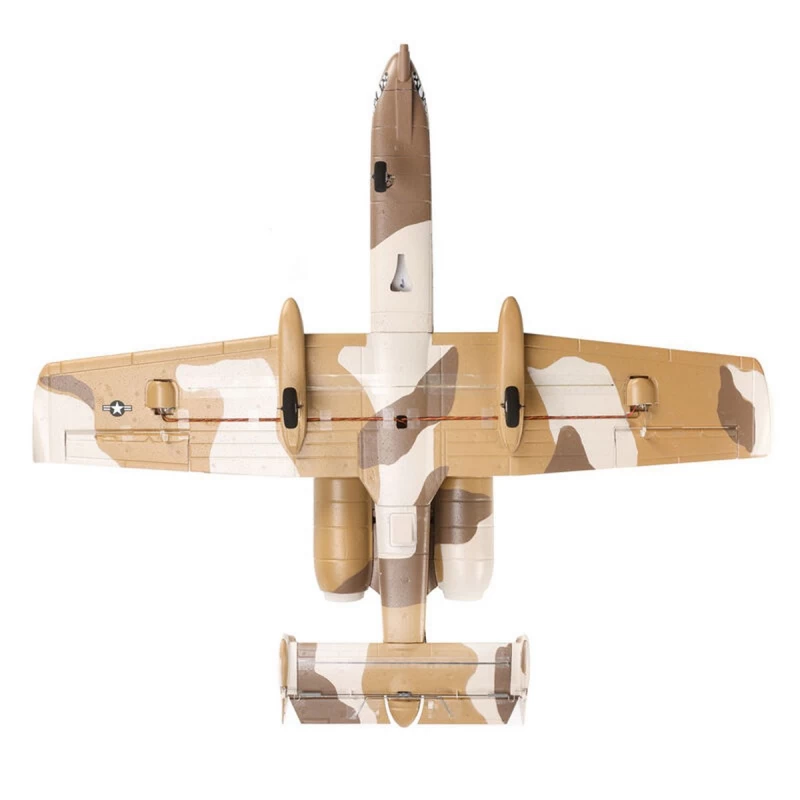

E-Flite Micro UMX A-10 Thunderbolt II 2x30mm EDF BNF + AS3X + SAFE Select
Description
The E-flite UMX™ A-10 Thunderbolt II Twin 30mm EDF ultra micro jet is updated for more durability and power — while AS3X® and optional-use SAFE® Select technology make it easier to fly for more pilots in more places!
The A-10 Thunderbolt II, affectionately called the “Warthog” due to its aggressive look and unique Close Air Support (CAS) capabilities, is one of the most iconic U.S. Air Force aircraft of all time — valued highly for its excellent maneuverability at low speeds and altitude, and for being an accurate and survivable weapons-delivery platform.
With its affordable and practical ultra micro size, the updated and upgraded E-flite UMXâ„¢ A-10 Twin 30mm EDF jet now enables more RC pilots to fly an exciting “Hog” replica in more places! It’s also more durable and more powerful, with a stronger, carbon-fiber reinforced nose and airframe and a 2S and 3S-compatible power system matched to 30mm fans.
This Bind-N-Fly® Basic aircraft comes equipped with exclusive Spektrum™ AS3X® and optional-use SAFE® Select technologies and provides real-time battery voltage telemetry to compatible transmitters, making it easier than ever for more pilots to fly and enjoy.
Specifications
- Scale “desert camo” scheme replica of the iconic aircraft flown by the U.S. Air Force for Close Air Support and other missions

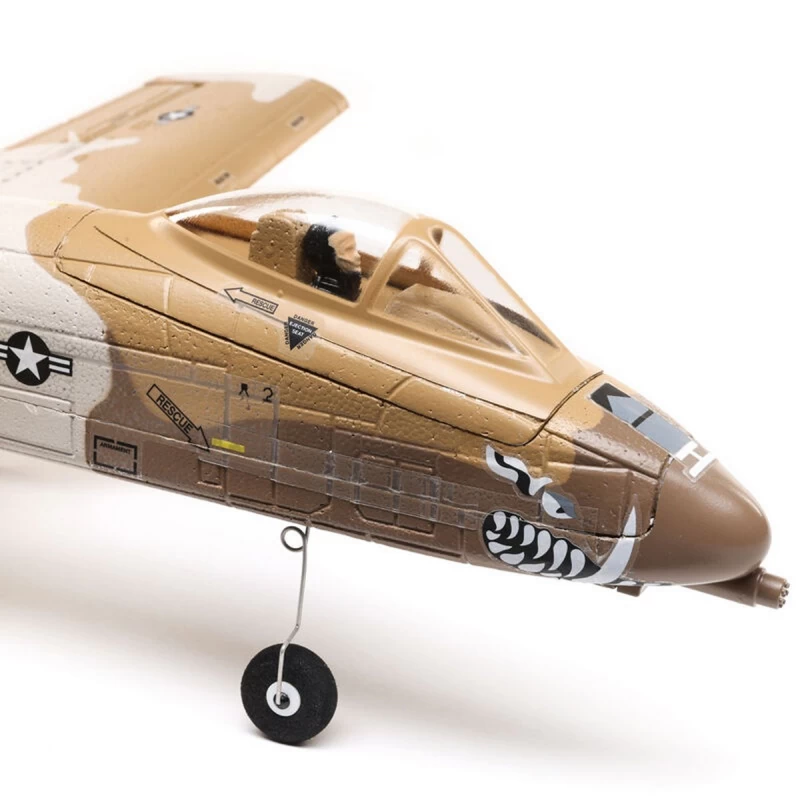

- Strengthened airframe including a carbon fiber reinforced fuselage and nose
- The easiest to fly and best handling ultra micro A-10 EDF (Electric Ducted Fan) jet model yet
- Improved vertical performance and speed compared to other ultra micro class EDF models
- Stronger removable landing gear with steerable nose wheel
- Full 4-channel control with functional dual rudders
- More powerful 2S and 3S-compatible outrunner motors with larger diameter 30mm EDF
- Spektrum receiver with industry-leading 2.4GHz DSMX® technology
- Real-time battery voltage telemetry via compatible Spektrumâ„¢ transmitters
- The unmatched stability and locked-in feel of exclusive AS3X® technology
- Easy to fly with optional-use SAFE® Select flight envelope protection
- Fits 450–850mAh LiPo batteries for a wide range of performance and flight times
- Completely factory-assembled and ready to fly right out of the box
Technical specifications
- Wingspan: 562mm / 22.12in
- Overall Length: 516mm /Â 20.31in
- Wingload:Â 83.7sq in / 5.40 sq dm
- Weight w/o battery: 120g /Â 4.2oz
- Flying Weight w/battery: 192g /Â 6.8oz
- EDF:Â 2x30mm
- Motors: Brushless Outrunner 8800Kv
- Servos: included
- Radio: 5 Channels (not included)
- Recommended Battery: 3S 850mAh 30CÂ (not included)
- Ailerons: Yes
- Elevator: Yes
- Rudder:Â Yes
- Flaps:Â No
- fixed landing gear
- Steerable front wheel
- Approx. Assembly Time:Â 15 minutes
- Approx. Flying Time:Â nc
Includes
- E-Flite UMX A-10 Thunderbolt II 2x30mm EDF BNF (Bind-N-Fly) Basic with SAFE Select technology
- 2x Brushless motors Outrunner 8800Kv
- 2x 30mm EDF
- 2x Brushless ECS
- 1x Receiver Spektrum
- Servos
- Illustrated instructions manuals (downloadable below)
Requires
- 5+channel w/DSMX/DSM2 technology
- 2 Cell 7.4V or 3 Cell 11.1V 450–850mAh 30+C LiPo with IC2® Connector
- 2-3 Cell Li-Po Battery Charger
Note:Â Spektrum IC2 connectors and charge leads ARE NOT compatible with EC2 connectors
Exclusives Technologies
This UMXâ„¢ A-10 is equipped with exclusive Spektrumâ„¢ AS3X®, SAFE® Select and telemetry technologies. AS3X works behind the scenes to smooth out the effects of wind and turbulence to deliver a locked-in feel that makes it seem like you’re flying a much larger airplane. Optional-use SAFE Select offers pitch and bank angle limits along with automatic self-leveling that can be turned on and off at the flip of a switch to make this the easiest to fly Warthog ever! It will also provide real-time flight battery voltage and other telemetry data to Spektrum AirWareâ„¢ equipped transmitters (including the DX6e and 8e, DX6 G2/G3 and 8 G2, the DX9, the NX6, 8 and 10, the iX12, iX20 and others).Â
Higher Performance
The factory-installed twin brushless power systems feature larger diameter 30mm fans with more powerful 2S and 3S-compatible outrunner motors. This upgraded power system setup delivers higher performance than the 28mm fans and 2S-compatible motors installed in previous UMX™ models to offer unmatched speed and vertical performance, plus longer-than-average EDF flight times when using the recommended 450–850mAh 30+C LiPo batteries with an IC2® connector.
More Durable
The fully-molded and strengthened airframe includes a carbon fiber reinforced fuselage and nose. The result is a more durable model that looks great and is still lightweight to deliver the best possible flight experience!
Gear Options
You can use the included fixed landing gear with steerable nose wheel to taxi, take off and land on smooth surfaces. Or you can leave the landing gear off for more speed and vertical performance plus easy over hand launches and landings on grass.
Fully-factored assembly
The A-10 Thunderbolt II Twin 30mm EDF arrives 100% factory-assembled and ready to fly right out of the box! It’s equipped with industry-leading Spektrum& 2.4GHz technology that binds to your 5+ channel DSMX®/DSM2® equipped transmitter so you can be flying within minutes of opening the box.Â
Data sheet
| Type of kit: | BNF |
| Wingspan (mm): | 562mm / 22.12in |
| Length (mm): | 516mm / 20.31in |
| Flying weight (gr) | 192g / 6.8oz |
| Wing Loading: | 83.7sq in / 5.40 sq dm |
| CG (Center of Gravity) | Check manual |
| Servos | included |
| EDF Diameter Class (mm): | 2 x 30 |
| Power System | Brushless 8800Kv |
| No. of Magnet Poles: | 8 |
| Turns/min/Volt (Kv): | 8800 |
| Motor Type: | Out-Runner |
| Electronic Speed Control | Spektrum |
| Battery Type | LiPo-Accu |
| Battery Cells: | 2s – 7,4v, 3s – 11.1v |
| Battery Capacity (mAh) | 850 mAh |
| Connection: | IC-2 |
| Surfaces | Ailerons, Elevator, Rudder |
| Landing Gear | Fixed landing gear |
| Material | EPO Foam |
| Build time | 15 minutes |
| Required Radio | 5 channels minimum |
| Recommended pilot skill level | Beginner, Intermediate |
