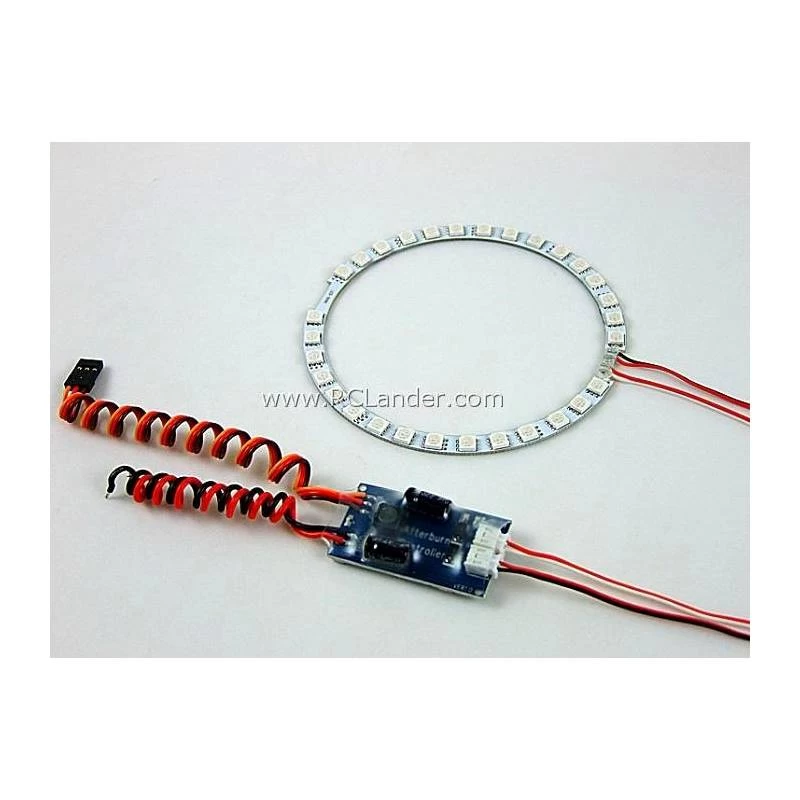

Dynamic Afterburner LED Ring 3 Colours For 90mm EDF

Dynamic Afterburner LED ring 3 colours for 90mm EDF

Specification:

• Input Voltage：12v~42v
• Afterburn Maximum Current：140mA
• Controller Size：45x25x10mm (LxWxH)
• Afterburn Inner Dia: 90mm
• Afterburn Outer Dia: 104mm
• Weight：28g

Features:

• Breakthrough Afterburn jet effect, color change from blue to yellow to red, At the same time, the brightness of afterburn responds to throttle channel.
• With ultra-wide input voltage from 12V~42V.
• Safe power on with the Battery Polarity Reversal Protection function. If the input polarity is not correct, the controller will not be damaged.

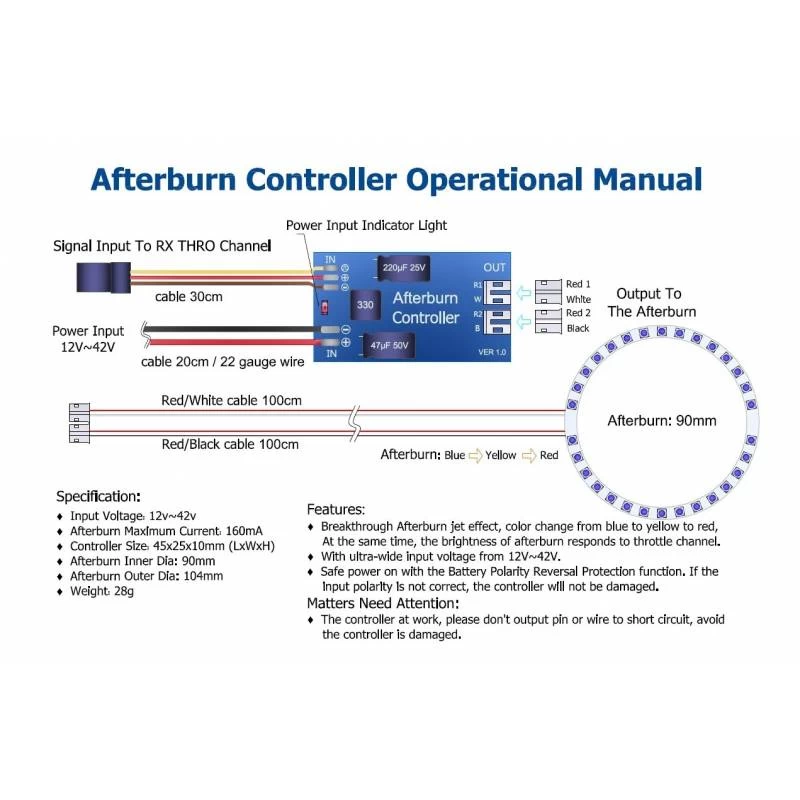

Note: You can use a Y cable to plug the afterburner controler in the same plug as the ESC. You can also mix with the throttle channel a different channel and use it to better control afterburner varariations.

Note : During operation please don’t output pin or wire to short circuit to avoid any damage.
