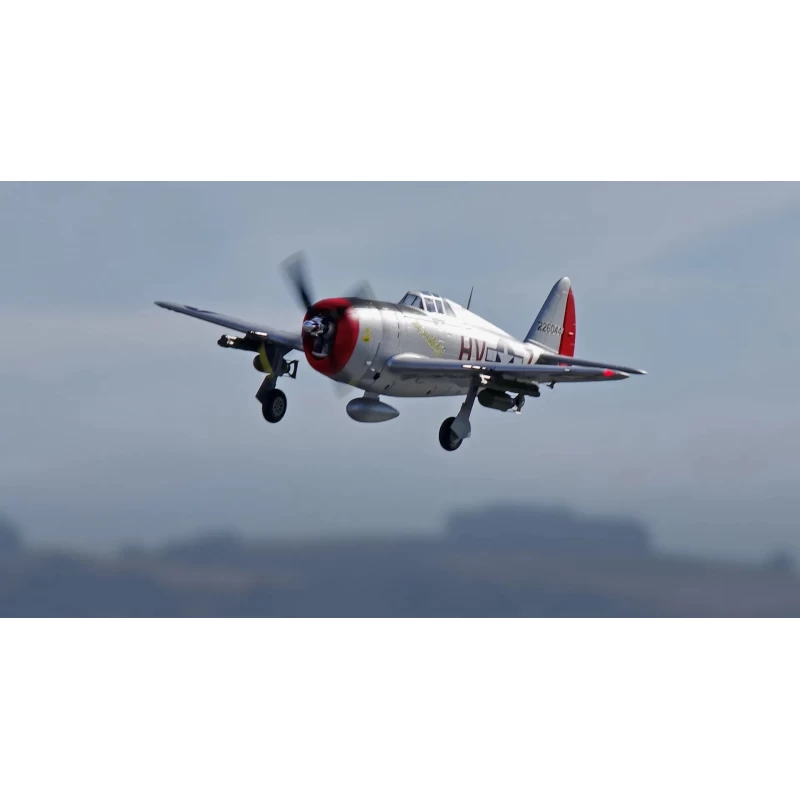

Arrows P-47 Thunderbolt 980mm PNP
Description
The Republic P-47 Thunderbolt was a World War II era fighter aircraft that served with the United States Army Air Forces. Weighing in at eight tonnes when fully loaded, it was one of the heaviest fighters and ground attack aircraft of its era. Carrying M8 rocket pods and a 2500lb payload of bombs, it was highly effective in ground attack missions.

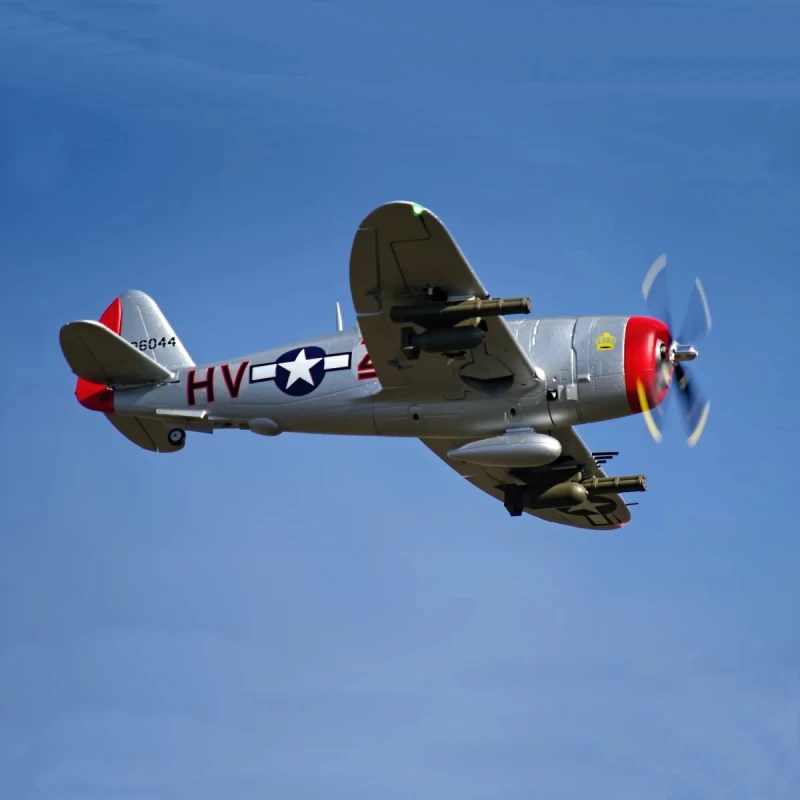

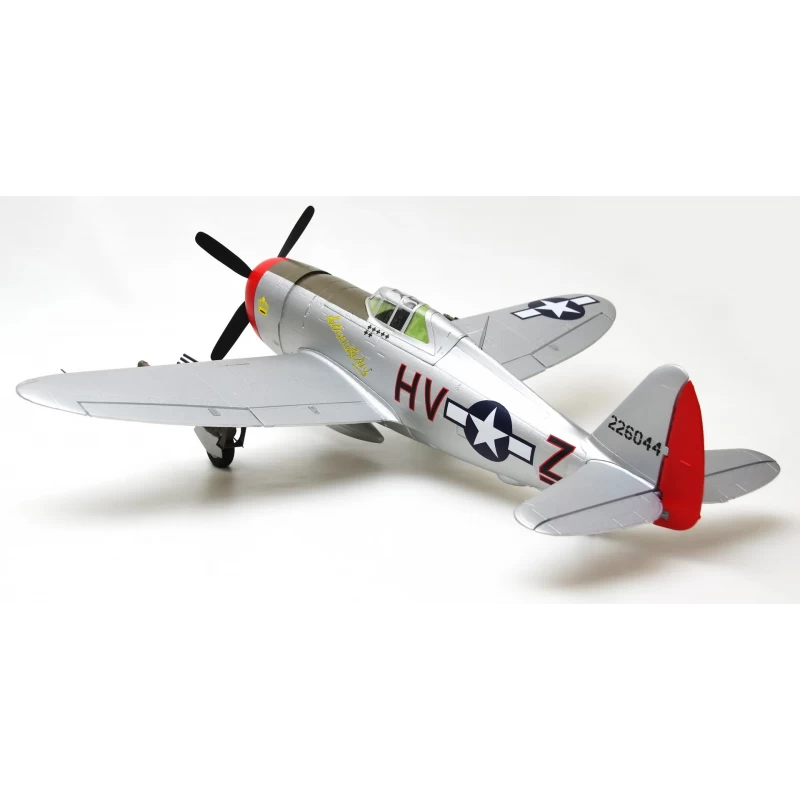

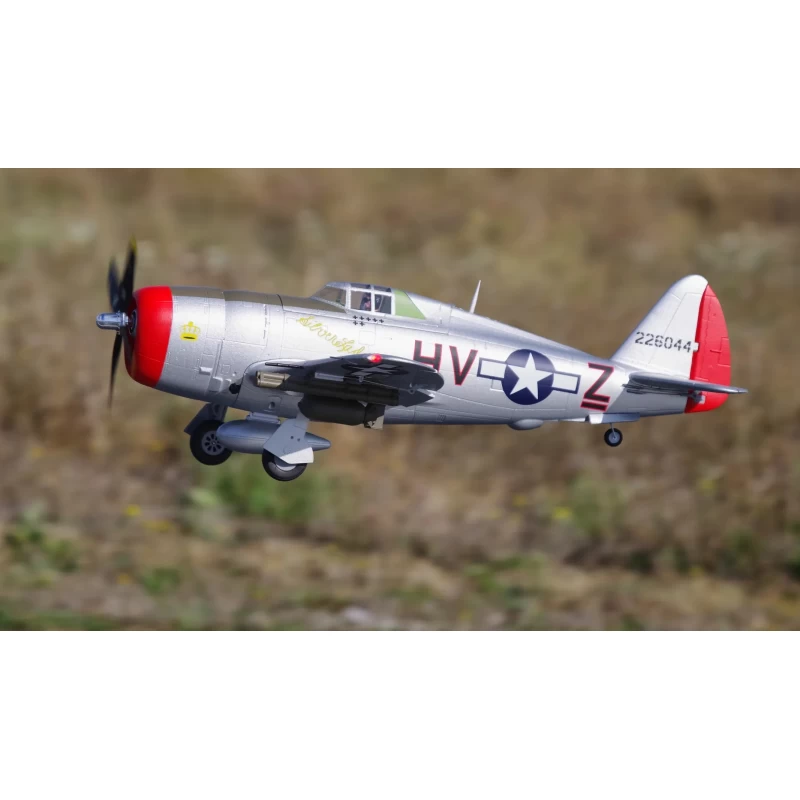

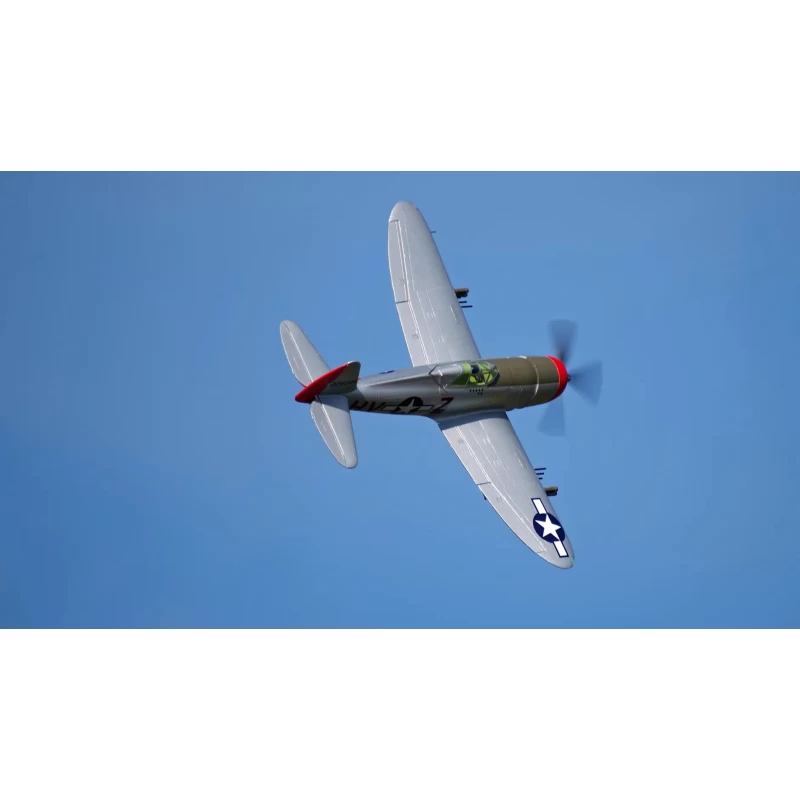

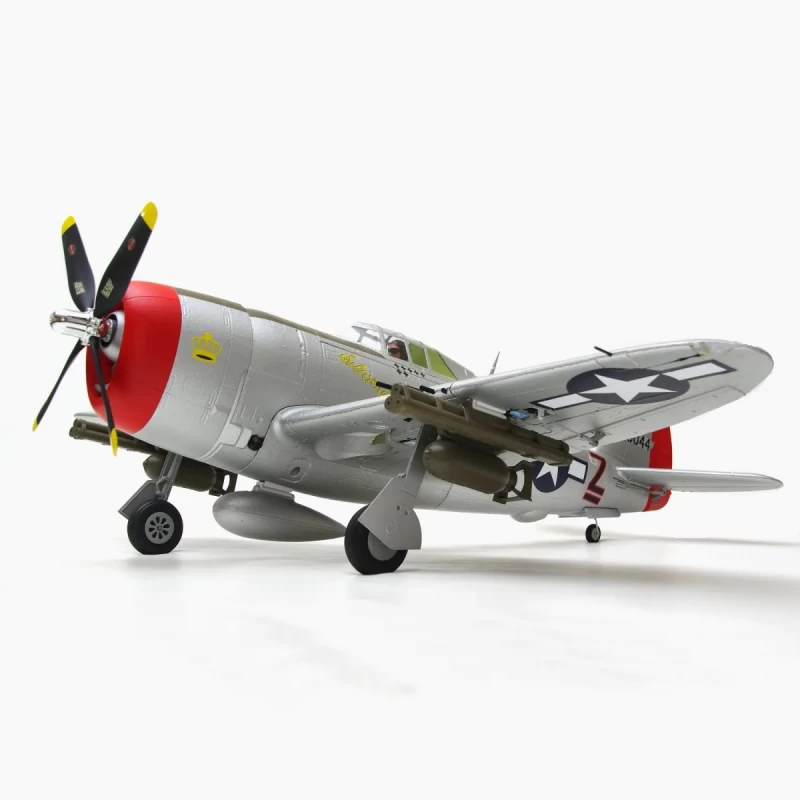

Featuring retractable landing gear, a realistic four bladed propeller, removable auxiliary fuel tank, bombs and rocket pods- the ARROWS P-47 faithfully replicates its full-sized World War II counterpart.
Features

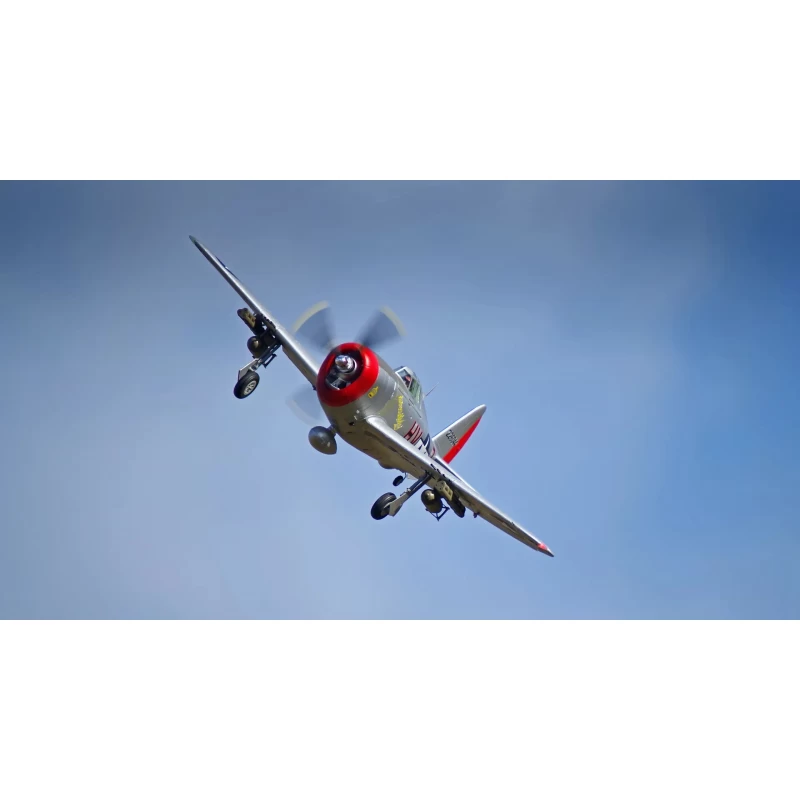

- Realistic and functional flaps and landing gear

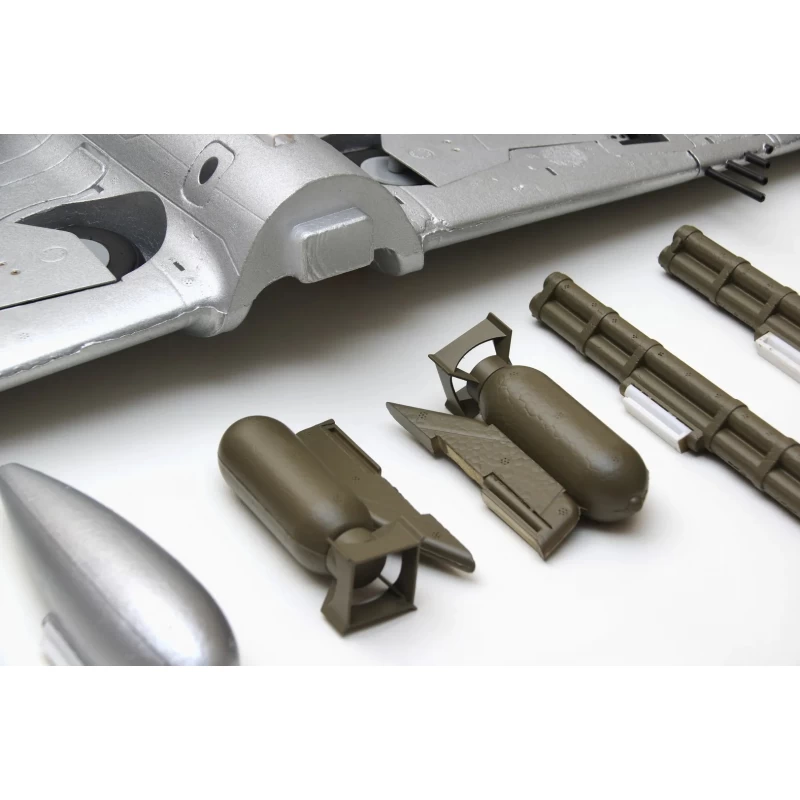

- Removable auxiliary fuel tank, bombs and rocket pods

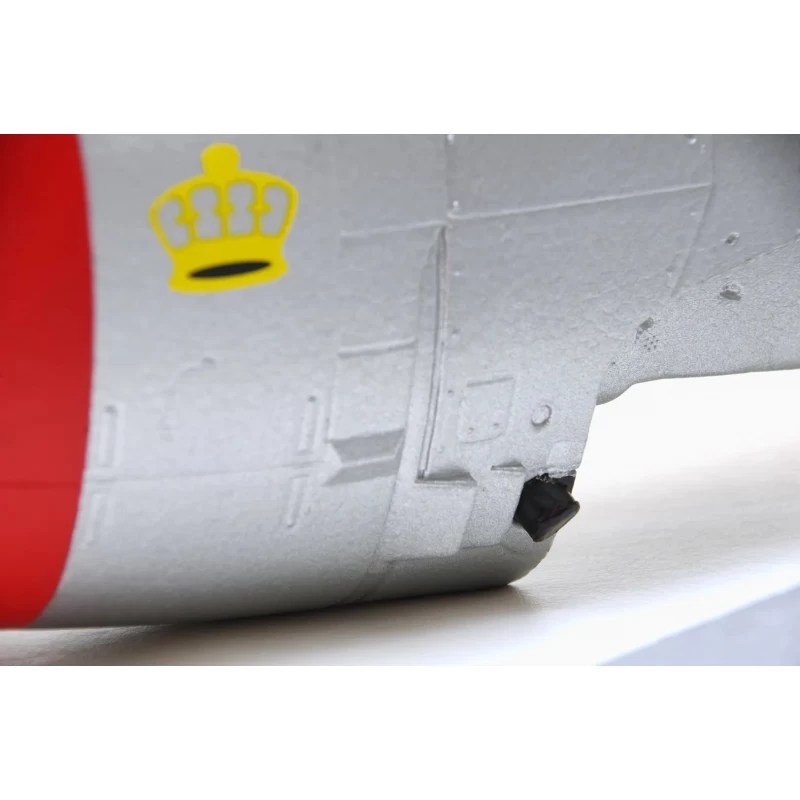

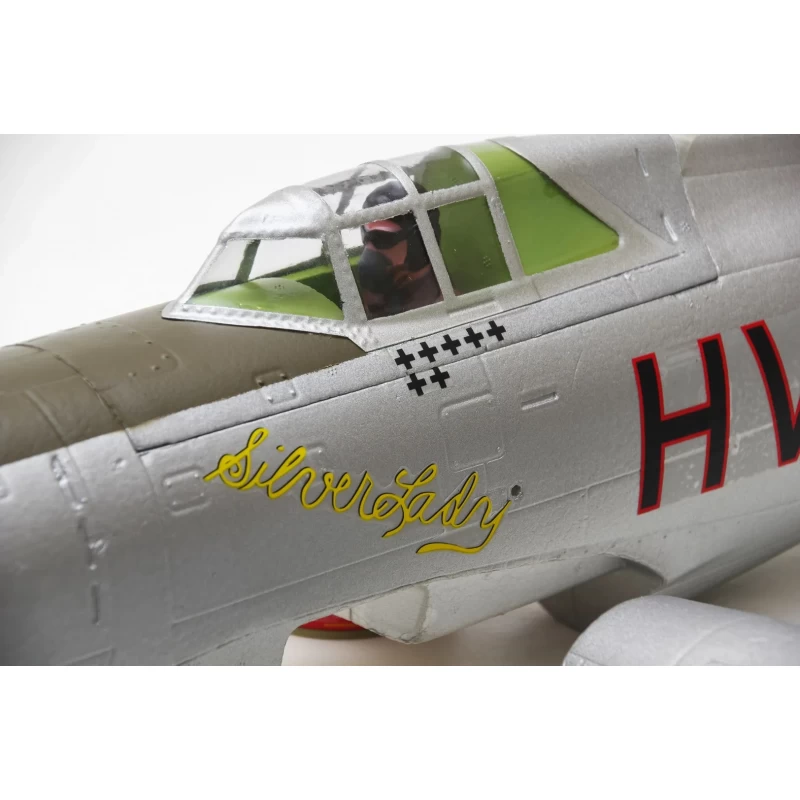

- Panel lines, LED lights and a painted pilot figure
- Simple connector minimizes the need to connect multiple servo leads
- Oversized battery compartment for a multitude of battery sizes and capacities

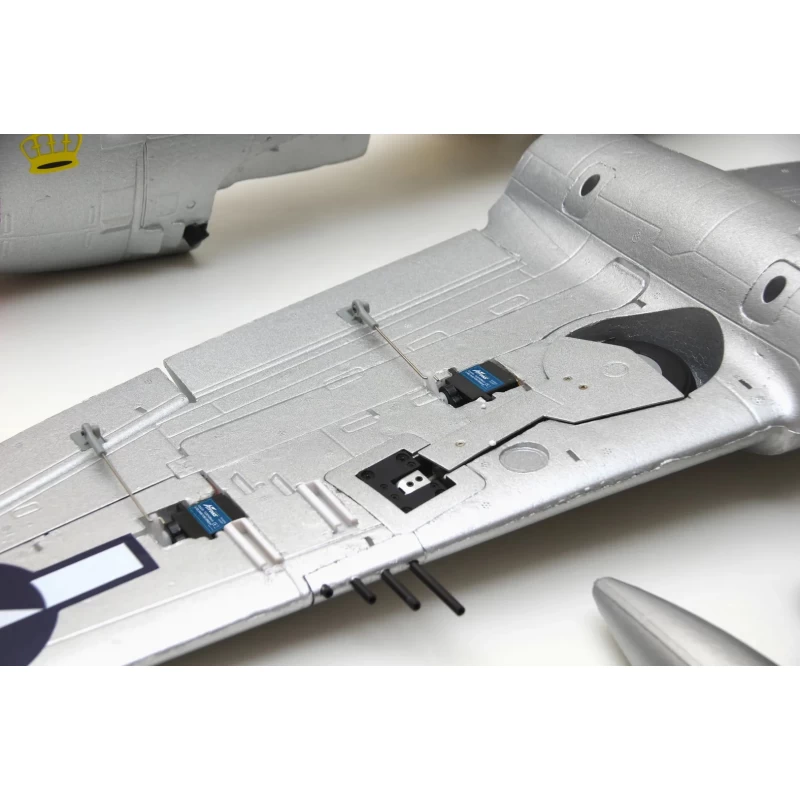

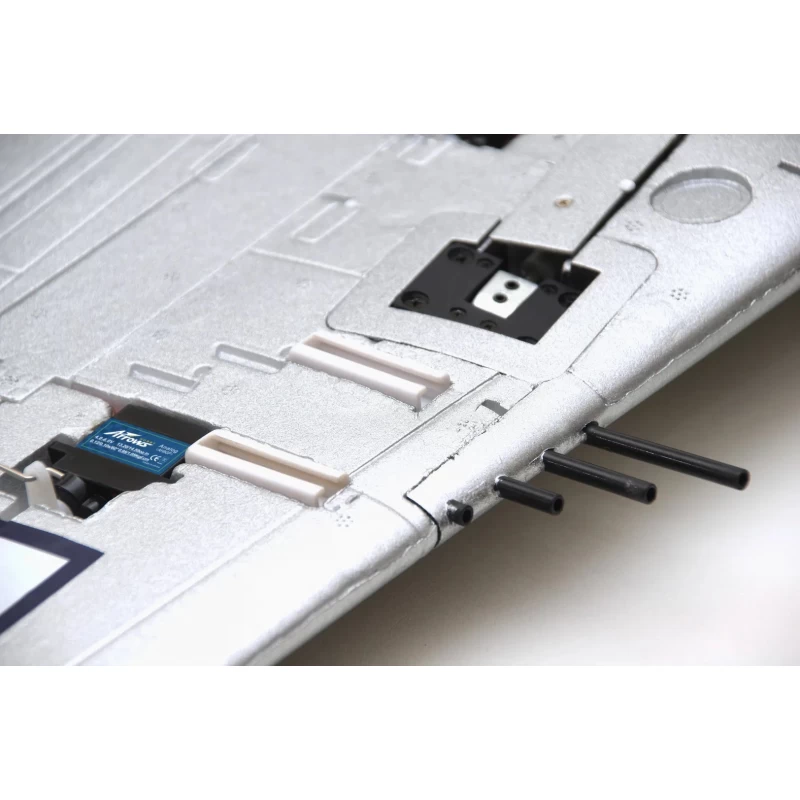

- Preinstalled ball-linked servo horns, increased control precision
Technical Specifications
- Wingspan: 980mm / 38.6in
- Length: 865mm / 34in
- Flying weight: around 1100g
- Ailerons: Yes
- Elevator: Yes
- Rudder: Yes
- Flaps: Yes
- Recommended Radio: 6 channel
- Recommended environment: Outdoor
- Flying time: nc

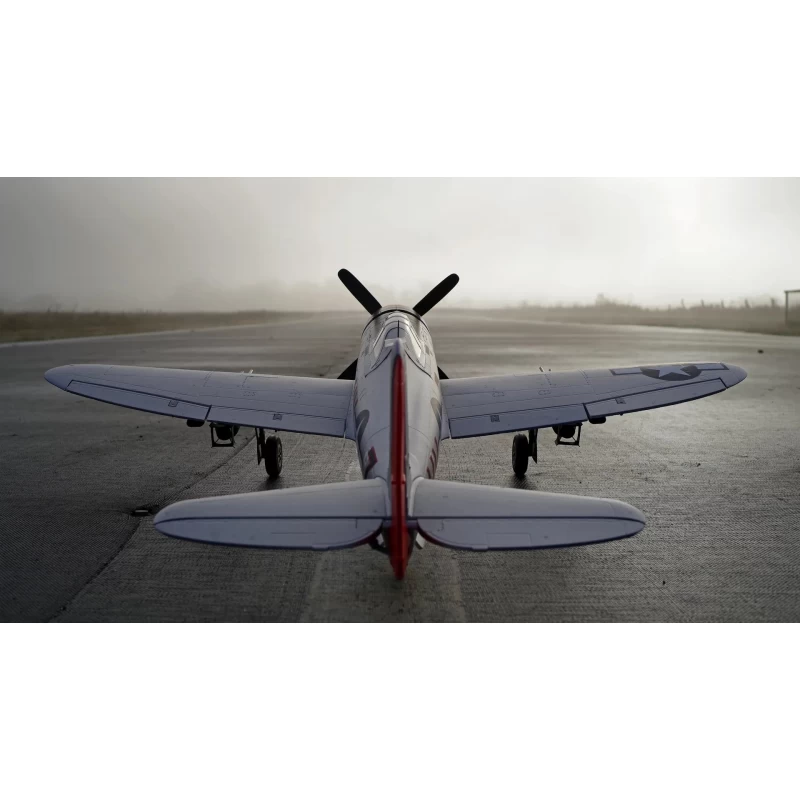

- Takeoff/Landing: runway or short grass
- Mounting duration: 1-2 hours
Content
- Arrows P-47 Thunderbolt 980mm PNP

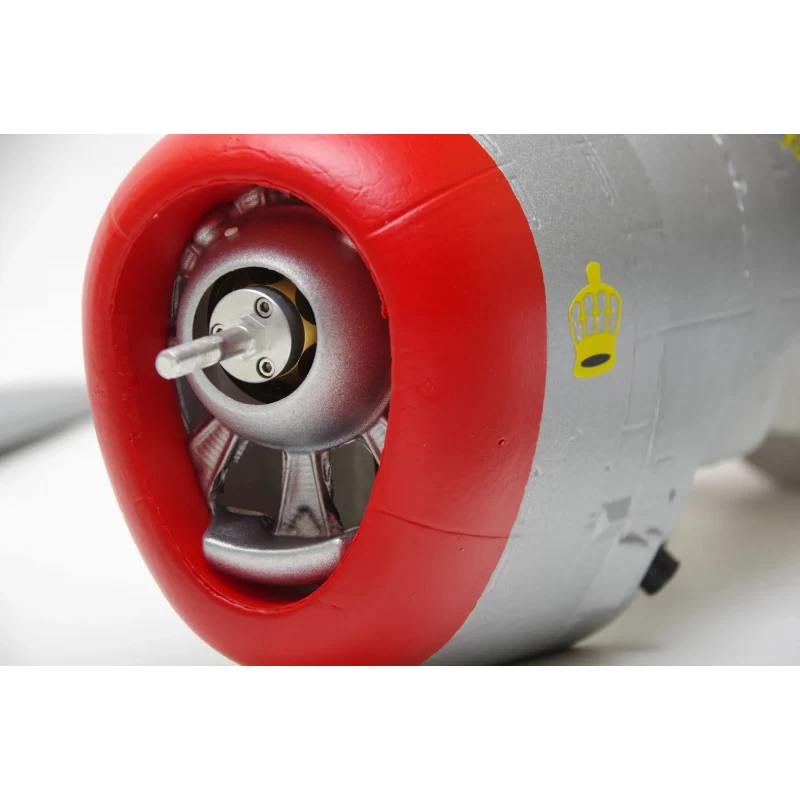

- Motor: Brushless Outrunner 3638-KV850
- ECS: 40A
- Servos: 6x9g

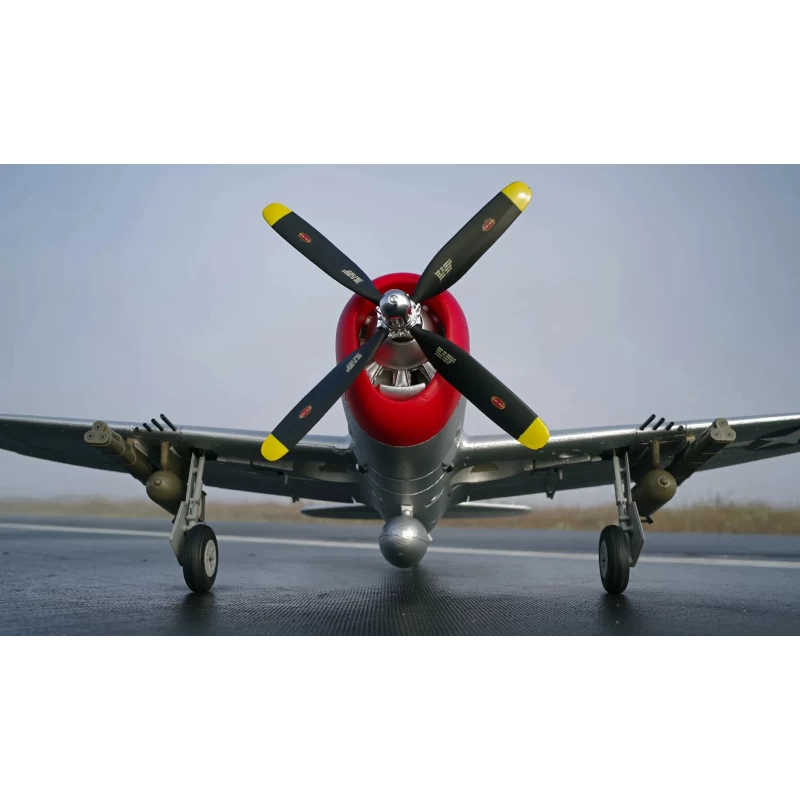

- Propeller: 10.5*8 4-blades
- Electronic retractable main gear
Required
- 6-Channel radio transmitter
- 6-Channel receiver
- 3-Cell 11.1V 2200mAh LiPo battery
- 3-Cell compatible battery charger
Data sheet
| Type of kit: | PNP |
| Wingspan (mm): | 980mm / 38.6in |
| Length (mm): | 865mm / 34in |
| Flying weight (gr) | around 1100g |
| CG (Center of Gravity) | Check manual |
| Servos | 6x 9 gr metal gear |
| Propeller | 10.5*8 4-blades |
| Power System | Brushless 3638-KV850 |
| Motor Type: | Out-Runner |
| Electronic Speed Control | 40A |
| Battery Type | LiPo-Accu |
| Battery Cells: | 3s – 11.1v |
| Battery Capacity (mAh) | 2.200 mAh |
| Surfaces | Ailerons, Elevator, Rudder, Flaps |
| Landing Gear | Retractable |
| Lights | Navigation lights |
| Material | EPO Foam |
| Build time | 1 hour, 2 heures |
| Required Radio | 6 channels minimum |
| Recommended pilot skill level | Beginner, Intermediate |
