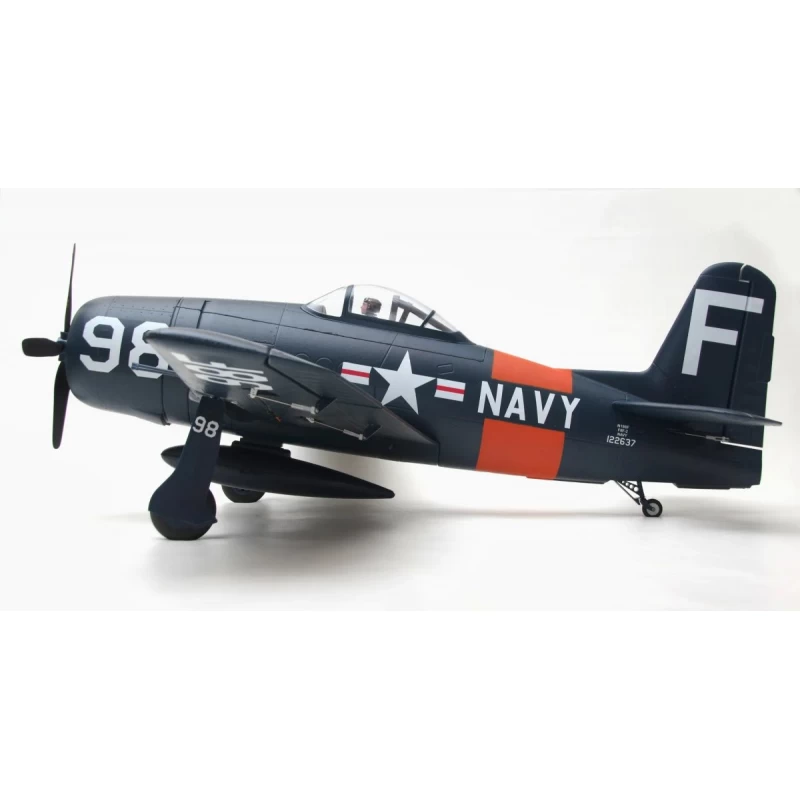

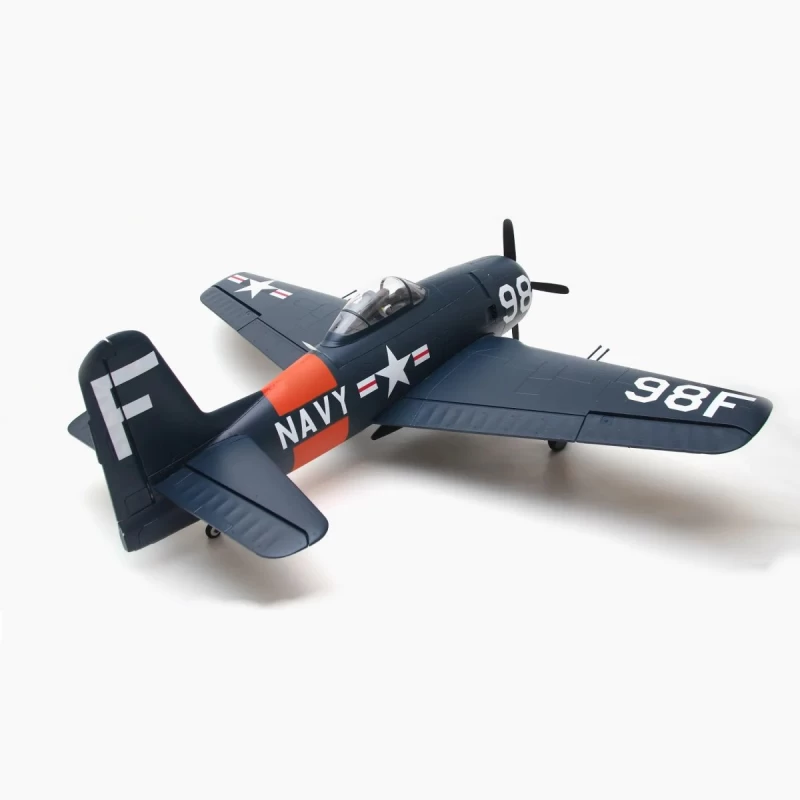

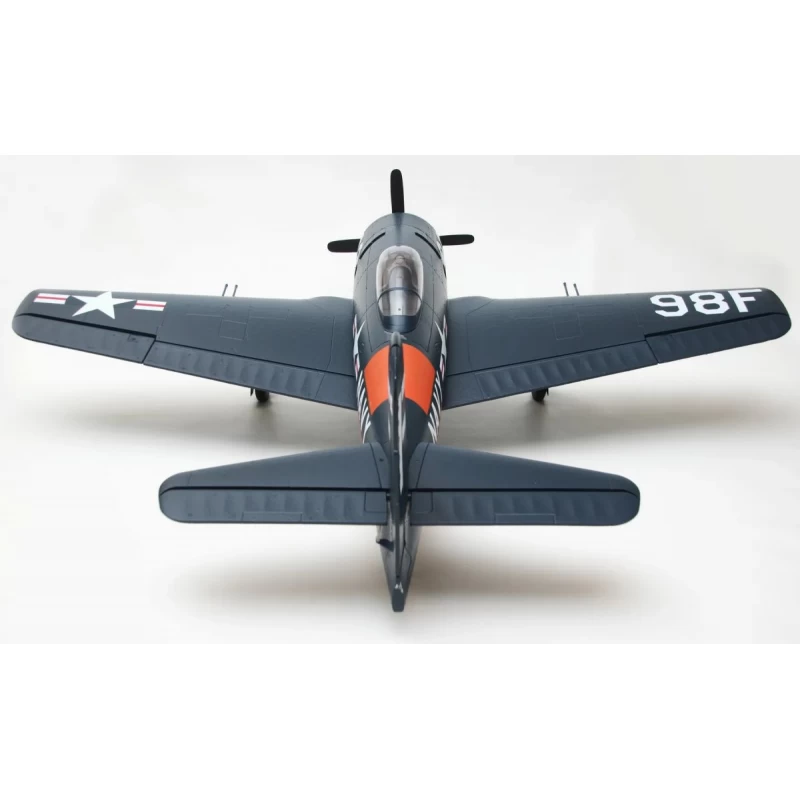

Arrows F8F Bearcat 1100mm PNP
Description

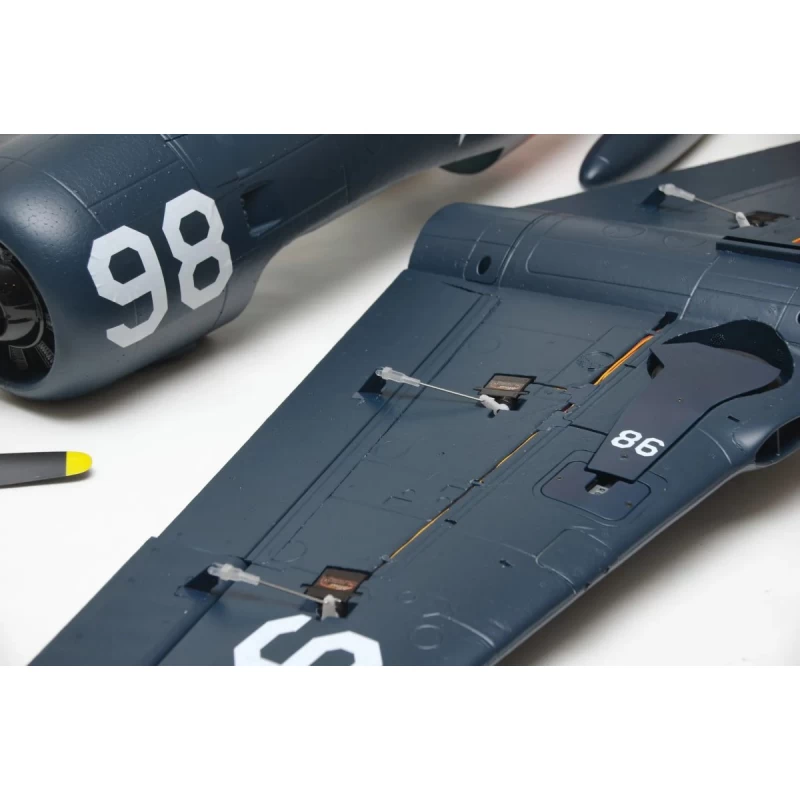

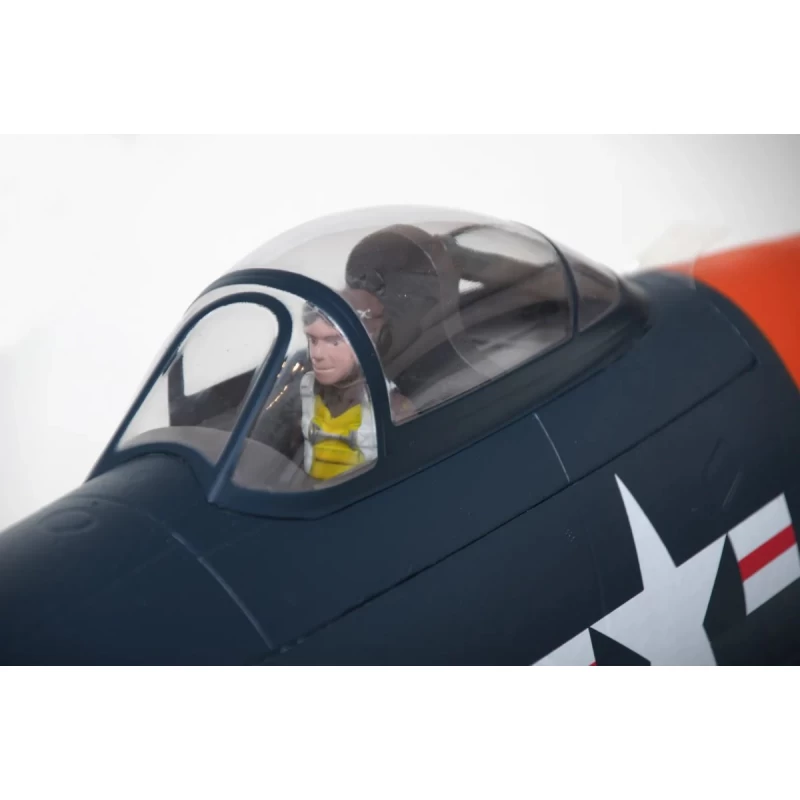

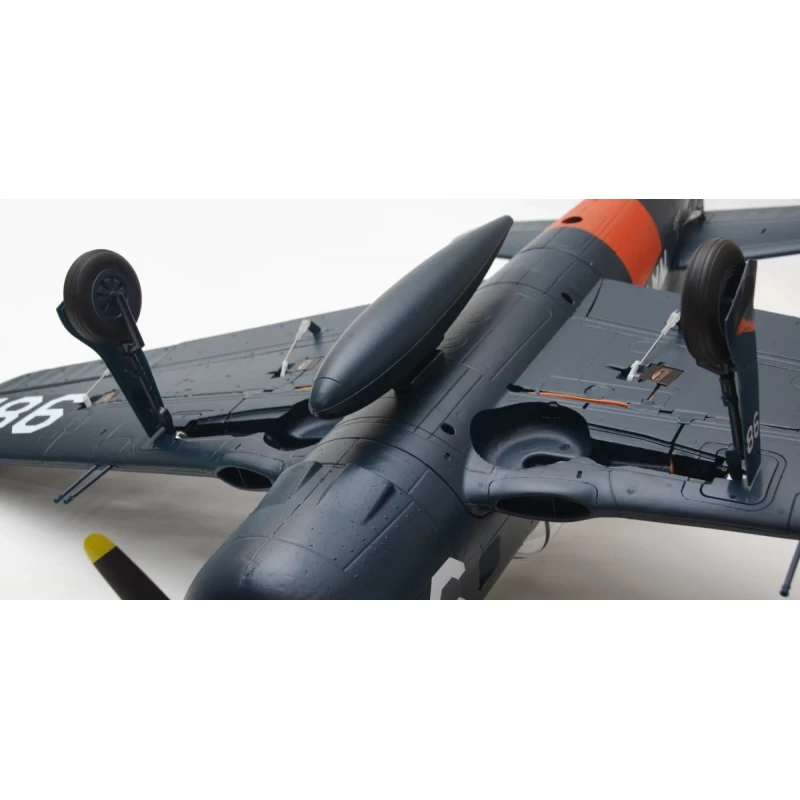

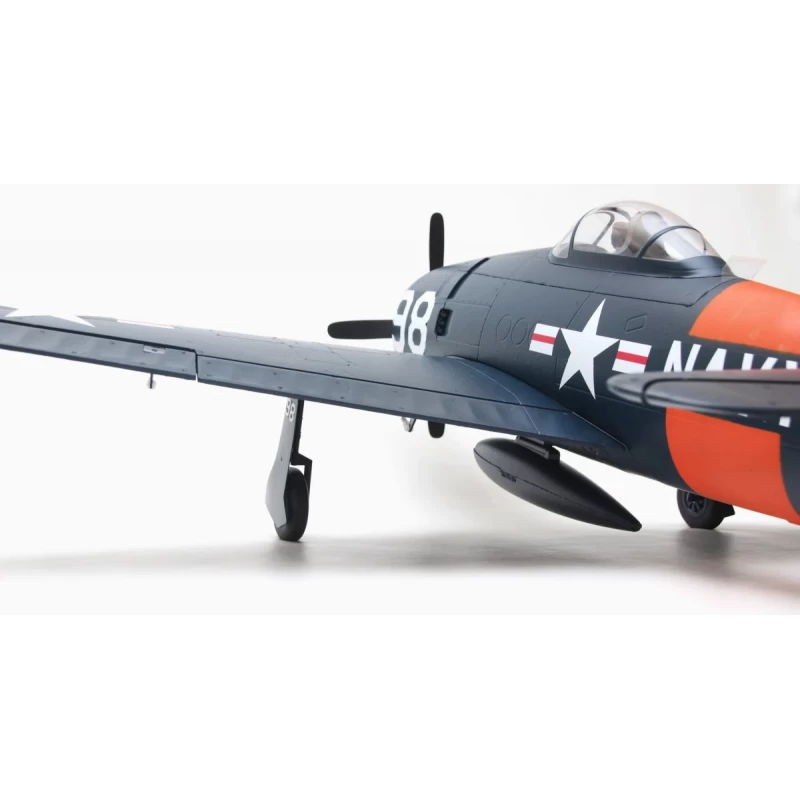

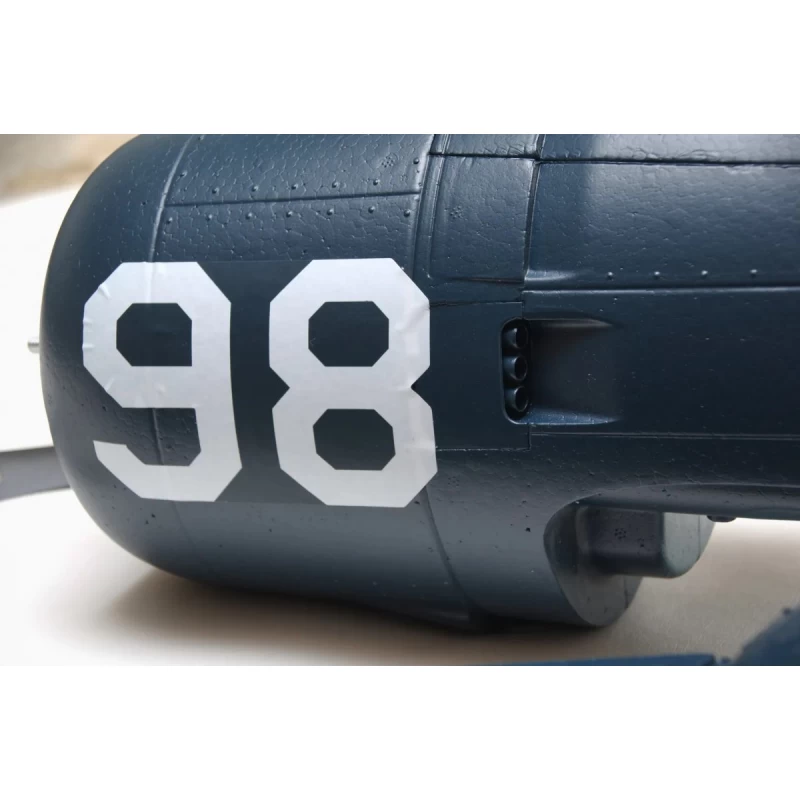

Arrows faithfully recreates the F8F in exceptional realism. Despite its compact size, the realistic landing gear, retracts, panel lines, functional flaps, pilot and auxiliary fuel tank were all replicated realistically. The preinstalled 40A ESC and 3536 850kV power system is adapted for scale and sport flight maneuvers. For scale lovers, the Bearcat awaits!
Shortly after the Battle of Midway, Jamie Thach (inventor of the Thach Weave combat tactic) and other pilots who had participated, met with Grumman personnel at Pearl Harbor to give input into a new carrier fighter design, specifically with maximum climb rate for interception. The resultant plane, the Bearcat, had the same engine as the F6F Hellcat, but was about 5 feet shorter. This, combined with a lighter airframe and a thinner wing, allowed the Bearcat a 50mph advantage over the Hellcat and a record setting climb rate. There is speculation that the testing of a captured German FW190 interceptor may have influenced the design. While arriving operationally in the summer of 1945 to the Pacific, the Bearcat was immediately busy being a Kamikaze Killer of the top rank.
After the war the Bearcat filled out 24 squadrons and outperformed the early jet fighters, until being replaced by the F9F Panther and F2H Banshee during the Korean War. Subsequently the Bearcats went on to serve with the French in Vietnam as well as Thailand.
In civilian use, surplus Bearcats dominated the Reno Air Races for decades. A highly modified F8F named Rare Bear set the world speed record for propeller driven aircraft at 528mph in 1989.
Features
- High power-to-weight ratio
- Realistic scale details
- Simple yet robust airframe
- Easy assembly
- No glue required
- Environmentally friendly water-based paint
Technical Specifications
- Wingspan: 1100mm / 43.3in
- Length: 882mm / 34.7in
- Flying weight: around 1133g
- Ailerons: Yes
- Elevator: Yes
- Rudder: Yes
- Flaps: Yes
- Recommended Radio: 6 channel
- Recommended environment: Outdoor
- Flying time: nc
- Takeoff/Landing: runway or short grass
- Mounting duration: 1-2 hours

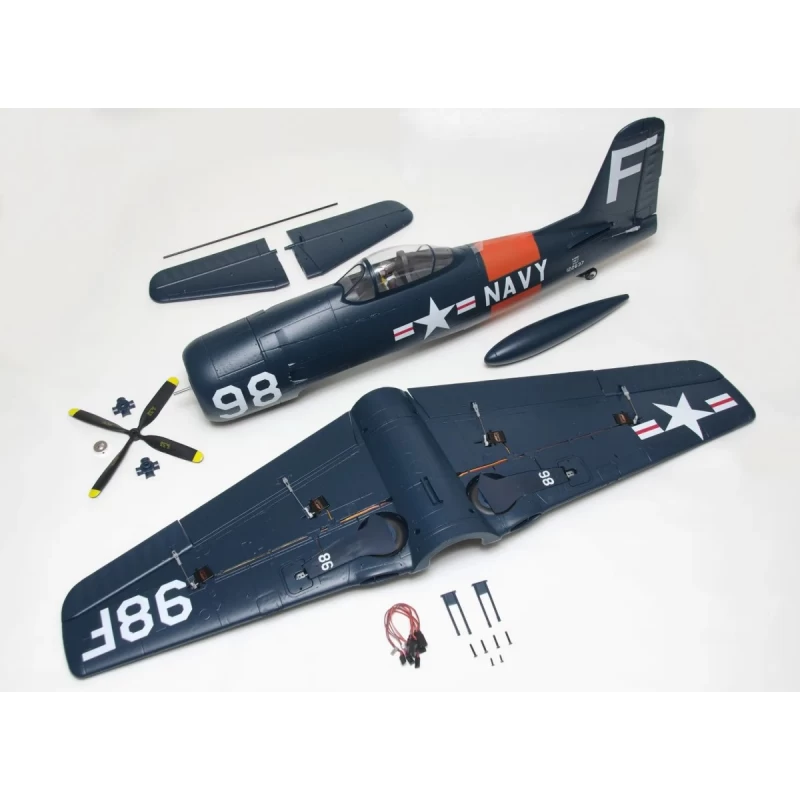

Content
- Arrows F8F Bearcat 1100mm PNP
- Motor: Brushless Outrunner 3638-KV850
- ECS: 40A (XT60 connector)
- Servos: 6x9g

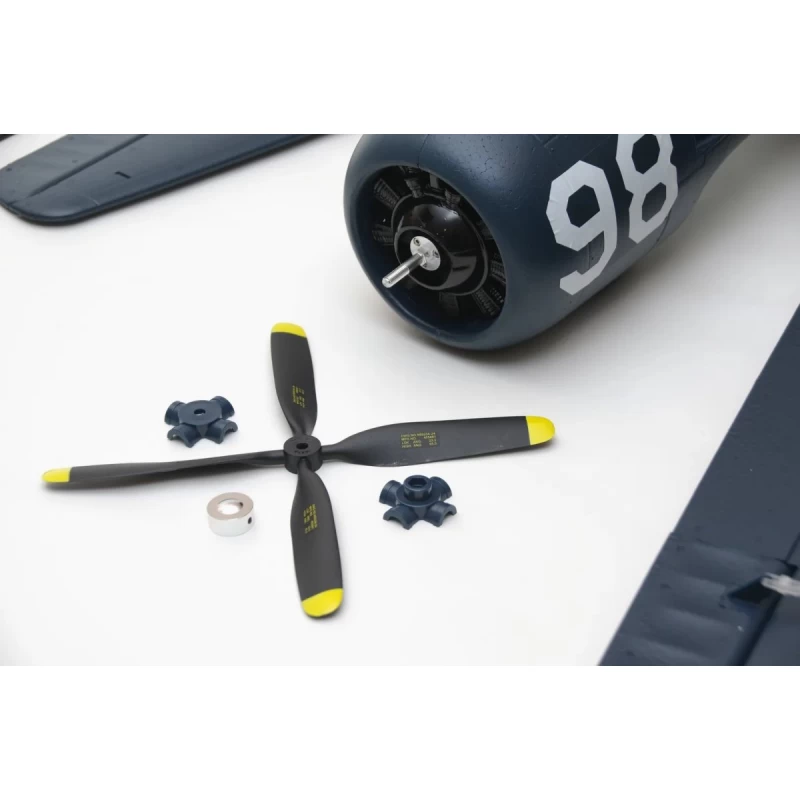

- Propeller: 11*7.5 4-blades

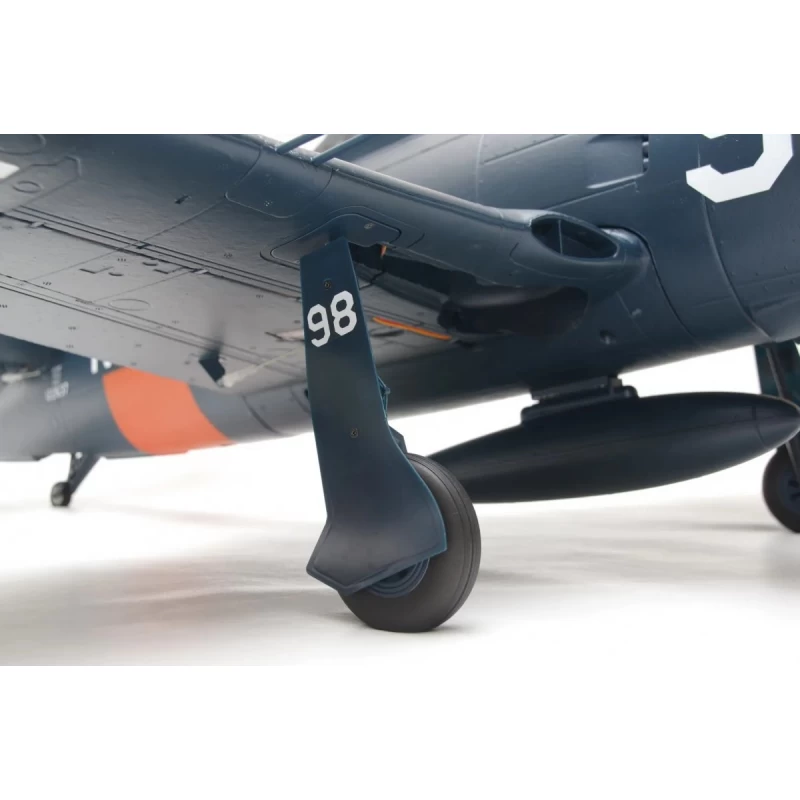

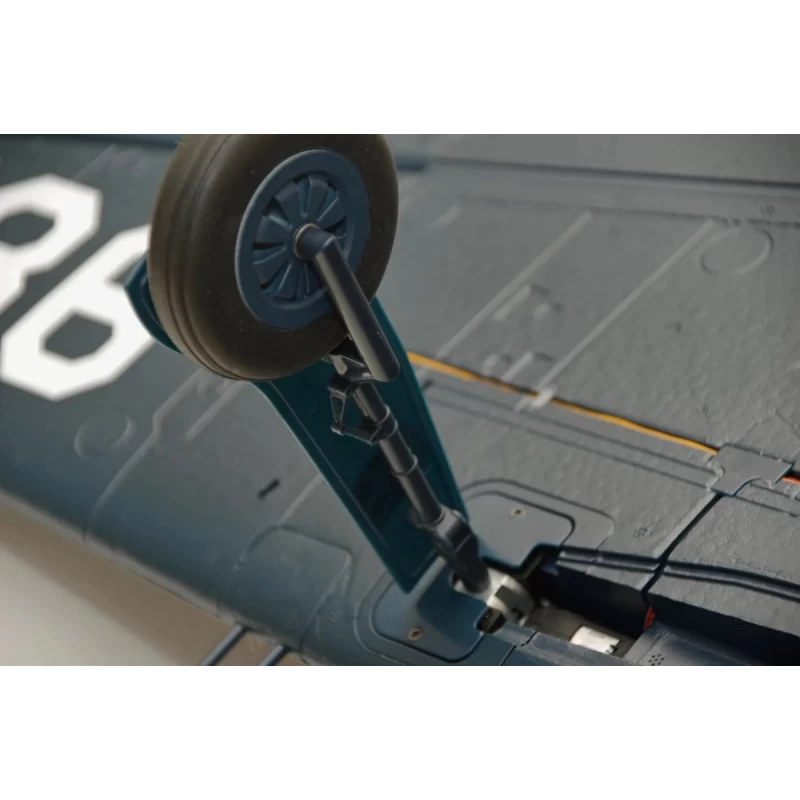

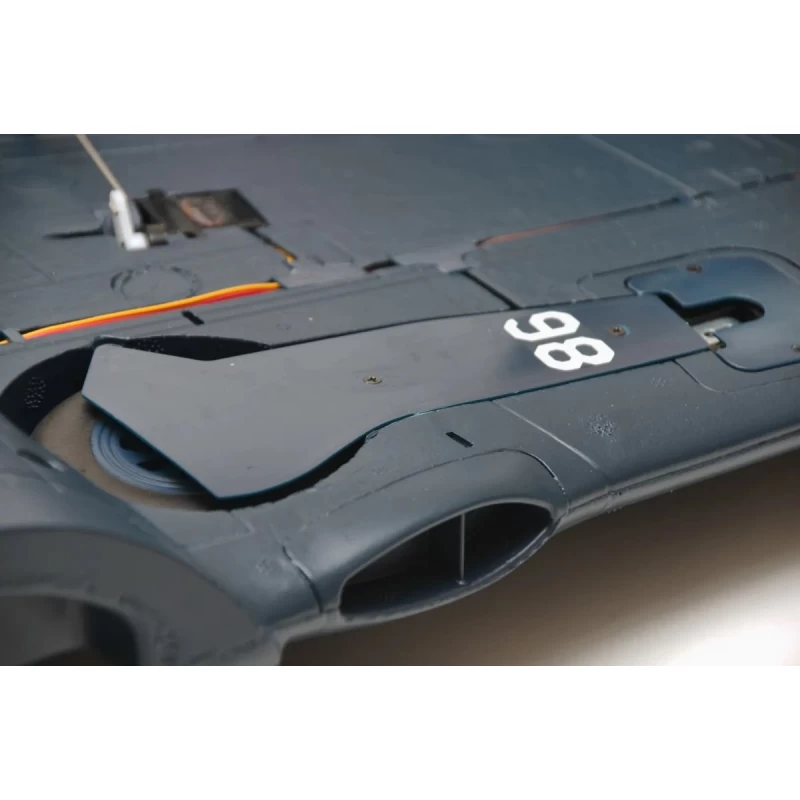

- Electronic retractable main gear
Required
- 6-Channel radio transmitter
- 6-Channel receiver
- 3-Cell 11.1V 2200mAh LiPo battery (XT60 connector)
- 3-Cell compatible battery charger
Data sheet
| Type of kit: | PNP |
| Wingspan (mm): | 1100mm / 43.3in |
| Length (mm): | 882mm / 34.7in |
| Flying weight (gr) | around 1133g |
| CG (Center of Gravity) | Check manual |
| Servos | 6x 9 gr metal gear |
| Propeller | 11*7.5 4-blades |
| Power System | Brushless 3638-KV850 |
| Motor Type: | Out-Runner |
| Electronic Speed Control | 40A |
| Battery Type | LiPo-Accu |
| Battery Cells: | 3s – 11.1v |
| Battery Capacity (mAh) | 2.200 mAh |
| Connection: | XT60 |
| Surfaces | Ailerons, Elevator, Rudder, Flaps |
| Landing Gear | Retractable |
| Material | EPO Foam |
| Build time | 1 hour, 2 heures |
| Required Radio | 6 channels minimum |
| Recommended pilot skill level | Intermediate |
